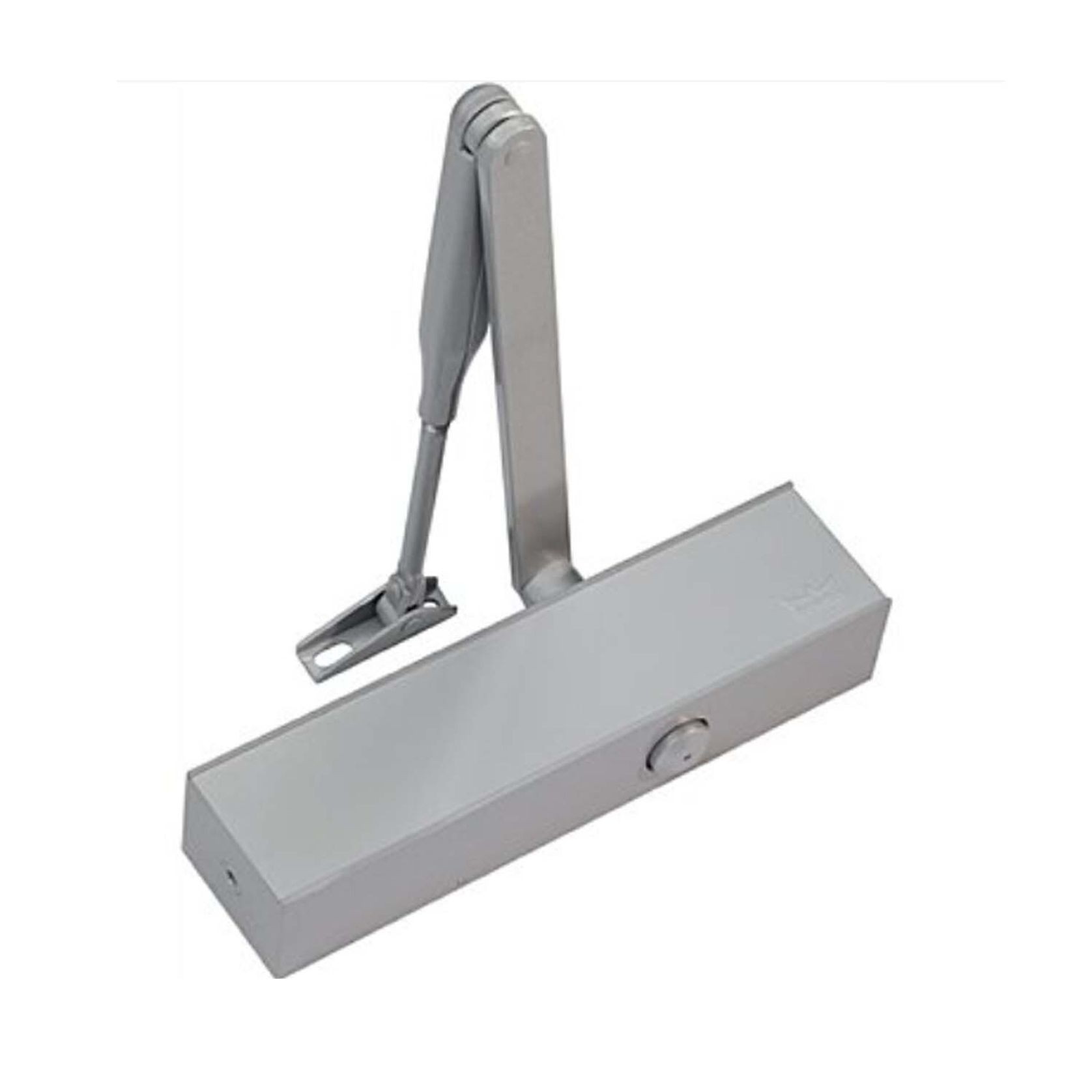

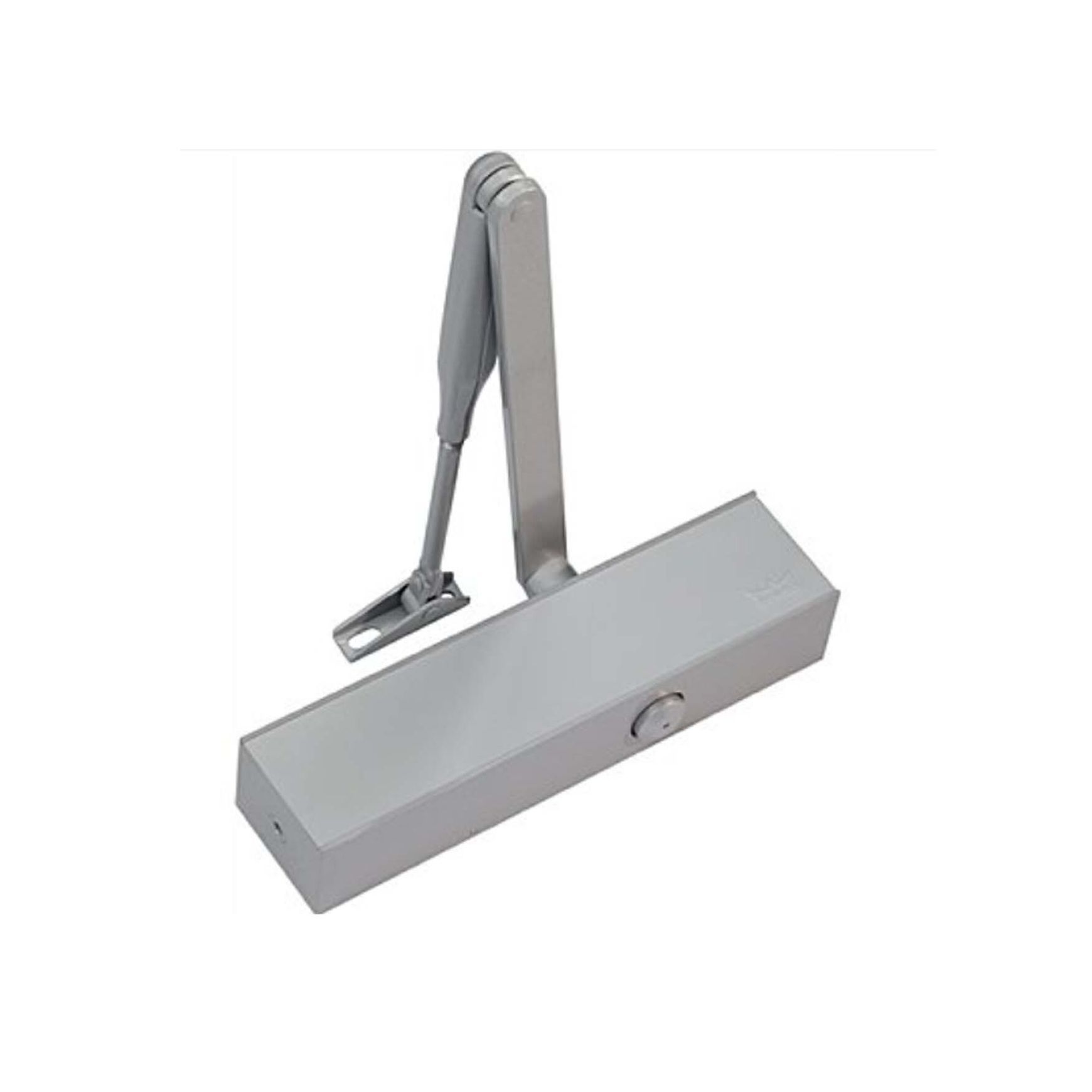

Dorma TS83 EN3-6 Door Closer
38030301
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
- Non-handed closer suitable for interior and external (outward and inward opening) doors and can be tailored to a specific door with simple adjustment
- Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm
- Backcheck is self-regulating or adjustable by valve and delayed action is also adjustable
Product Details
- Product
- Dorma TS83 EN3-6 Door Closer Fire Rated With Anti-Corrosive Arm Silver 38030301
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dorma
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
Dorma TS83 EN3-6 Door Closer 38030301 Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
- Non-handed closer suitable for interior and external (outward and inward opening) doors and can be tailored to a specific door with simple adjustment
- Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm
- Backcheck is self-regulating or adjustable by valve and delayed action is also adjustable
- Specs
Features:
- Suitable for fire doors
- Suitable for standard doors installation up to 1400 mm
- Regular door closer
- Ideal for commercial applications
- Overhead surface mounted door closer
- Adjustable latching action by valve
- Includes parallel arm bracket
- Parallel arm mounting doors up to 950 mm
- Flat-form arm assembly

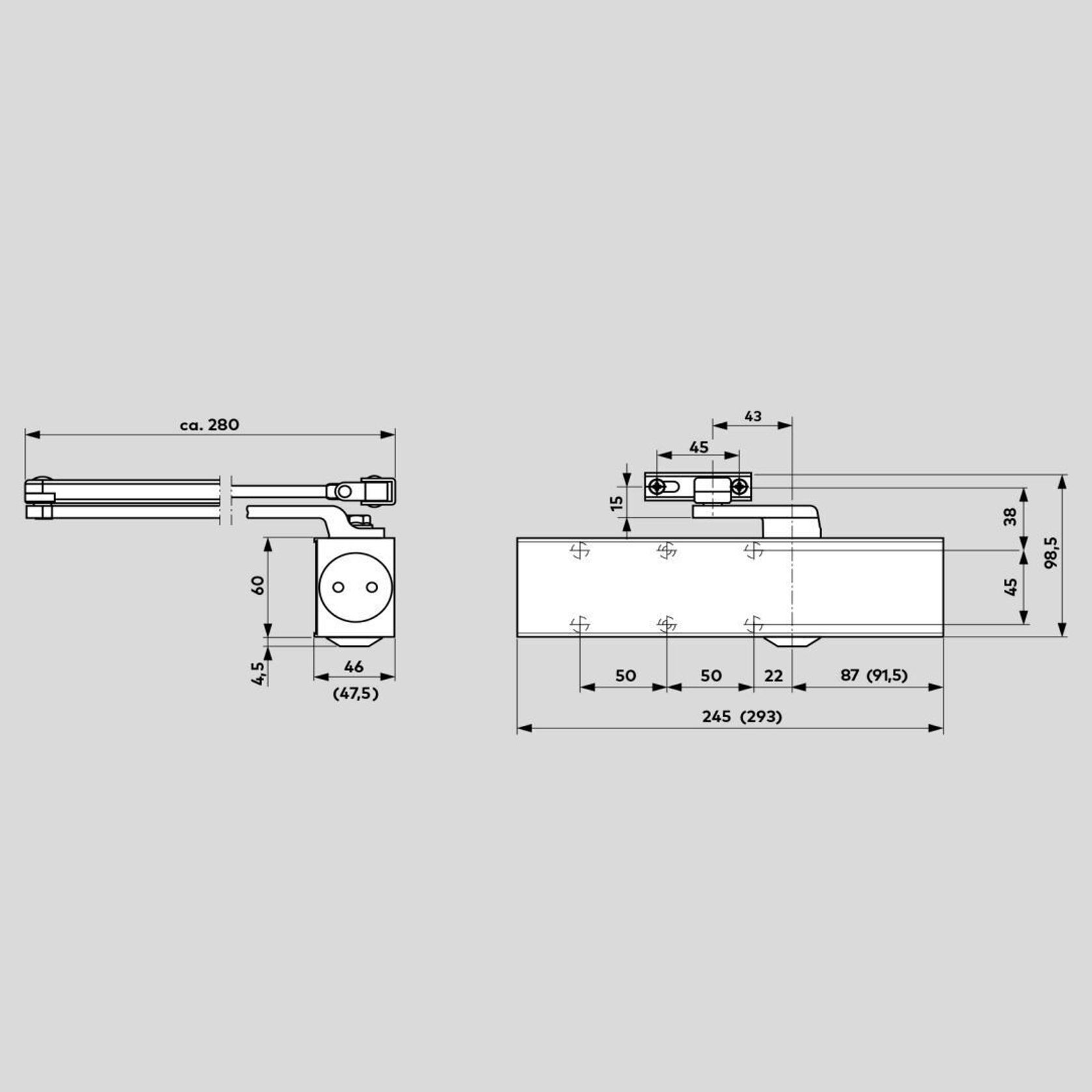

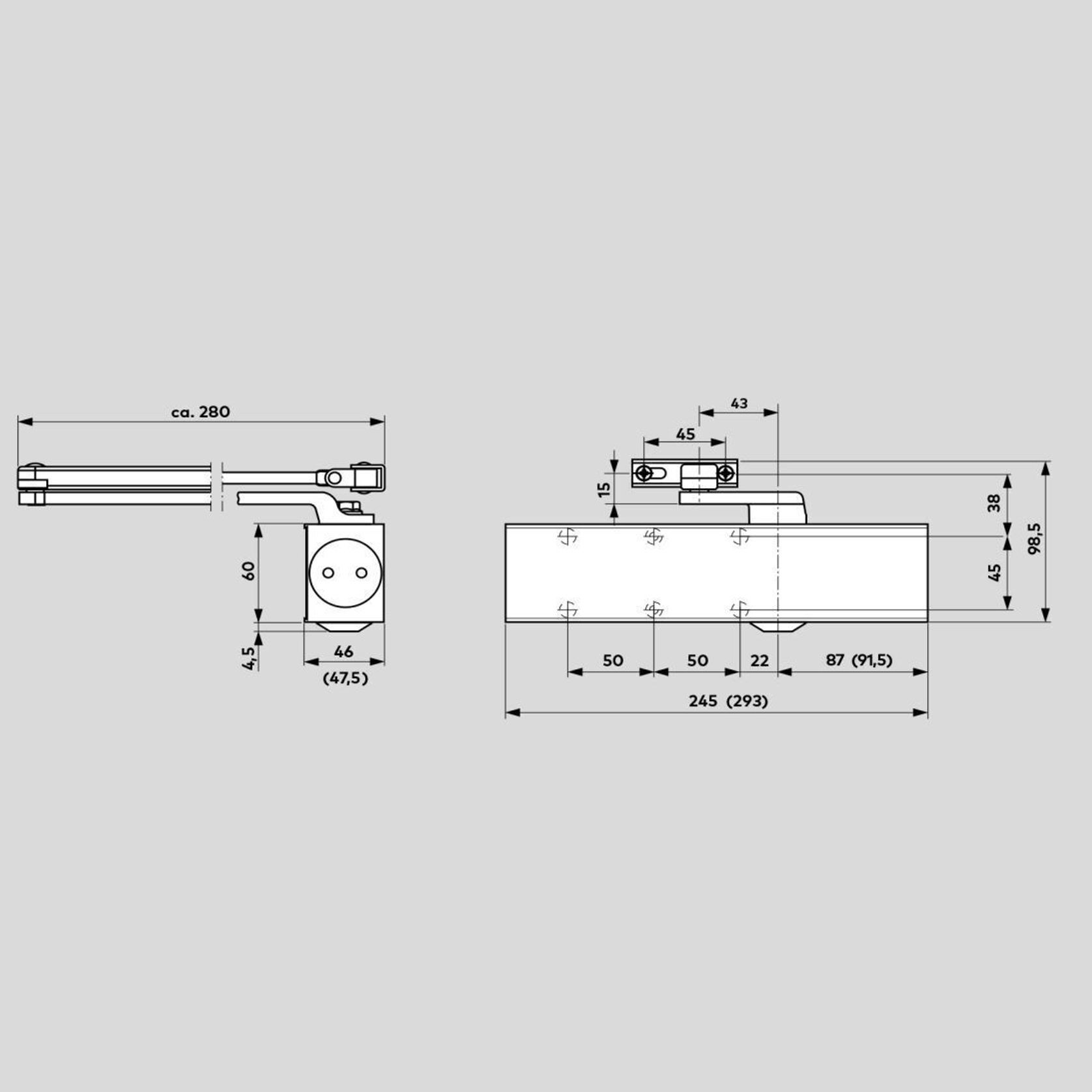

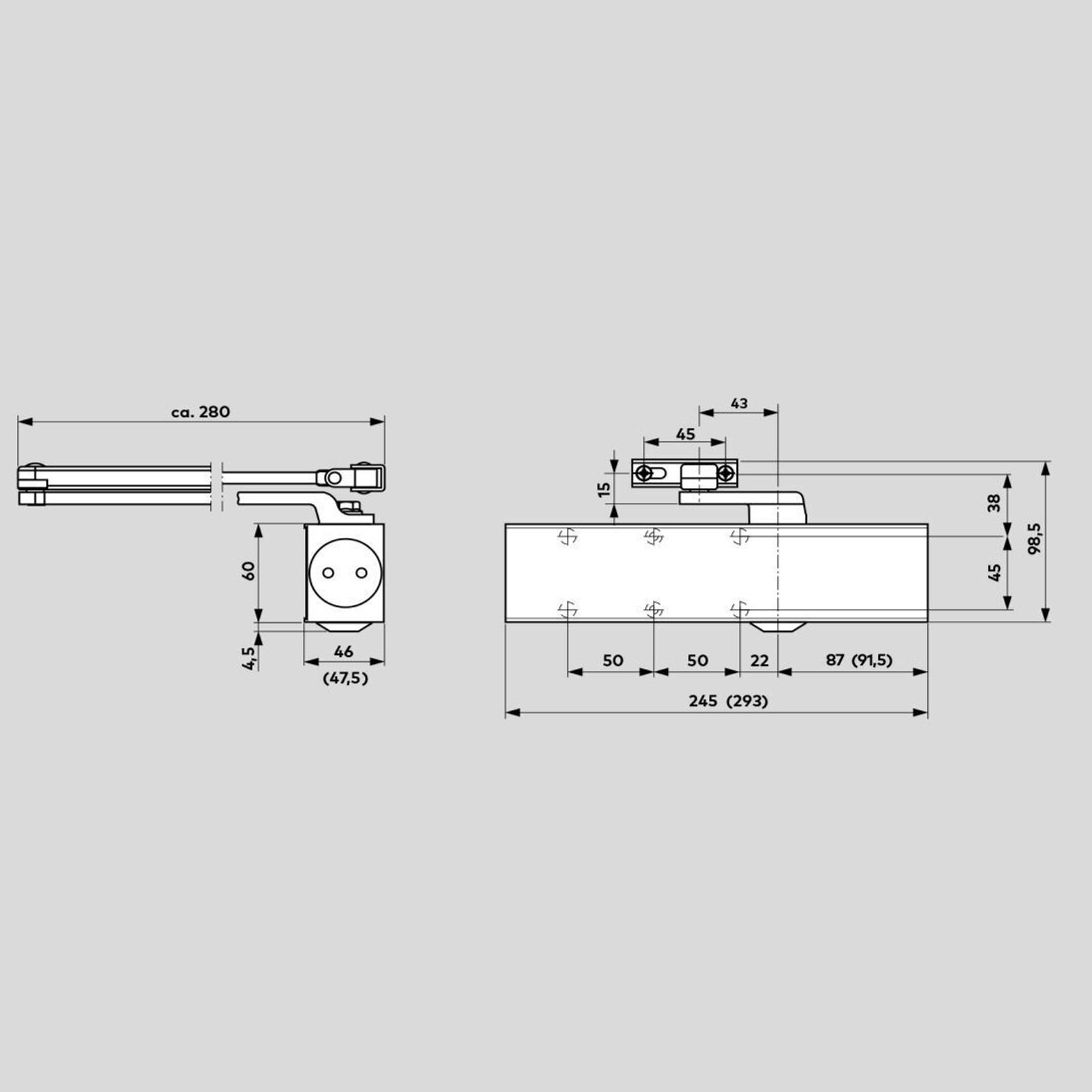

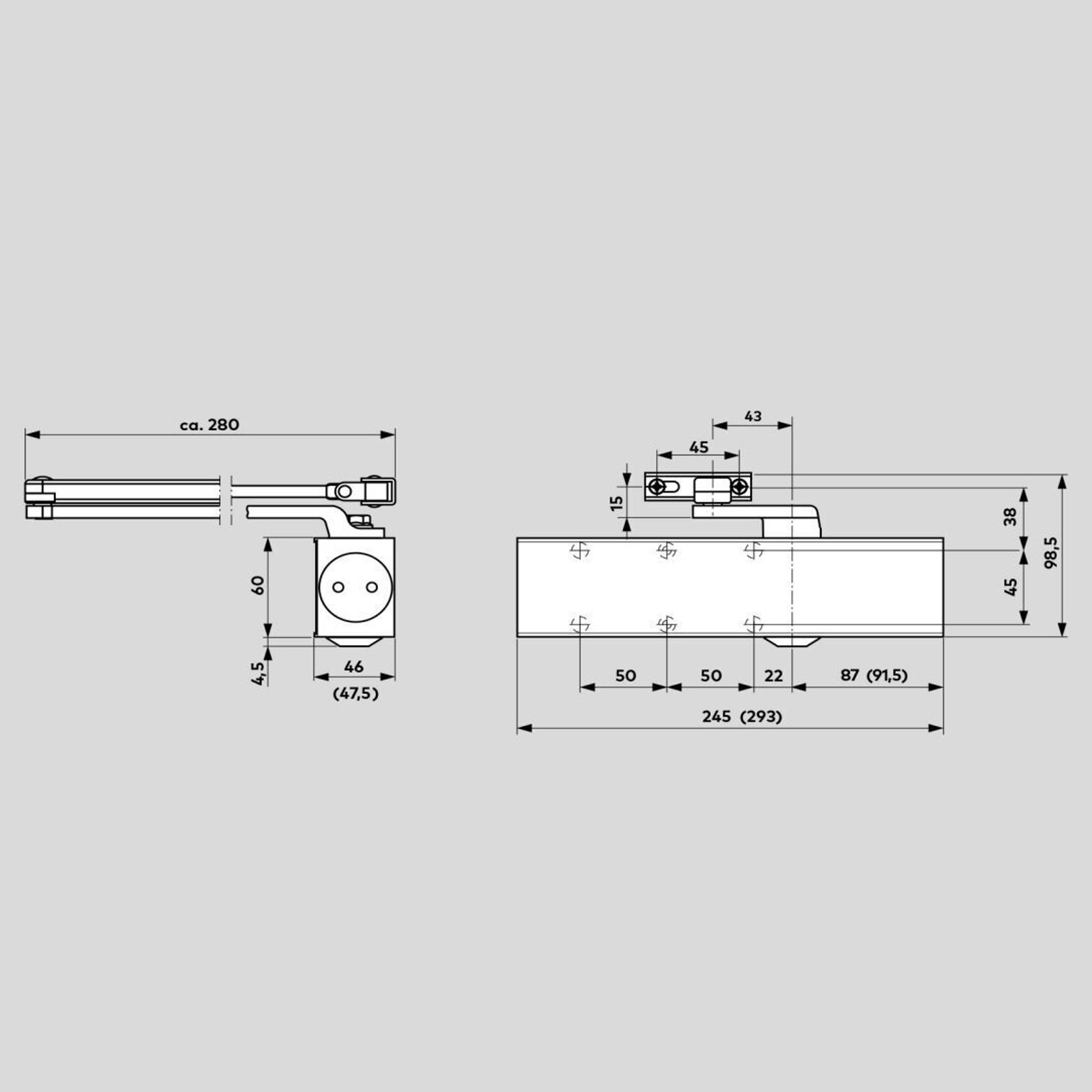

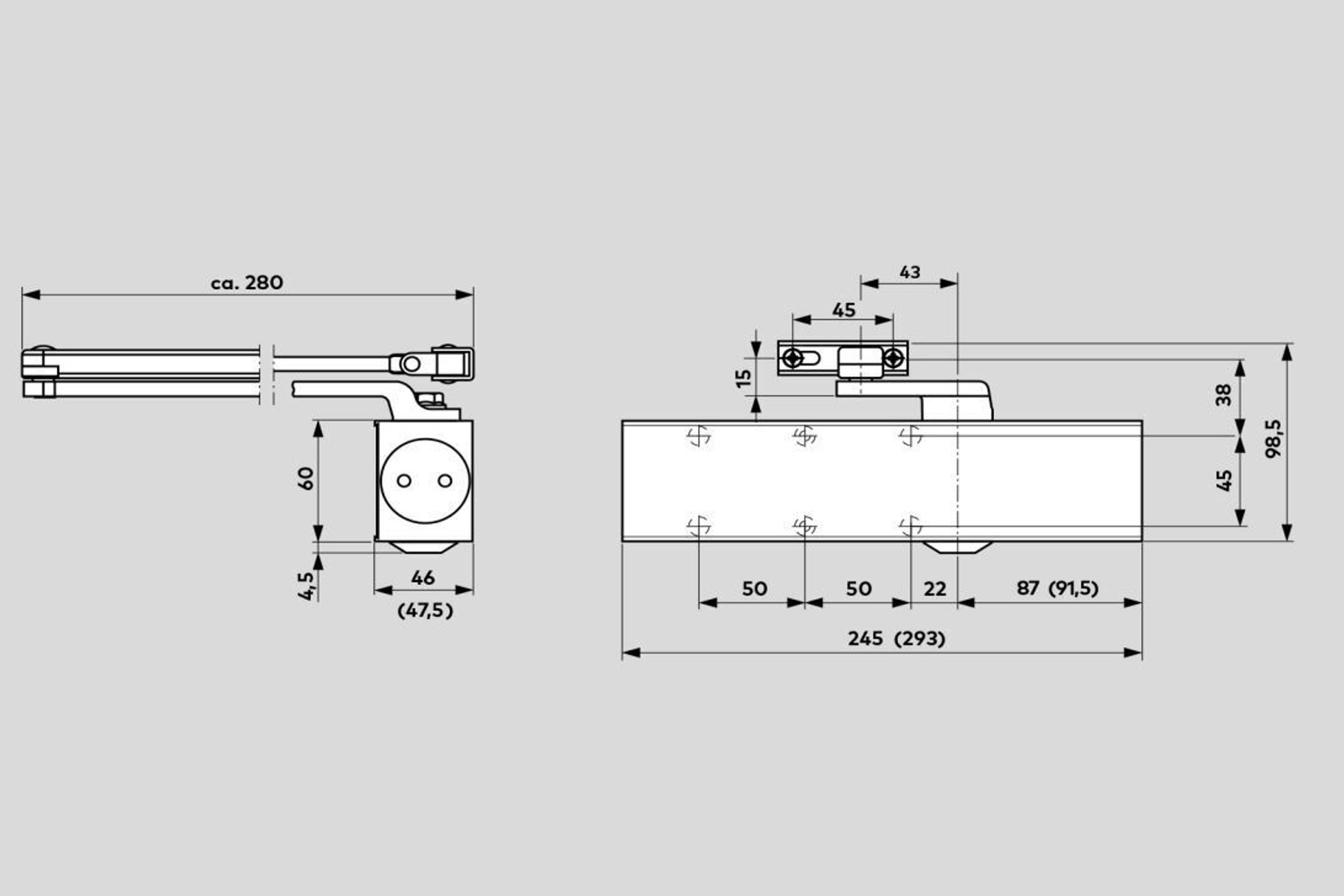

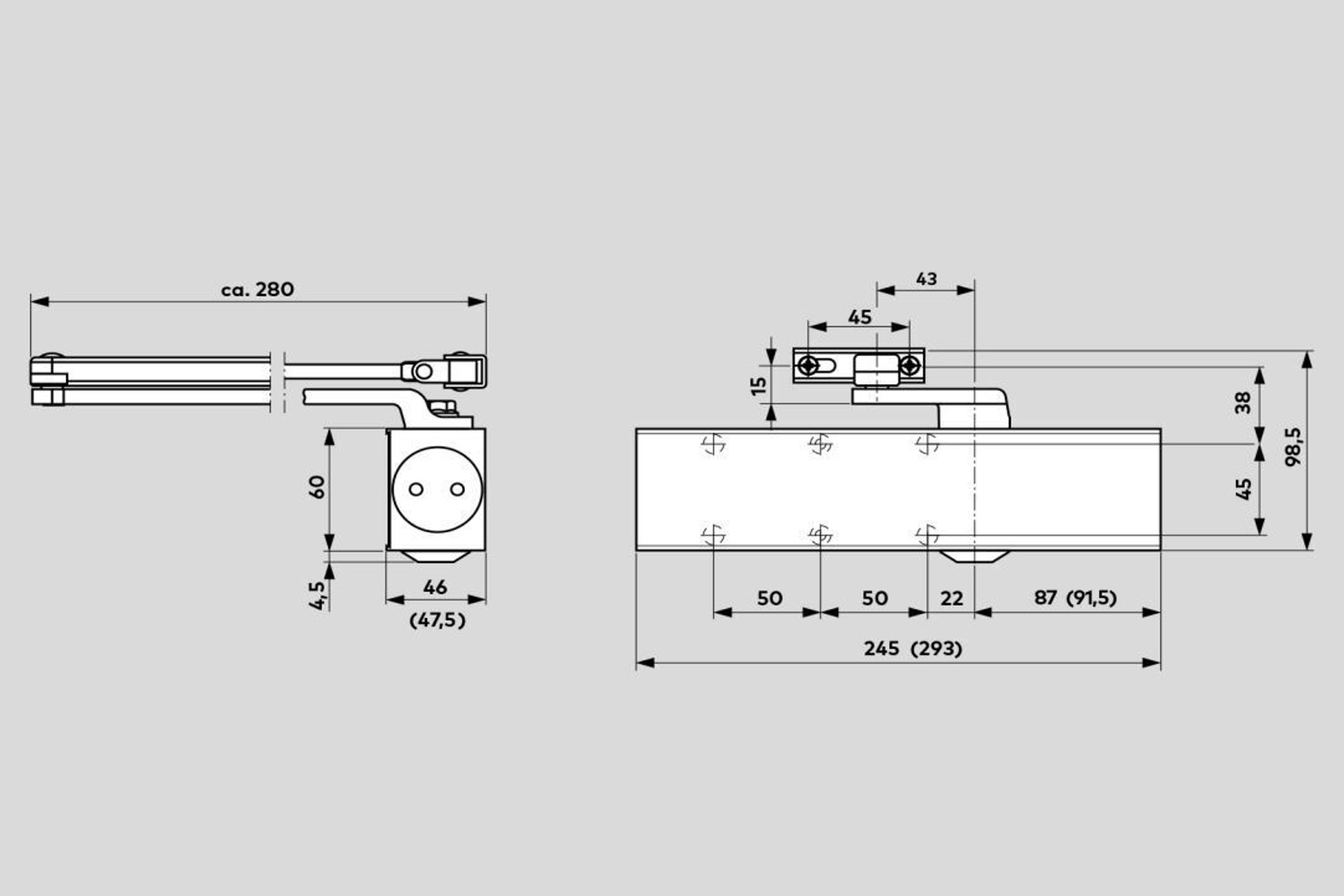

Specifications:
- Length: 245mm
- Width: 46mm
- Height: 60mm
- Adjustable Closing Speed: Yes
- Adjustable Latching Speed: Yes
- Has Backcheck: Yes
- Has Delay Action: Yes
- Has Holdopen: No
- Has Slide Arm: No
- Parallel Arm Bracket Included: Yes
- Spring Strength: EN3-6
- Fire Rated: Yes
- Finish: Silver
Fire Protection: CERTIFIRE approved for fire doors ITT;MM/IMM 240; Ref. CF 118
