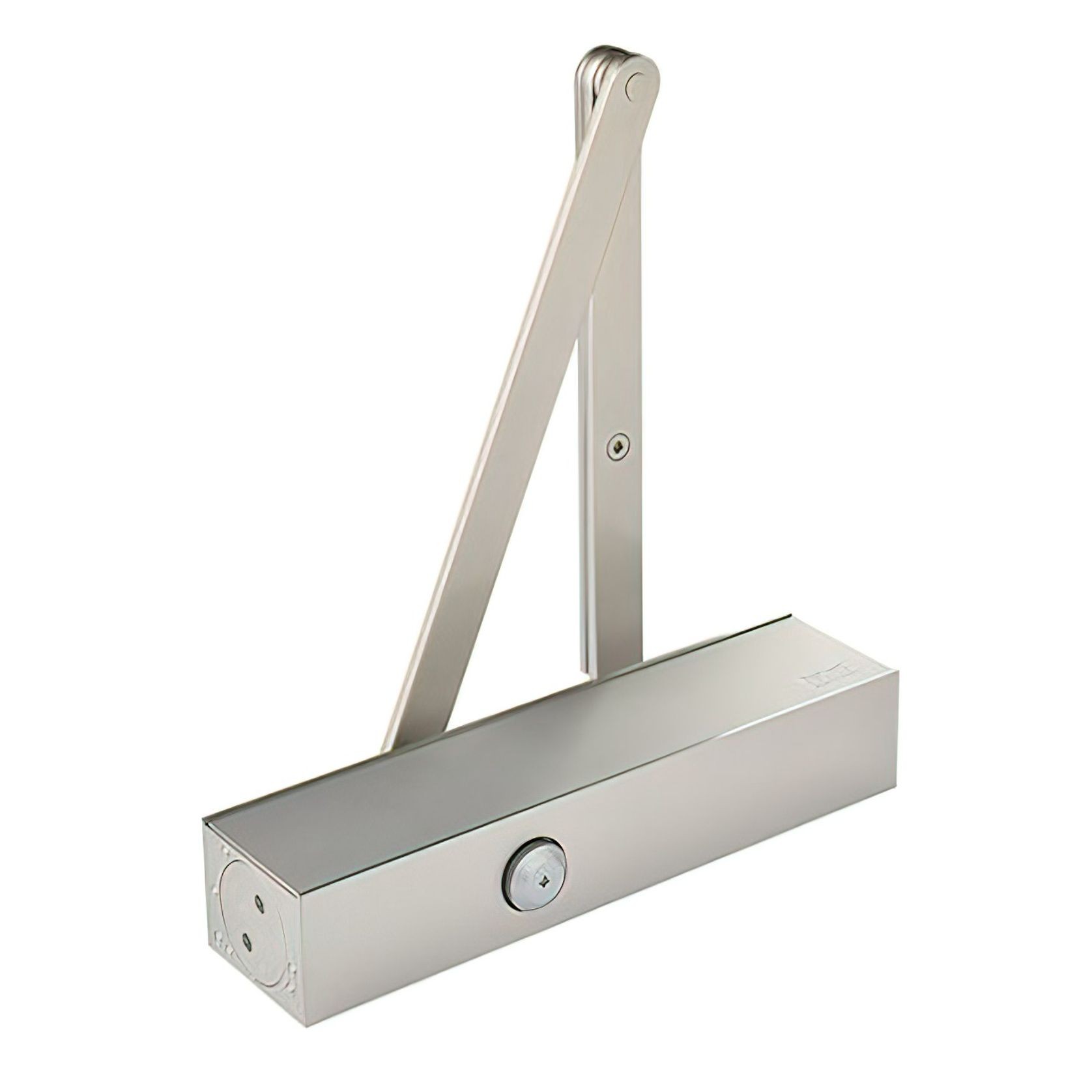

Dorma TS83 EN3-6 Door Closerisa mechanical device that closes a door in a controlled manner, preventing it from slamming. A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

The non-handed closer is suitable for interior and external (outward and inward opening) doors and can be tailored to a specific door with simple adjustment. It is power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm. The backcheck is self-regulating or adjustable by valve and delayed action is also adjustable.

Details
  • Category
    Door Closers
  • Range
    Dorma

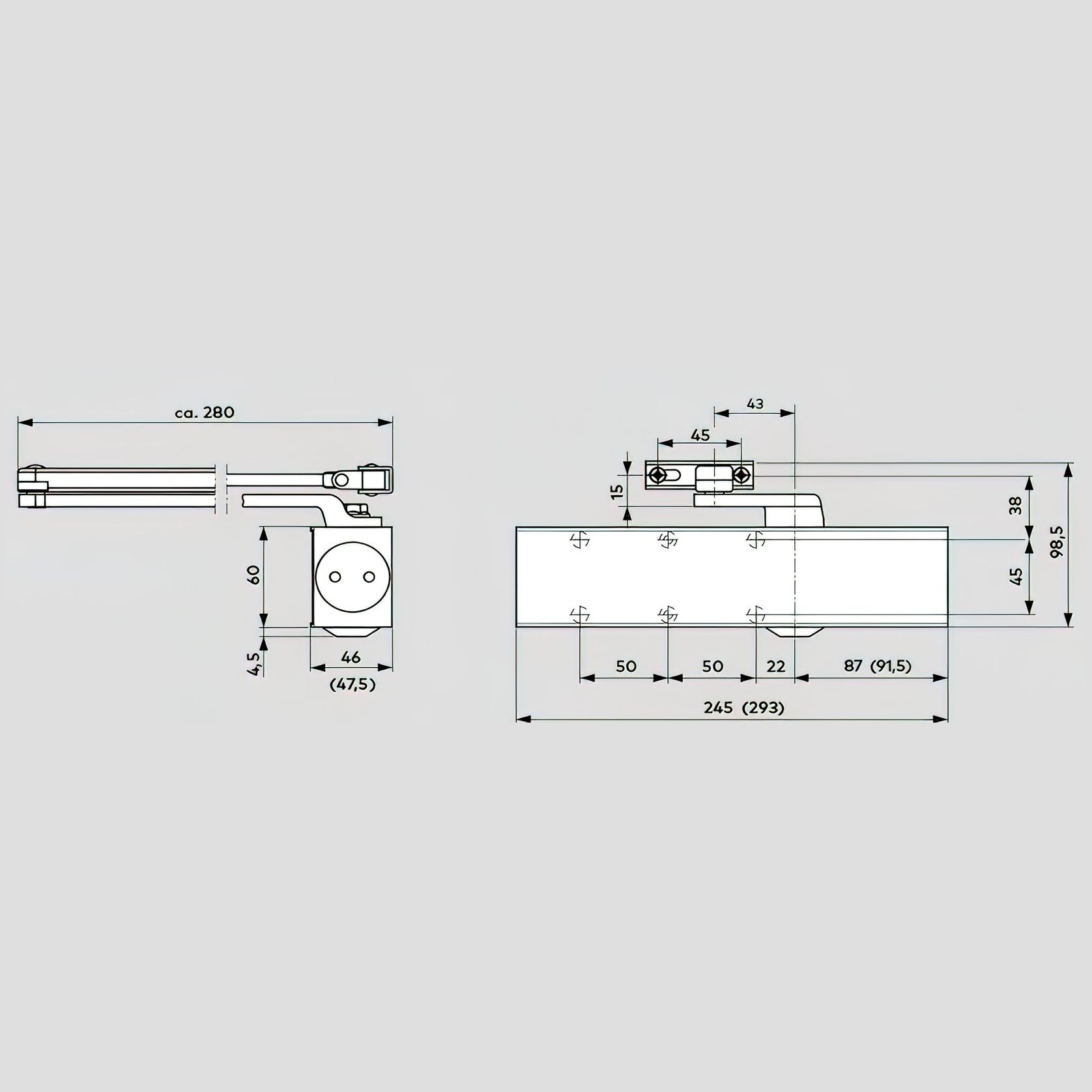

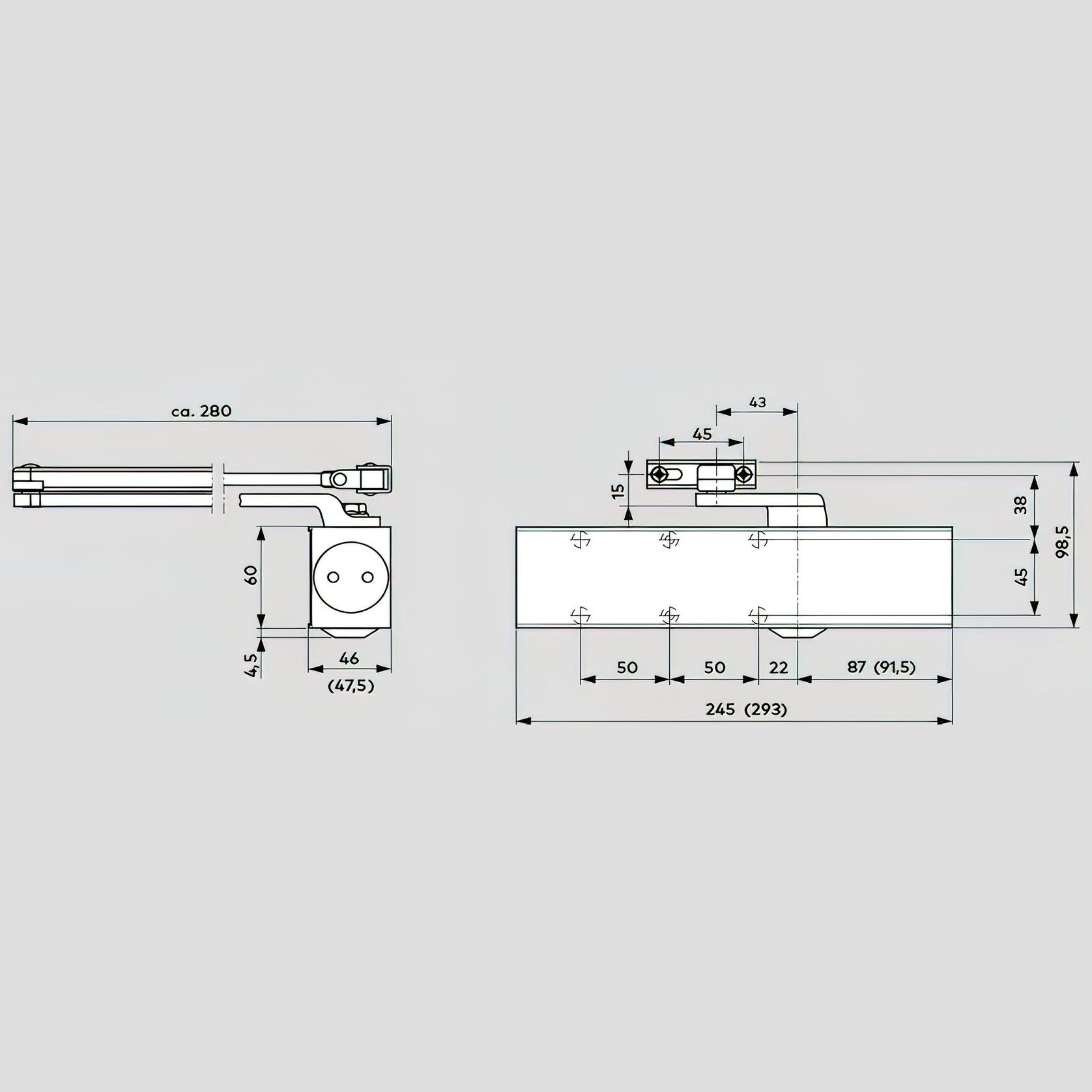

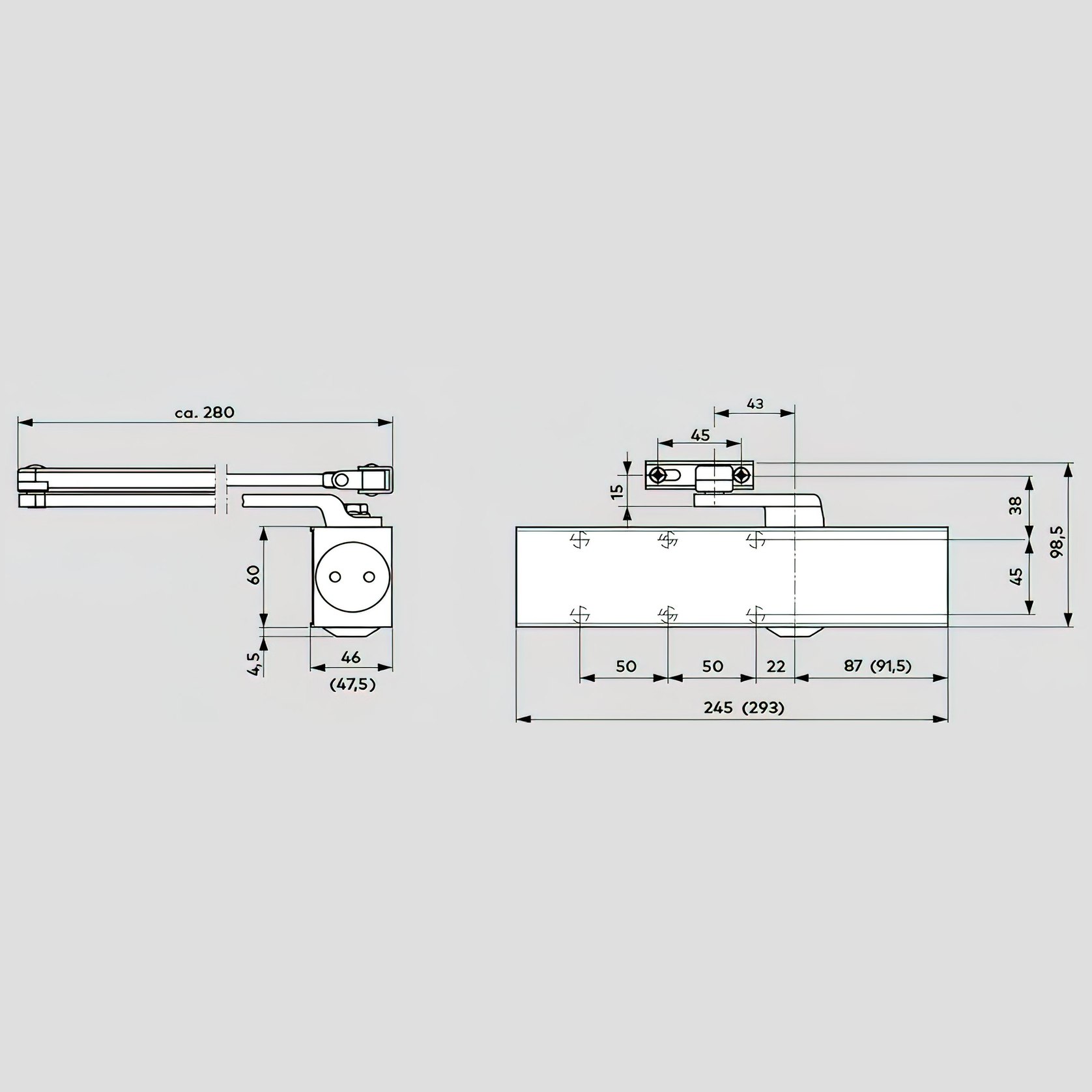

Specifications
  • Length: 245mm
  • Width: 46mm
  • Height: 60mm
  • Adjustable Closing Speed: Yes
  • Adjustable Latching Speed: Yes
  • Has Backcheck: Yes
  • Has Delay Action: Yes
  • Has Holdopen: No
  • Has Slide Arm: No
  • Parallel Arm Bracket Included: Yes
  • Spring Strength: EN3-6
  • Fire Rated: Yes
  • Finish: Silver

Fire Protection: CERTIFIRE approved for fire doors ITT;MM/IMM 240; Ref. CF 118

Feature
  • Suitable for fire doors
  • Regular door closer
  • Ideal for commercial applications
  • Overhead surface mounted door closer
  • Adjustable latching action by valve
  • For standard internal doors up to 1400 mm
  • Includes parallel arm bracket
  • Parallel arm mounting doors up to 950 mm
  • Flat-form arm assembly
