Dorma TS92G EN1-4 Door Closer Push Side with Arm Fire Rated 42030201

Wetherill Park, Australia

993.3K profile views
51 saves

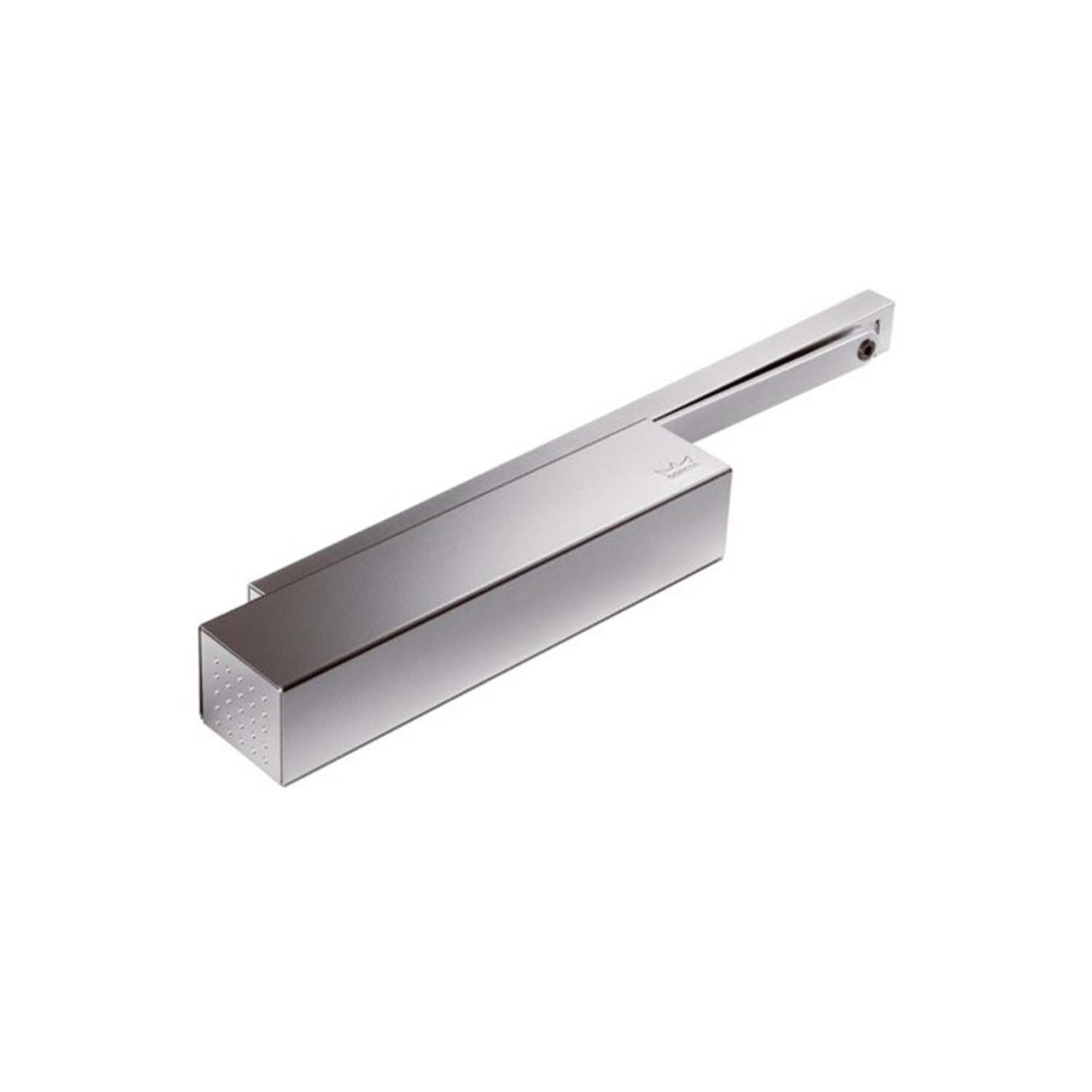

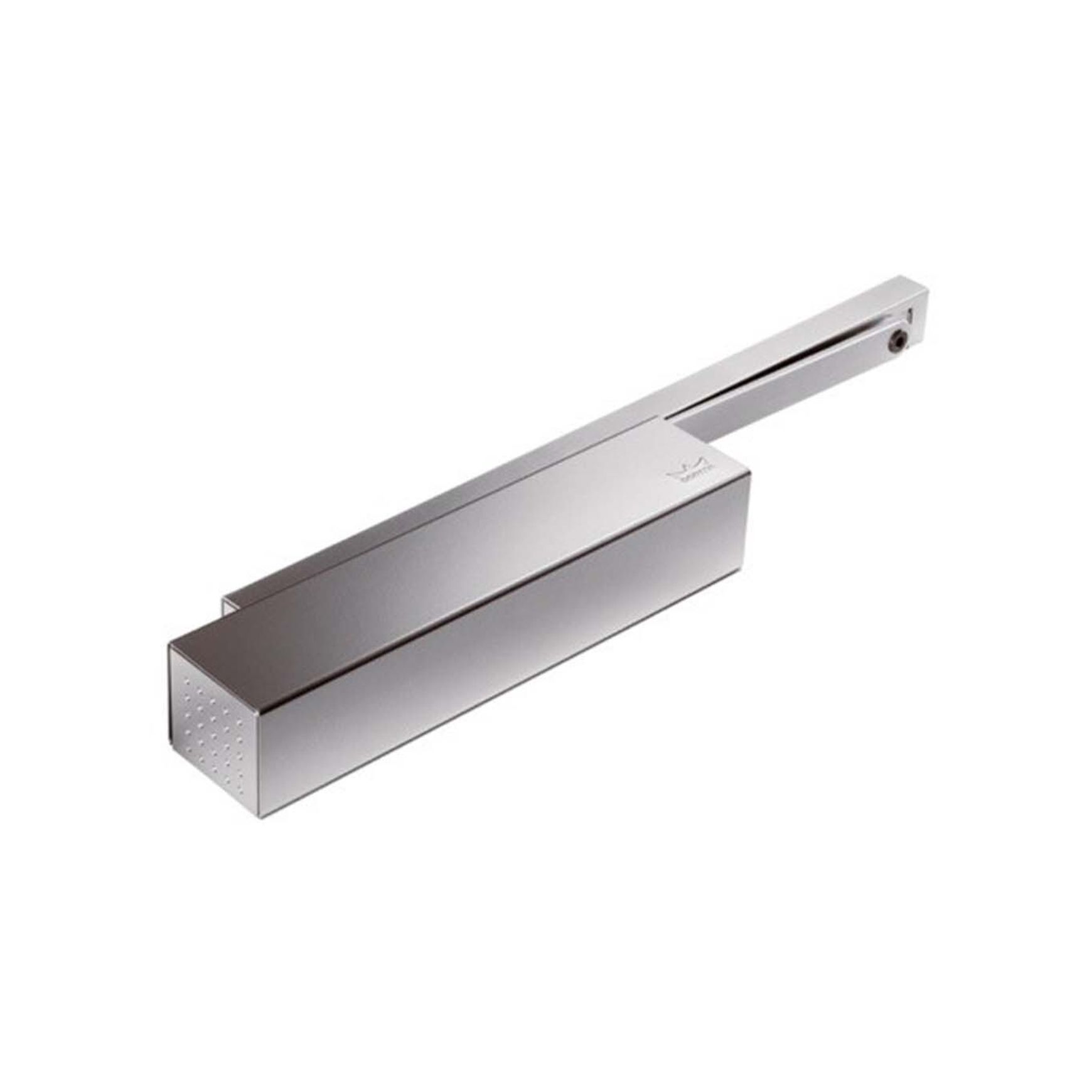

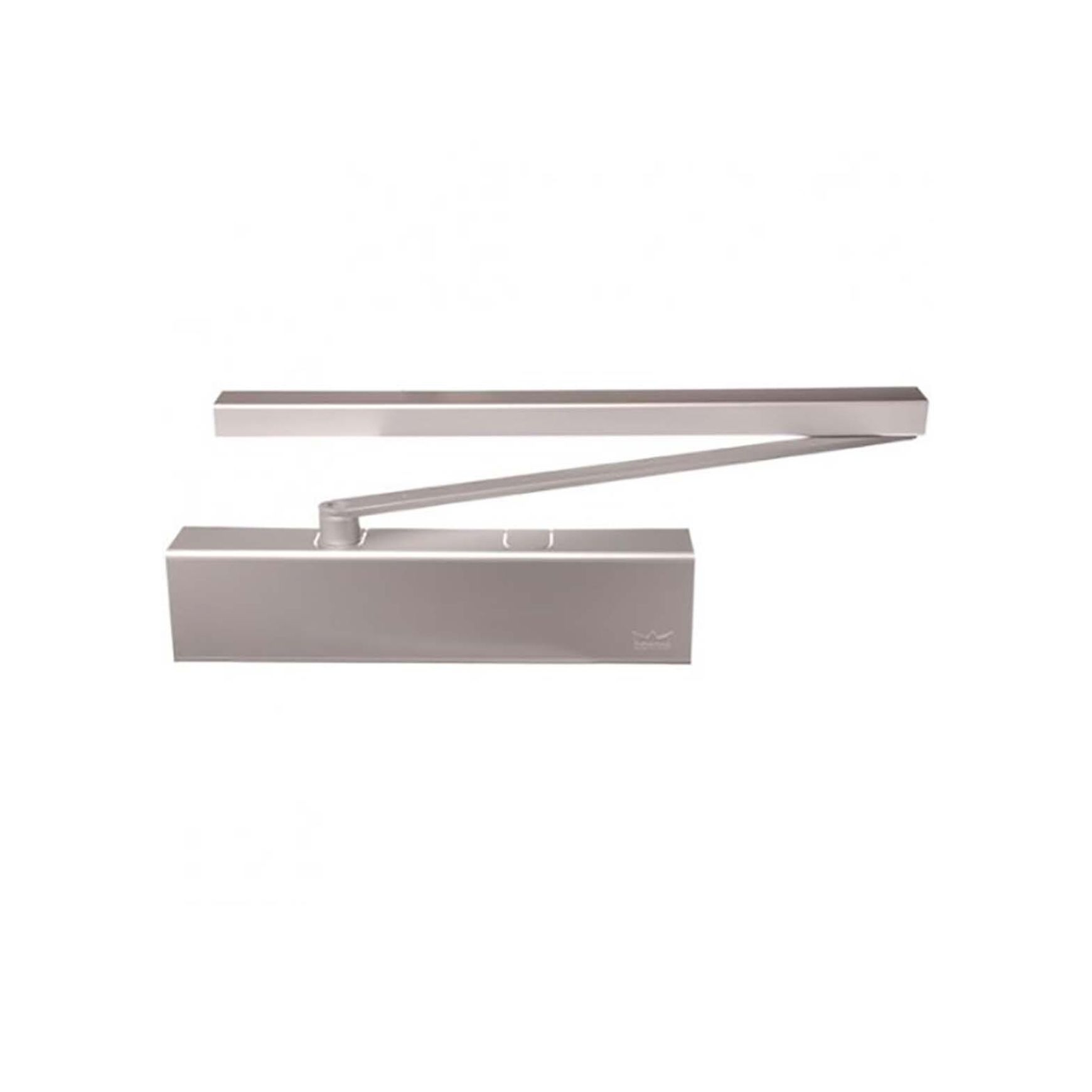

Dorma TS92G EN1-4 Door Closer
42030201

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Tags

fire doors cast iron modern interior doors high efficiency

Product Details

Product: Dorma TS92G EN1-4 Door Closer Push Side with Arm Fire Rated 42030201
Category: Door Closers
Sold by: Keeler Hardware
Range: Dormakaba

Keeler Hardware is specified by

(34) Professionals

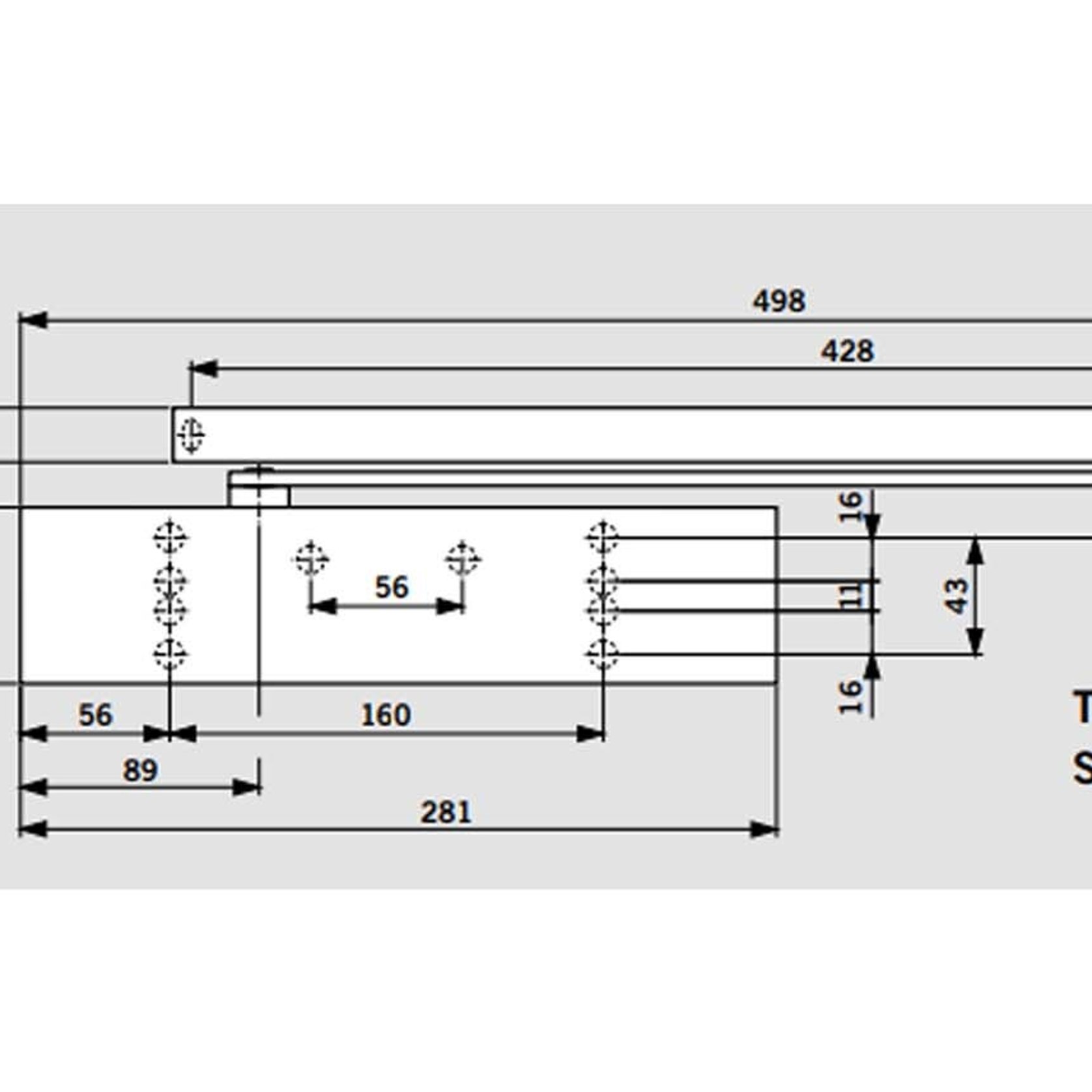

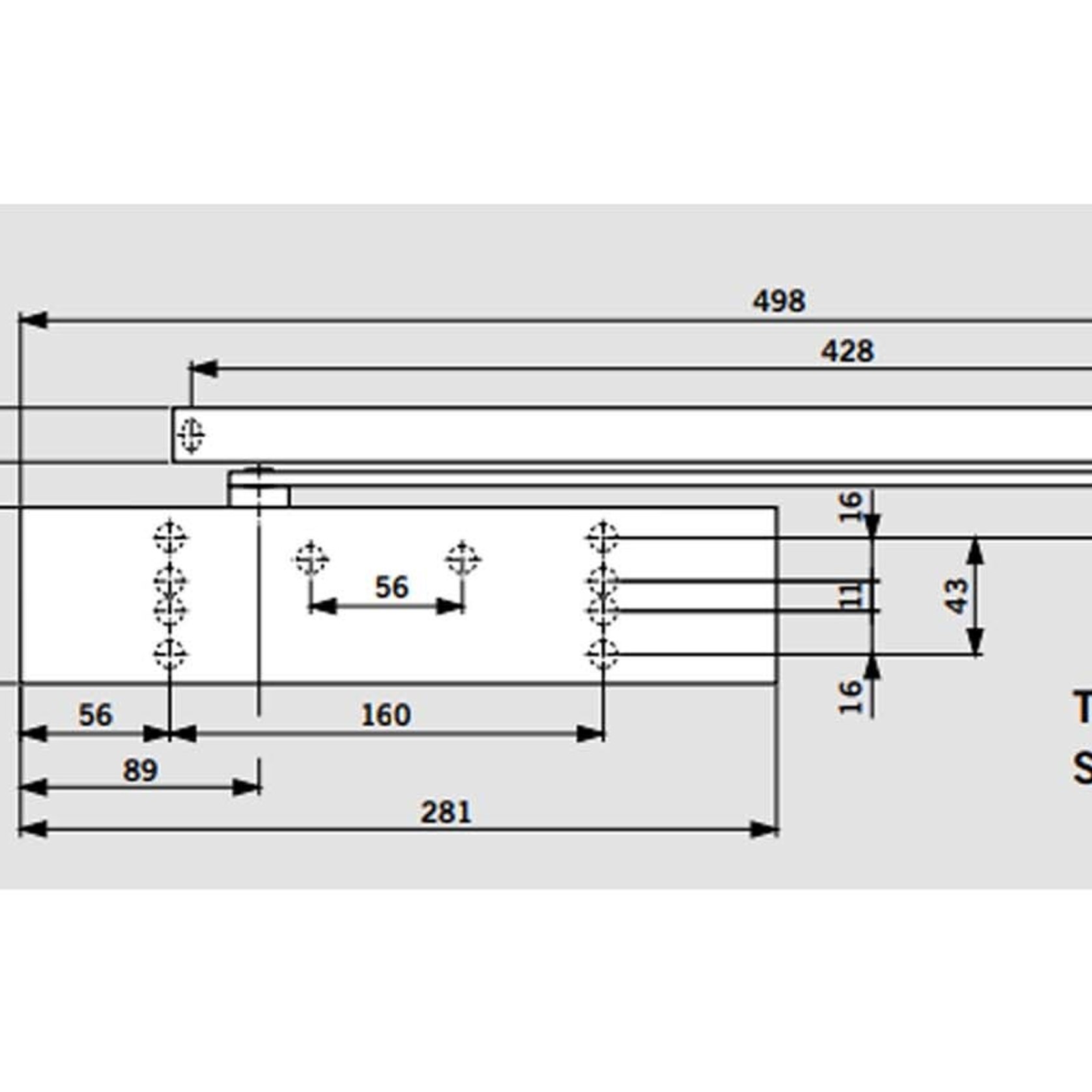

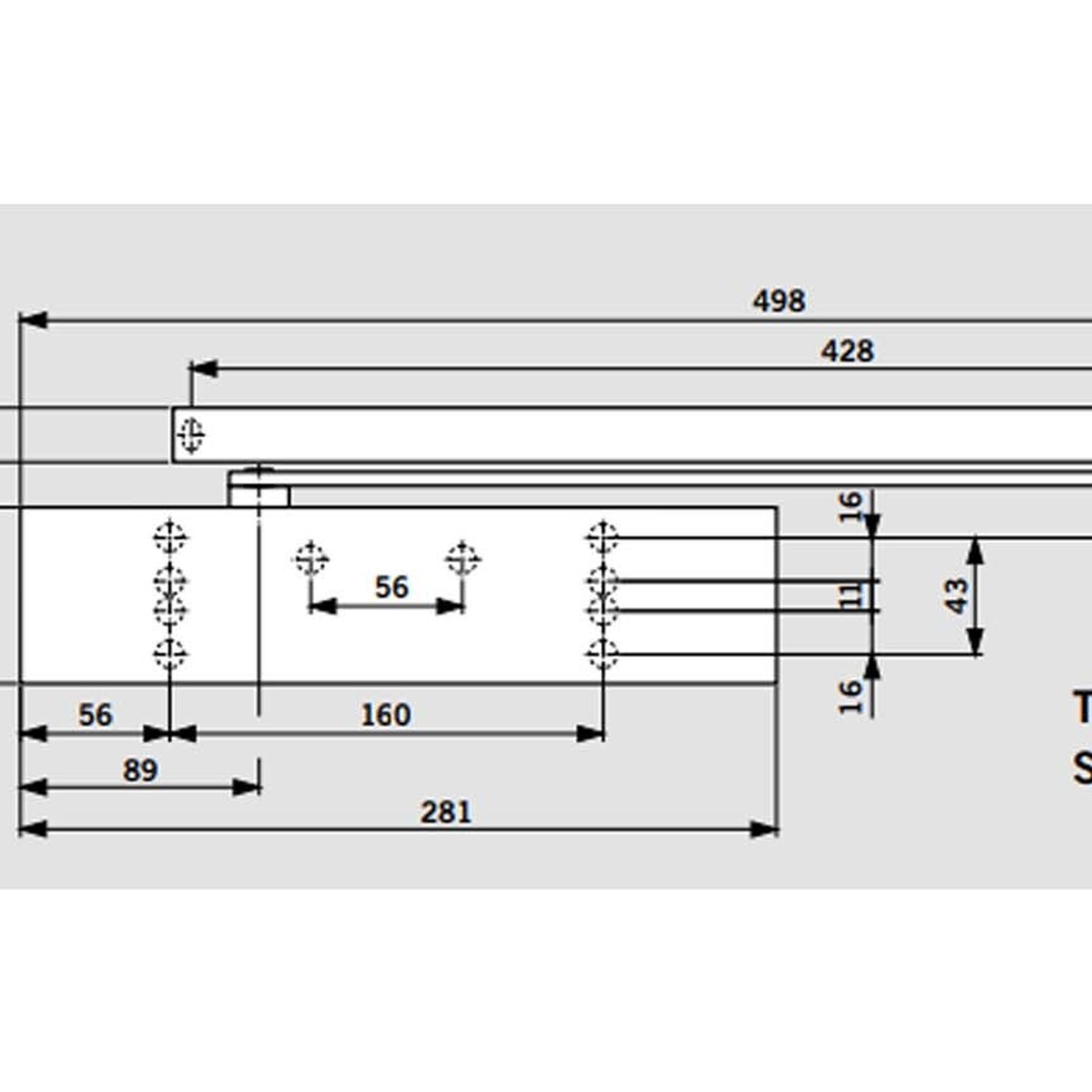

Dorma TS92G EN1-4 Door Closer Push Side with Arm Fire Rated 42030201 dimensions

Visit site

Dorma TS92G EN1-4 Door Closer 42030201 Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Specs

Features:

Suitable for fire and smoke check doors where the cushioned limit stay is also used
Suitable for installation on doors up to 1100mm
Special model for push side door leaf fixing/pull transom fixing

Specifications:

Length: 281mm
Width: 47mm
Height: 65mm
Max Opening: 145 Degress
Adjustable Closing Speed: Yes
Adjustable Latching Speed: Yes
Has Backcheck: No
Has Delay Action: No
Has Holdopen: Optional
Has Slide Arm: Yes
Spring Strength: EN1-4
Suits Push Side Of Door: Yes
Material: Cast Iron
Finish: Silver

Protection:

Complies with the requirements and or recommendations of the following: CERTIFIRE approved for fire doors ITT 120, MM/IMM 240; Ref. CF 119
