Dorma Door Closer Fire Rated
TS93B

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Tags

door closer automatic single door double doors fire prevention

Product Details

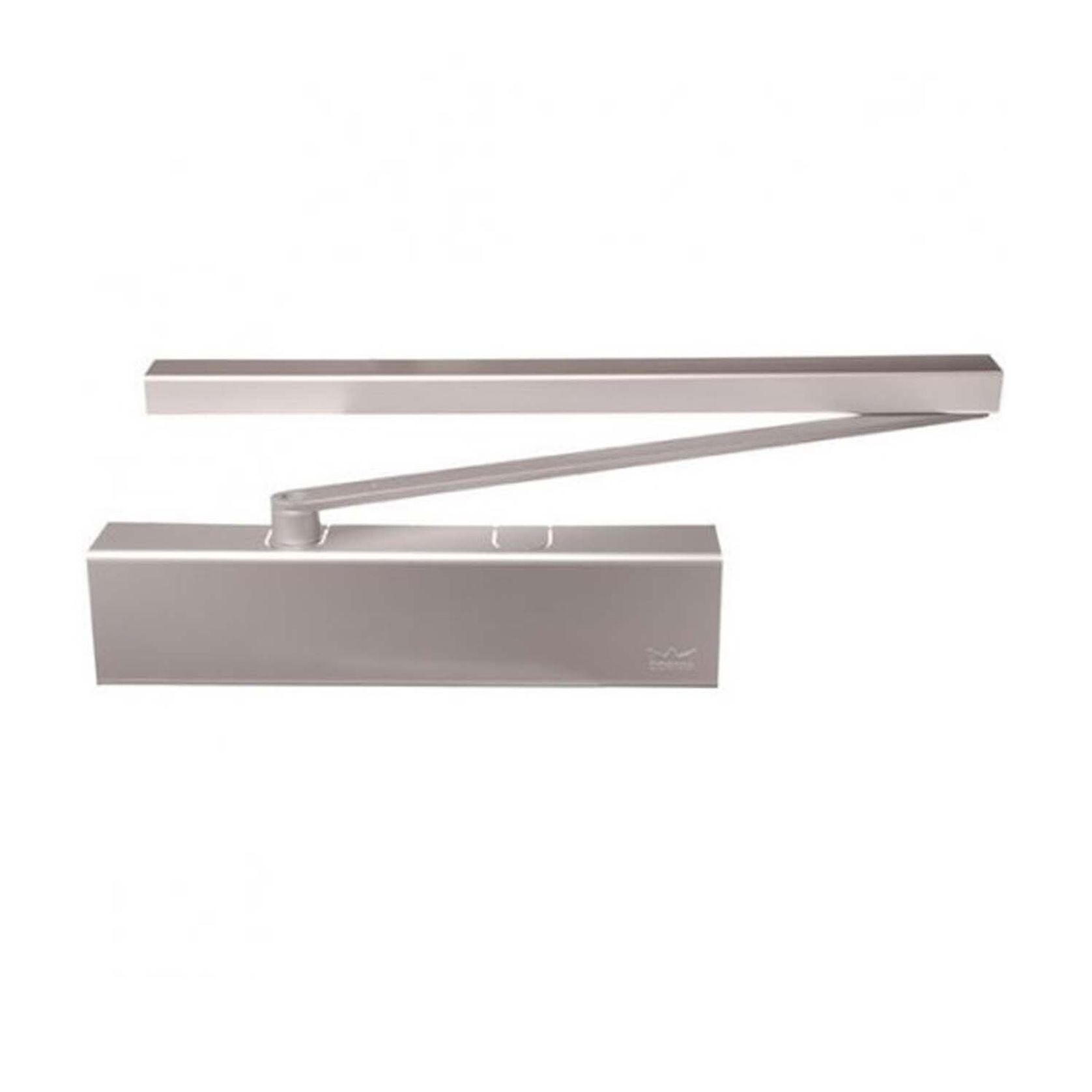

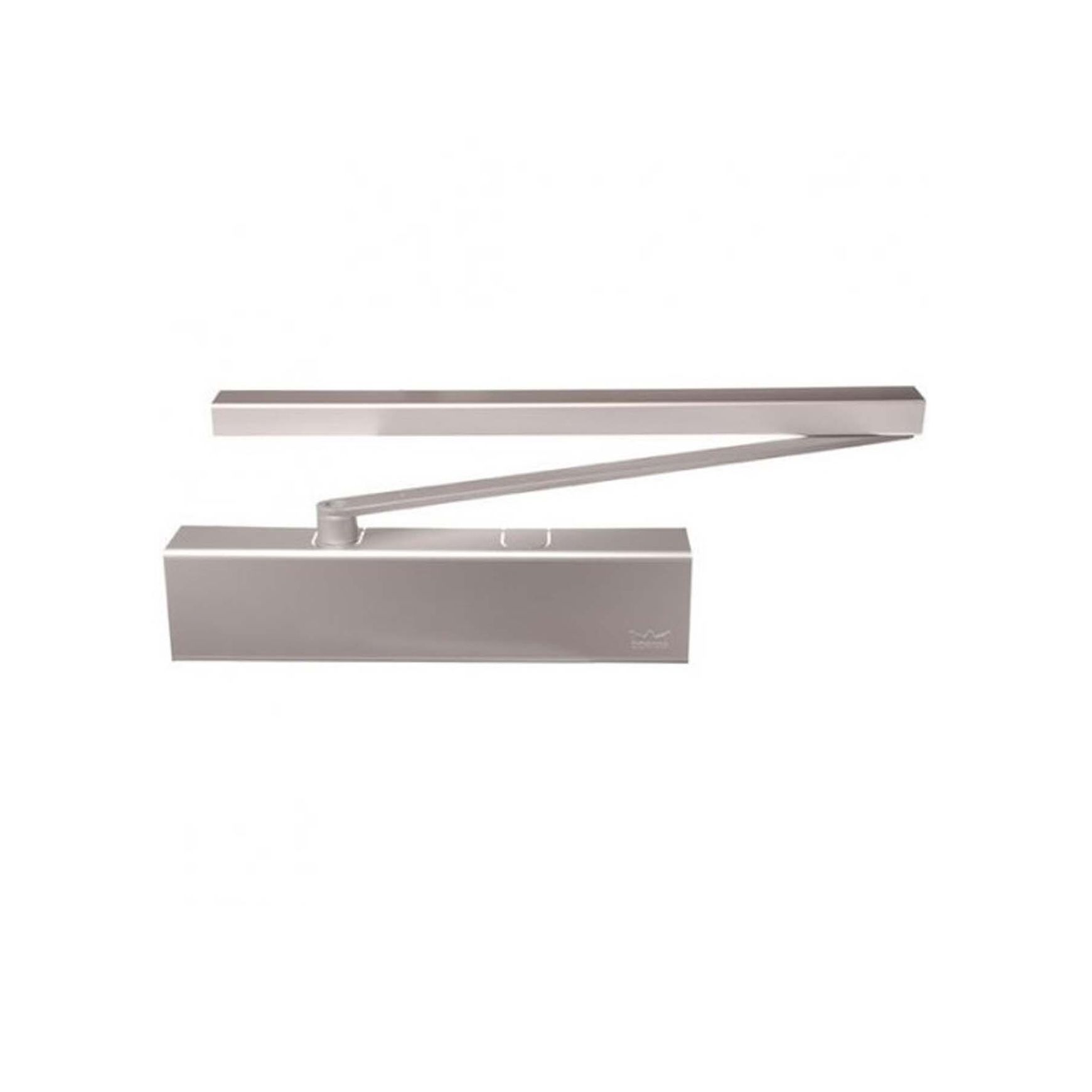

Product: Dorma TS93B EN1-5 Pull Side Door Closer Fire Rated Silver 43090501
Category: Door Closers
Sold by: Keeler Hardware
Range: Dorma

Keeler Hardware is specified by

(34) Professionals

Dorma TS93B EN1-5 Pull Side Door Closer Fire Rated Silver 43090501

Visit site

Dorma Door Closer Fire Rated TS93B Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Specs

Features:

Suitable for fire and smoke check doors where the cushioned limit stay is also used
Suitable for single and double doors installation up to 1250mm
Standard model for pull-side door leaf fixing/push-side transom fixing
Cam action mechanism
Adjustable back-check, closing & latching speeds

Specifications:

Length: 275mm
Width: 53mm
Height: 60mm
Spring Strength: EN 1-5
Back Check: Yes
Cam Action: Yes
Delayed Action: Yes
Fire Tested: Yes
Include PA Bracket: No
Includes Fixing Screws: Yes
Material: Aluminium
Max Door Width: up to 1600mm
Has Hold Open: Optional
Has Slide Arm: Yes
Adjustable Latching Speed: Yes
Finish: Silver

Includes:

1 x Dorma TS93G EN1-5 Door Closer Push Side Silver (43090501)
1 x Dorma 93GN Slide Arm and Channel Silver (64010001)

Note: Angle bracket not supplied
