Central Heating | Retrofit Underfloor Heat Pump System
by Rinnai
- 387.5K profile views
- 86 saves
A hydronic heat pump and VarioComp underfloor heating system is a sustainable and energy efficient option for home heating and is an ideal solution to domestic or commercial dwellings. VarioComp is a light-weight underfloor system that can be used in both new and existing houses. The pipes used are installed in a reinforced gypsum board panel, then filled with a screed to fill the panel voids and provide a finished level for levelling compounds or floor coverings to be applied.
The hydronic heat pump system
- BRANZ appraised Multitubo Primary Piping System
- Highly efficient Japanese Chofu heat pump
- SmartOne controller
Optional extras:
- Cooling
- Hot water cylinder heating
- Other hydronic options such as radiators and towel rails
- Can be integrated with solar power systems
Product Details
- Product
- Central Heating | Retrofit Underfloor Heat Pump System
- Category
- Underfloor Heating
- Sold by
- Rinnai
Rinnai is specified by
Koia ArchitectsArchitects
Condon Scott ArchitectsArchitects
Hulena ArchitectsArchitectsStephen Jones ArchitectsArchitects
Jeff Brickell ArchitectsArchitects
Francis Gp ArchitectsArchitects
prauArchitects
Hurley ArchitectsArchitects
Dorrington Atcheson ArchitectsArchitects
Ben Hudson ArchitectsArchitects
Aspect ArchitectureArchitects
Salmond Reed ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Carnachan ArchitectureArchitects
Mason & Wales ArchitectsArchitects
Abri ArchitectsArchitects
Open ArchitectureArchitects
Edwards White ArchitectsArchitects
Hark ArchitectsArchitects
Studio Brick ArchitectsArchitects
Daniel Marshall ArchitectsArchitects
Shaw & Shaw ArchitectsArchitects
RB StudioArchitects
eHausDesign & Build
Ferguson BuildersBuildersATL AutomationHome Automation Consultants
RuamokoStructural Engineers
Calley HomesBuilders
PlumbgenixPlumbers & Gas Fitters
Build TaupoBuilders
O'Neil + Shirley ArchitectureArchitectural Designers
KPA PlumbingPlumbers & Gas Fitters
Wolf ConstructionConstruction
Design House ArchitectureArchitectural Designers
Slate ConstructionDesign & Build
Goodison ArchitectureArchitectural Designers
3Dimensional BuildersBuildersYellowfox InteriorsInterior Designers
Sorted ArchitectureArchitectural Designers
David Reid HomesDesign & Build
Ardmore ArchitectsArchitecture & Design
AD ArchitectureArchitectural Designers
Studio 28Interior Designers
Maddren HomesBuilders
TricklebanksPlumbers & Gas Fitters
Threefold ArchitectureArchitectural Designers
BUILT CHCHBuilders
New Zealand Green Building CouncilAssociations
Home and LifestyleDesign & Build
Creative ArchArchitectural Designers
Tibbits + CoLandscape Designers
R&B BuildBuilders
Advance BuildBuilders
CV InteriorsInterior Designers
ataArchitectural Designers
Noble FoxLandscape Architects
TotalbuildBuilders
Arcline ArchitectureArchitectural Designers
McBrimarDesign & Build
Plumbing and Heating Centre LtdPlumbers & Gas Fitters

A hydronic heat pump and VarioComp underfloor heating system is a sustainable and energy efficient option for home heating and is an ideal solution to domestic or commercial dwellings.
VarioComp is a light-weight underfloor system that can be used in both new and existing houses. The pipes used are installed in a reinforced gypsum board panel, then filled with a screed to fill the panel voids and provide a finished level for levelling compounds or floor coverings to be applied.
The hydronic heat pump system
- BRANZ appraised Multitubo Primary Piping System
- Highly efficient Japanese Chofu heat pump
- SmartOne controller
Optional extras:
- Cooling
- Hot water cylinder heating
- Other hydronic options such as radiators and towel rails
- Can be integrated with solar power systems
- Features
- Underfloor systems heat the entire room evenly and at a lower temperature, reducing energy consumption
- Suitable for low or net zero carbon homes
- Healthy — no forced airflow, central heating is ideal for people with respiratory or allergy problems
- Silent and comfortable — invisible whole home heating
- Flexible design options — can add cooling, hot water cylinder heating, and radiators

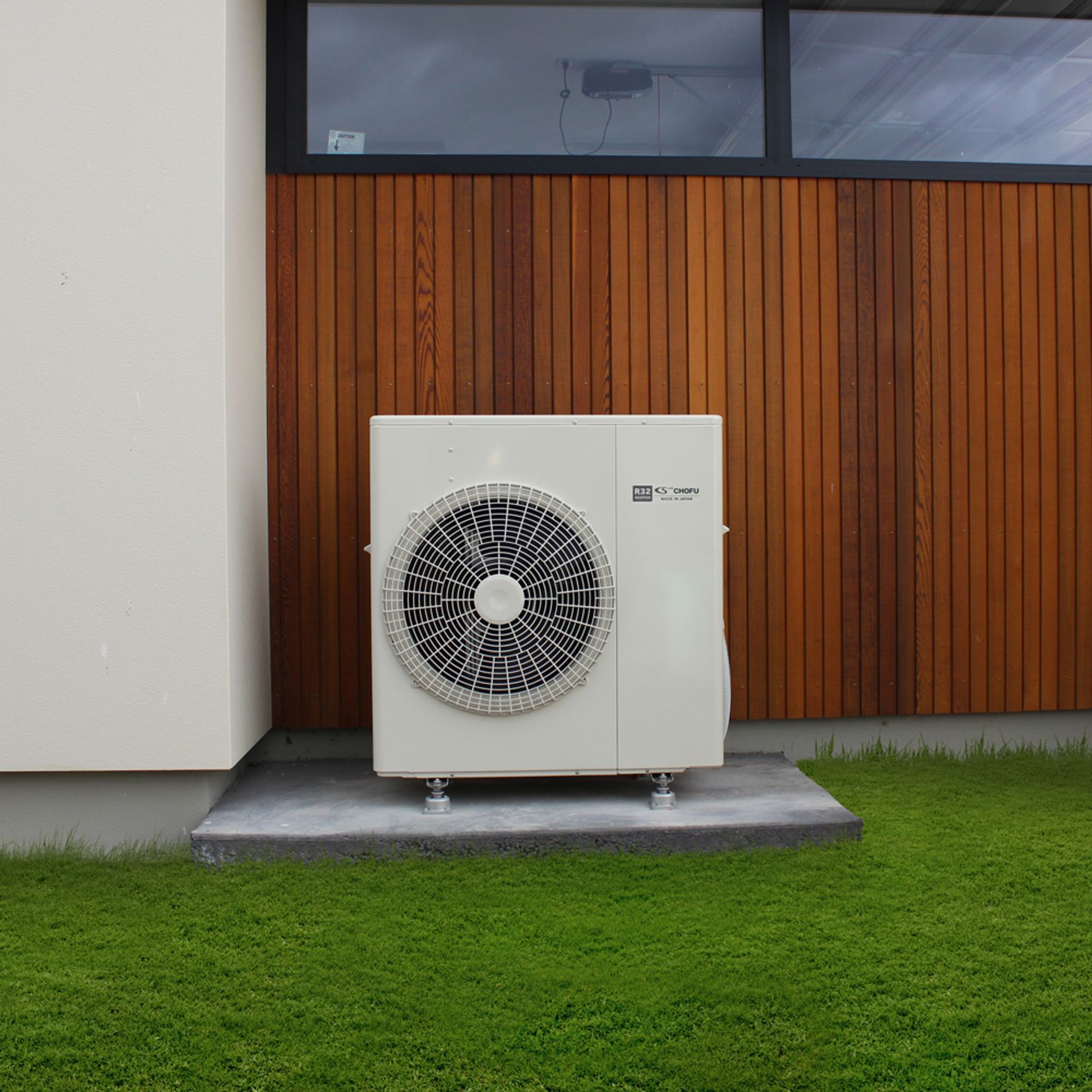

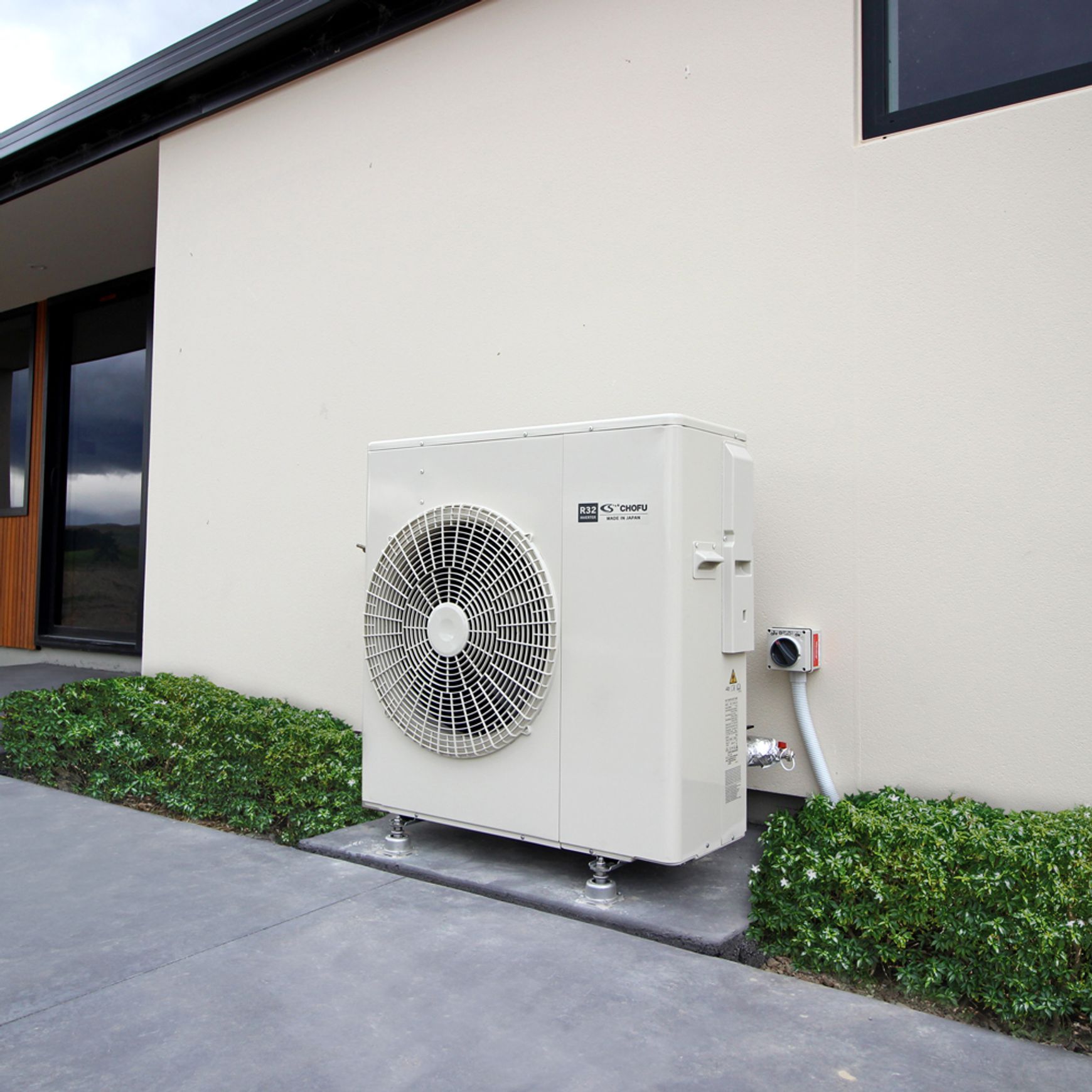

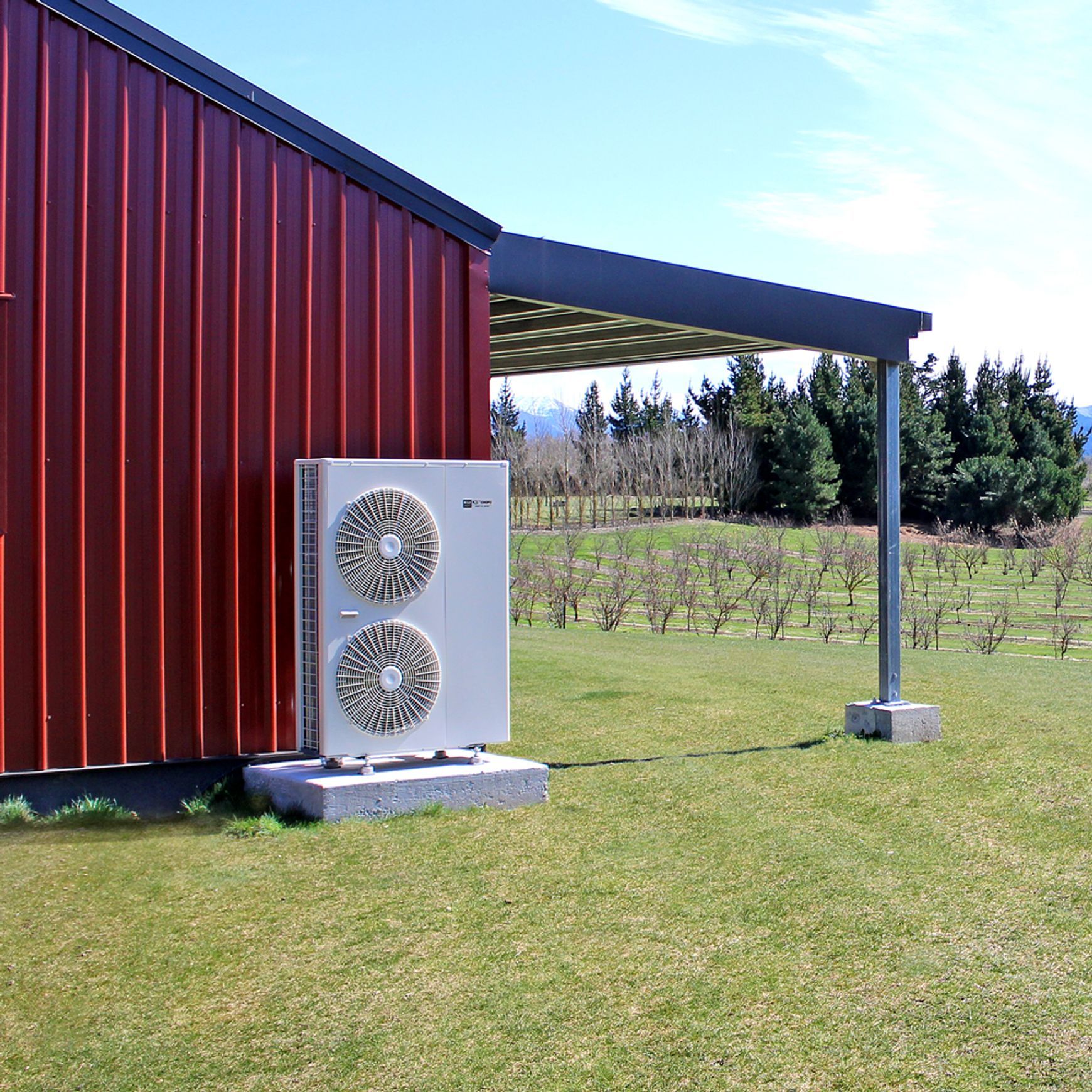

Chofu Heat Pump
- 5 year warranty
- Efficient R32 refrigerant
- Very quiet operation
- Temperatures as low as -20°C
- 6, 10 and 16kW models available
- App control option, can switch on/adjust remotely
VarioComp System Components

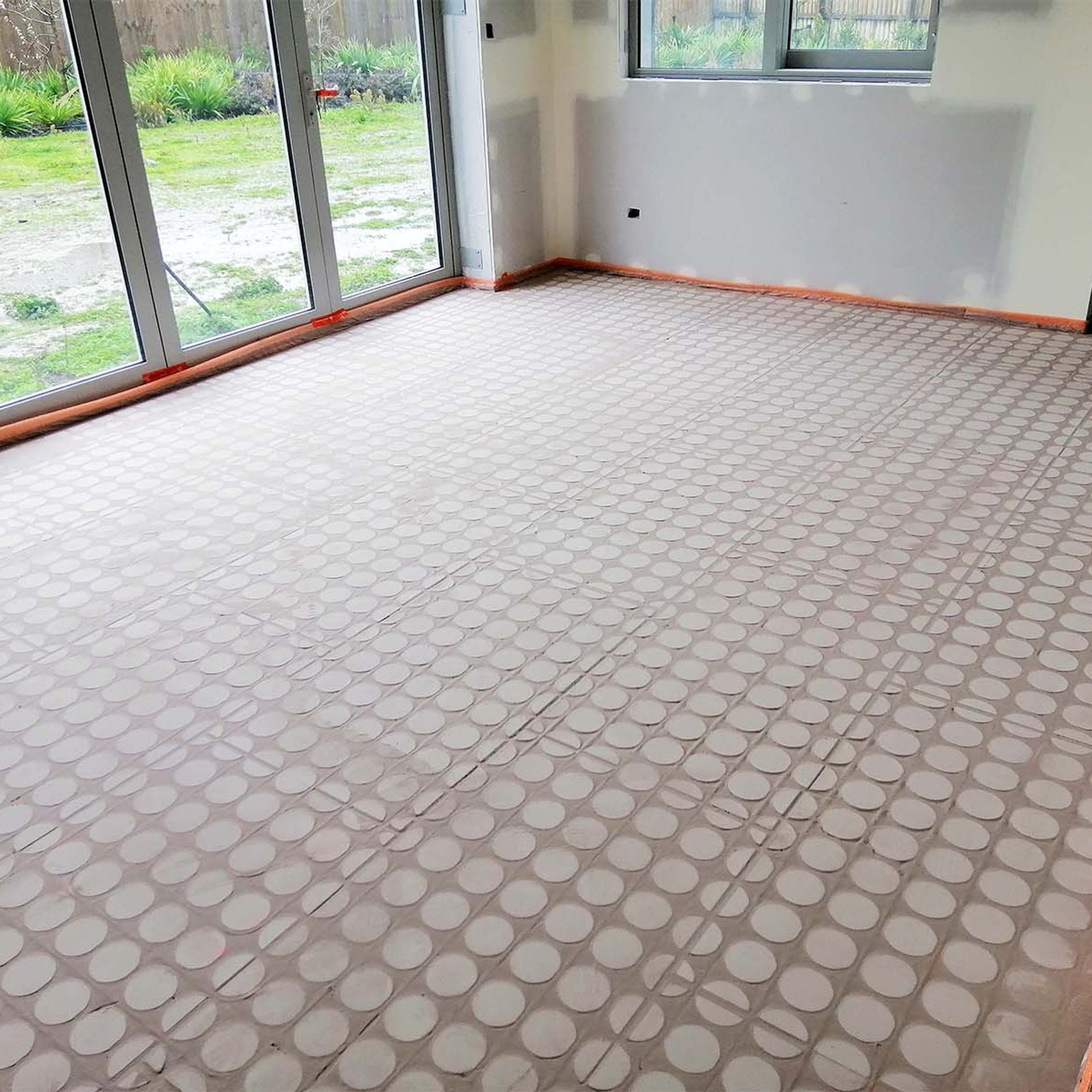

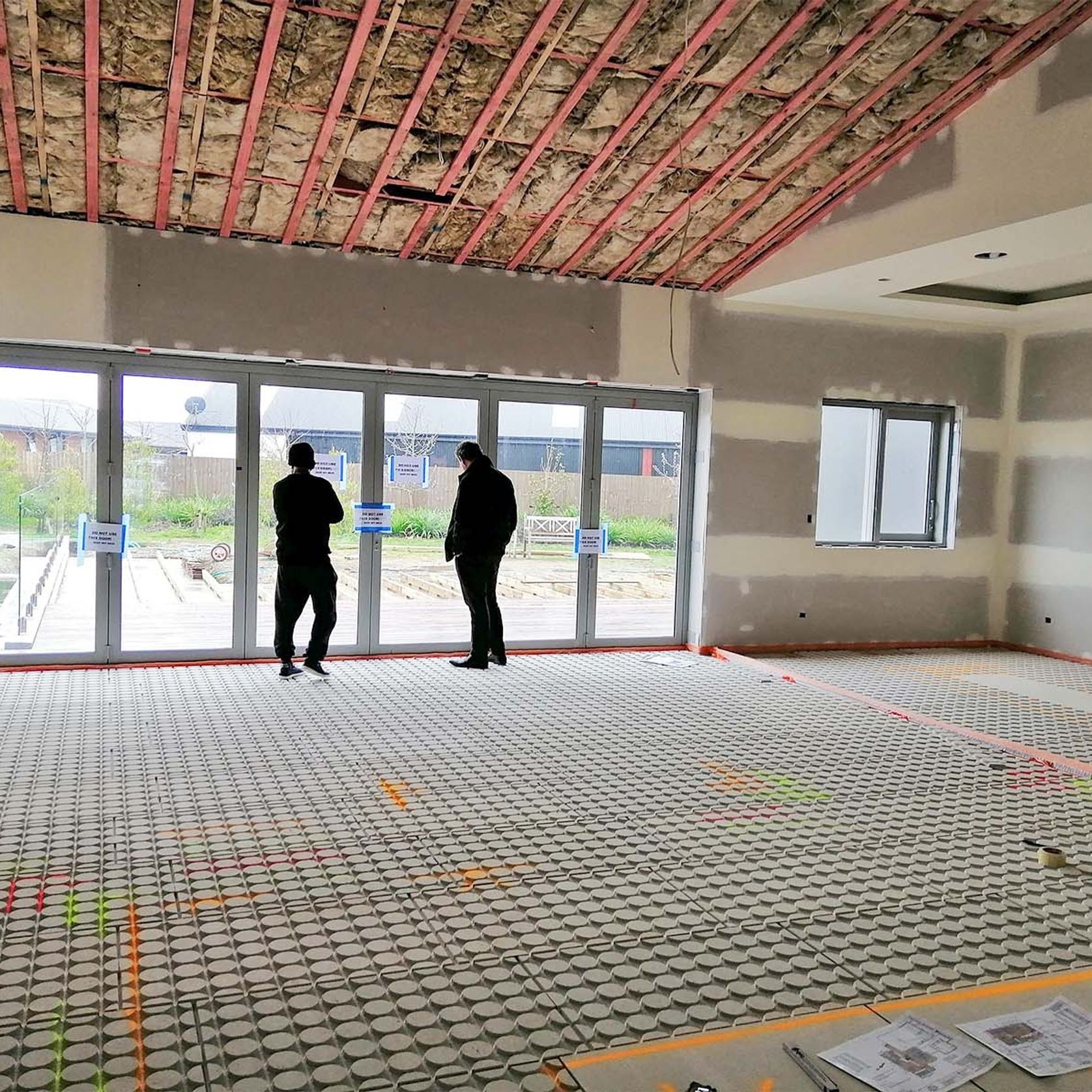

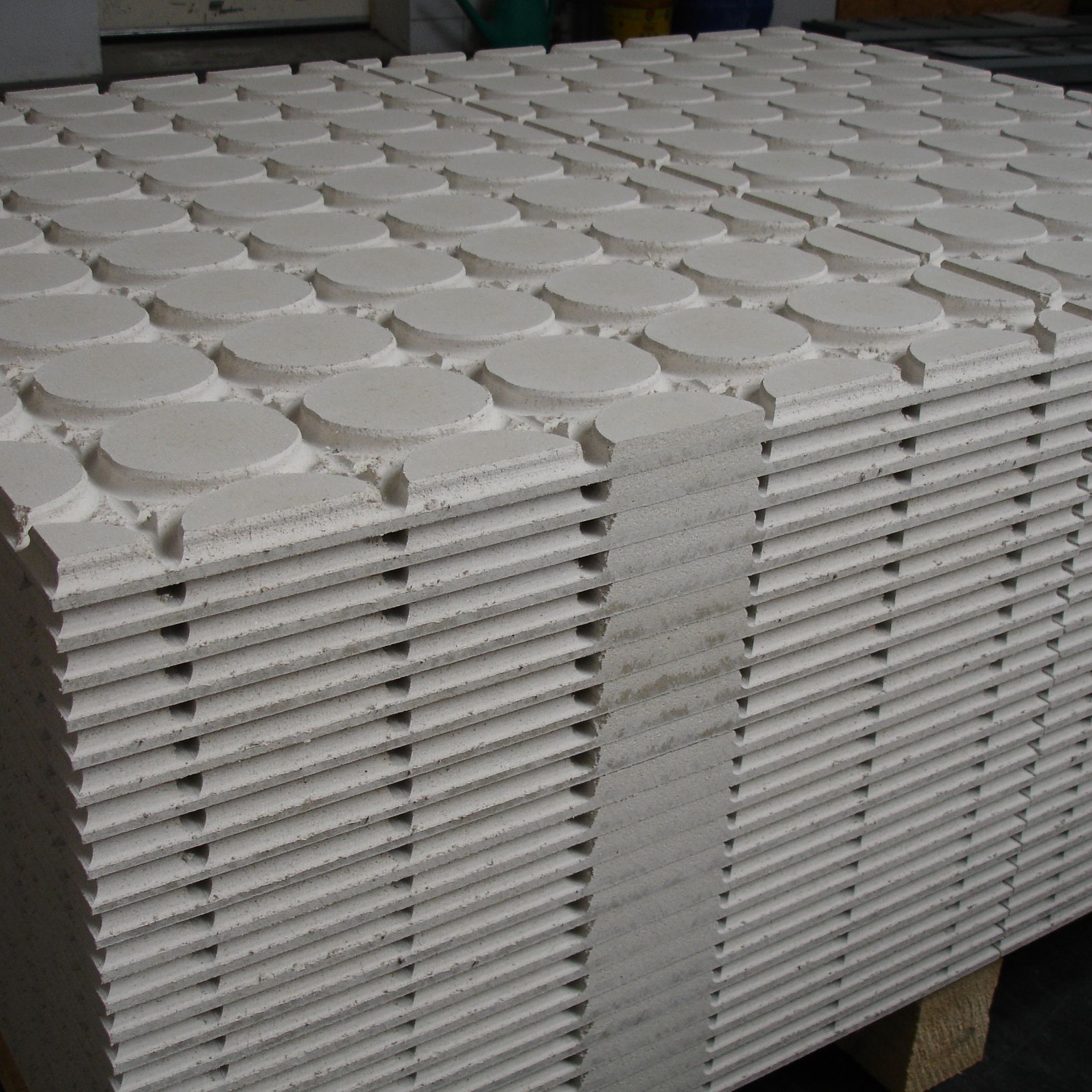

- Compact Panel: 1000 x 600 x 18mm, installable on concrete or wooden floors with or without a polystyrene layer.

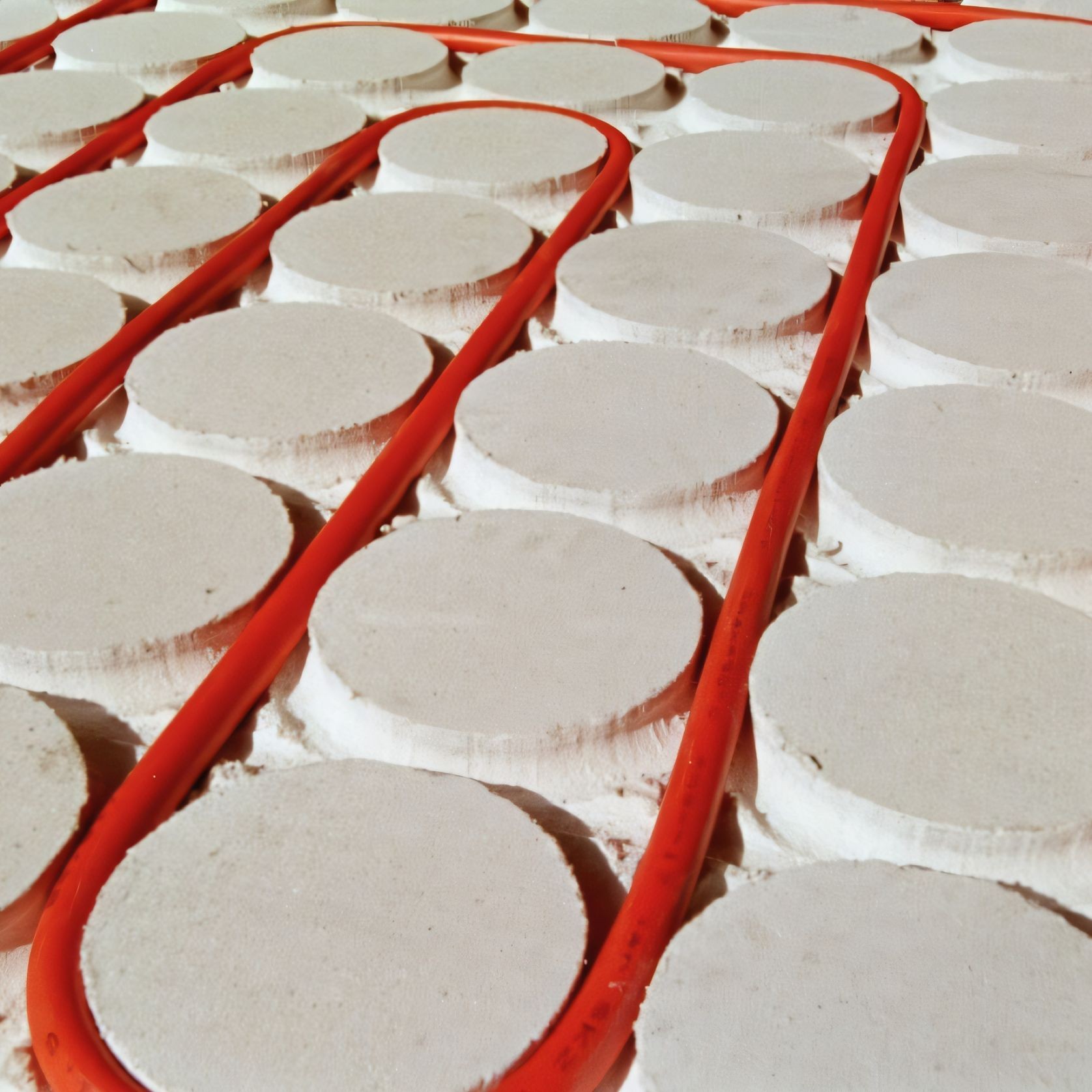

- Variomodular Pipe: 11.6 x 1.5mm pipes, spaced 100mm apart for low-temperature, efficient operation, ideal for renewable energy.
- Compact Filling Compound: 25kg bags, poured to a 20mm height, suitable for retrofitting or efficient new buildings, with floor coverings installed directly on top.
- Scope of use
- Residential — single storey, multi-storey, standalone or apartment dwellings
- Variocomp panels sit on top of the substrate
- Suitable for all climate zones — minimum outdoor air temperature: -20°
- Ideal for open plan designs or designs featuring a lot of glazing
- Can be integrated with solar power systems
