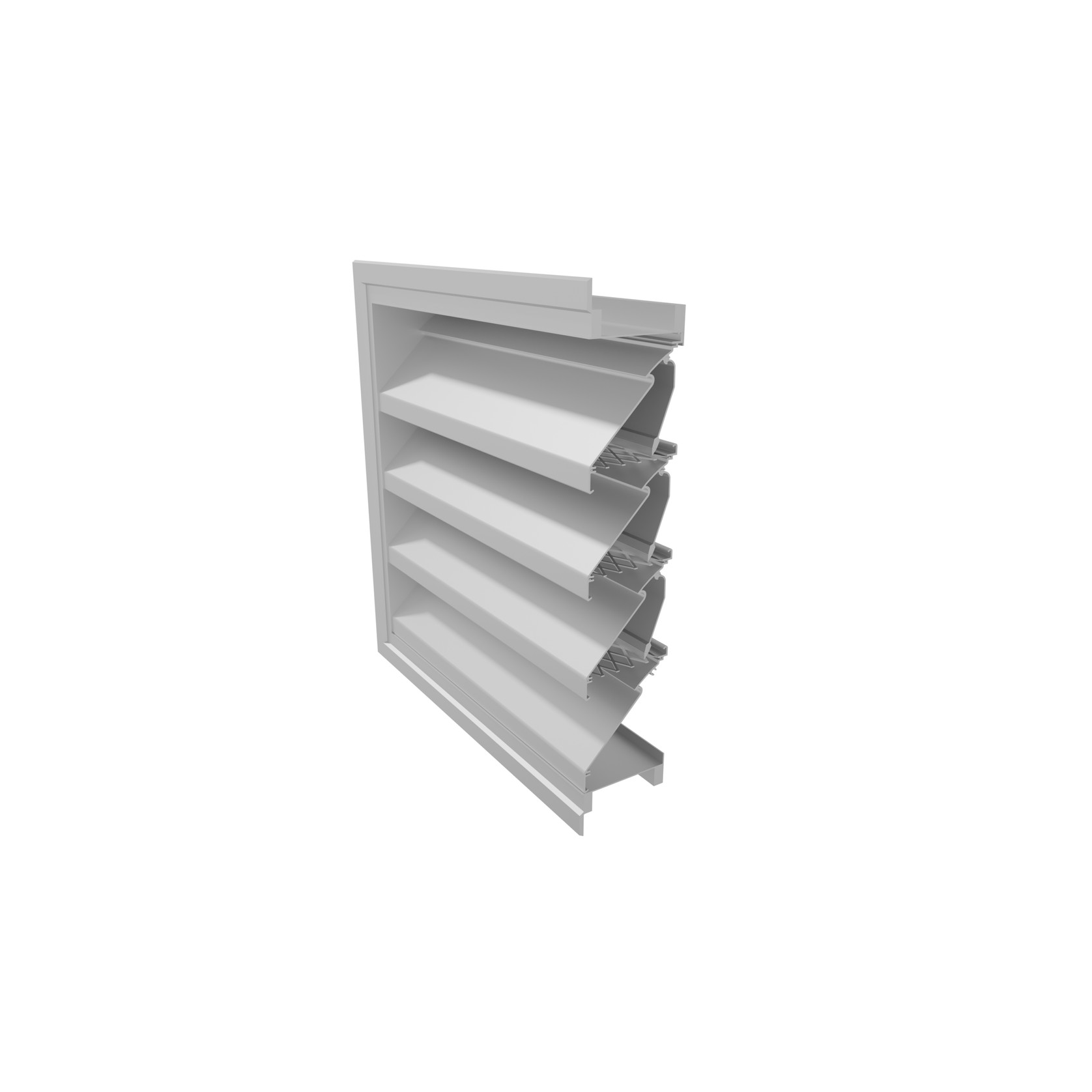

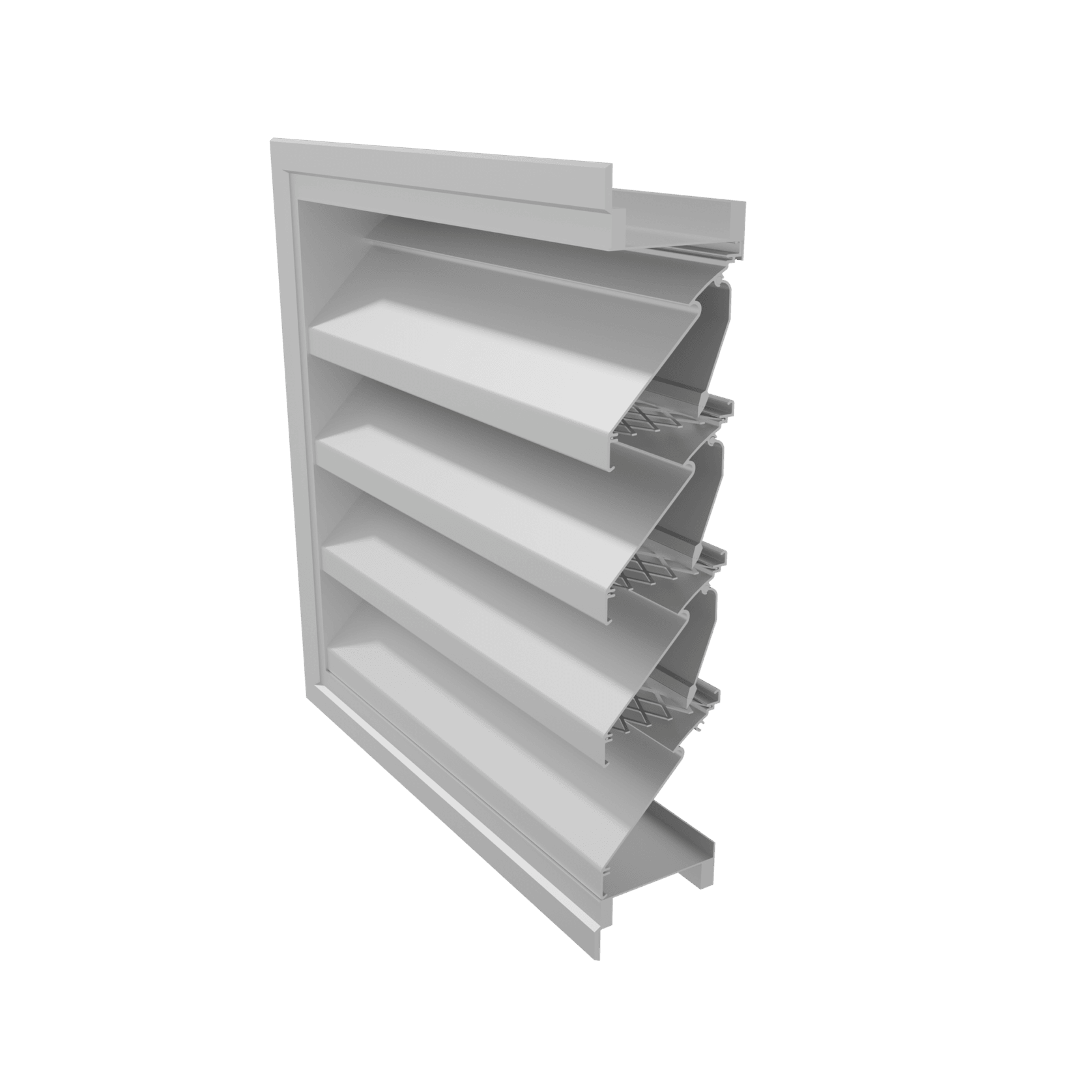

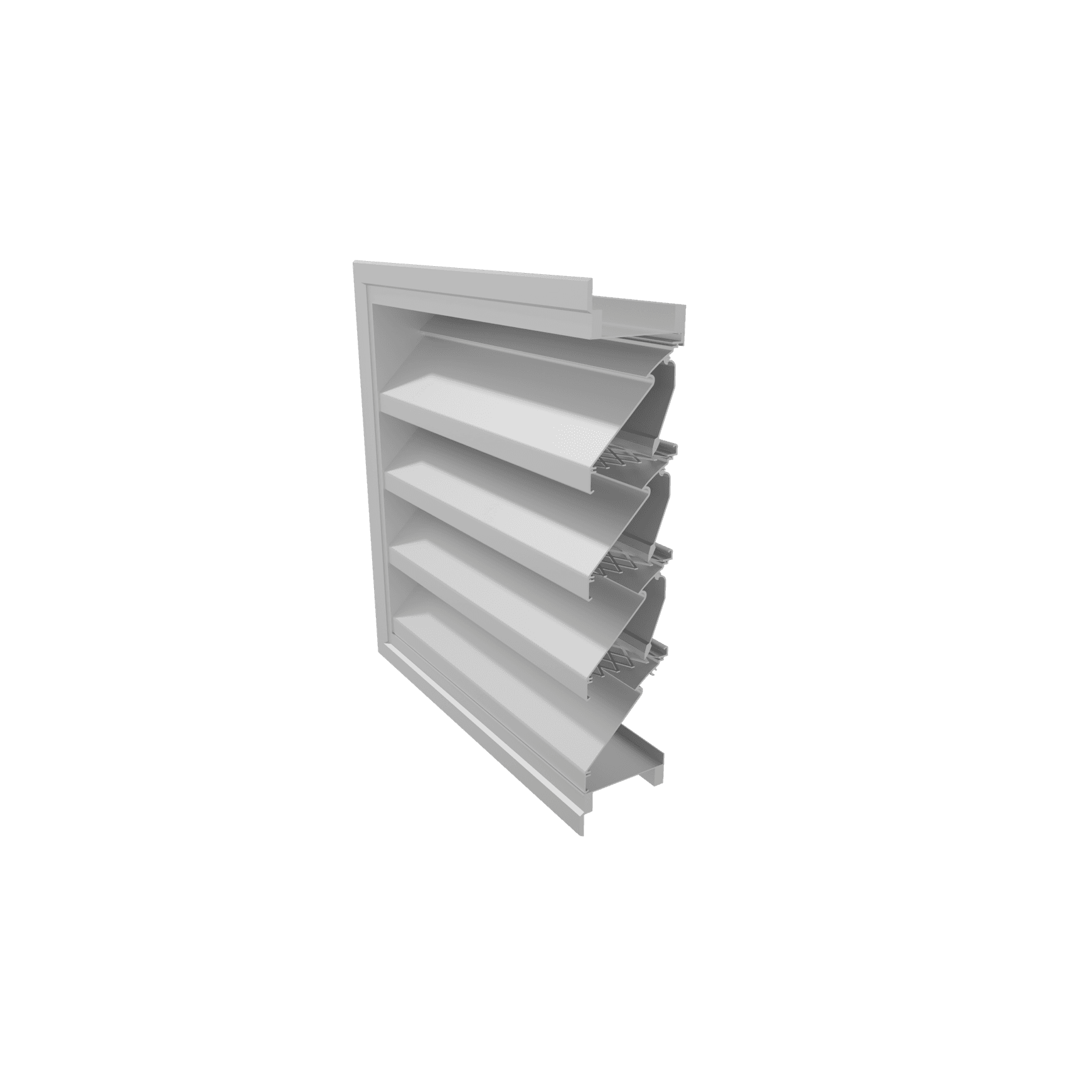

OHCL-102 Closable Louver
by Holyoake Air Management Solutions
Auckland
- 429.1K profile views
- 27 saves
Both OHL-124 and 102 louvers are available as closable options. They offer performance and appearance similar to the basic model with the facility to close the complete louver by means of concealed damper blades, pivoted on the underside of each fixed blade, and gang operated by either manual or motorised means. They are ideally suited for use in high wind storm conditions. While open, they offer minimum airflow resistance with low droplet penetration for normal weather.
Typical uses are to provide controlled air movement in conjunction with powered and natural ventilation schemes in factories, plant rooms, power stations and similar projects.
Other suitable applications include controllable air inlets operating with smoke clearance systems, where louvers would normally remain closed but would open in the event of an emergency.
Bird screen material slides horizontally into tracks between blades so that linkages are not obstructed.
Product Details
- Product
- OHCL-102 Closable Louver
- Category
- Ventilation Components
- Brand
- Price Holyoake
- Warranty
- 5 years
Holyoake Air Management Solutions is specified by
Wilson & Hill ArchitectsArchitects
Tennent Brown ArchitectsArchitects
Condon Scott ArchitectsArchitects
CCM ArchitectsArchitects
Dalman ArchitectsArchitects
Pelorus ArchitectureArchitects
Leuschke Group ArchitectsArchitects
CUSTANCEArchitects
Sheppard & Rout ArchitectsArchitects
Sang ArchitectsArchitects
SGAArchitects
Godward DesignspaceArchitects
BuchanArchitects
ASC ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Gary Todd ArchitectureArchitects
GNR StudioArchitects
Bossley ArchitectsArchitects
Mason & Wales ArchitectsArchitects
Crosson ArchitectsArchitects
McCoy Wixon ArchitectsArchitects
ArchitectusArchitects
Edwards White ArchitectsArchitects
Architecture HDTArchitects
ArchimediaArchitects
HB ArchitectureArchitects
Studio Brick ArchitectsArchitects
Daniel Marshall ArchitectsArchitects
Jason Mann PhotographyPhotographers
Trinity Interior DesignInterior Designers
Gibson O’Connor ConstructionBuilders
Material CreativeInterior Designers
The Workspace StrategistProfessional Services
Walker ArchitectureArchitectural Designers
Intelligent DesignArchitectural Designers
Haydn & RollettCarpenters & Cabinetmakers
Natural Habitats LandscapesLandscape Architects
Fitout SolutionsCommercial Interior Fitouts
Apple AirHVAC Designers and Installers
Space StudioInterior Designers
Lobell ConstructionBuilders
Studio H DesignArchitectural Designers
ACE Air ConditioningElectricians
Ockham ResidentialProperty Developers
Henry Dunham BuildingBuilders
eCubedEnvironmental Engineers
Urban Lounge InteriorsInterior Designers
Jessica Chloe PhotographyPhotographers
Lindesay ConstructionConstruction
CDMCommercial Interior Fitouts
Mark Scowen PhotographyPhotographers
HVAC Design New ZealandHVAC Designers and Installers
Amanda Aitken PhotographyPhotographers
ACSL GroupElectricians
VADAInterior Designers
Collins Plumbing, Gas and HeatingPlumbers & Gas Fitters
Weir ArchitectureArchitectural Designers
Marina Mathews PhotographyPhotographers
Keith Bennett PhotographyPhotographers
RCPProject Managers

Both OHL-124 and 102 louvers are available as closable options.
They offer performance and appearance similar to the basic model with the facility to close the complete louver by means of concealed damper blades, pivoted on the underside of each fixed blade, and gang operated by either manual or motorised means. They are ideally suited for use in high wind storm conditions. While open, they offer minimum airflow resistance with low droplet penetration for normal weather.
Typical uses are to provide controlled air movement in conjunction with powered and natural ventilation schemes in factories, plant rooms, power stations and similar projects.
Other suitable applications include controllable air inlets operating with smoke clearance systems, where louvers would normally remain closed but would open in the event of an emergency.
Bird screen material slides horizontally into tracks between blades so that linkages are not obstructed.
- Specs
Closable Weather Louvres shall be Holyoake Model OHCL-F/C-102 curved profile 100mm louvred blades set at 102mm centres and constructed in a 107mm flanged (F) or channel (C) frame to suit the installation profile. Each Blade shall be fitted with a concealed damper blade pivoted on the underside of each fixed blade which is gang operated by either manual or motorised means. Closable Weather Louvres shall be of extruded aluminium construction and finished in natural anodised, powder coat and fitted with accessories and dampers where indicated as manufactured by Holyoake.
- Features
- Moderate performance louver.
- Motorised or manual operation.
- Attractive curved blade profile.
- Obstructed line of sight.
- Dual weather stop blade.
- The OHL-102 is available in three surround options:Flangeless channel surround, 25mm flange cover and 40mm flange cover
