Auckland - Coatesville

Website

eHaus Euro - Certified Passive House - Classic

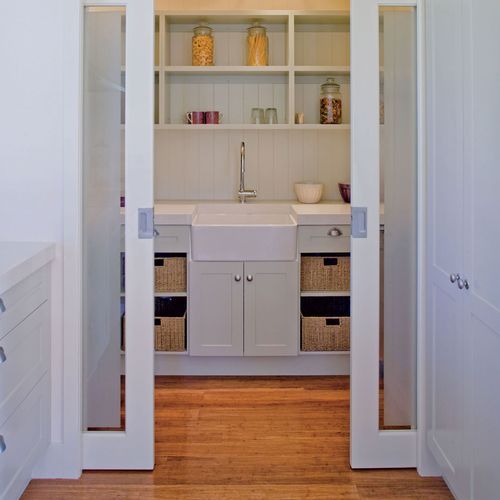

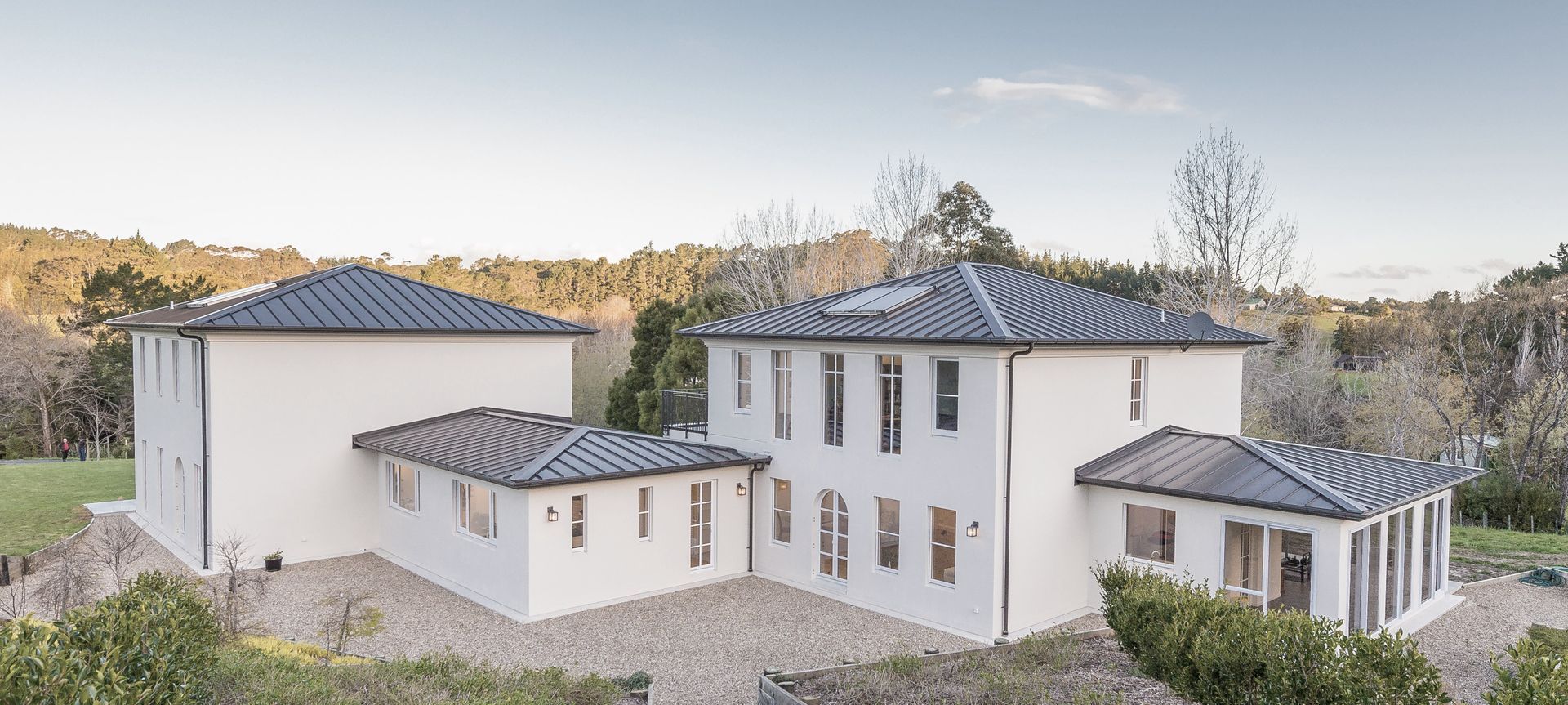

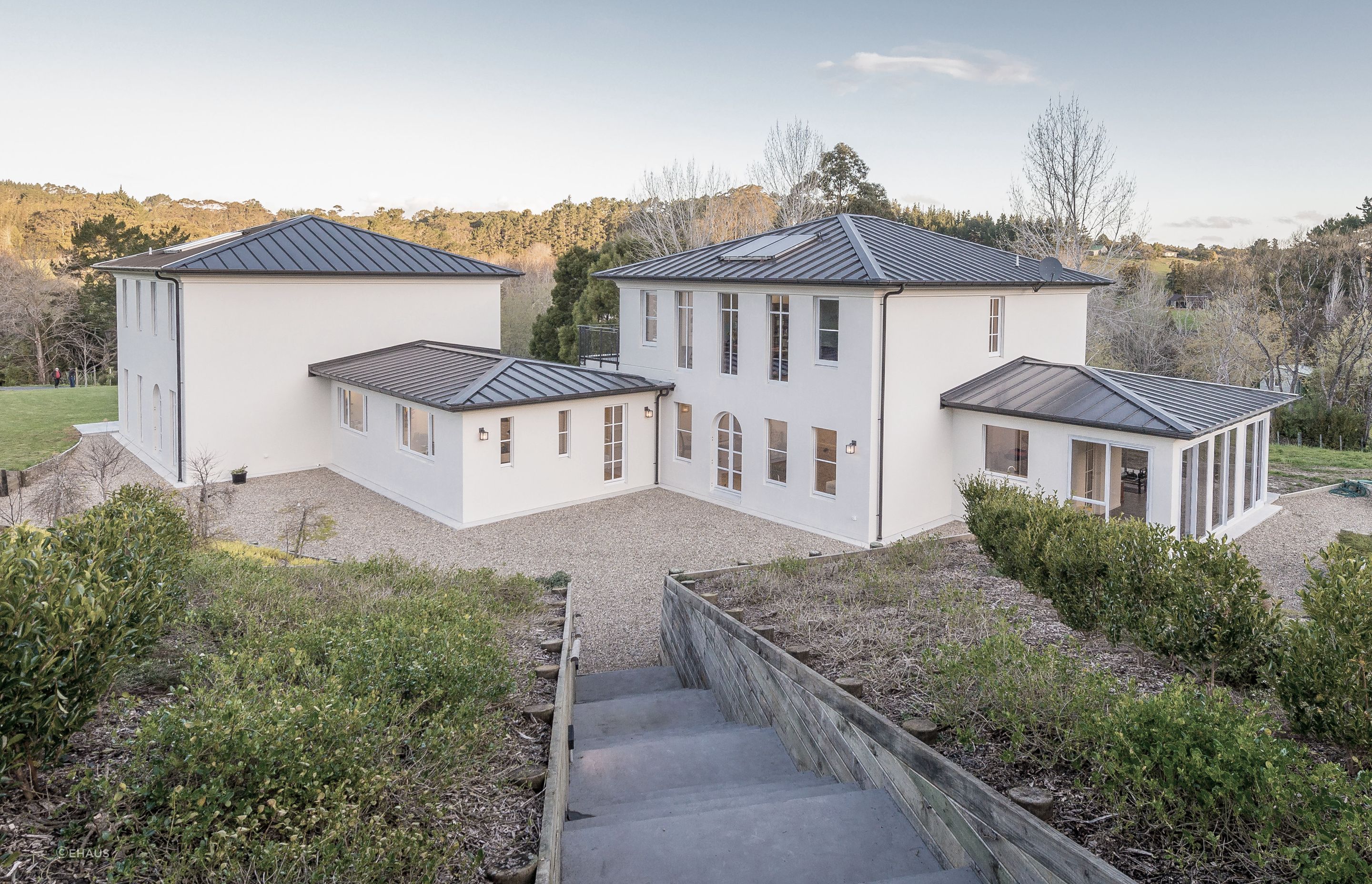

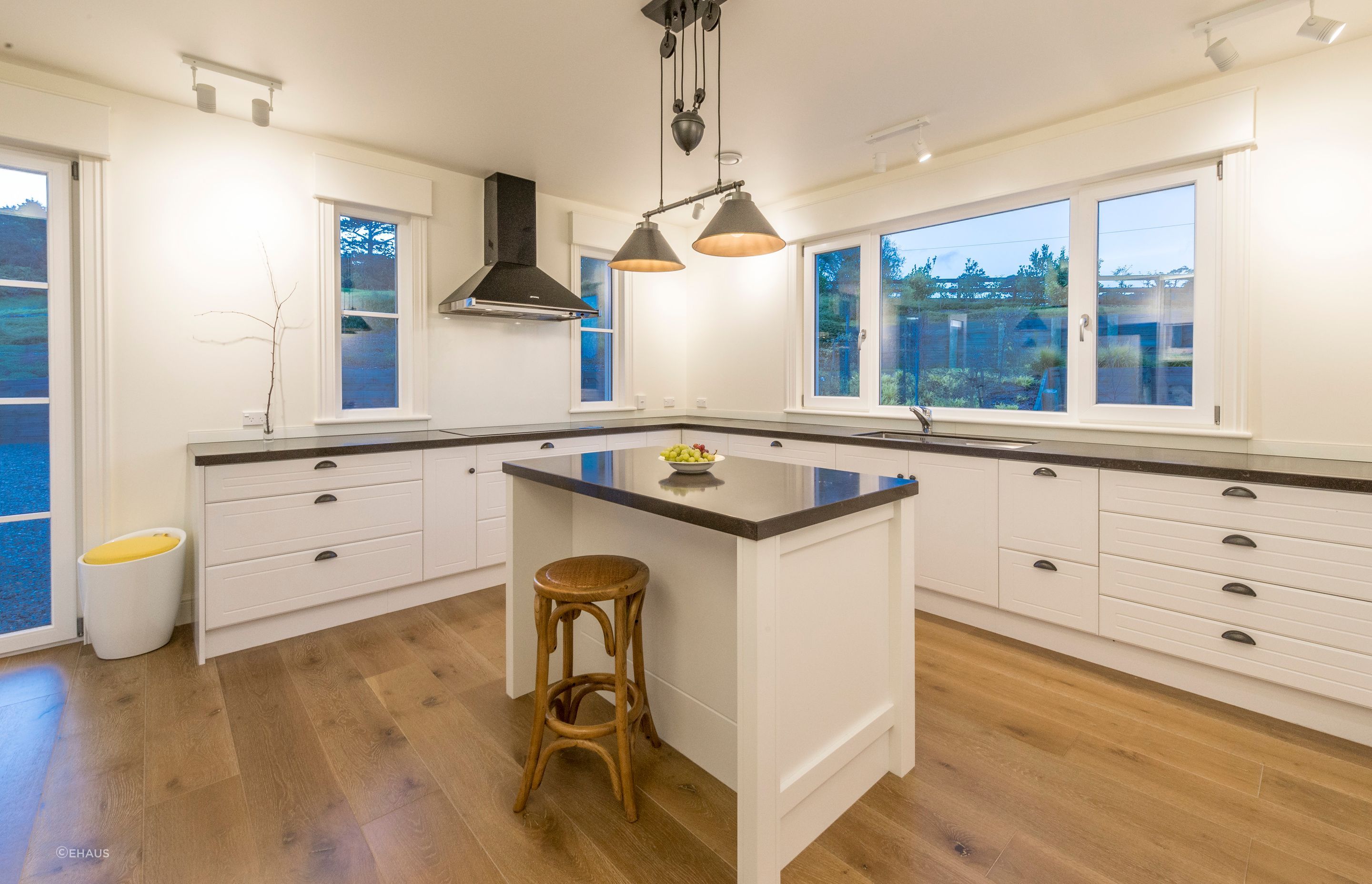

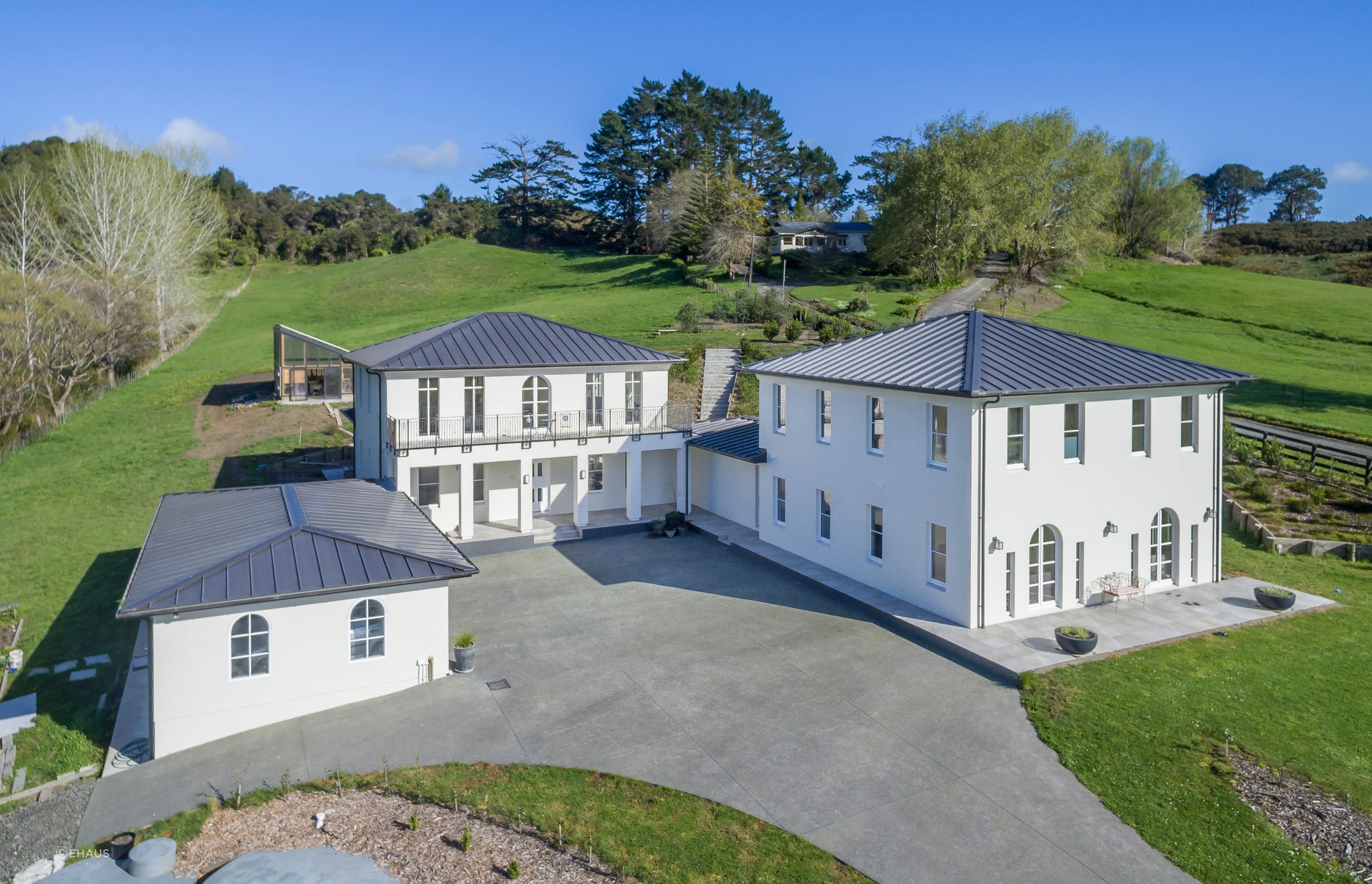

This imposing residence in a French style was built for three generations, with two homes connected by a very large kitchen and pantry.  It also includes office space for the young couple who work from home.  Its is testament to the flexibility of the Passive House standard, which can accommodate different aesthetics An extremely high quality build that performs as well as it looks.



South Pacific Passive House Architecture Finalist



Design Components:

Floor – Fully insulated concrete pad with a U-value of 0.184 W/(m²K)

Wall – ecoBlock ICF wall  U-value = 0.267 W/(m2K)

Roof – Double layer of fibreglass insulation U-value of 0.154 W/(m²K)

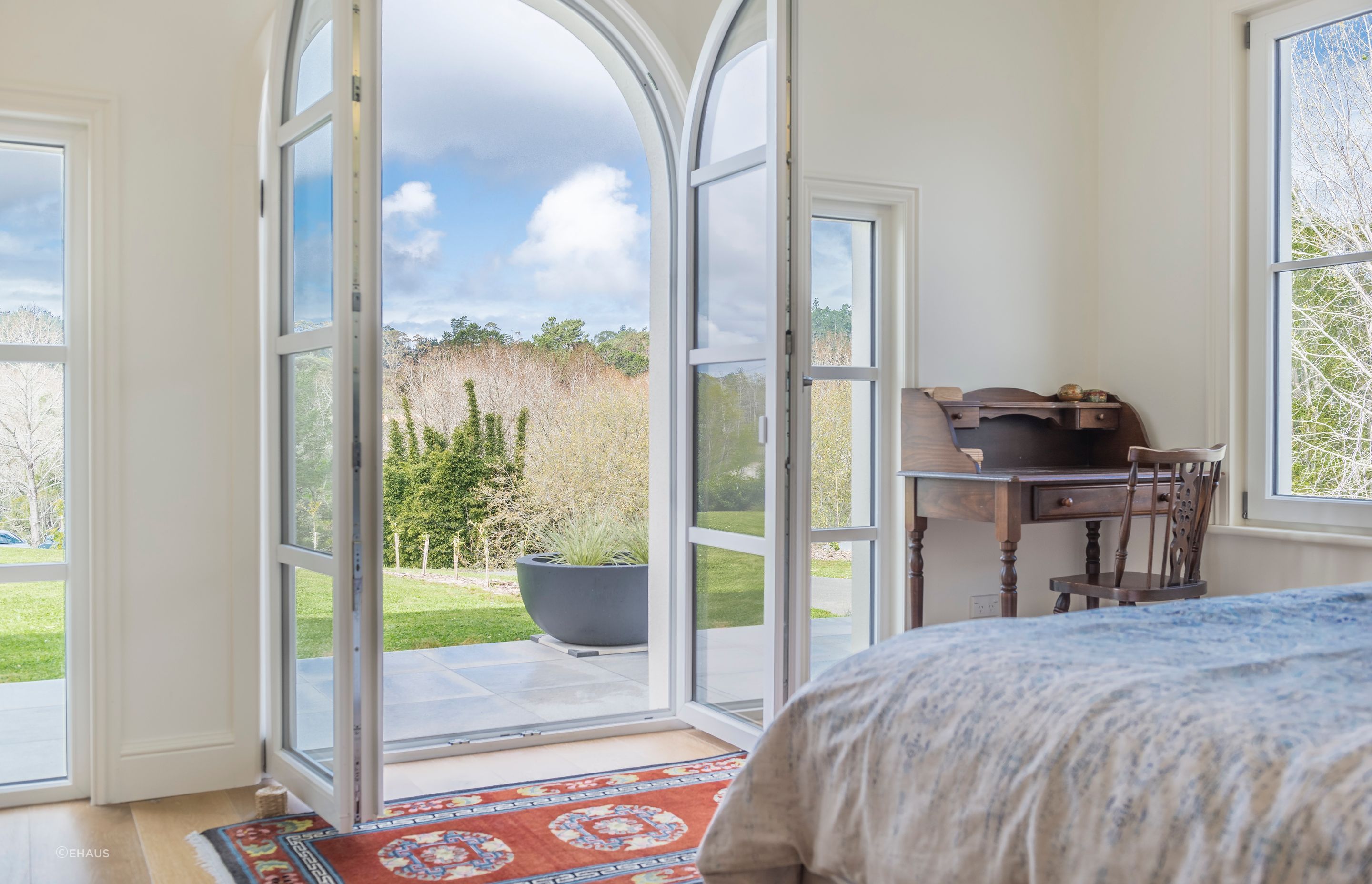

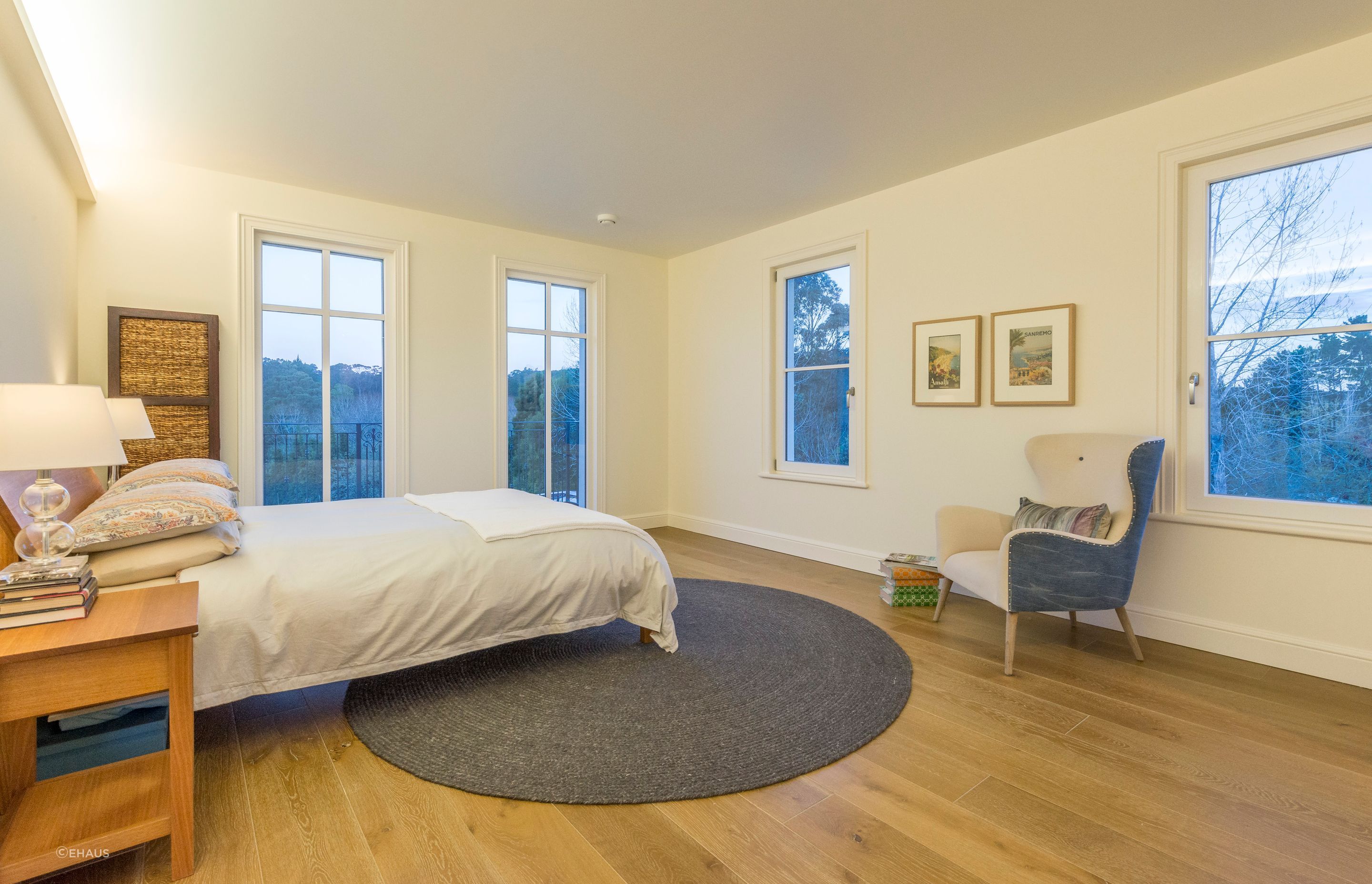

Window Joinery Frame – ECO WINDOWS – HILZINGER, KBE PRESTIGE – uPVC Fitted with Rolatherm blind system on west facing glazing Uf: 1,4 W/(m²K)

Glazing – Isolar Neutralux Advance 4-16-4 Low E Argon U g-value = 1.1 W/(m2K)  g -value = 62 %

Ventilation – 2 x Zehnder Comfo Air 350 MHRV

Hot Water – 2 solar Hot water systems (3,7m²), each with 300 litre storage

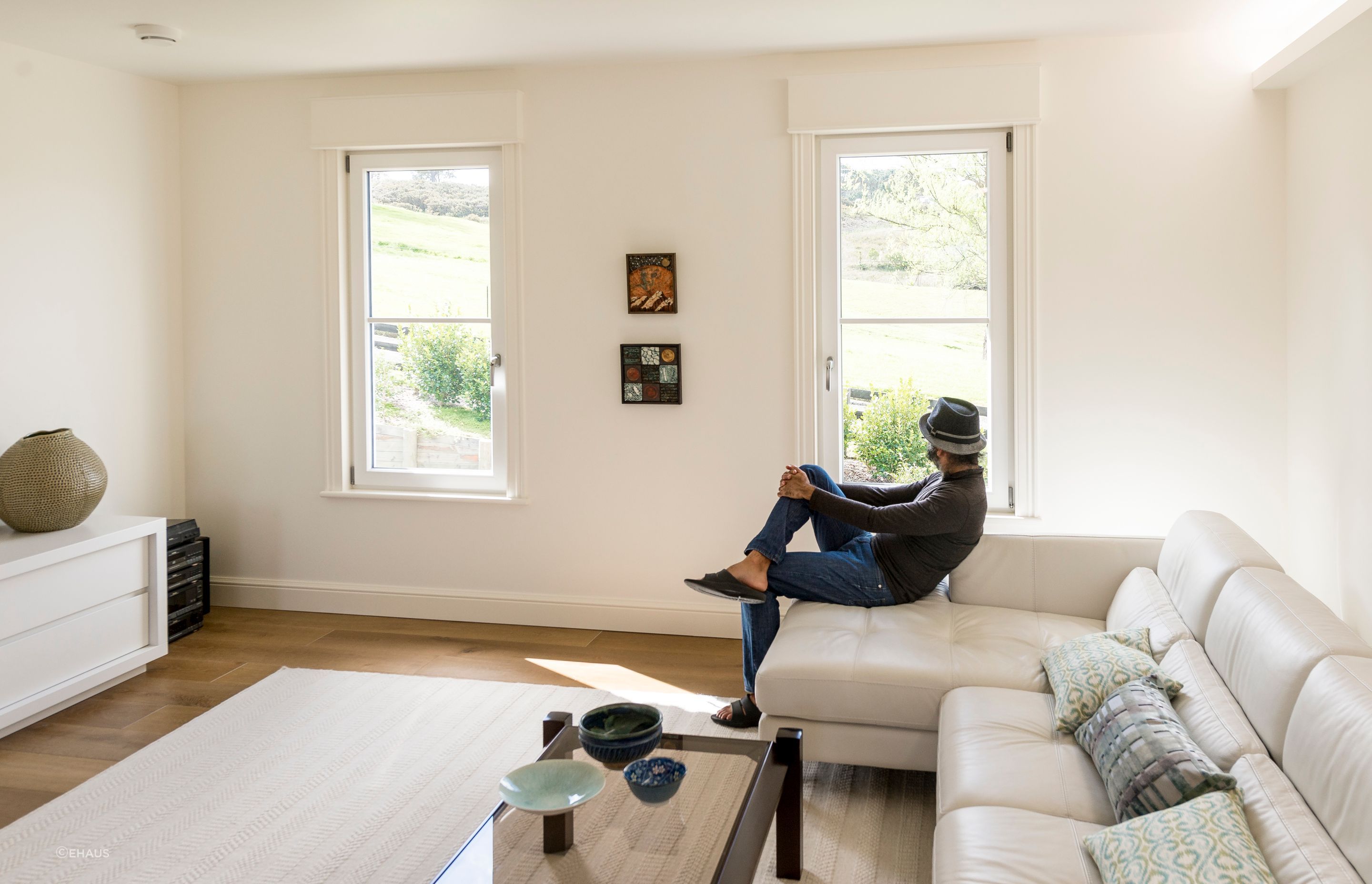

Heating/Cooling – 2kW heaters fitted in lounge, 600W  Heated towel rail

Power Generation – 6.75kW solar photovoltaic array

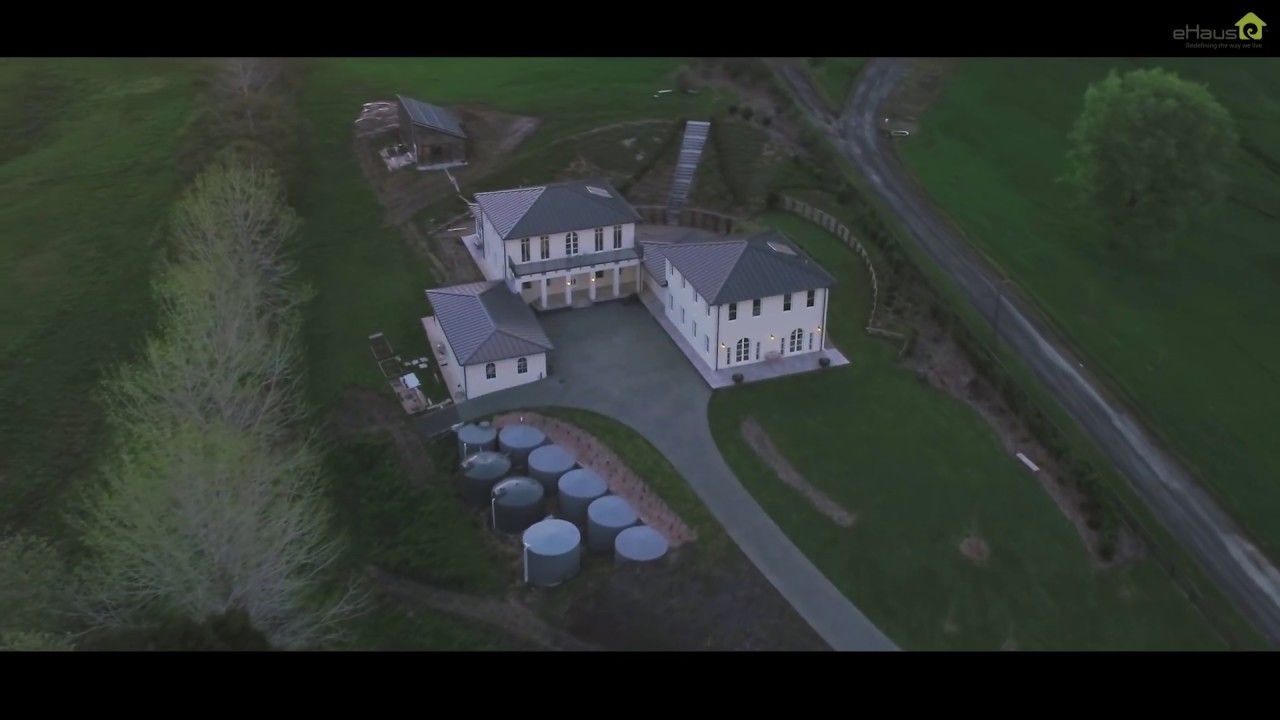

Ecological features  – 112,000 litres of potable water storage



Performance Specifications:

Total Floor Area – 325.8 m2

Ground Floor Area – 253.0 m2

Garage Floor Area – 72.8 m2

Heating demand: 7 kWh/m2/annum

Heating Load: 9 W/m2

TFA – 379.3m2

Form Factor – 2.85

Air Leakage@50Pa – 0.3 ACH

PE demand – 100 kWh/m2/yr
