“Situated on the slopes of the Orakei Basin in central Auckland, the site—which lies at the end of nearly a half-kilometre of challenging driveway that winds around another 12 properties and sits on the steep slope of a volcanic crater—had every difficulty you could imagine but it is spectacular, sheltered and central,” says Architect Wendy Shacklock.

While the site threw every difficulty at her, Wendy says the project benefitted from a quite specific client brief in terms of functionality but complete openness in terms of form and materials. However, the client wanted to achieve a flat lawn with swimming pool sitting flush with the living areas of the house on what is almost a one-in-three slope beneath a cliff. There was to be a study, media room and three bedrooms, with the main bedroom being on a mezzanine.

Most importantly, it must look like a house, not an apartment building.

“After consultation with engineers a judicious level was struck for the main floor, cutting minimally into the cliff on the one hand and retaining and lifting the downhill boundary to create a level platform.

“Entry to the site is from the south-western corner, five metres below the main floor level. The garage is further cut in with internal access to the double-height entry stairwell. The resultant section follows the natural contours with minimal manipulation in the overall scale of the cliff.”

The site enjoys a ‘wow’ view to the northwest, out across the basin and towards the Sky Tower and Auckland skyline. However, says Wendy, that did not automatically mean that the house would be oriented in that direction.

“It is always challenging to be looking westwards and across water, and my instinct is always to orient a house as much as possible to the north, anyway, which in this case allowed the focus to be over the land, taking in the private dell-like quality of the extreme end of the site.

“My personal belief is that views should be incidental to the experience of house, space and the relationships within.

“The form and geometry of the house re-interprets the New Zealand vernacular of the gabled roof form predominant within the local suburb. The facade ‘bends’ with the site so that the entire north and west facing facades effectively form a sheltered bay—maximising water views to the west and north, as well as passive solar gain from the north.

“The manipulation of the facades in turn deflects the geometry of the gabled roof to create an irregular, sculpted form. The three-dimensional facade acts as an instrument for engaging with the garden and the basin, while expressing the dynamic forces of the volcanic contours.”

Extending along the base of the cliff, framing the lawn, a single-storey form subtly tapers and pulls away from the main house to enable morning sun penetration to the dining room and allowing for the insertion of a glazed and louvered outdoor room, centred on the swimming pool. Here, in this space, the experiential nature is explored as the space, much like the lounge area inside, is given over to entertaining and maintaining interpersonal relationships. At the heart of that lie the twin Jetmaster fireplaces, designed not only to warm the spaces but to facilitate that relational connection.

Further blurring the line between indoors and out, a glazed pivot door connects these spaces, while internally, an adjacent door leads down a hallway to the guest bedrooms and family room.

The three facades—north, south and west—are highly glazed, permeable screens allowing cross ventilation and views through the house. Window and balcony openings travel freely across the facades expressing lightness and movement horizontally and vertically through all three levels.

“The big view is preserved for the climatic cantilever, reducing the height of glazing to mitigate glare while the grand sweep of the roof hugs the cliff and levels out to project dramatically over the water.

“Here the full intensity of the view—with no deck to mediate between inside and out, just a balcony of sliding sashes—is allowed to capture the attention, becoming an interactive element rather than a filtered prospect on the edge of consciousness.”

Wendy says the house was conceived as one large shelter wrapping around the land.

“The roof form is a big gesture, in the scale of the cliff, embracing the house. Inside, interconnected spaces are informed by wall and ceiling planes. The ground floor of the building is conceived as a continuous landscape that flows from the living areas to the terrace, lawn and outdoor room.

“The kitchen lies at the heart of this landscape and it is from here that I see the homeowners conduct their entertaining—very much in the nature of a stage. There is a circularity to the plan, revolving around this kitchen hub—I like the notion of alternate routes within a house. The main, mezzanine bedroom hovers over this heart, compressing the activity in this zone, all of which is held under the soaring gable.

“The dining room I have conceived of as having a more ‘café style’ for the daytime, with the table in the bay window. However, the room is large enough—it is also home to the homeowners’ baby grand—to be quite flexible in it’s layout. Here, the ceiling plane lowers over the main dining space to feel relatively intimate next to the soaring volume over the mezzanine.”

Full-width sliding windows around the dining bay allow relaxed interaction with the other social spaces.

Upstairs, the main bedroom is bathed in light from the gable window, with elevated views to the north across the basin filtered by the trees of the reserve. The space is defined by the folds of the faceted ceiling and solar gain is modulated with operable vertical louvres.

This is very much an entertaining house, with multi-faceted spaces revealing themselves as part of a journey from entry to main level and via the kitchen/living to the pool, outdoor room and lawn—and yet, at the same time, it is a house that enfolds its two occupants within a protective cloak, sheltering them from prying eyes and changeable weather.

Photography by Patrick Reynolds Photography.

Wendy Shacklock Architects
Auckland
Get in touch
Visit Website
End of the Road | Wendy Shacklock Architects | ArchiPro

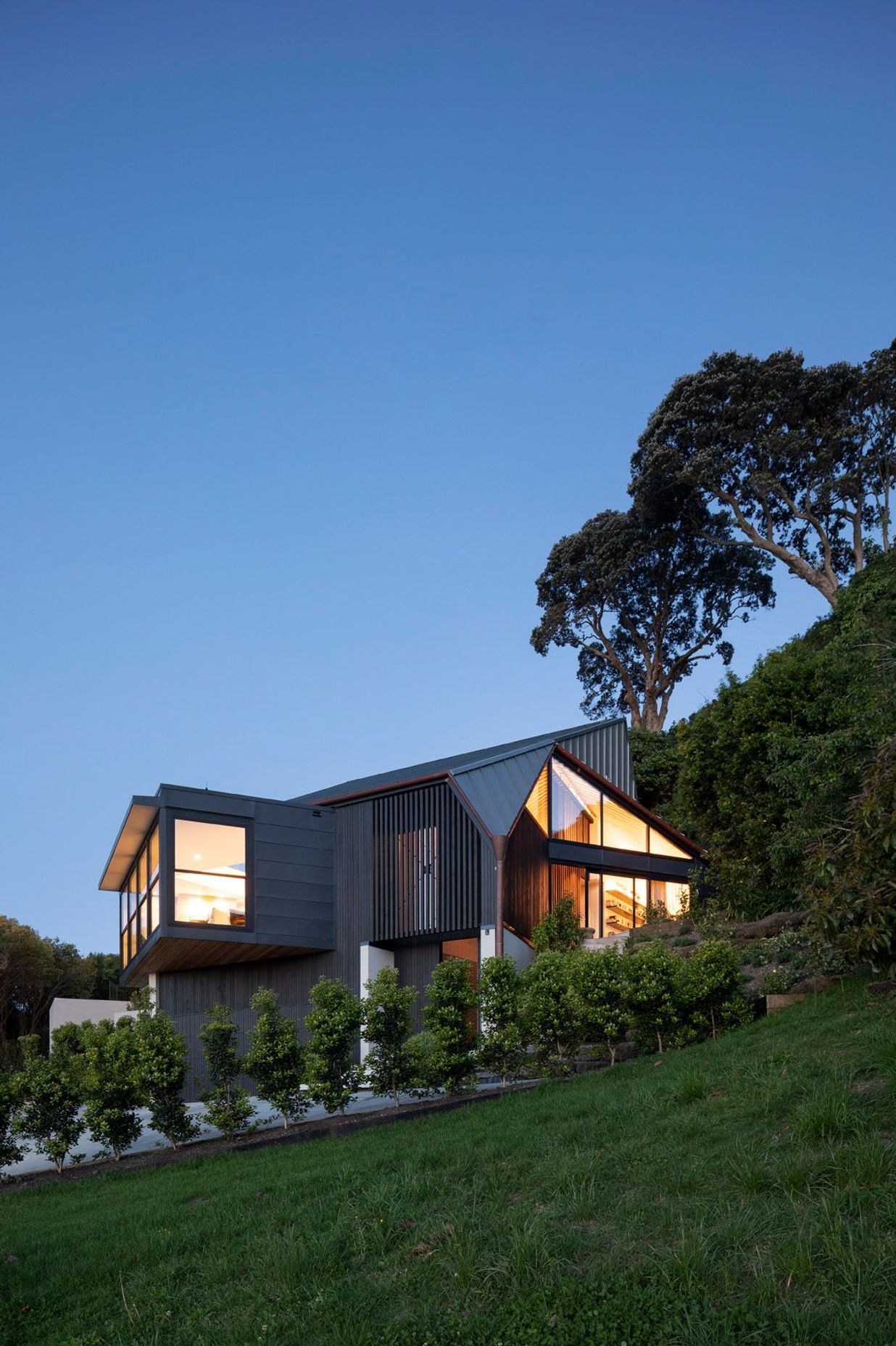

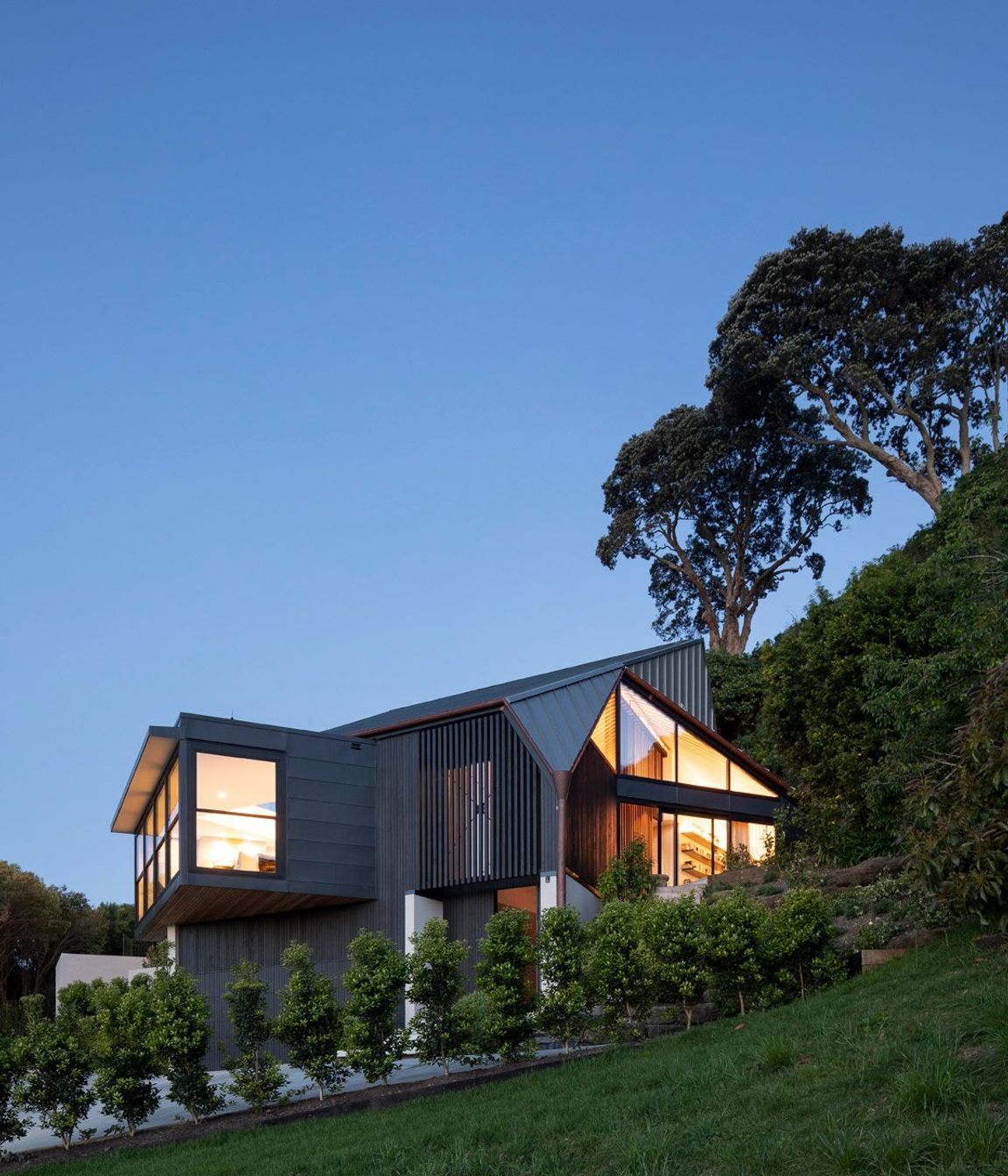

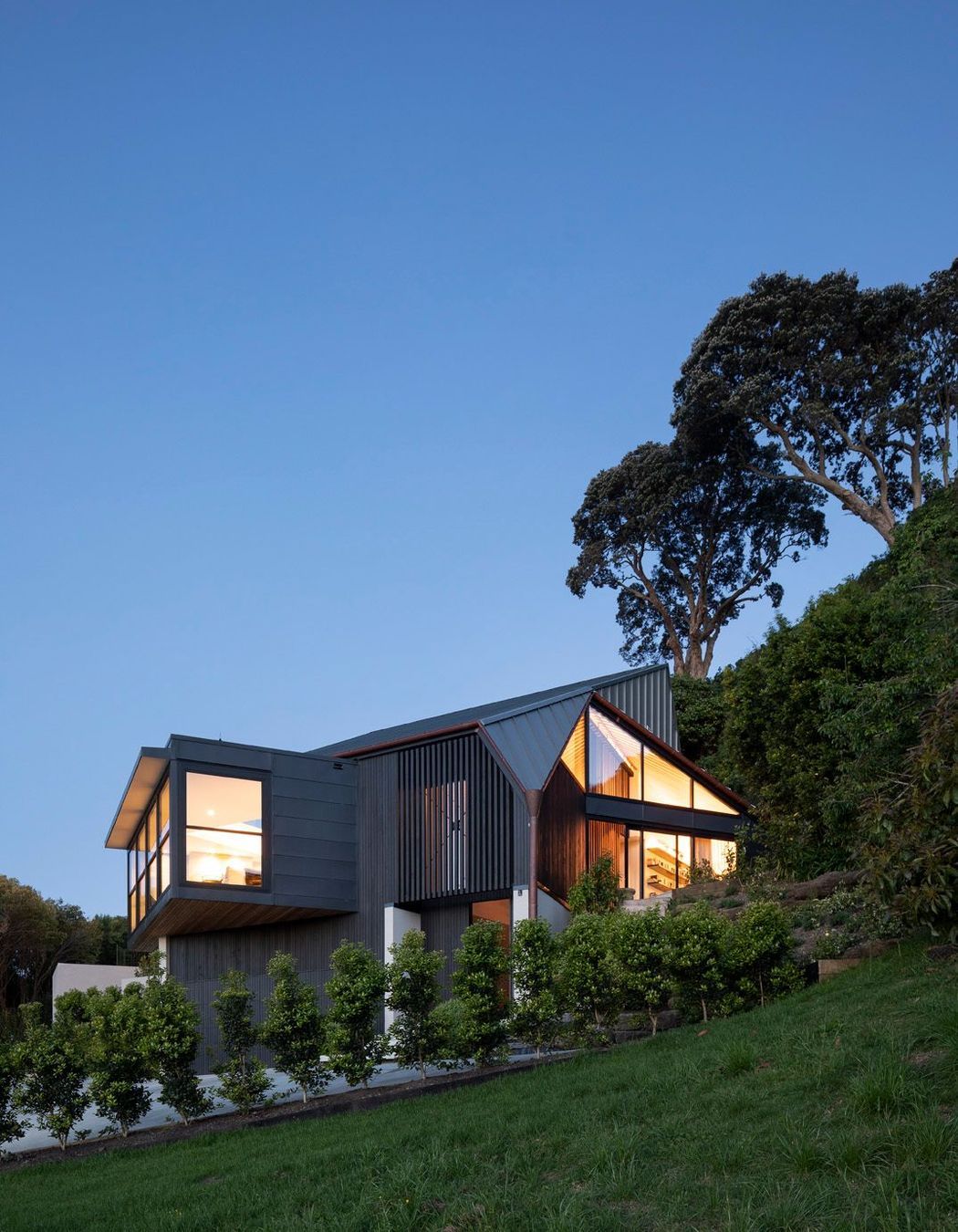

Situated at the end of a 500m driveway, which winds around 12 other houses, the home is perched on the slope of a volcanic crater with views over a wooded dell to the north and Auckland city to the west.
Situated at the end of a 500m driveway, which winds around 12 other houses, the home is perched on the slope of a volcanic crater with views over a wooded dell to the north and Auckland city to the west.
The homeowners tasked the architect with designing a home that would offer multiple entertaining options, all flowing from a mid-floor level.
The homeowners tasked the architect with designing a home that would offer multiple entertaining options, all flowing from a mid-floor level.
The site originally had a one-in-three slope so to create the desired flat area the cliff face behind the house was cut into—albeit minimally—and the downhill portion was lifted and retained.
The site originally had a one-in-three slope so to create the desired flat area the cliff face behind the house was cut into—albeit minimally—and the downhill portion was lifted and retained.

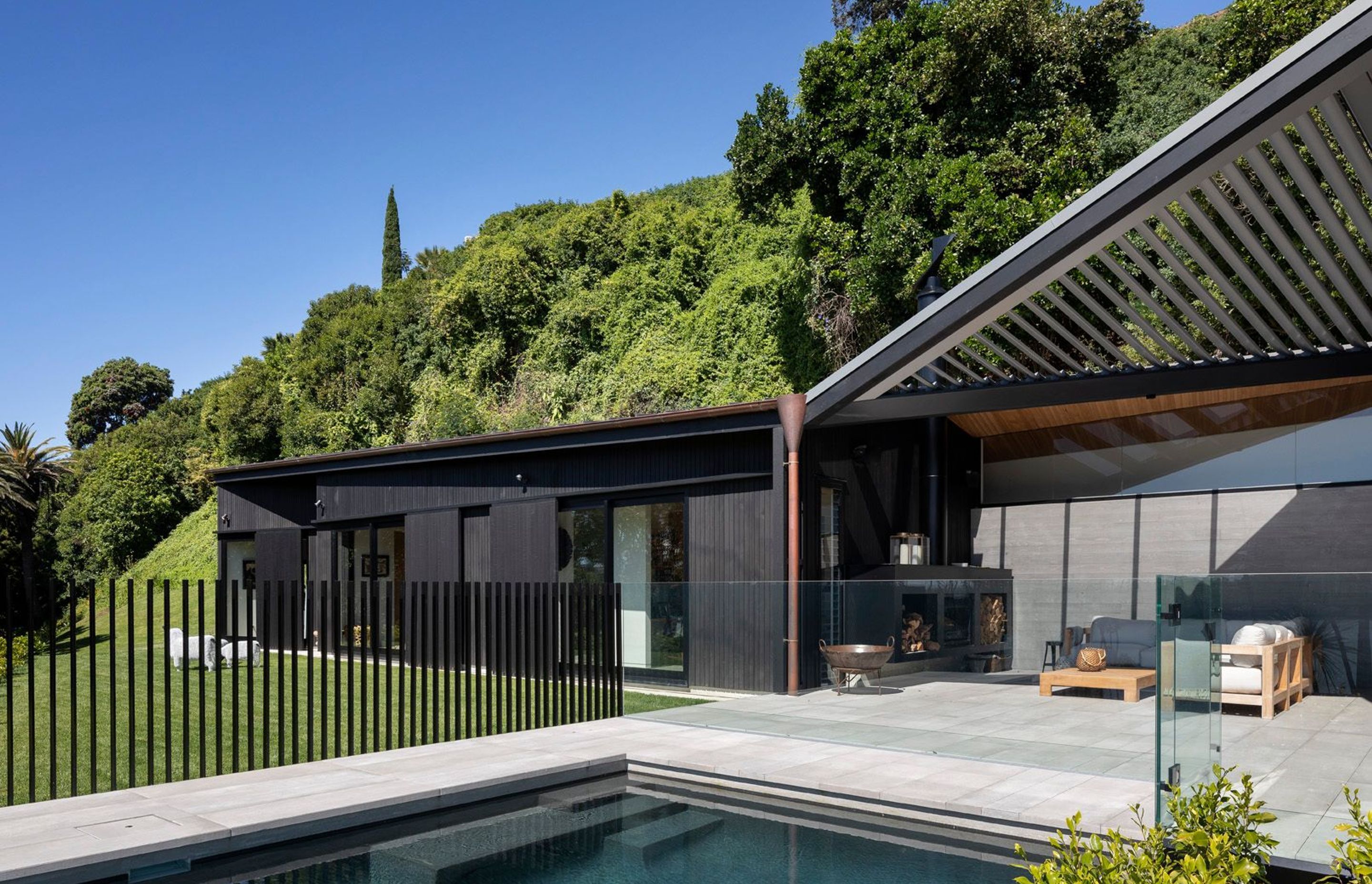

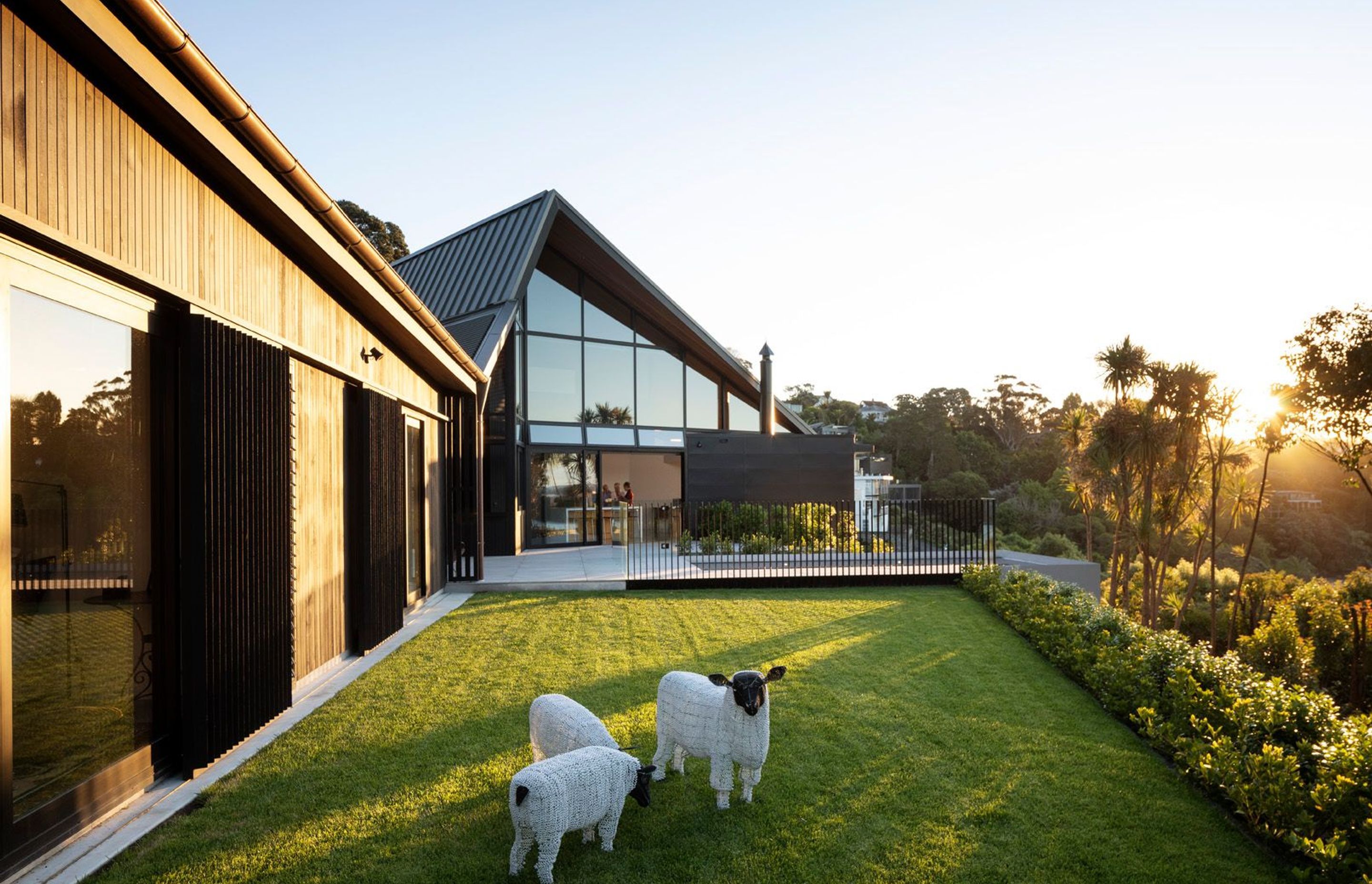

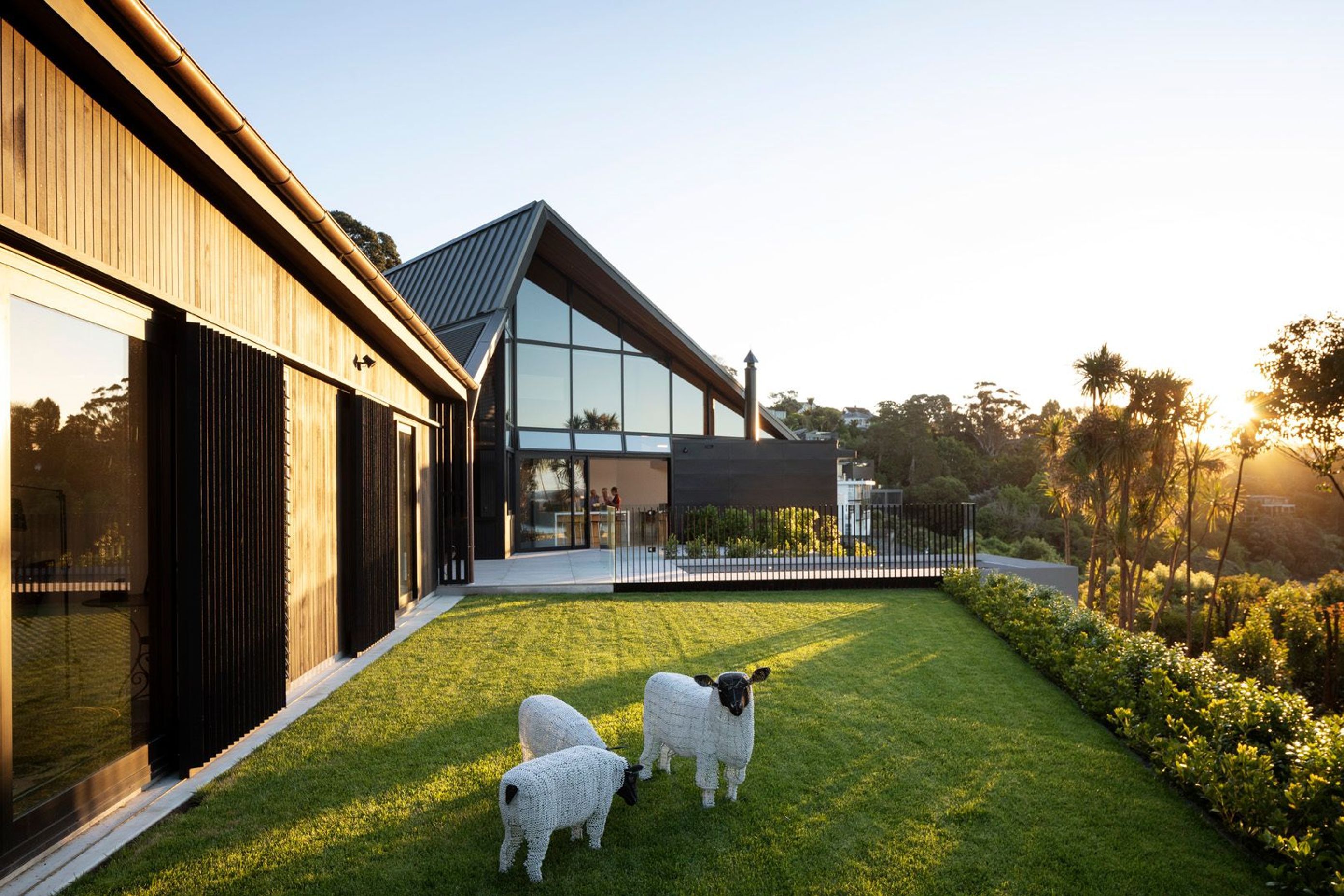

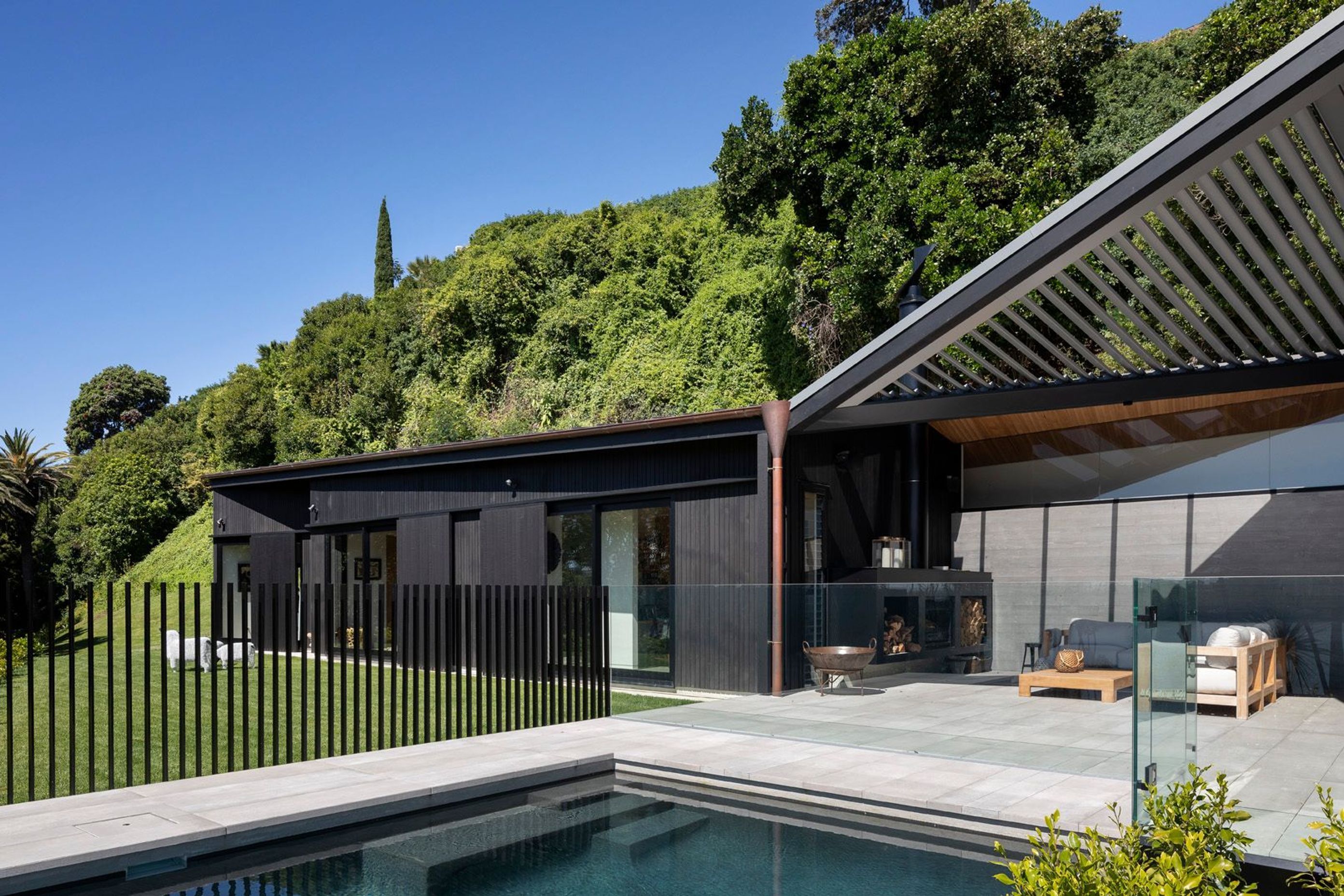

A single-storey form—which contains a family room and guest bedrooms—pulls away from the main house allowing for the insertion of a glazed and louvered outdoor room, centred on the swimming pool.
A single-storey form—which contains a family room and guest bedrooms—pulls away from the main house allowing for the insertion of a glazed and louvered outdoor room, centred on the swimming pool.

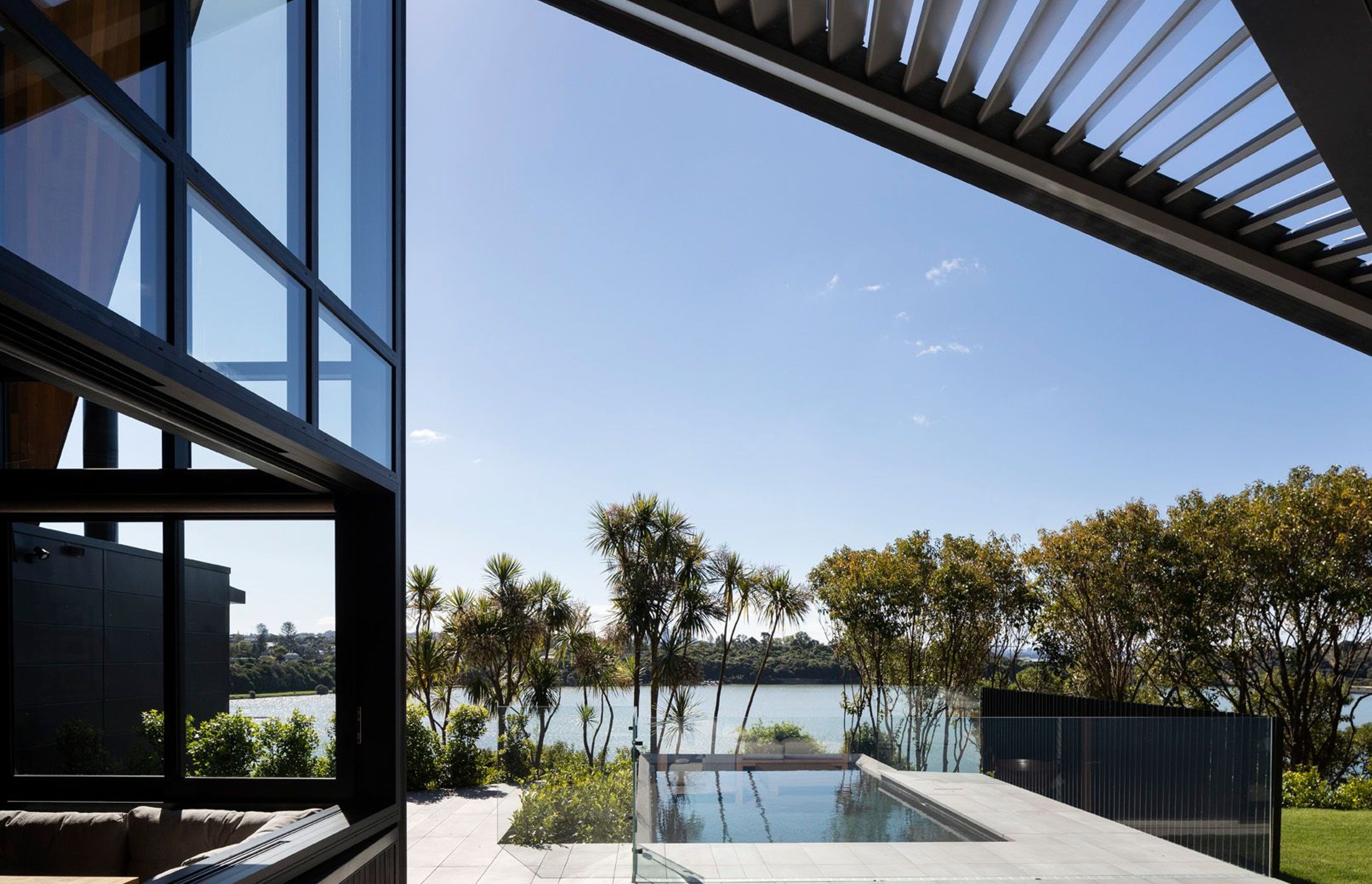

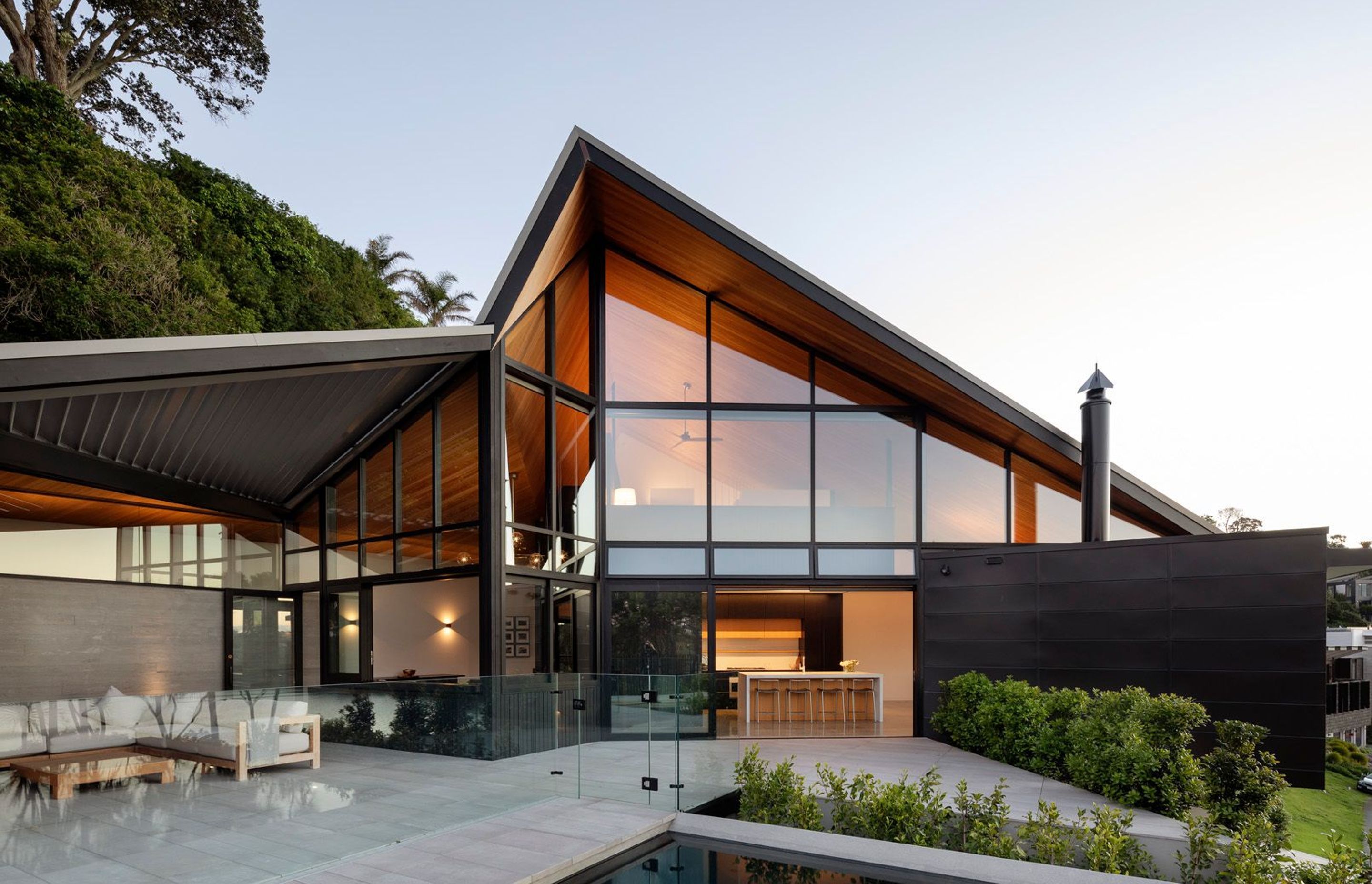

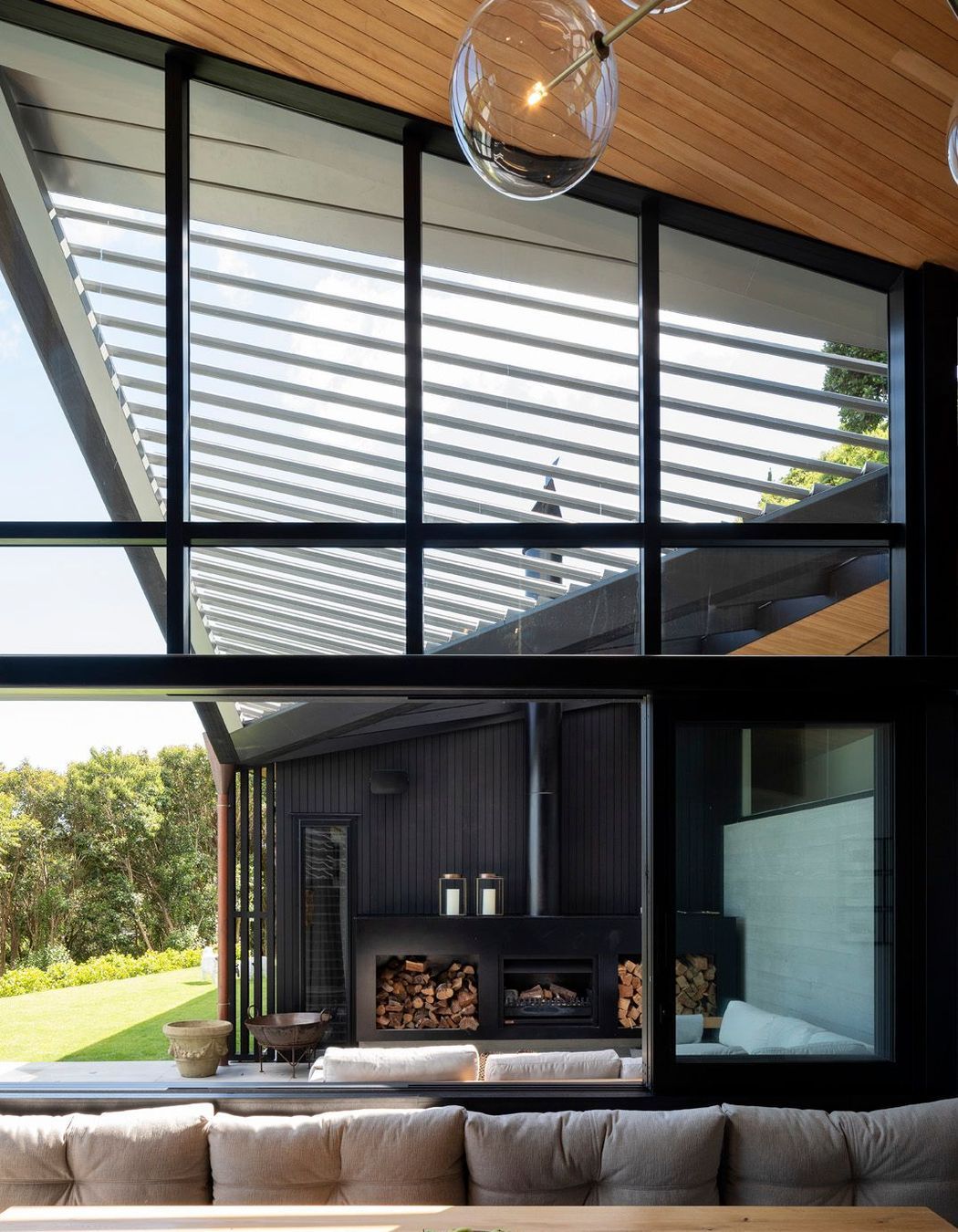

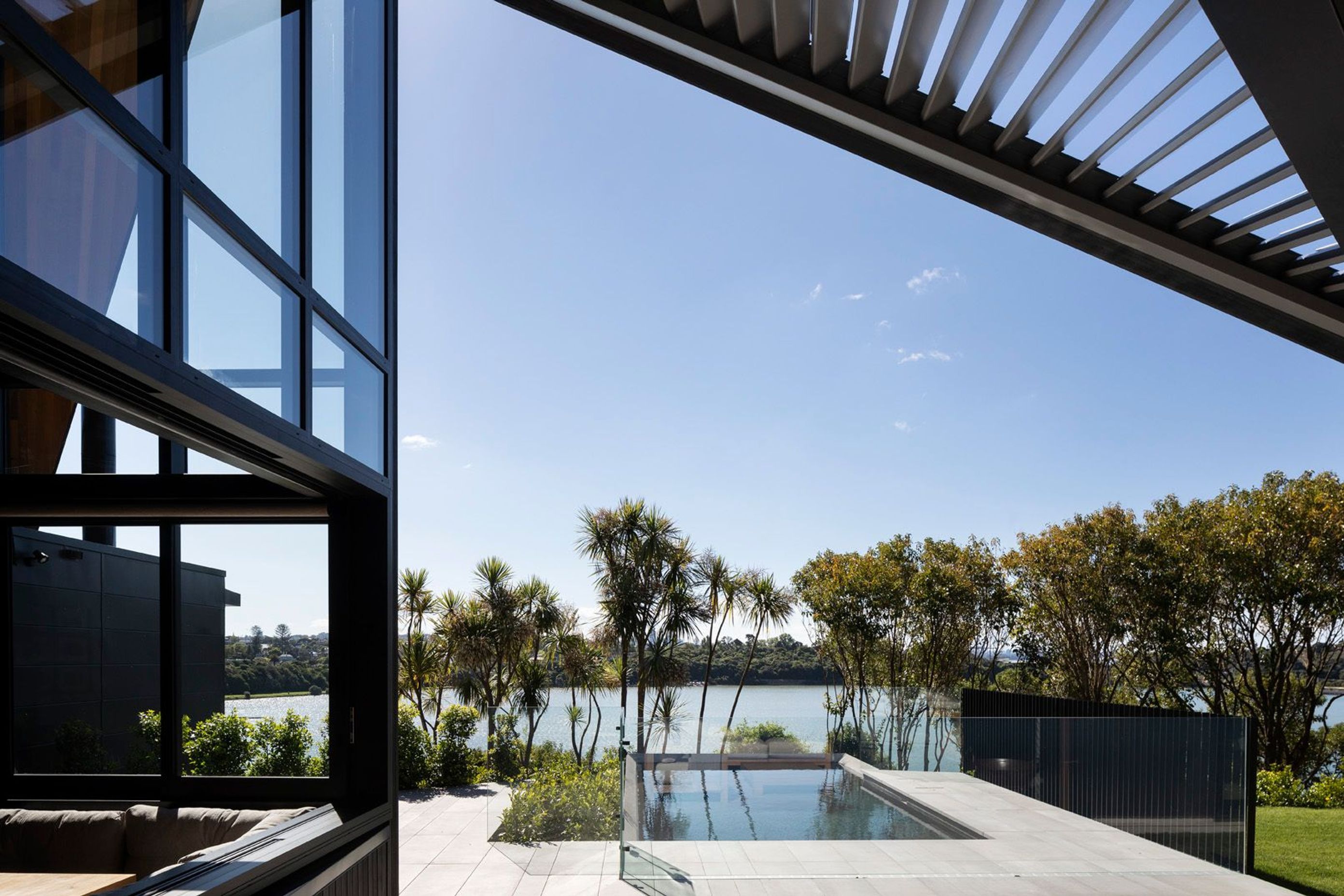

Operable louvres above the outdoor room allows morning sun to penetrate into the dining room while the view beyond the pool takes in the Orakei Basin.
Operable louvres above the outdoor room allows morning sun to penetrate into the dining room while the view beyond the pool takes in the Orakei Basin.
"The three-dimensional facade acts as an instrument for engaging with the garden and the basin, while expressing the dynamic forces of the volcanic contours,” says Architect Wendy Shacklock.
"The three-dimensional facade acts as an instrument for engaging with the garden and the basin, while expressing the dynamic forces of the volcanic contours,” says Architect Wendy Shacklock.

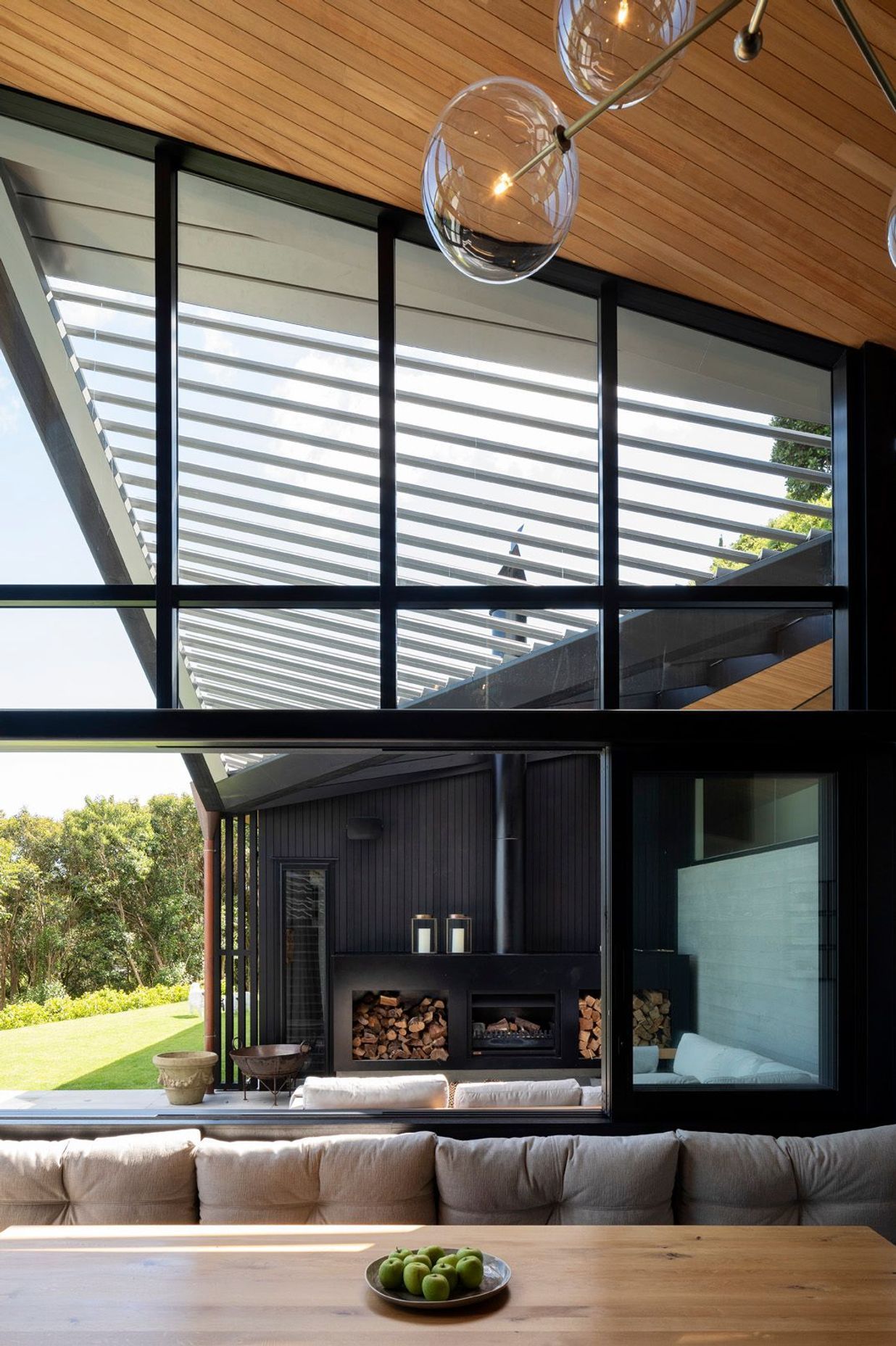

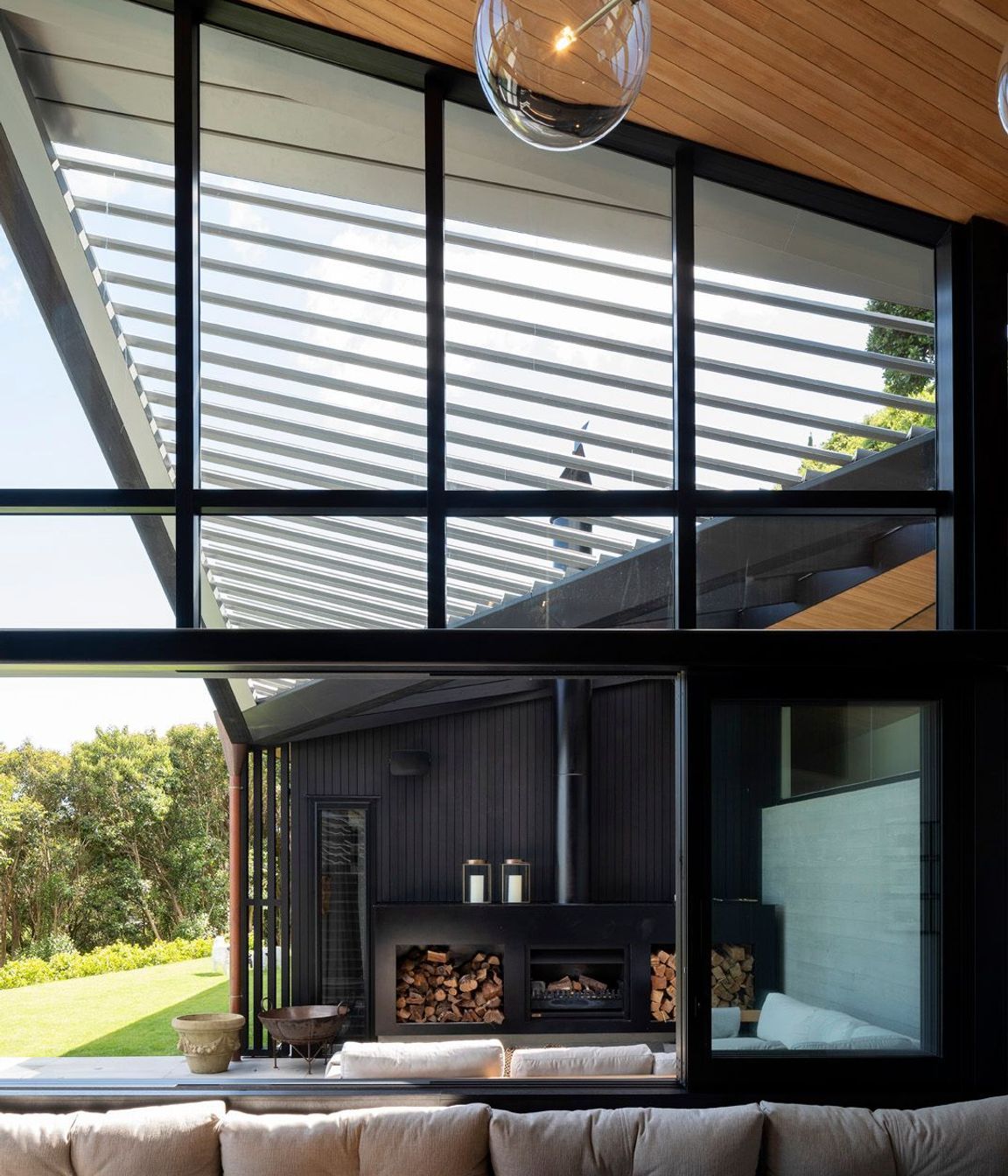

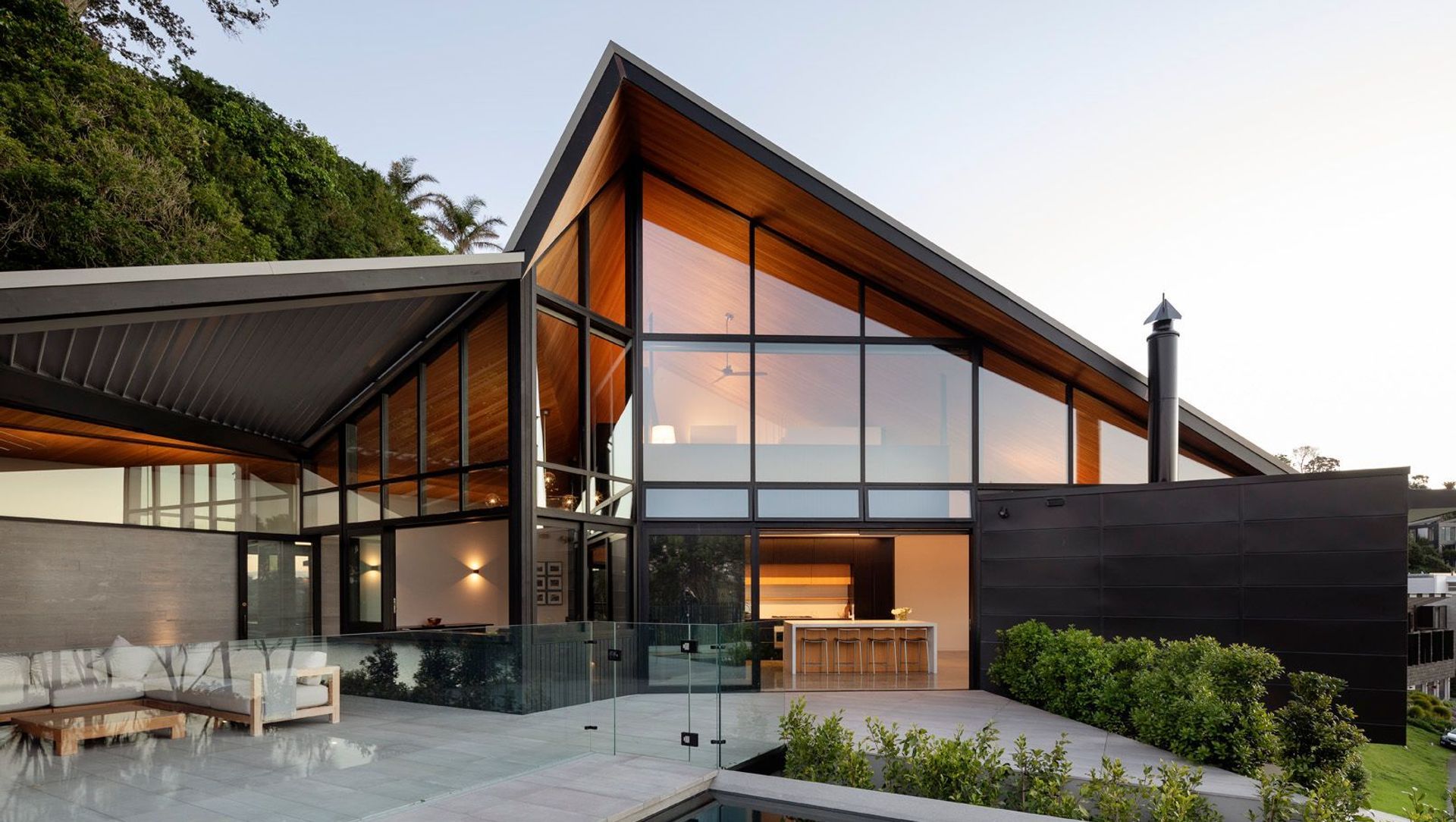

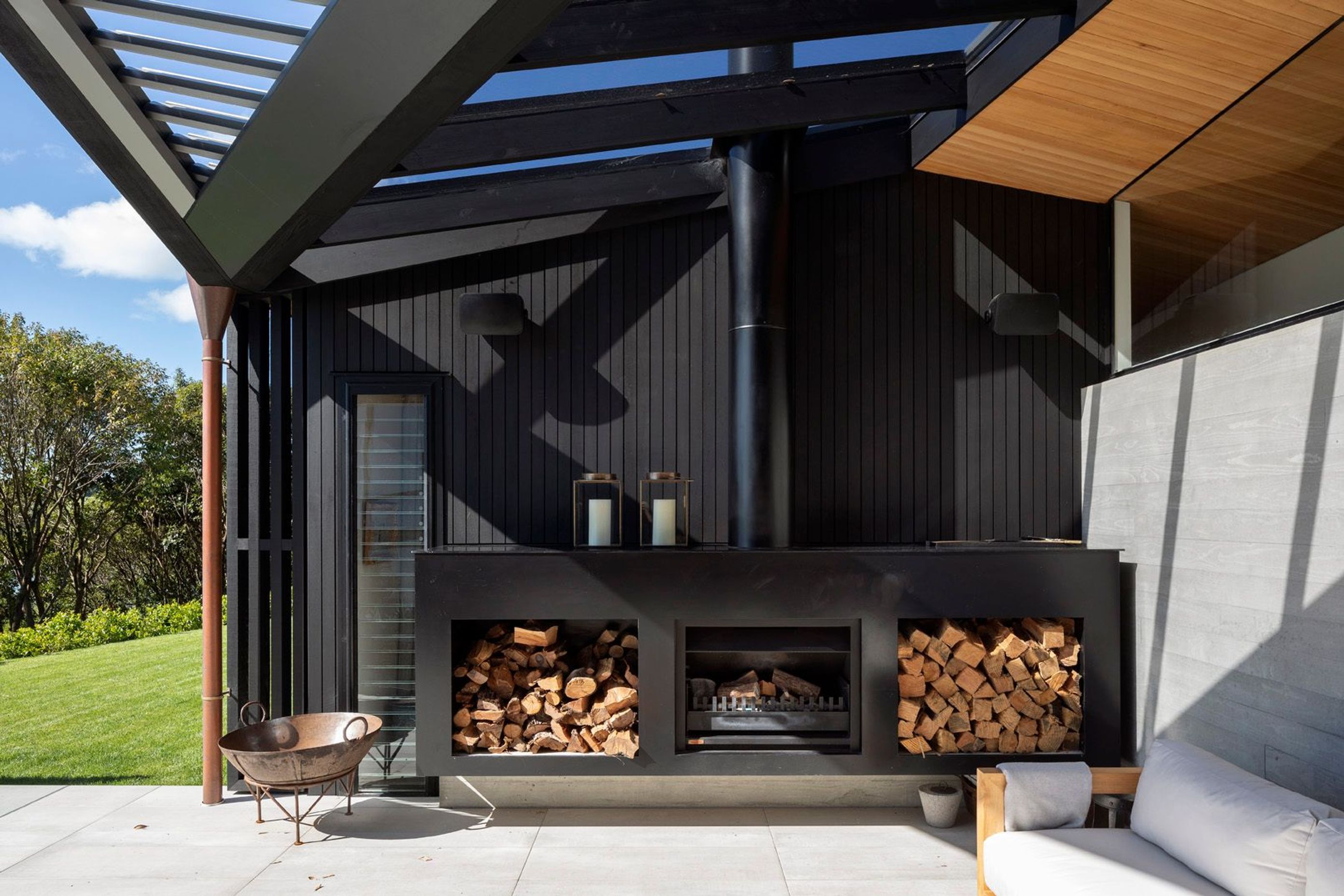

Year-round entertaining is made possible thanks to the generously proportioned outdoor fireplace, which acts as the focal point of the outdoor room.
Year-round entertaining is made possible thanks to the generously proportioned outdoor fireplace, which acts as the focal point of the outdoor room.

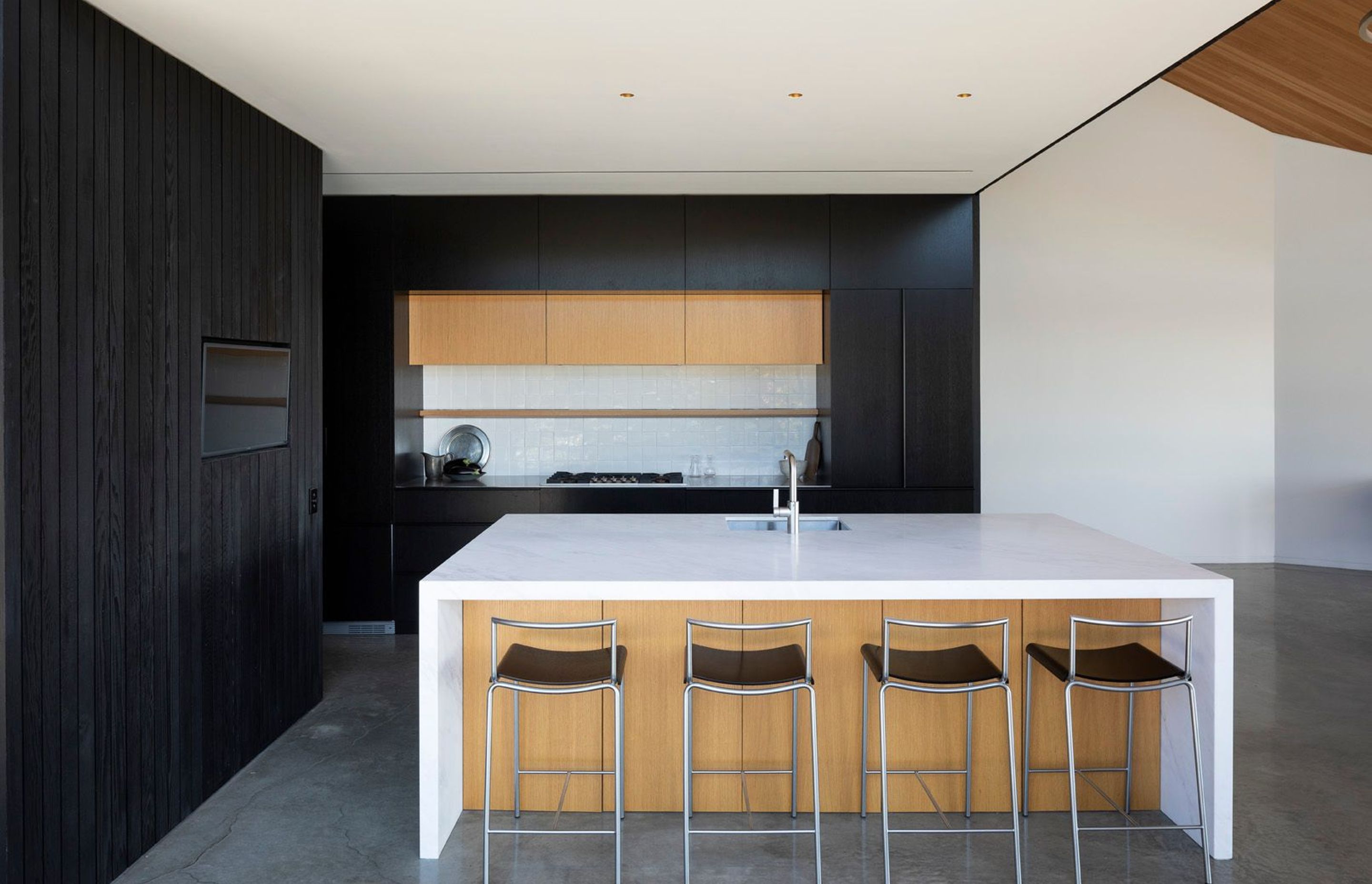

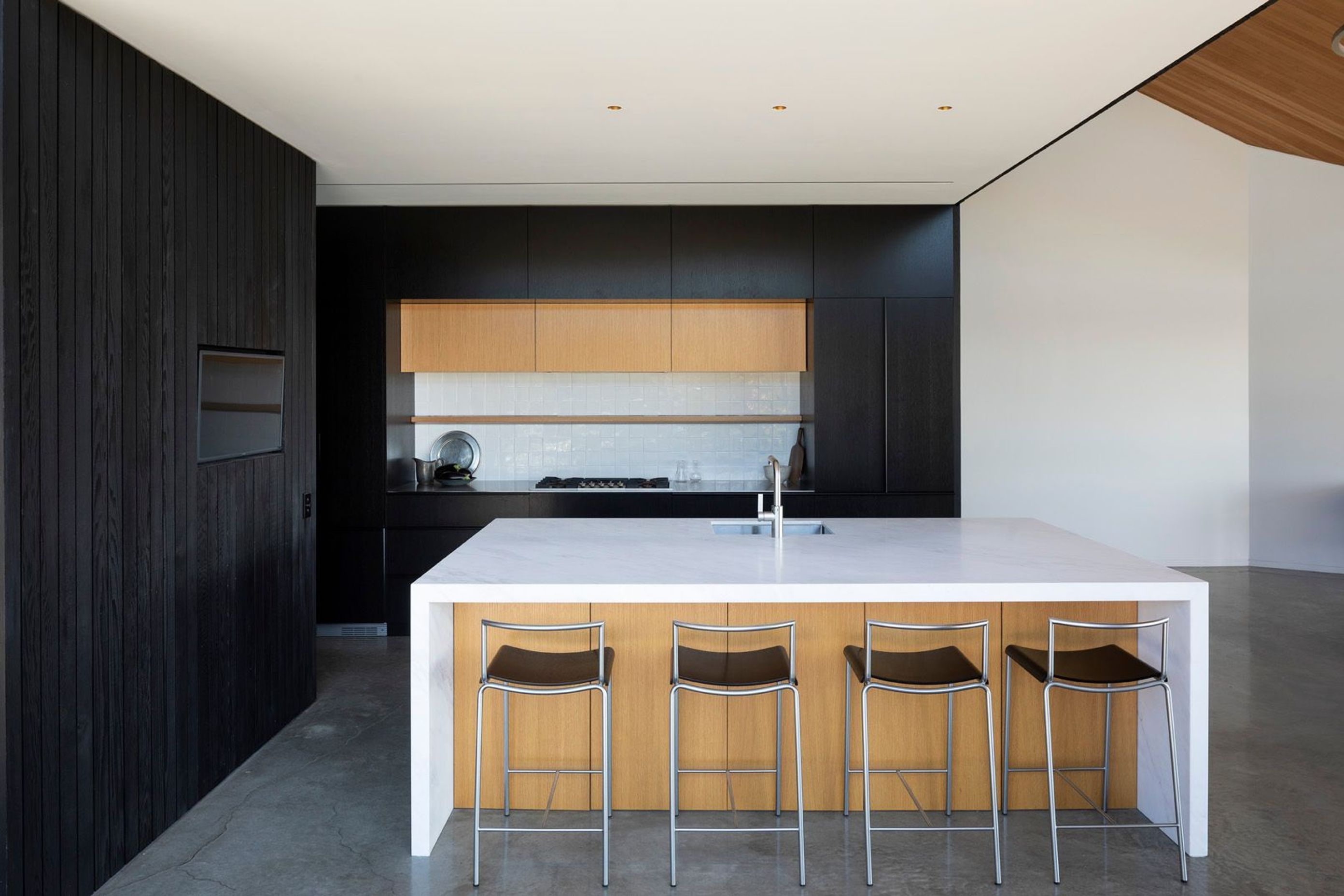

The kitchen is situated under the mezzanine main bedroom, giving this space a more intimate feeling due to the lower ceiling plane. Darkly stained cedar is complemented and contrasted by the other cabinetry and large island.
The kitchen is situated under the mezzanine main bedroom, giving this space a more intimate feeling due to the lower ceiling plane. Darkly stained cedar is complemented and contrasted by the other cabinetry and large island.

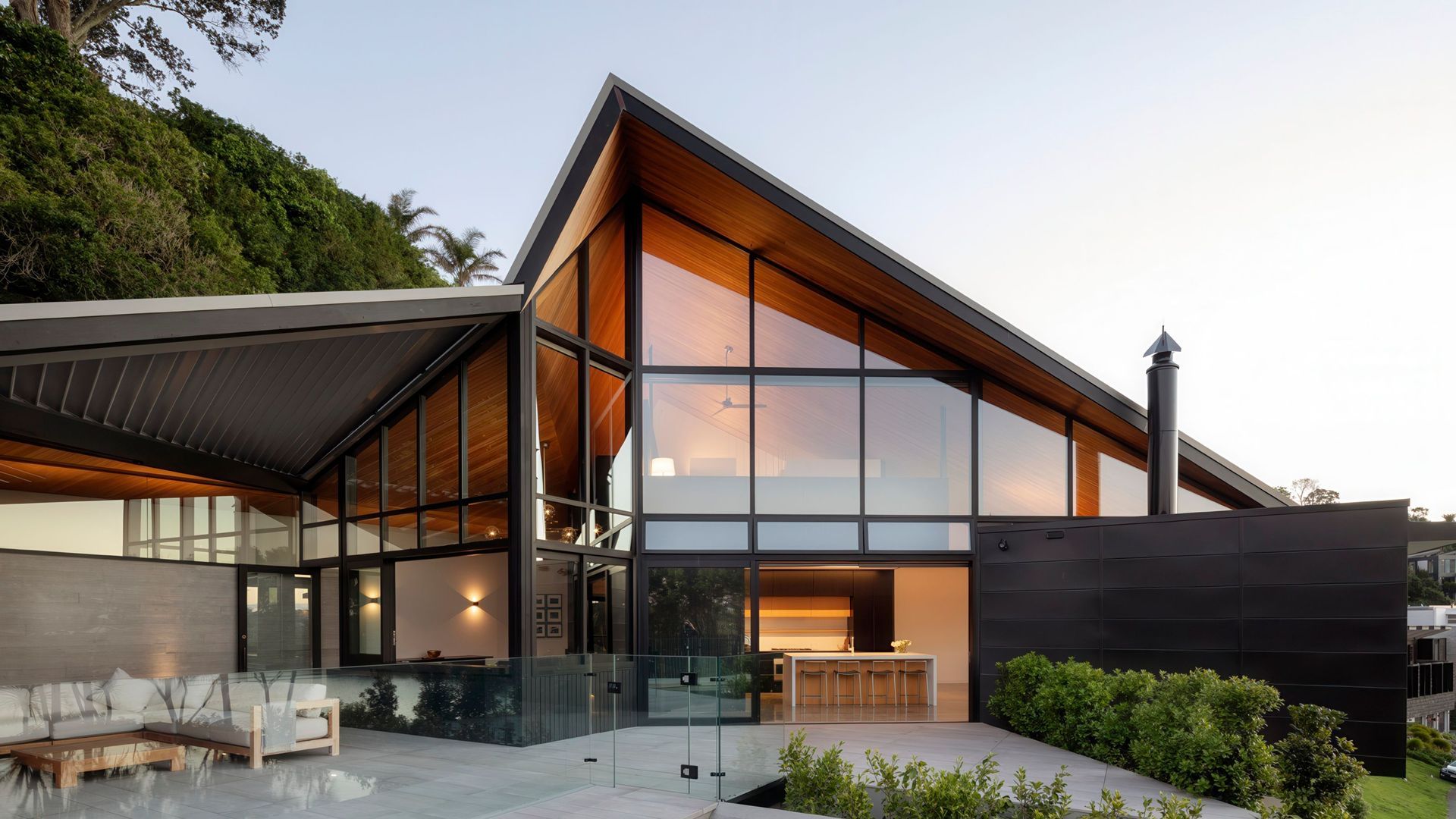

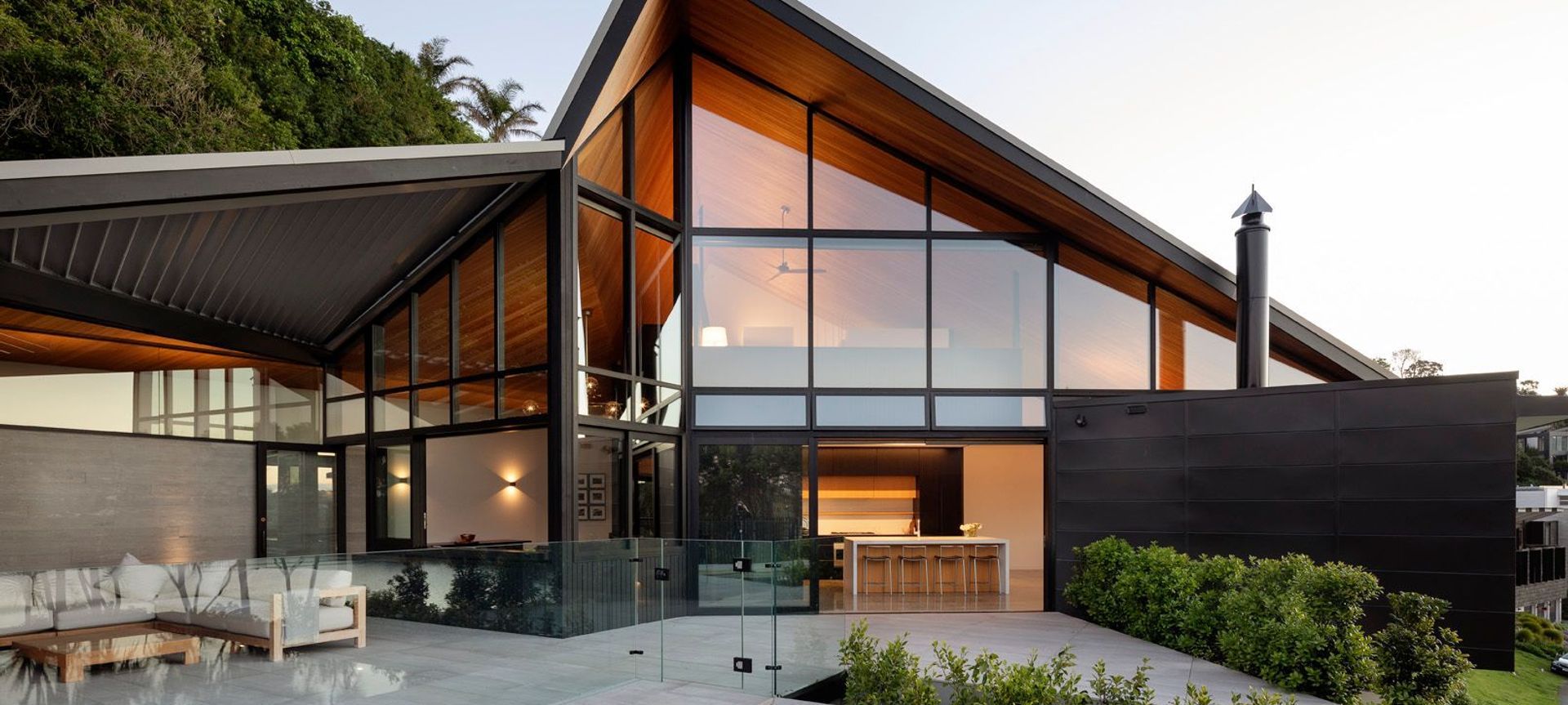

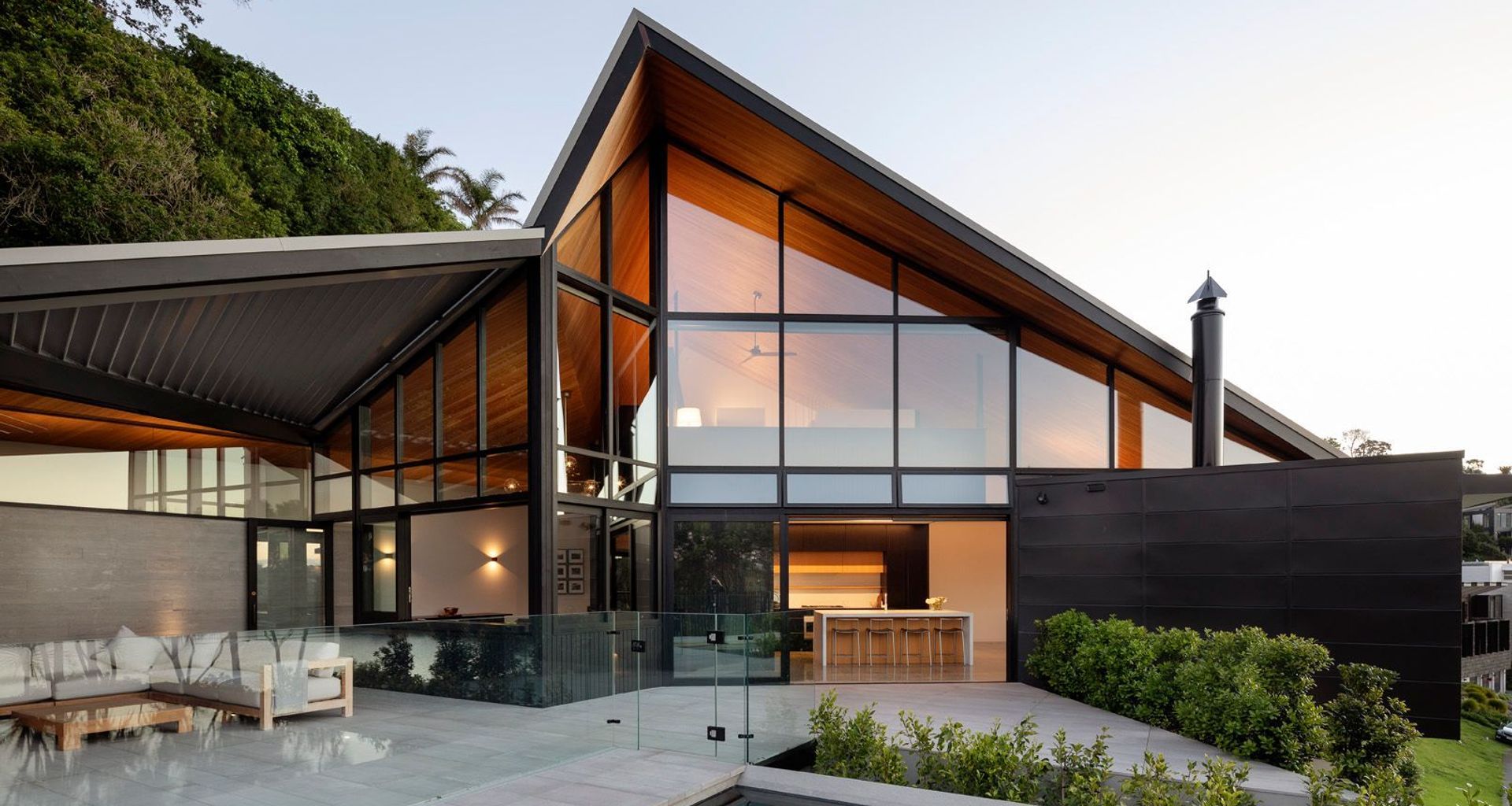

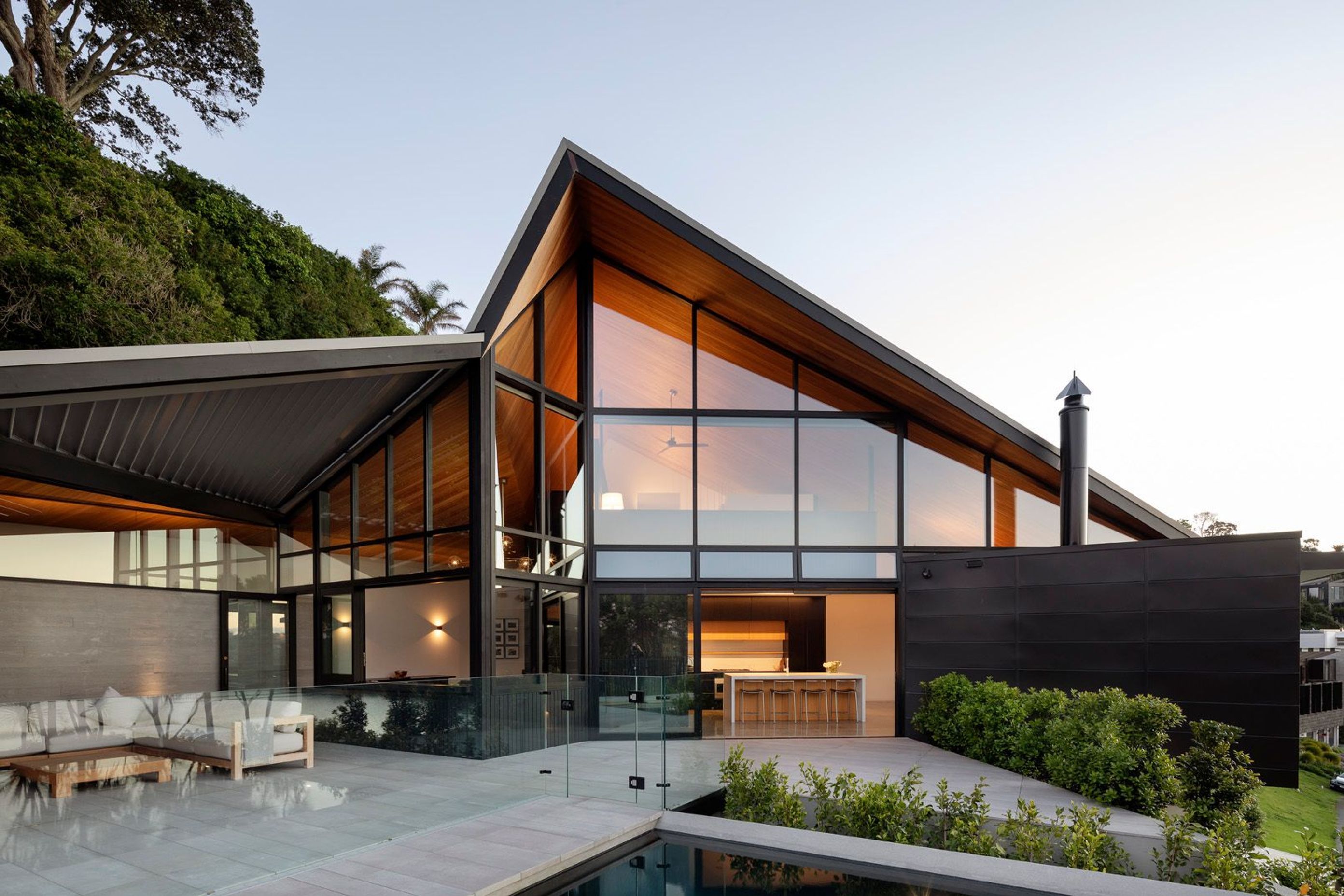

The form and geometry of the house re-interprets the New Zealand vernacular of the gabled roof form predominant within the local suburb.
The form and geometry of the house re-interprets the New Zealand vernacular of the gabled roof form predominant within the local suburb.

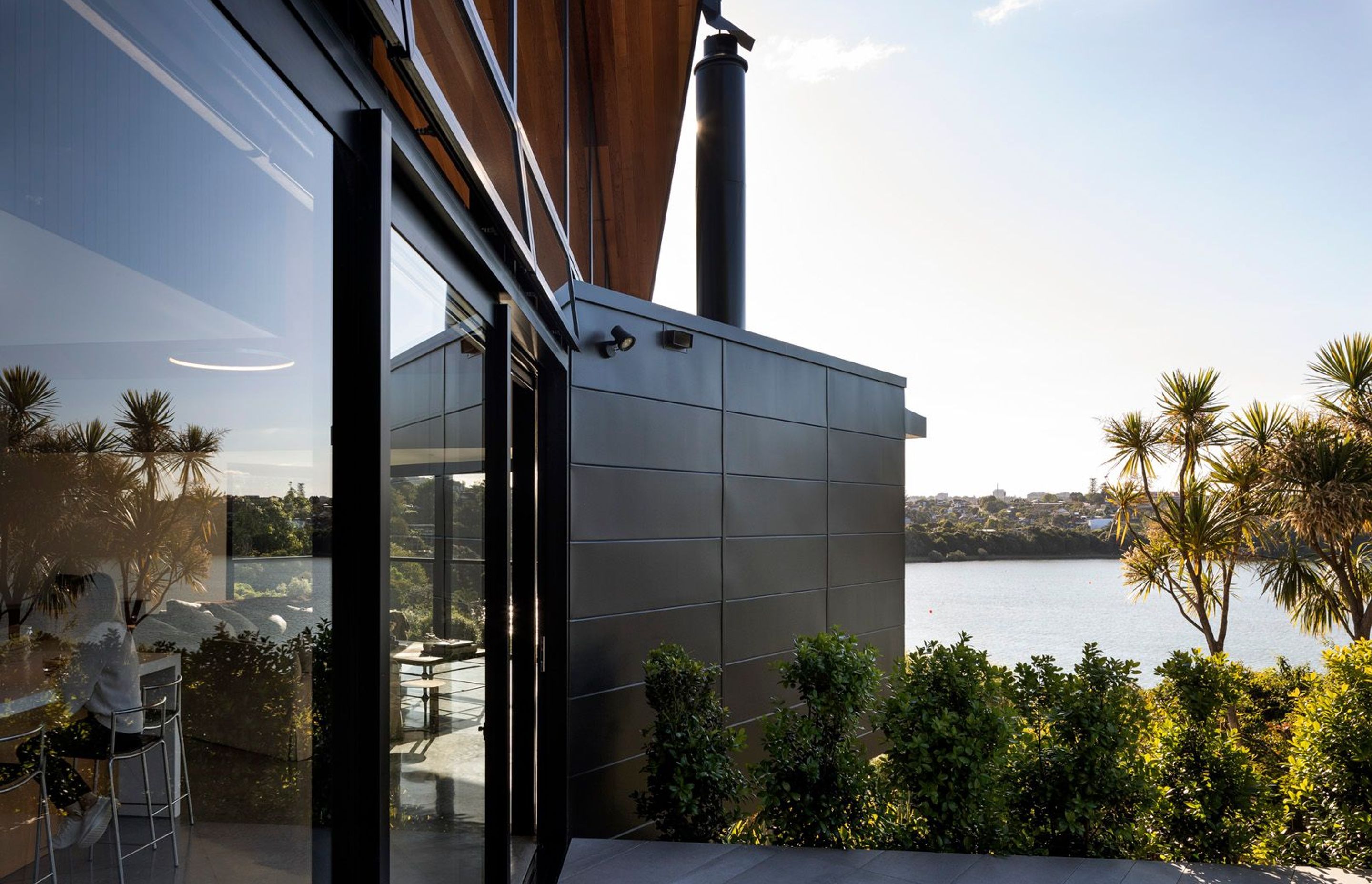

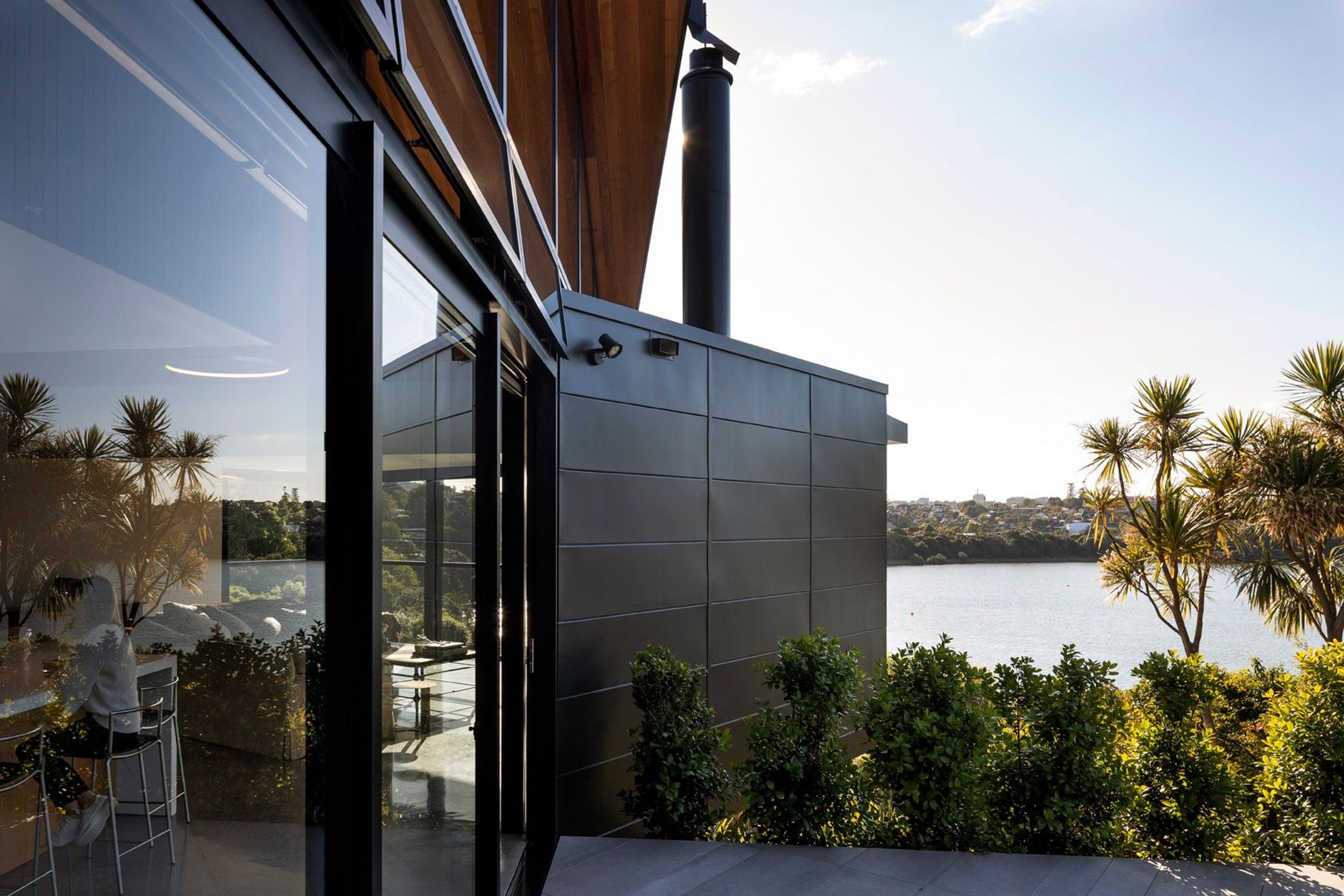

The facade ‘bends’ with the site so that the entire north and west facing facades effectively form a sheltered bay—maximising water views to the west and north, as well as passive solar gain from the north.
The facade ‘bends’ with the site so that the entire north and west facing facades effectively form a sheltered bay—maximising water views to the west and north, as well as passive solar gain from the north.

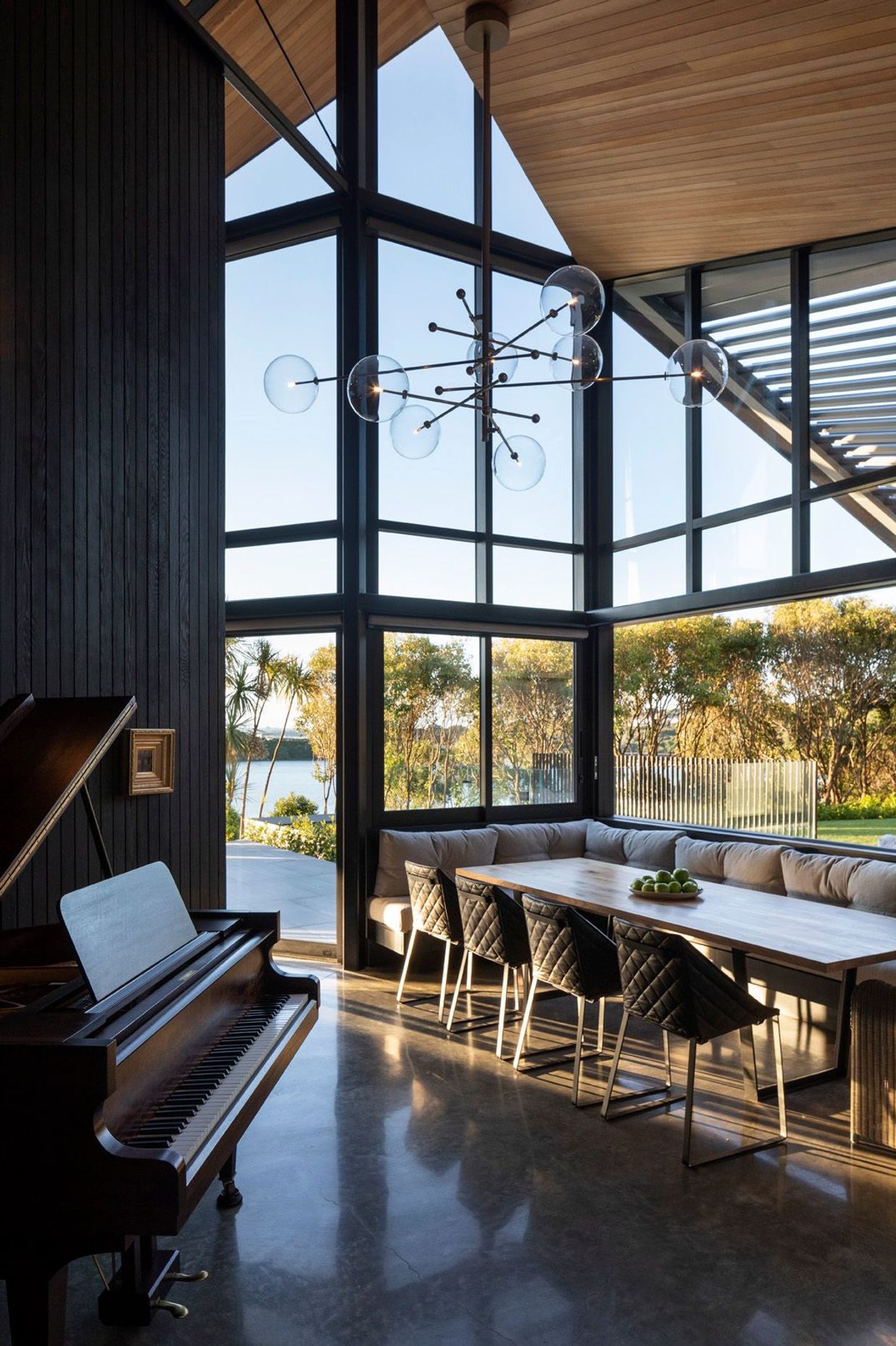

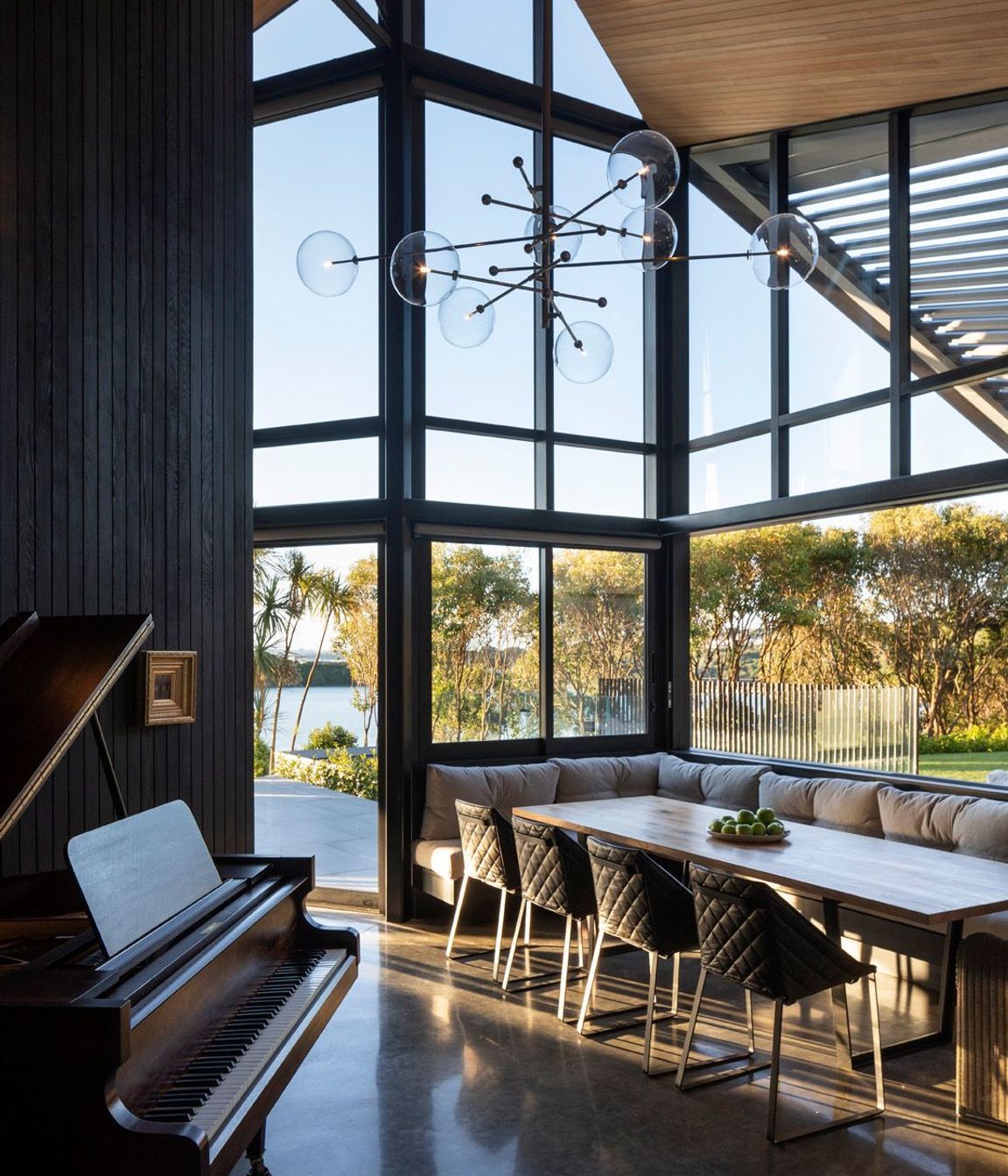

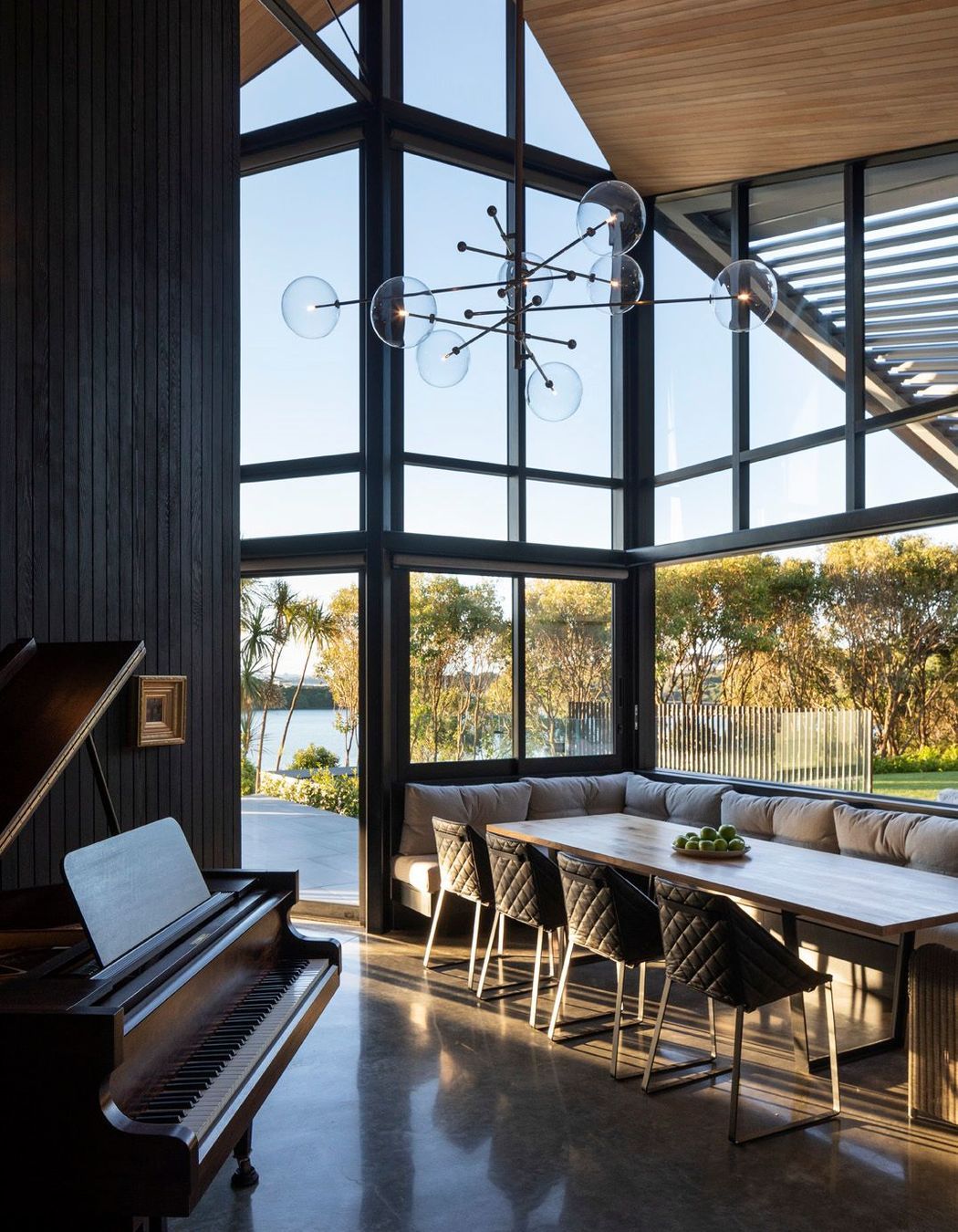

The dining room was conceived to have a relaxed ‘café style’ for the daytime, with the table in the bay window. However, the room is large enough to be quite flexible in it’s layout.
The dining room was conceived to have a relaxed ‘café style’ for the daytime, with the table in the bay window. However, the room is large enough to be quite flexible in it’s layout.

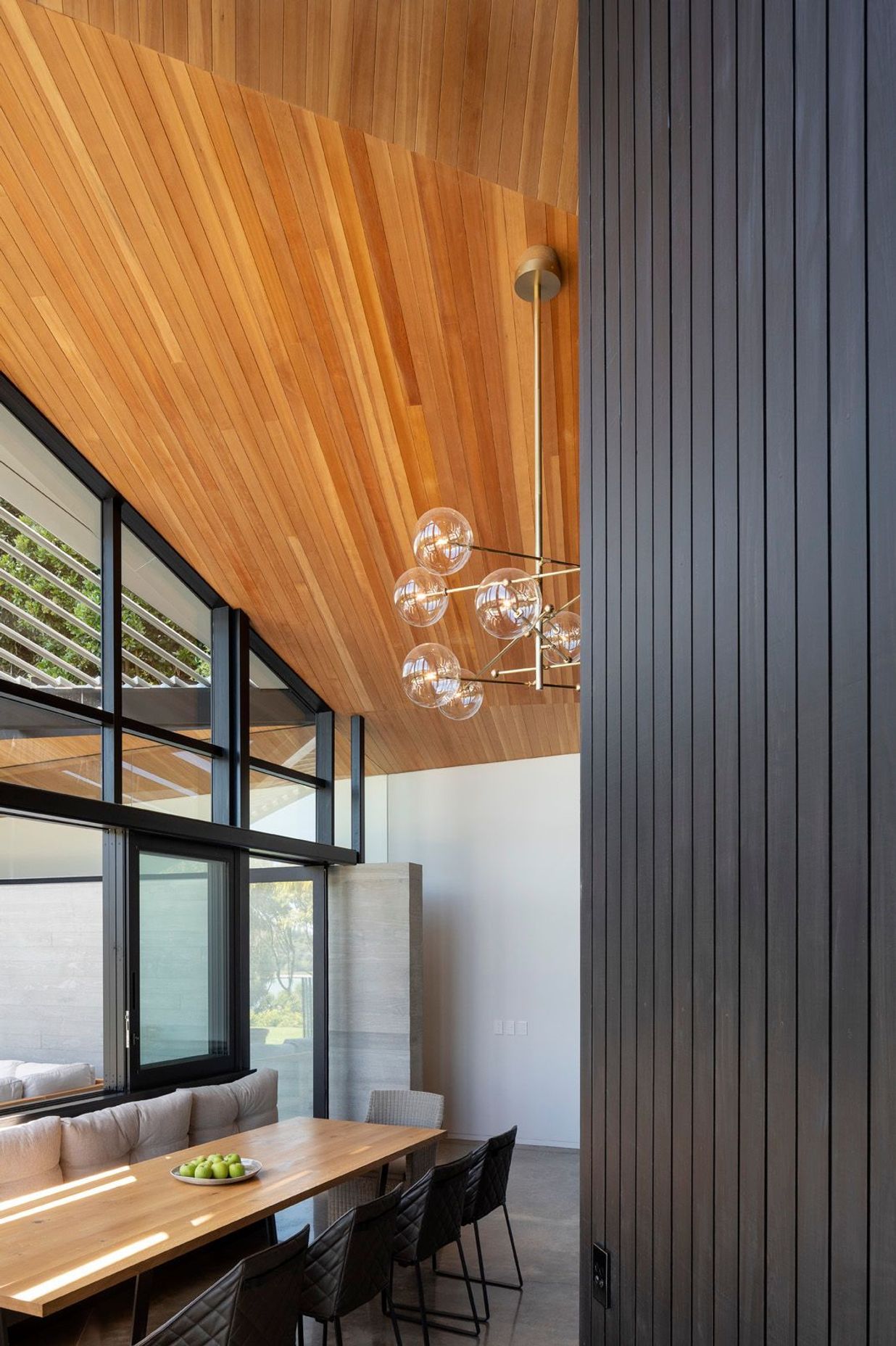

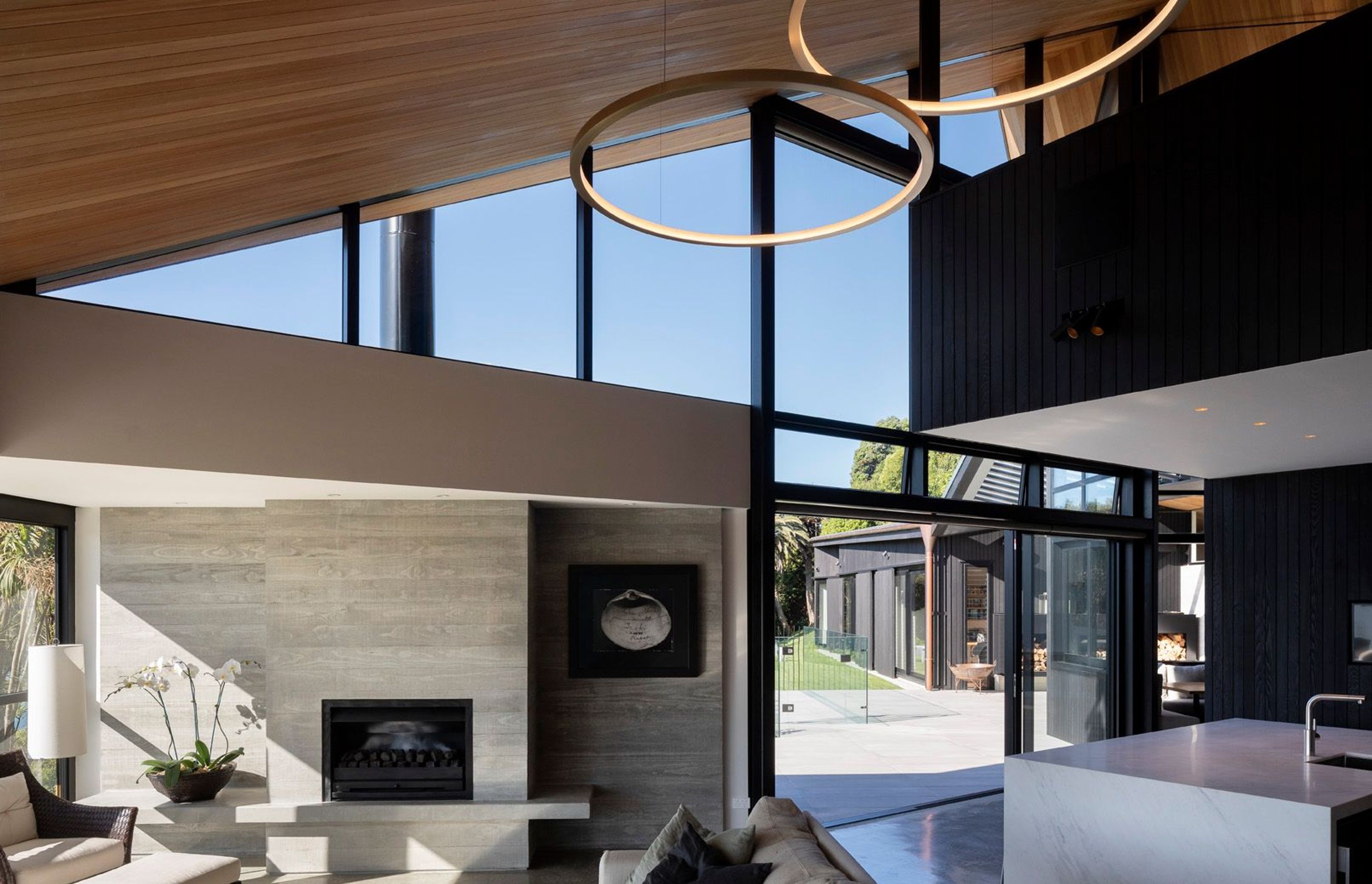

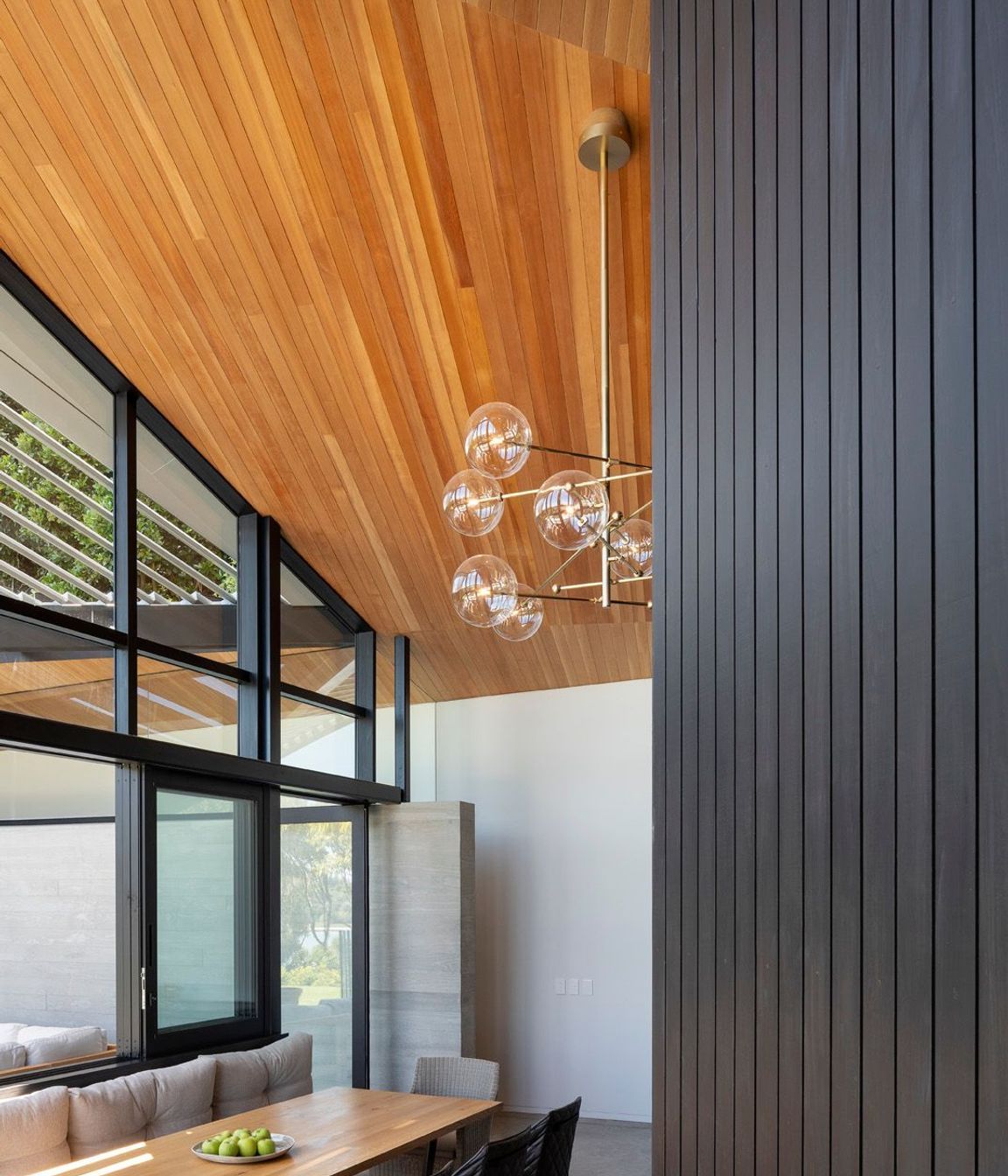

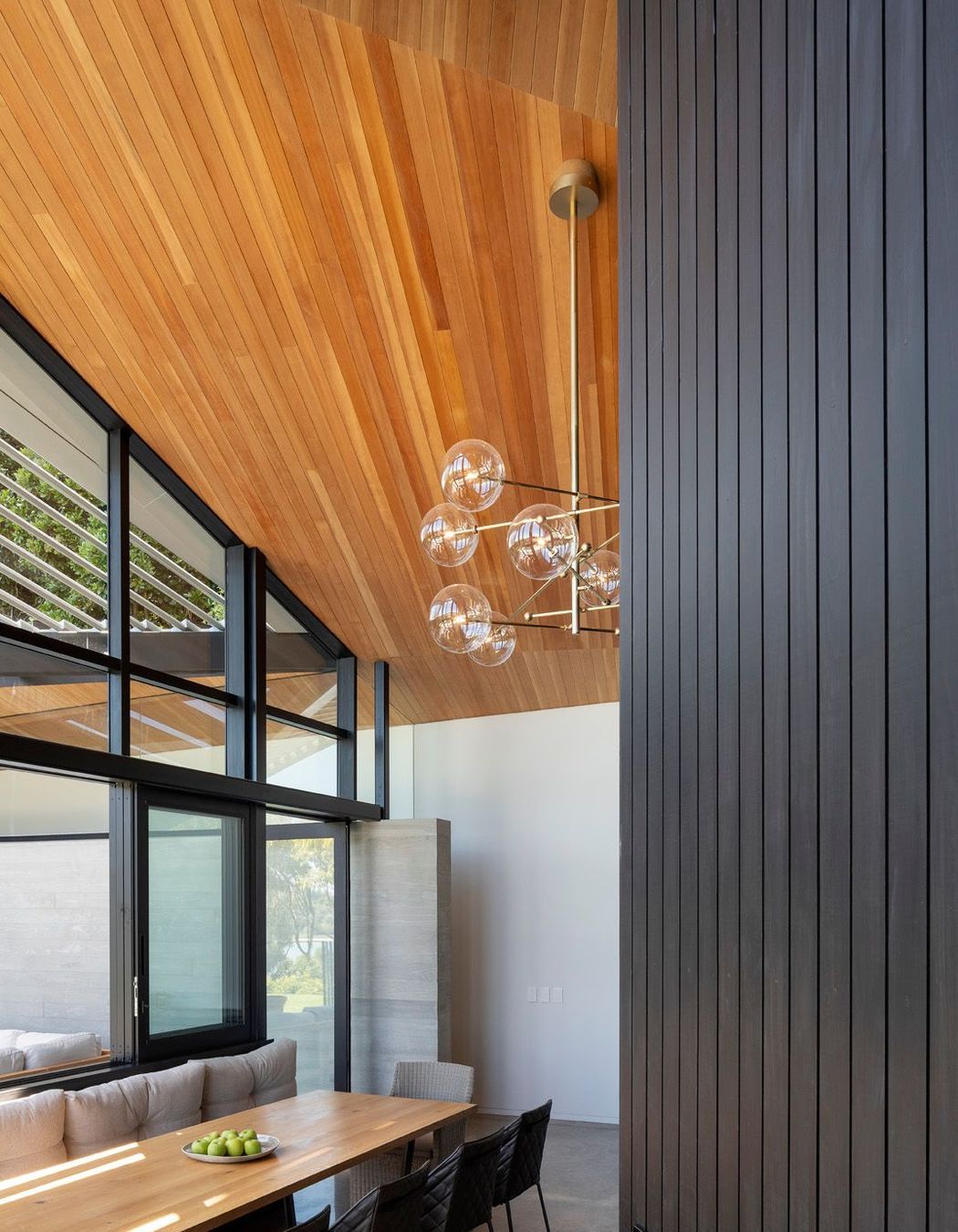

The ceiling plane lowers over the main dining space to feel relatively intimate next to the soaring volume over the mezzanine.
The ceiling plane lowers over the main dining space to feel relatively intimate next to the soaring volume over the mezzanine.

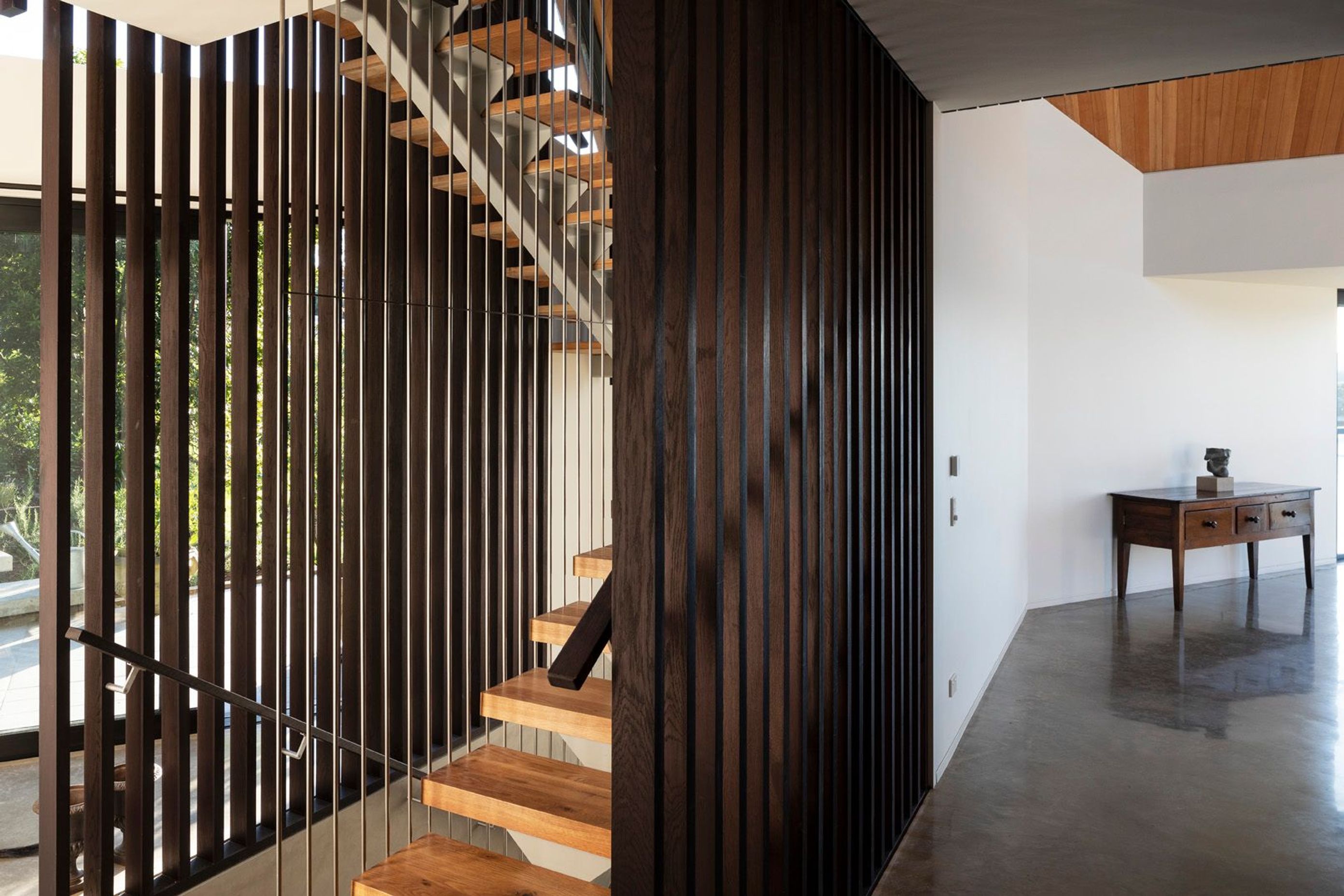

Entry to the house is situated five-metres below the main floor level. A three-storey staircase connects the entry level with the main floor as well as the mezzanine main bedroom.
Entry to the house is situated five-metres below the main floor level. A three-storey staircase connects the entry level with the main floor as well as the mezzanine main bedroom.

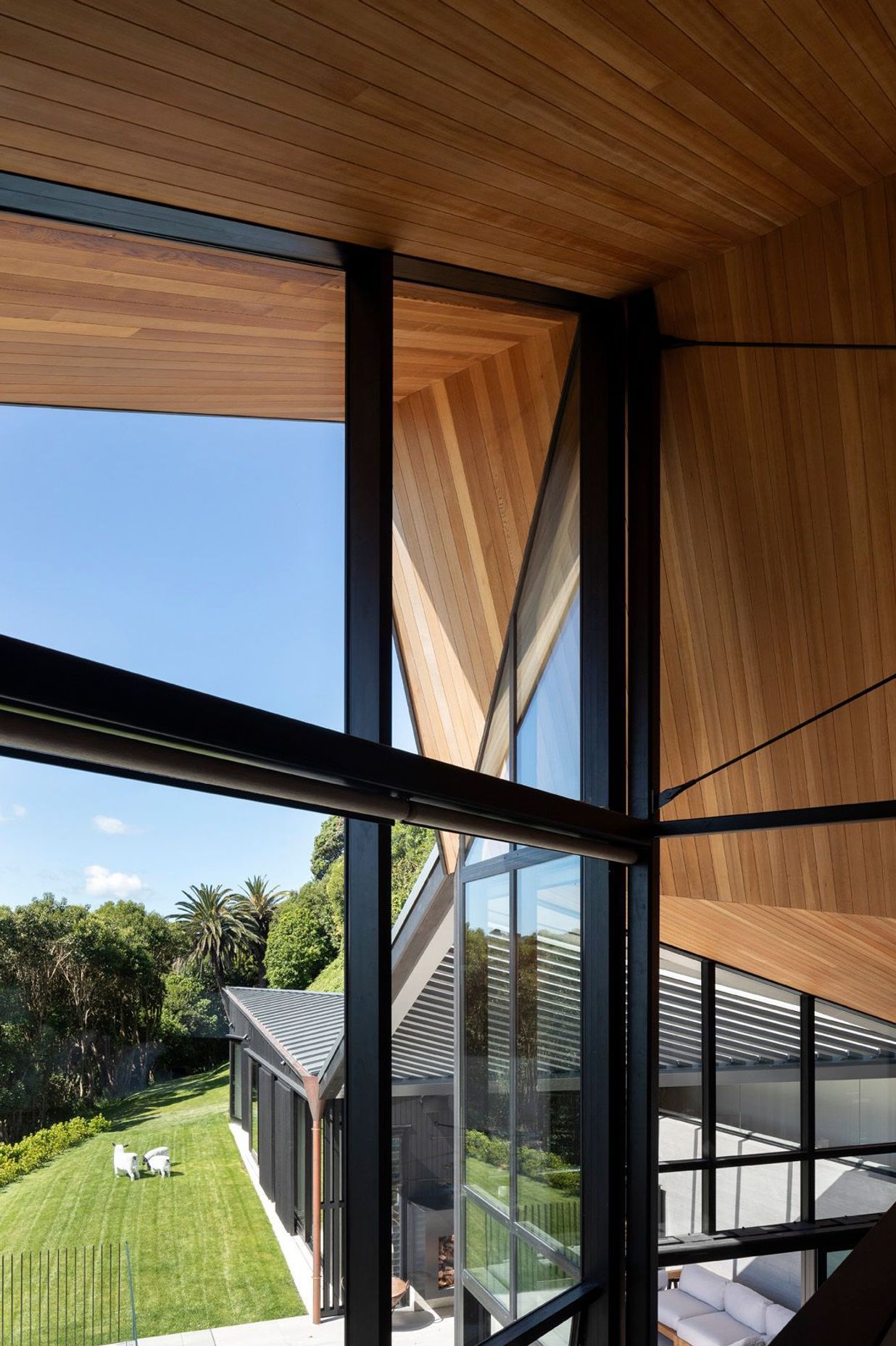

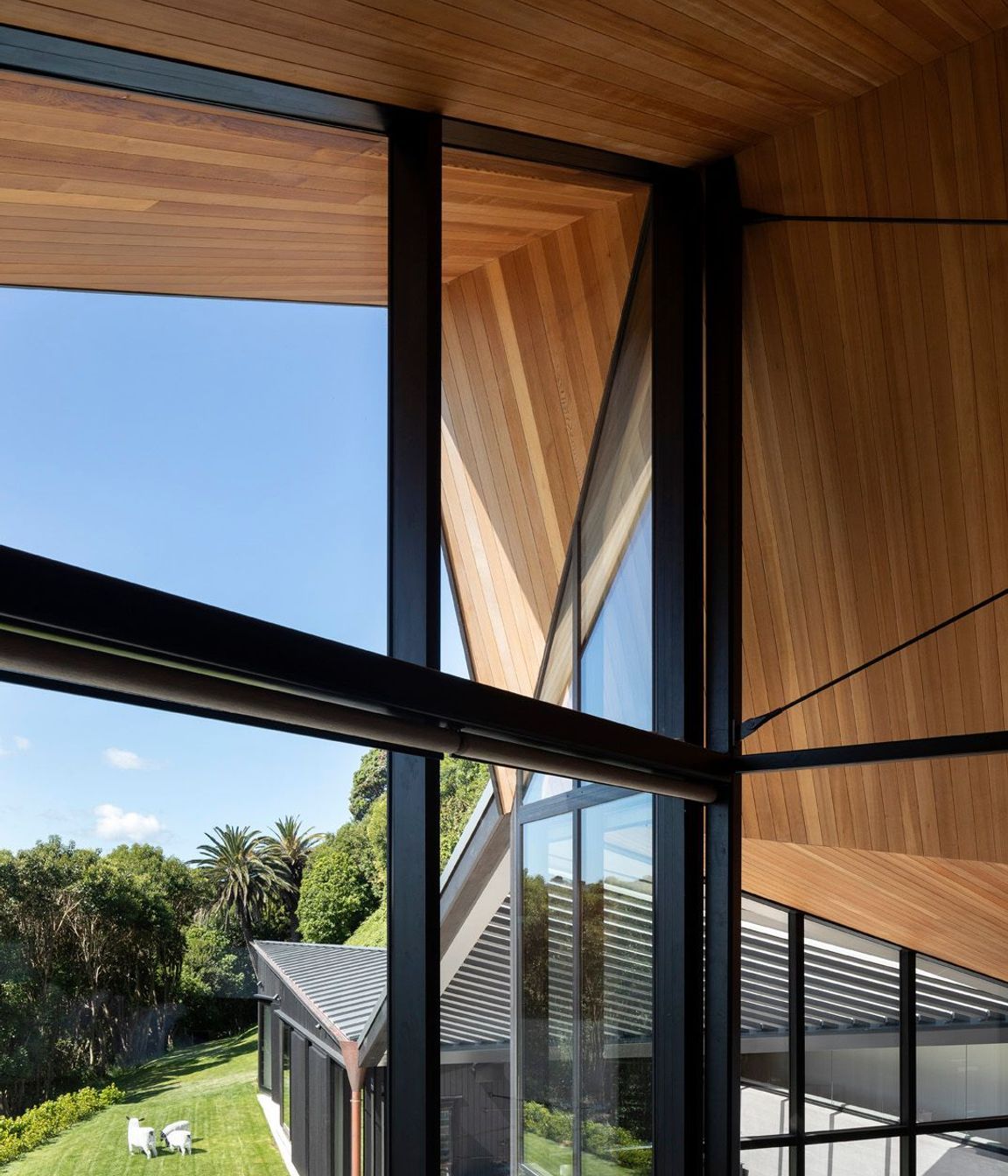

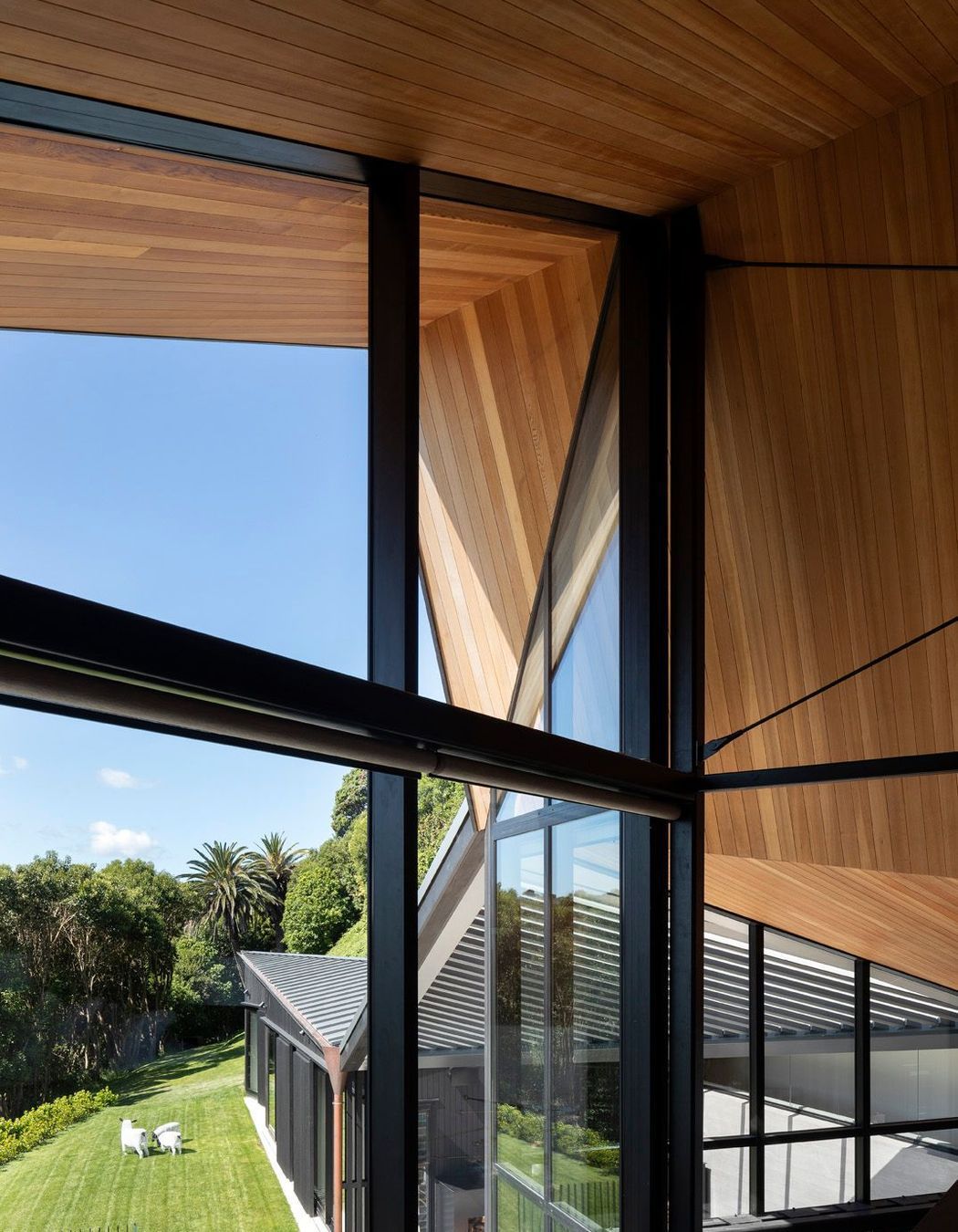

From the mezzanine main bedroom, the roof form is a big gesture, in the scale of the cliff, embracing the house and defined by the folds of the faceted ceiling.
From the mezzanine main bedroom, the roof form is a big gesture, in the scale of the cliff, embracing the house and defined by the folds of the faceted ceiling.

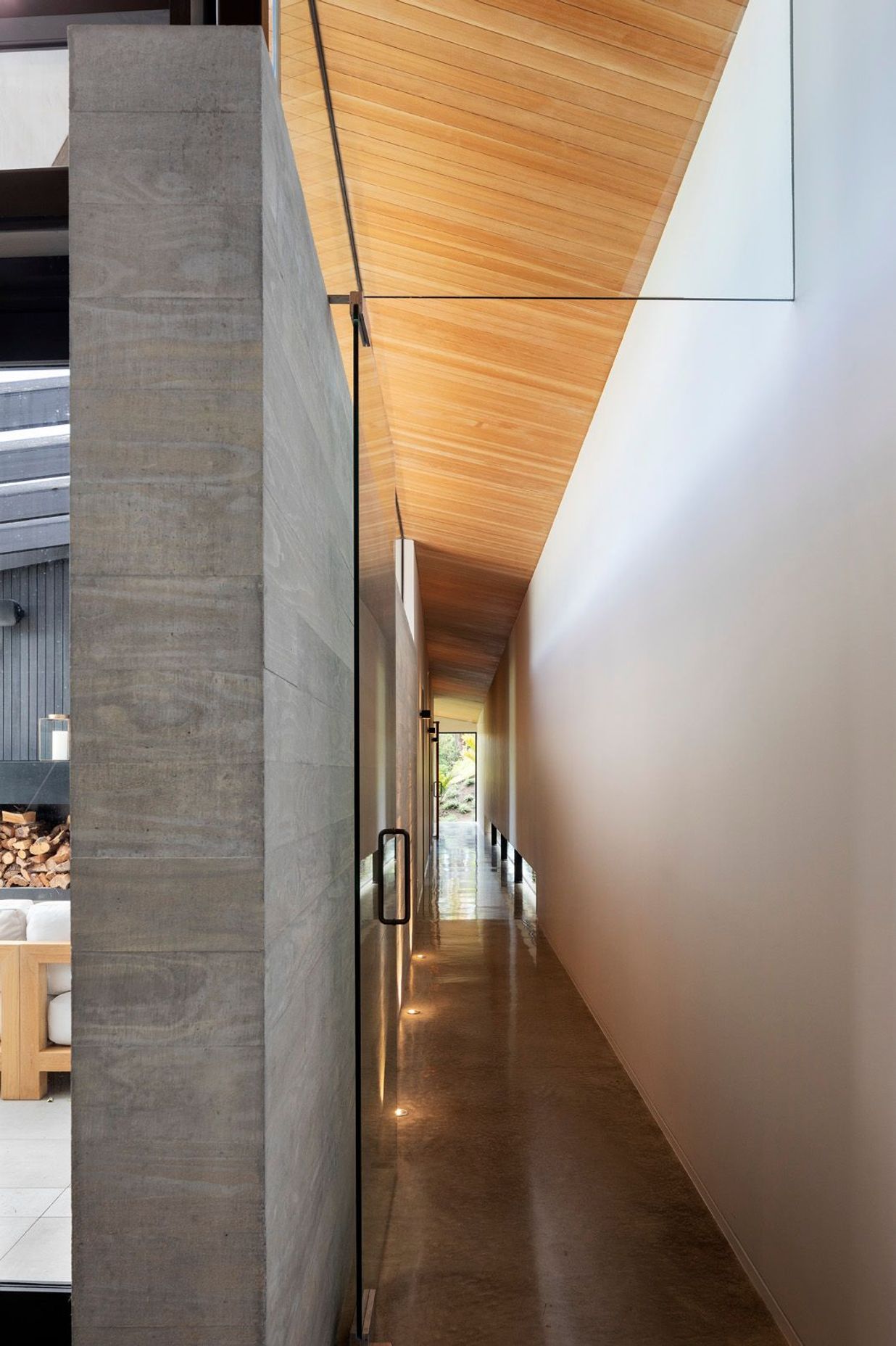

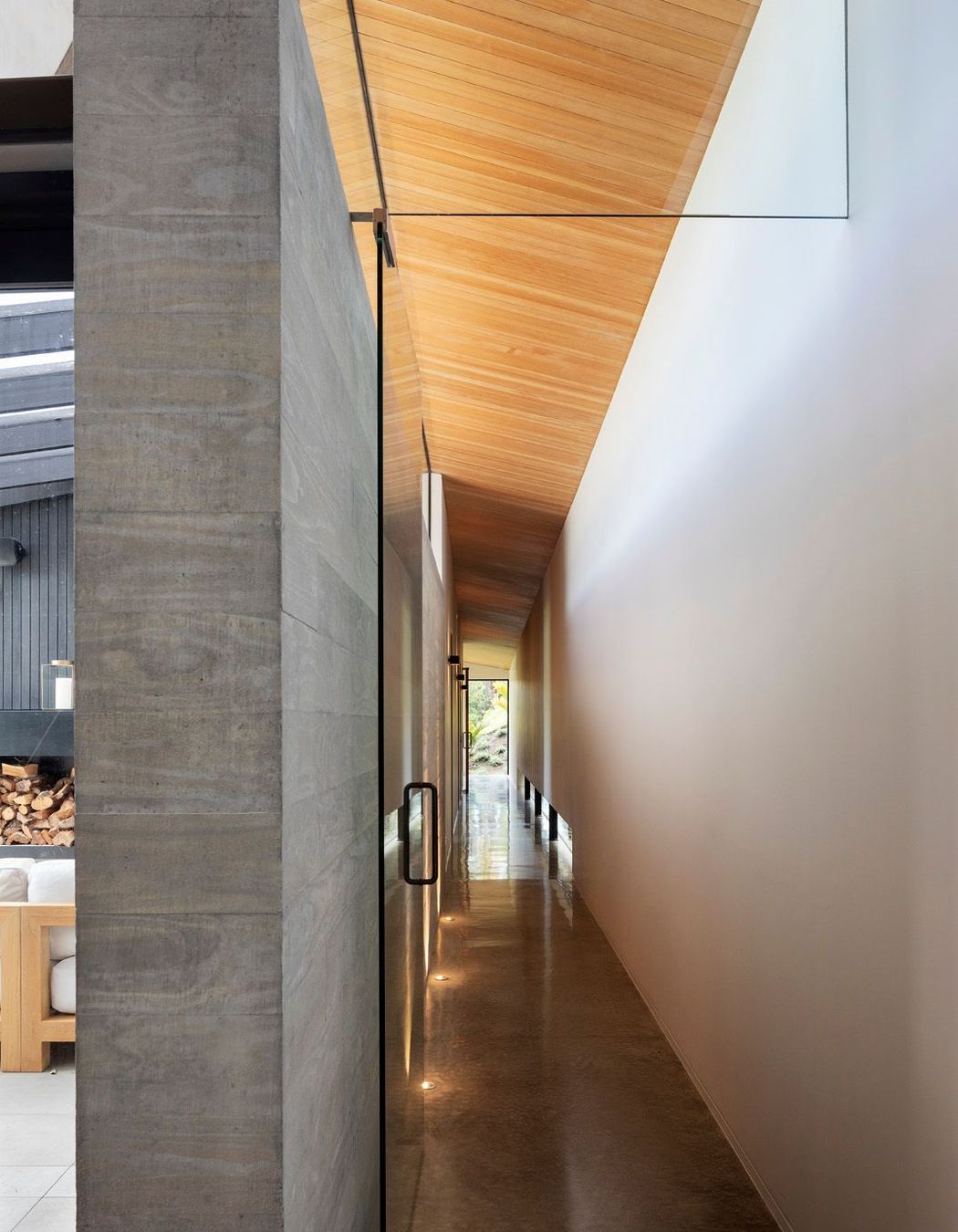

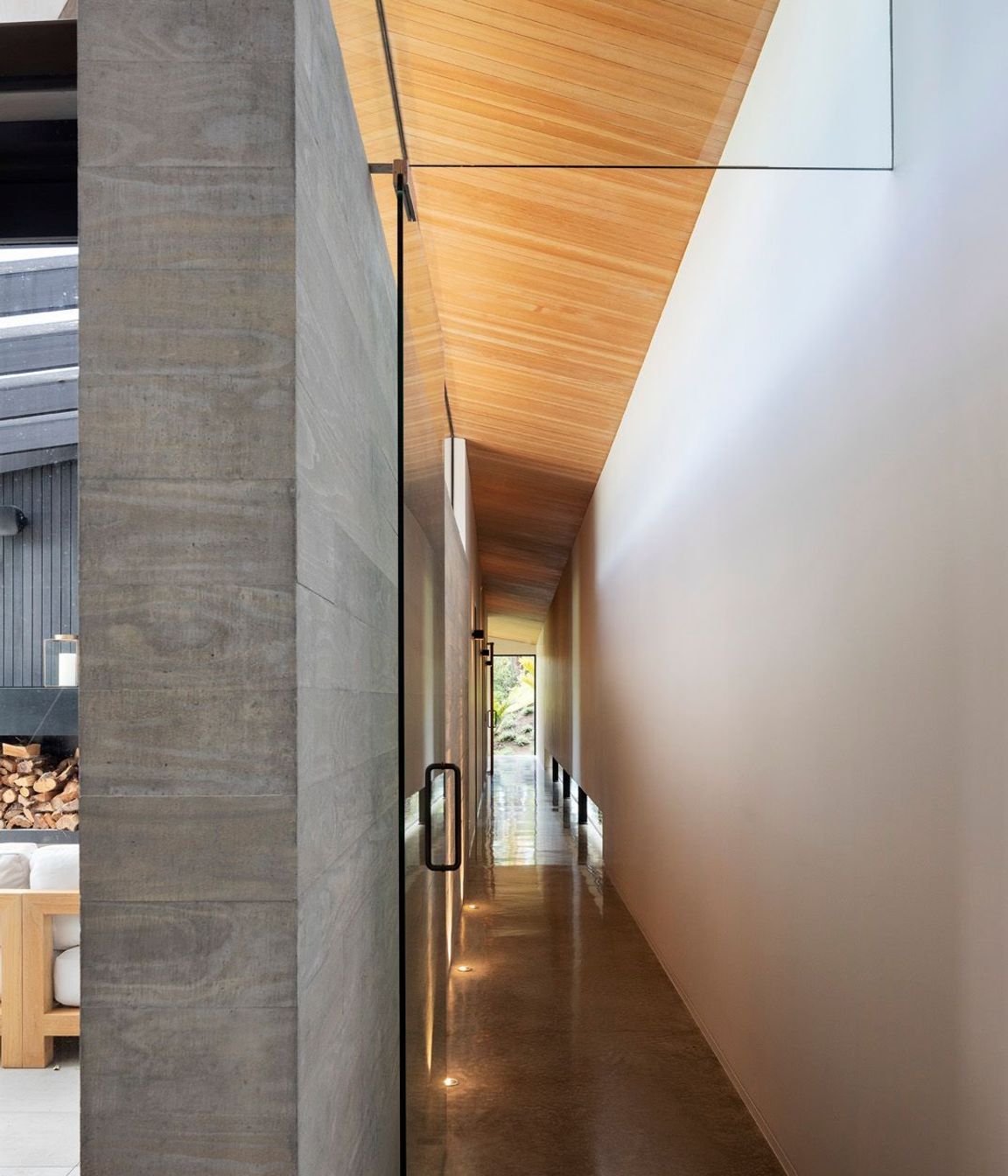

A  long corridor, which features a polished concrete floor and insitu concrete wall, leads from the dining room to the guest bedrooms and family room at the northern end of the house.
A long corridor, which features a polished concrete floor and insitu concrete wall, leads from the dining room to the guest bedrooms and family room at the northern end of the house.
