Snap-Line45® Barrengarry

An inspired, modern metal roof

Snap-Line45® is an architecturally inspired modern metal roof and wall cladding suitable for residential and commercial applications. And now our new Snap-Line45® roll onsite machine gives you even more flexibility in your design and engineering approach.

You’ll love Snap-line 45’s ability to handle nearly all pitch ranges down to 1° and its structural self-supporting profile does not require continuous backing (depending on span limitations and material choices).

It’s one of the strongest architectural profiles on the market with sheet thicknesses ranging from 0.55mm to 0.7mm. SNAP-LINE45® meets or exceeds the required standards: AS1562.1- 2018.

And the high water carrying capacity of the 45mm high ribs and wide pans ensures that Snap-Line45® deals with heavy downpour events with ease.

Deep ribs, wide pans, and an expansive palette of material choices and colours including Colorbond, Zincalume, Zinc, Copper, Aluminium, Stainless Steel, and COR-TEN offer the designer a vast array of creative design options.

Read more - Snap-Line45®

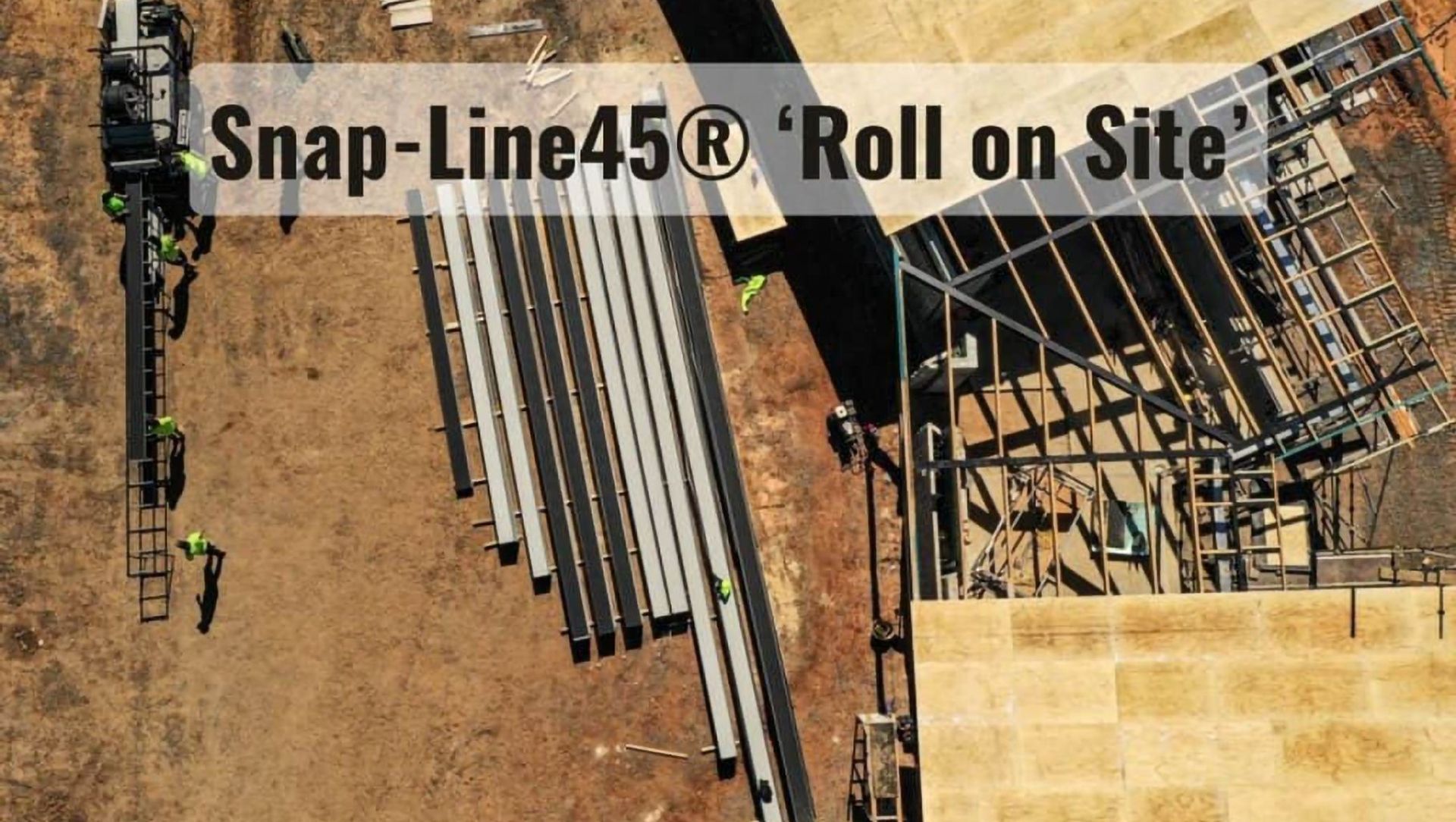

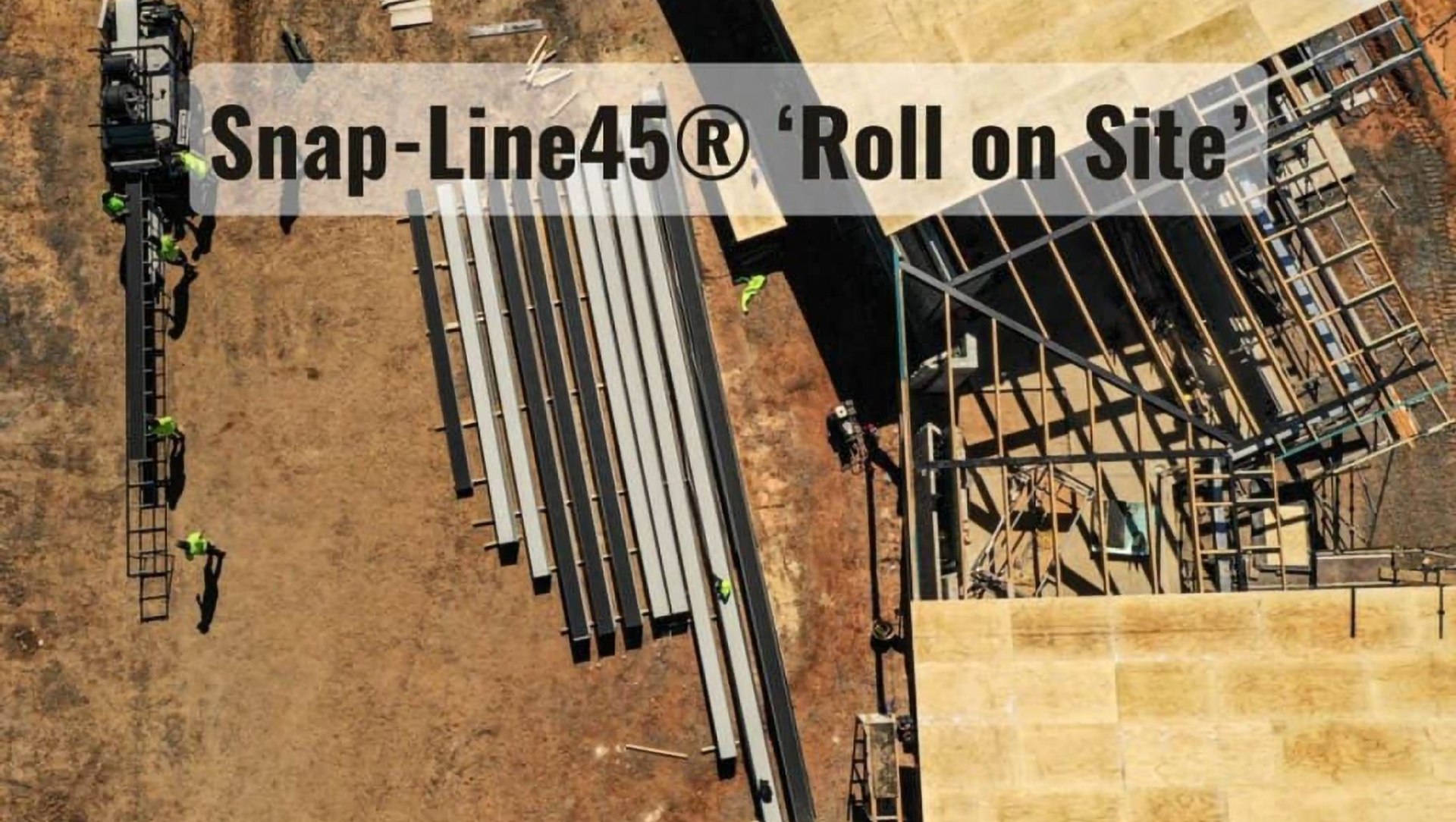

Roll on Site Advantages

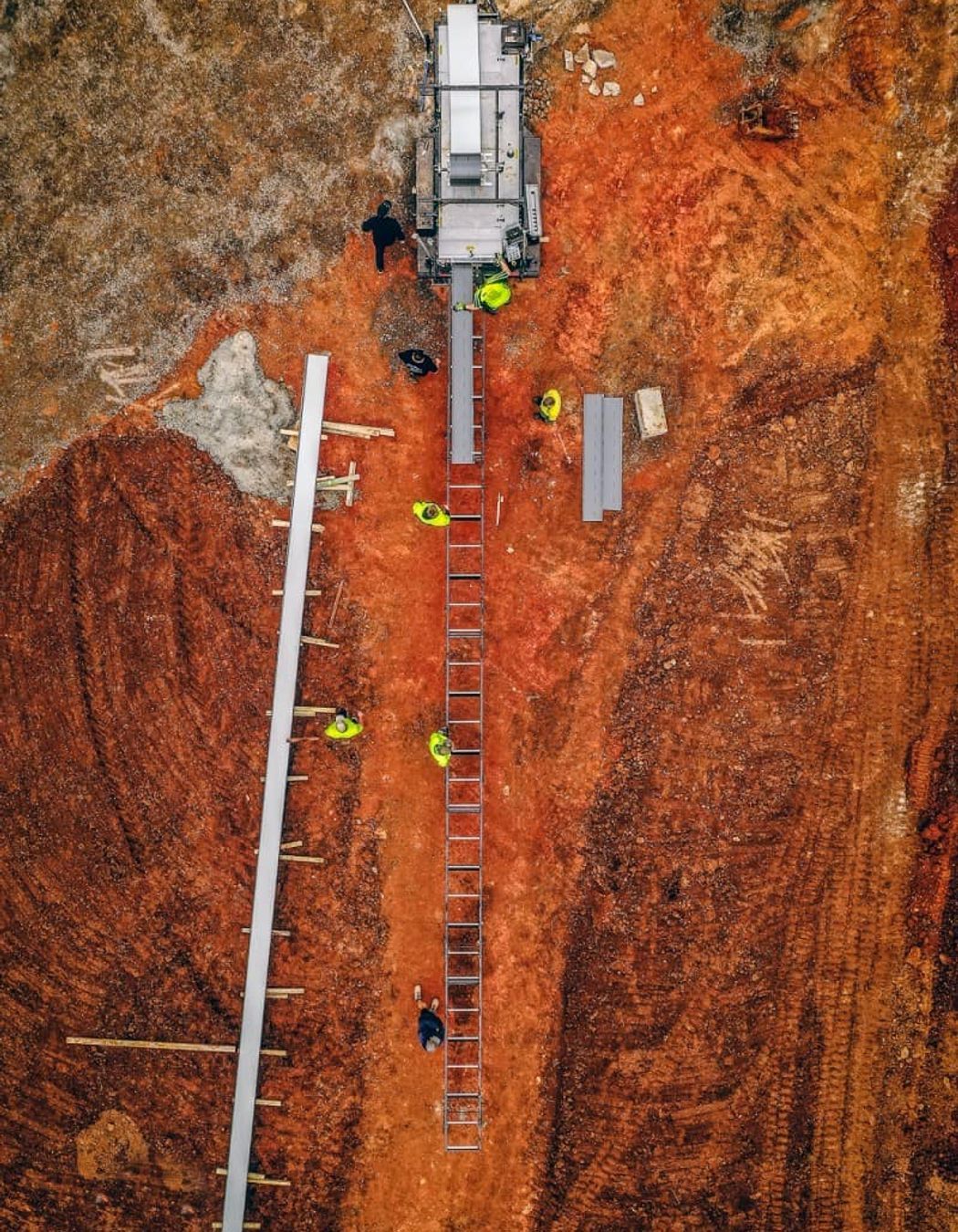

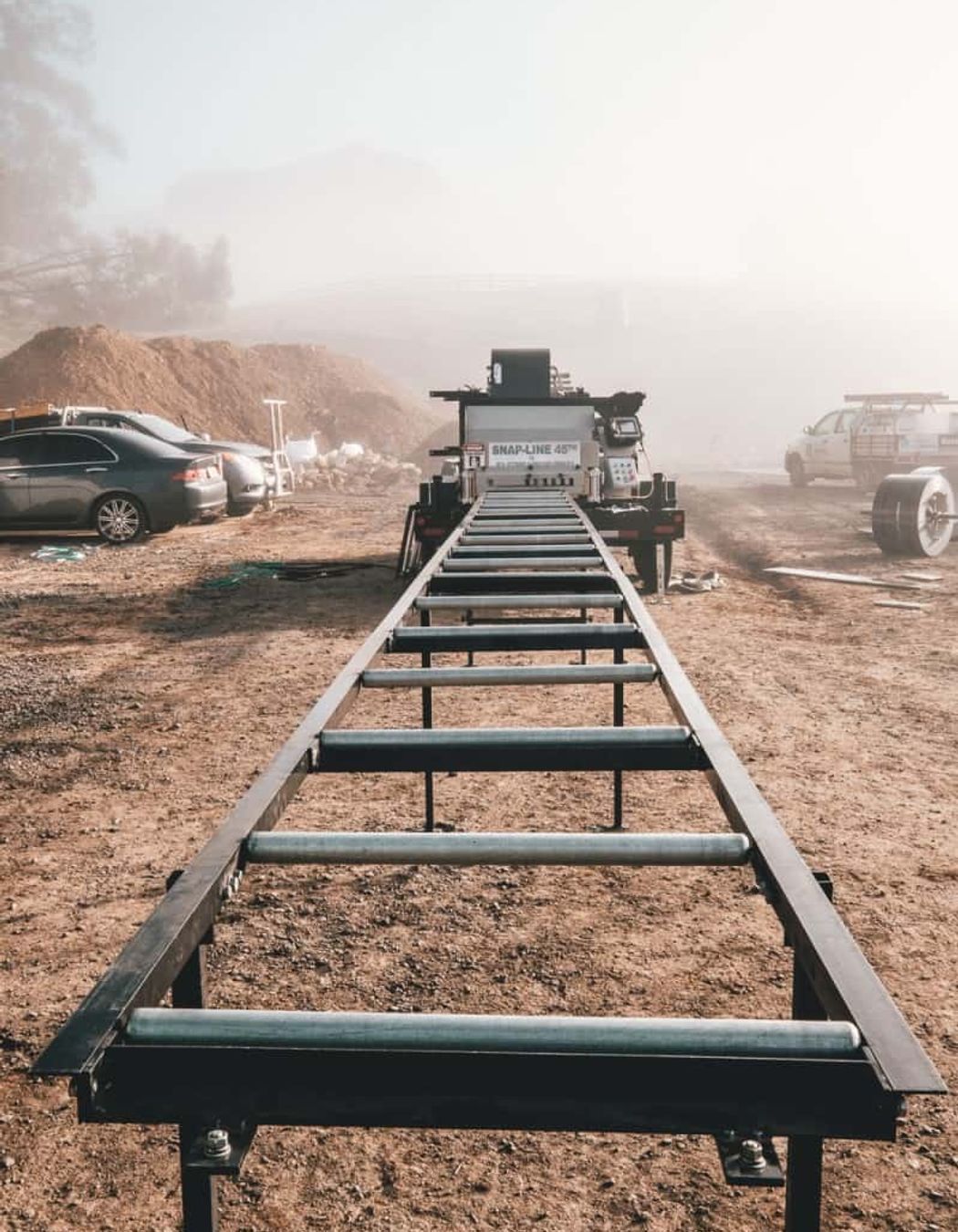

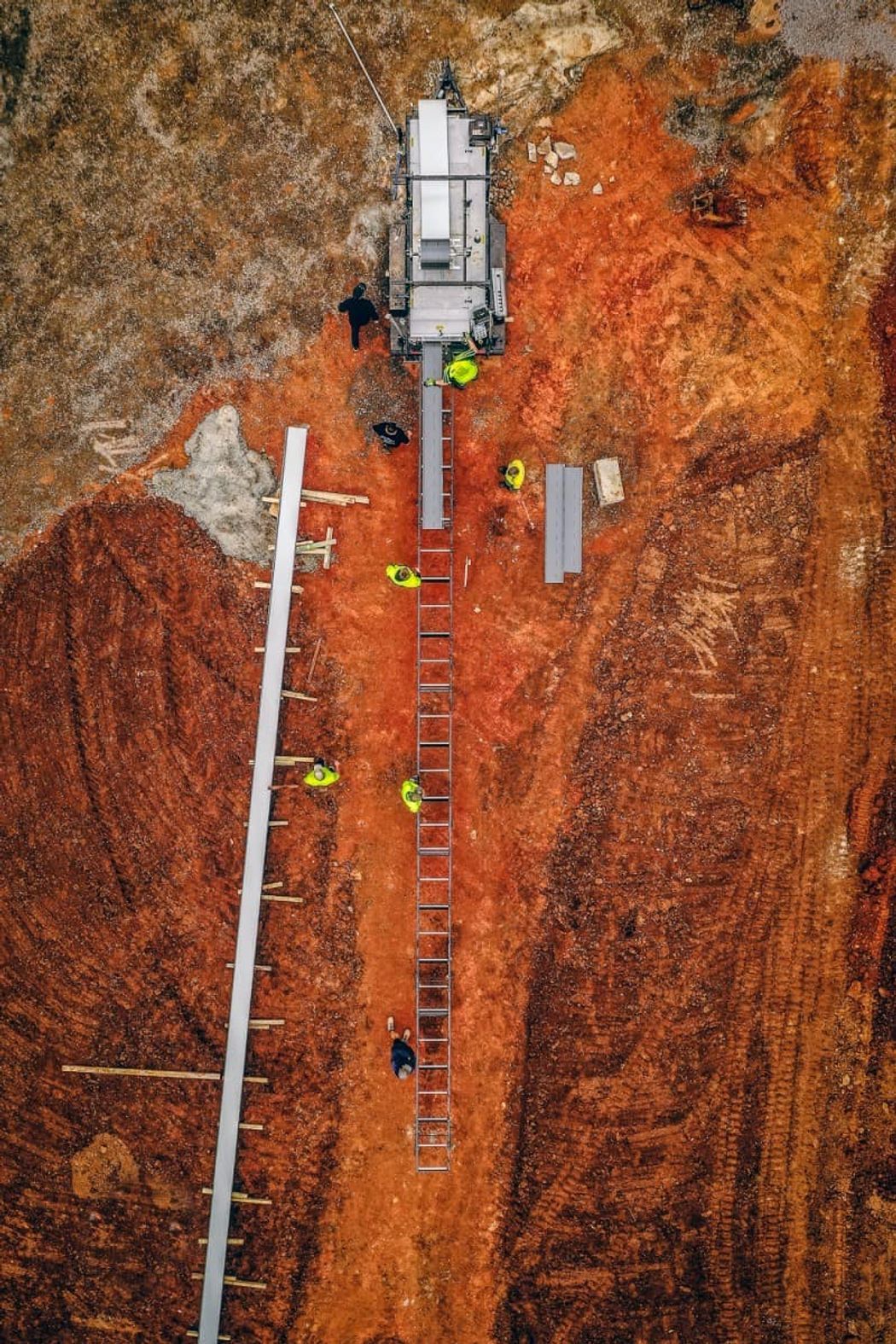

One of the most flexible features of Snap-Line45® is the ‘Roll on Site’ service offer.

With all equipment delivered to the site for a seamless experience, Snap-Line45® delivers several additional benefits and features to your project.

Long Length Sheets

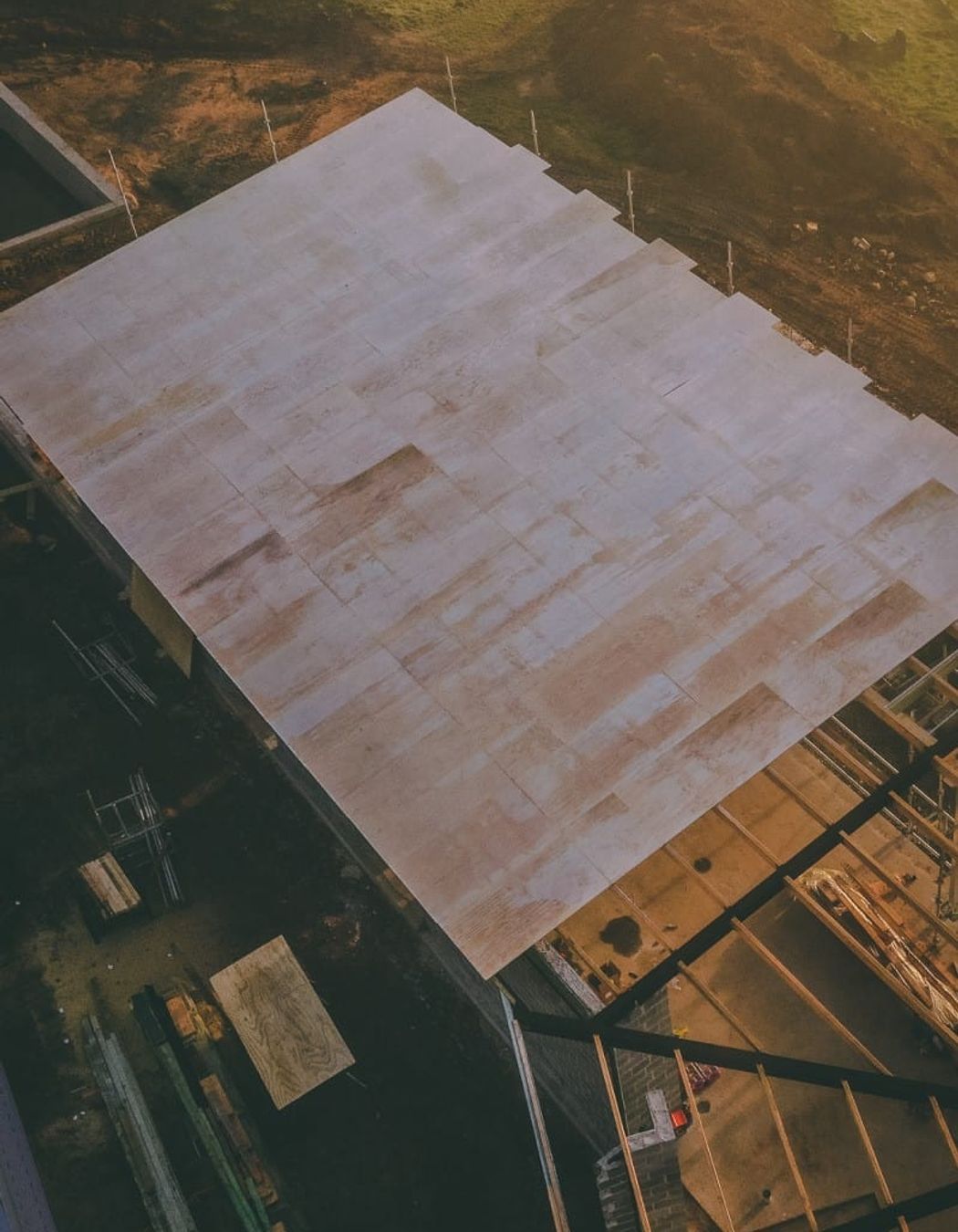

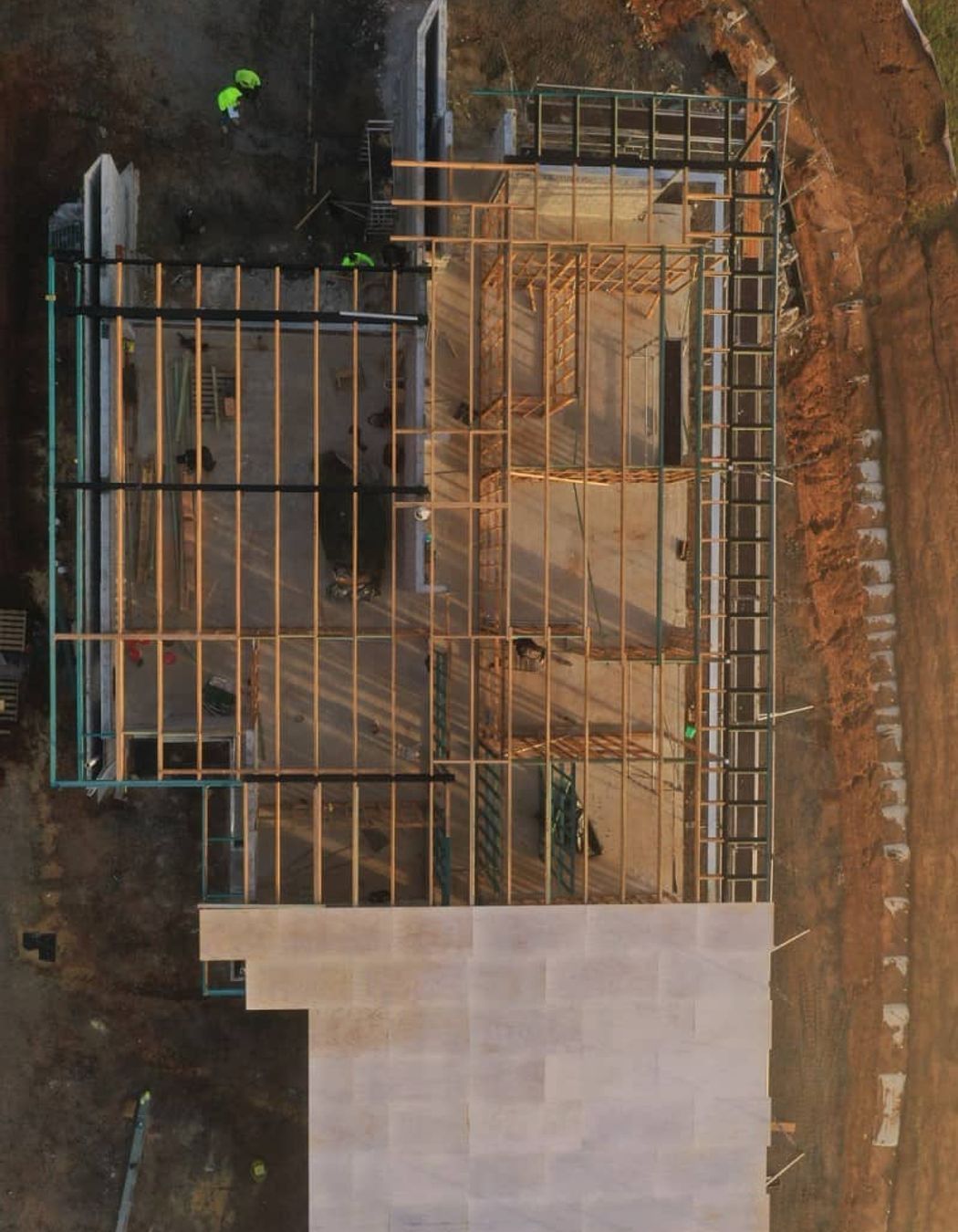

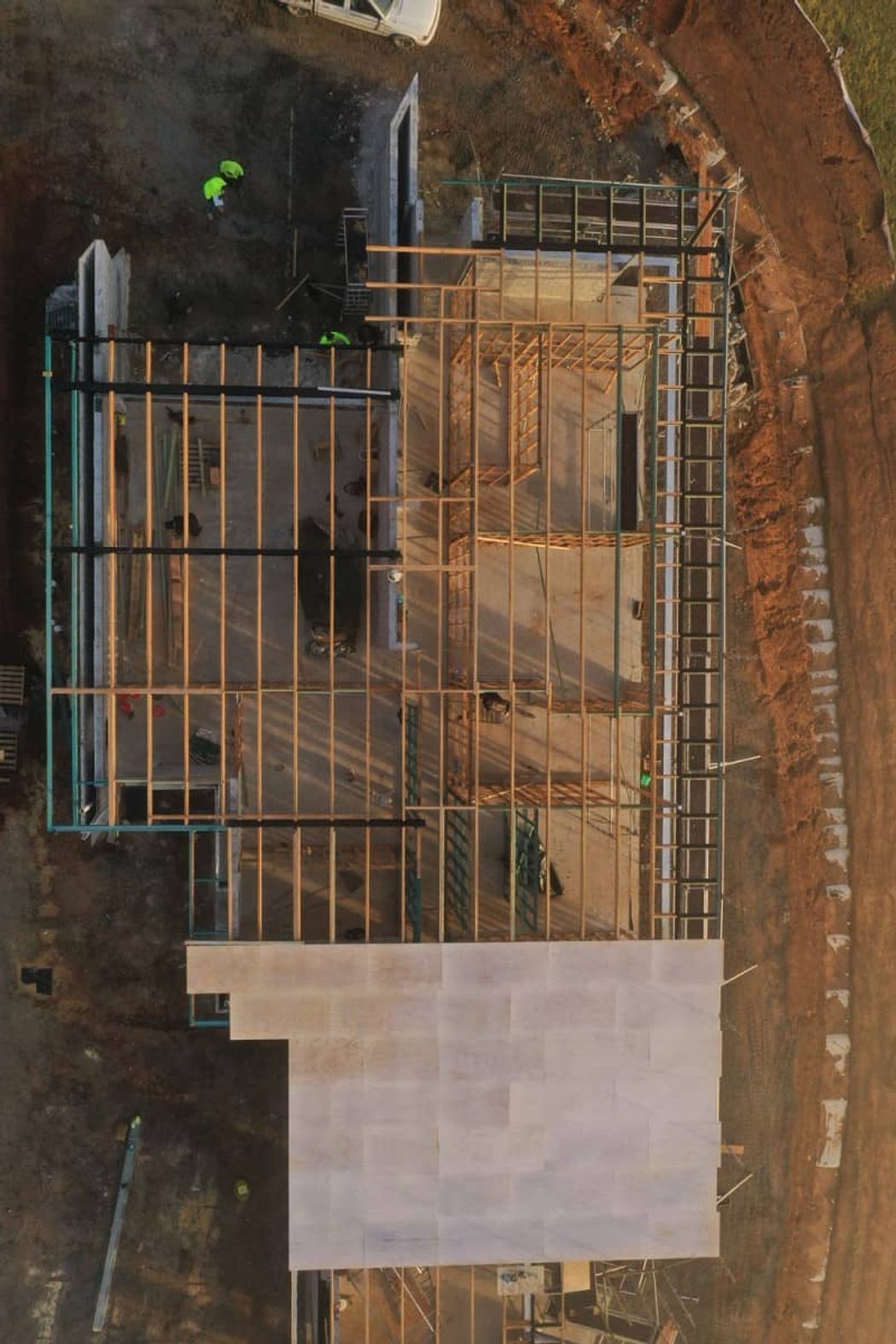

We can roll out exceptionally long sheets in seamless runs. For instance, our recent Barrengarry project involved the creation of 24.5 metre-long seamless sheets.

Being able to do this eliminates the challenge of transport difficulties and eliminates the possibility of damage to over-long sheets in transit. Rolling onsite also eliminates any additional freight costs incurred in transporting oversized items.

Long-length sheets also eliminate length lap joins for a slick seamless cladding profile as well as increase the waterproofing performance. Fewer lap joints also produce labour cost savings and speed up installation time.

Less Wastage

Roll onsite capability means sheets are cut to the required length. There’s no need to order extra lengths to allow for wastage or estimation inaccuracies.

Cut lists can be adjusted on the spot. Rolling onsite also eliminates expensive reordering and transport charges where there are inaccuracies in pre-ordered and supplied cladding.

This is great for the budget and zero wastage is a real plus for the environment. This is an added bonus when dealing with projects that require greater environmental protection oversight.

Reduced Storage Requirements

Roll onsite capability eliminates the need for unloading trucks, double handling, and safe onsite storage of cladding sheets.

This will deliver cost/ time savings and reduce the potential for cladding damage that can occur through multiple handling of sheets.

Expanded Design Flexibility

The ability to produce any-length sheets opens up a whole new world of design and engineering possibilities for spectacular visual impacts.

Any-length Snap-Line45® panels enhance your ability to align the eye-catching ribs for exciting horizontal, vertical, or diagonal angle and plane contrasts.

Snap-line 45’s exceptional strength allows you to scale your vision to entirely new dimensions. Combining long-length sheets with other feature-rich building materials such as stone, timber, and glass delivers powerful aesthetic contrasts.

Standard cover widths include:

• 305mm
• 345mm
• 445mm

Custom widths are also available ranging from 200mm up to 600mm.

Snap-Line45® products are made from superior Australian-made steel and designed to last, and due to the strength of Snap-Line45® - it is the strongest architectural profile in the market and has been extensively tested and certified by an independent engineer – you can comfortably install safety systems and solar solutions with ease.

No1 Architectural Panel Systems is proud to bring you this profile.

Brochures

Snap-Line45®

Snap-Line45® Product Brochure

Snap-Line45® Commercial Brochure

Technical

Snap-Line45® Installation Guide
