Haynes Glass Channel Balustrades

The Best Materials for Lasting Quality

Our channel systems utilize architectural heavy-duty 6063 T6 grade aluminum. Anodised covers not only provide the visual aesthetic, but also add to the durability. The ability to accommodate 12mm up to 21.52mm thick glass makes this system ideal for use in homes, apartments and commercial projects.

Range of Styles

We offer four primary styles to suit your preferences. The first is a point fixed 'disc' style which offers a customizable, neat and practical face-fixed solution. We offer a channel style, where the glass panels are securely held within a discreet channel, resulting in an integrated contemporary look. Our post style utilizes robust posts to support the glass panels, allowing for a cohesive integration with surrounding fencing if desired. Lastly, our mini post style, characterized by minimalist posts that offer structural support while maintaining an unobtrusive and clean appearance.

Custom Made to Measure

We provide custom-made panels that are tailored to your specific measurements, ensuring a seamless installation. Our team takes accurate measurements of your pool area, guaranteeing that each panel fits nicely, eliminating any gaps or unevenness. With our custom solutions, you can expect a visually appealing glass balustrade that enhances both safety and aesthetics. Experience the balance of form and function with our tailored approach to balustrade installations.

12mm toughened safety glass (top rail - or if not protecting a fall)

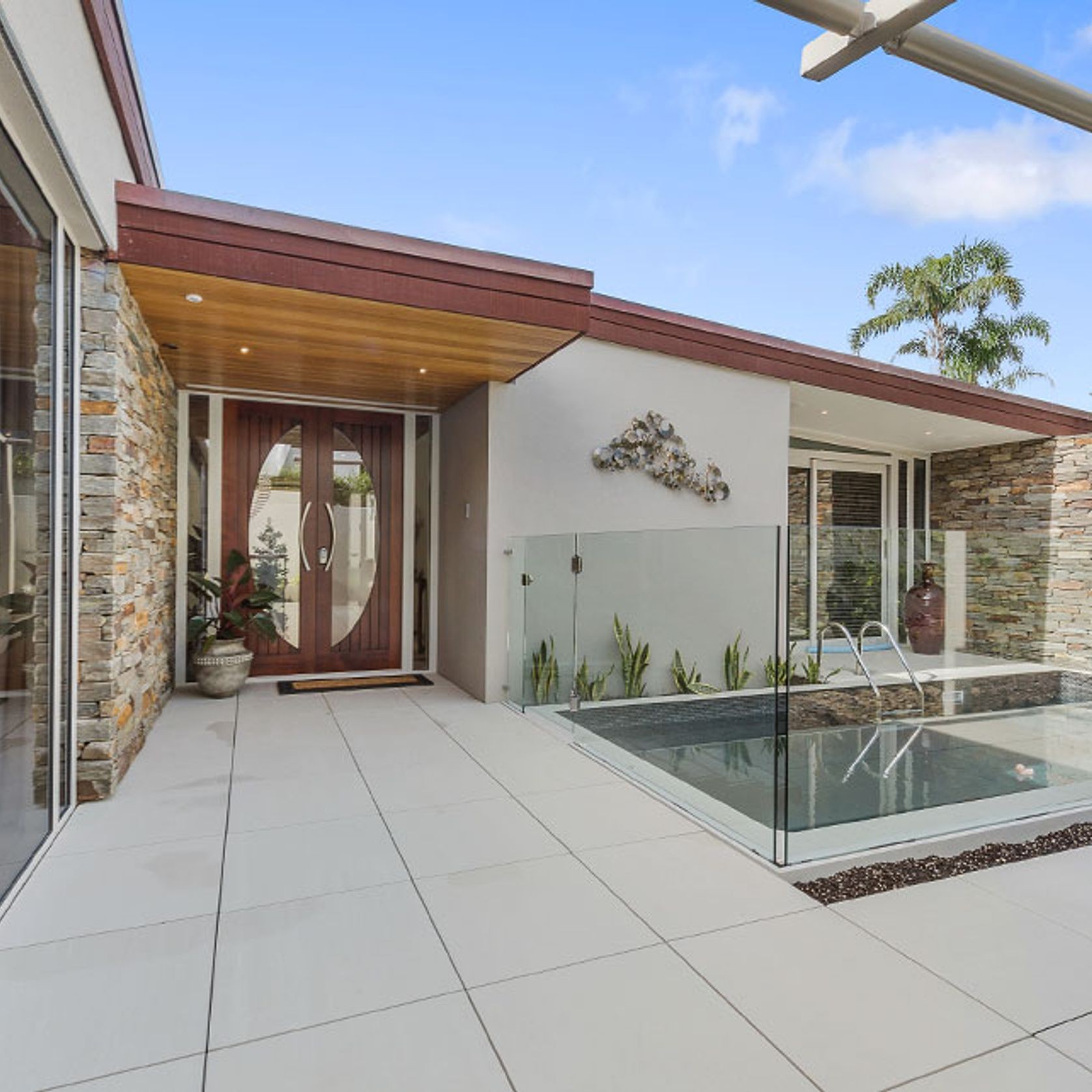

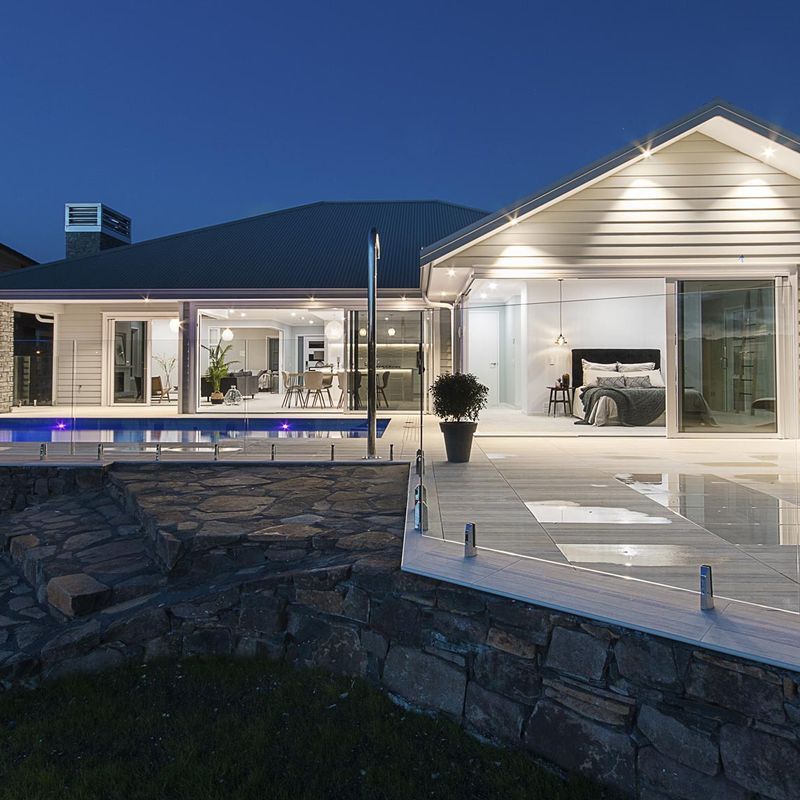

If used in a pool fencing or balustrading scenario when not protecting a fall greater than 1m the more cost effective toughened safety glass can be used. The glass is 12-15mm thick and clamped into the posts. In the unlikely event of a breakage, the glass shatters into small fragments.

Although the small individual fragments may be sharp on some edges, it is far less dangerous than the shards produced if a sheet of traditional float glass breaks.

For balconies or raised applications a top rail must be used with this style of glass.

Sentry glass - toughened and laminated (for safety in protecting a fall)

For the frameless look when protecting a fall greater than 1 metre, Sentry (or EVA Laminated) Glass must be used. Highly resistance to collapse, Sentry Glass interlayers are five times stronger and up to 100 times more rigid than other conventional interlayers. The interlayer stays together and upright even when both panes of glass have been broken.

If the glass ever breaks, fragments remain firmly bonded to the sentry glass interlayer, eliminating glass falling to the ground or over the edge.The glass retains its clarity, is extremely durable and resistant to clouding.

Channel is manufactured from architectural grade aluminium with anodised covers for added durability. The channels ability to accommodate 12mm up to 21.52mm thick glass means this system is ideal for use in homes, apartments and commercial projects.

Quality Materials

Heavy-duty 6063 T6 grade aluminium construction with anodised covers for extra durability.

Various Finishes

Available in a satin anodised as standard with a selection of custom powder coated finishes possible to match or compliment cladding/decking.

Recessed Option

A discrete recessed option is possible where the channel can be embedded into the structure for 'invisible' hardware design.

Rails and Clips Matched to Suit

Handrail, clips and brackets are co-ordinated and can be powder coated to suit the colour/style of the channel.

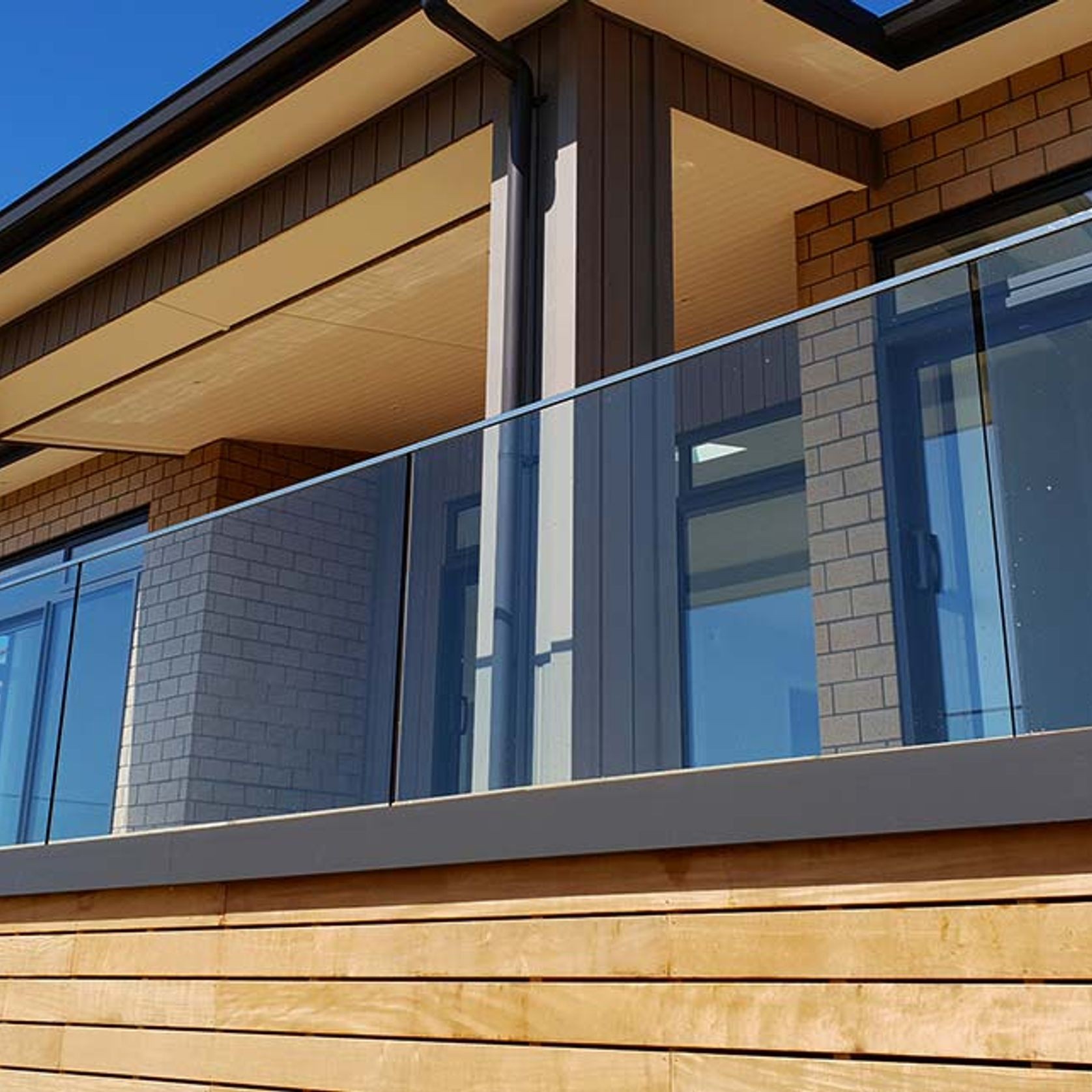

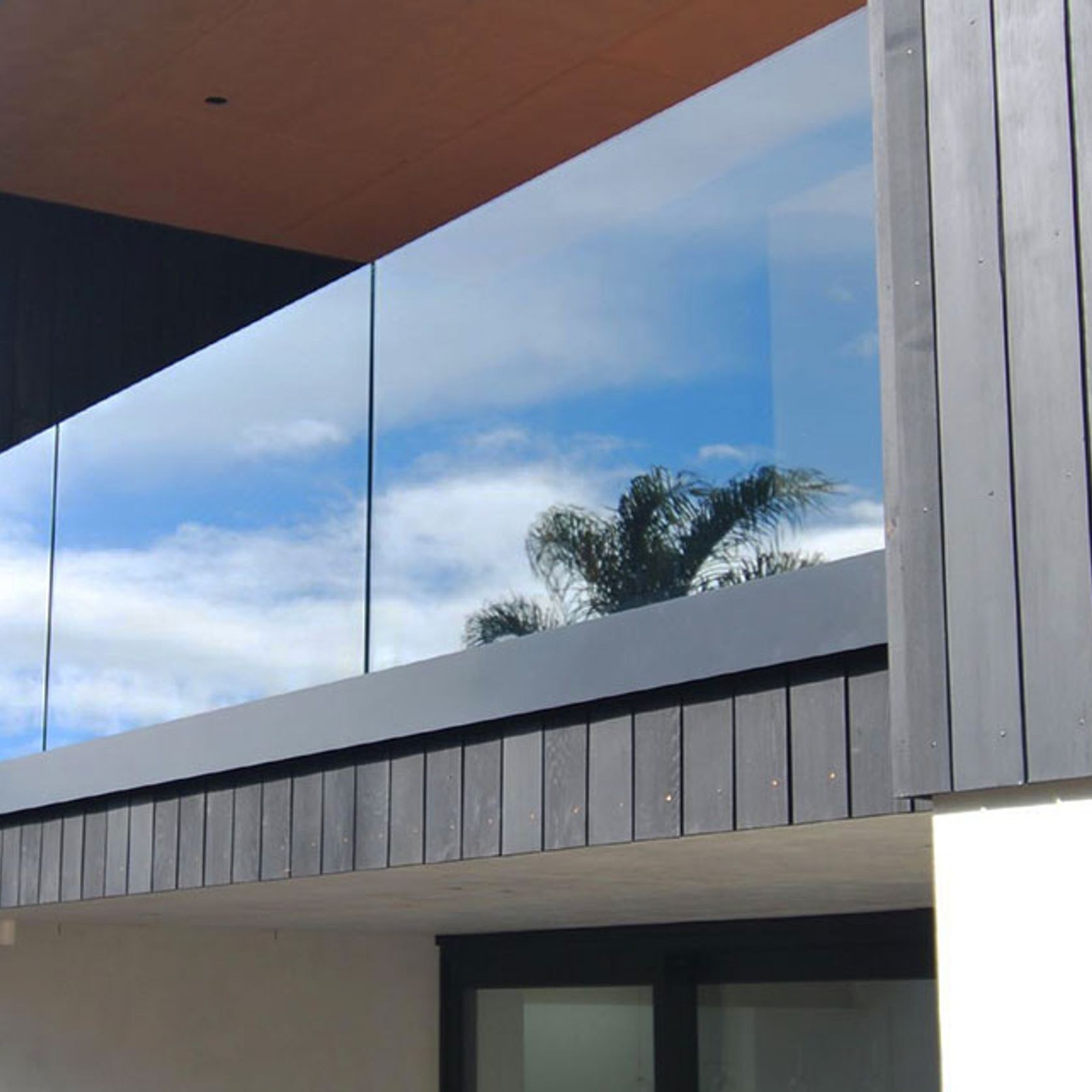

Face-Fixed

We use a minimalistic aluminium channel system for face-fixing balustrades which allows for long panels of glass and keeps the clean lines and square edges consistent with modern home trends. The fixings are concealed beneath a slim profile aluminium cover plate which can be powder-coated any of the standard colours to blend with the building structure. A rotating pressure plate system allows for a 30mm tilt and lock adjustment, backwards and forwards. This reduces issues arising from uneven sites or deck movement and allows for easy adjustment.

Top Mount

An easy-to-install system with a sleek minimalistic design. Anzio channel is versatile and suitable for use in a wide variety of applications from pool fencing to balustrades, walkways and staircases. Unlike many other balustrading systems, it does not need scaffolding and can be installed from the inside of a deck or balcony. This advantage serves to keep this system cost-effective.
