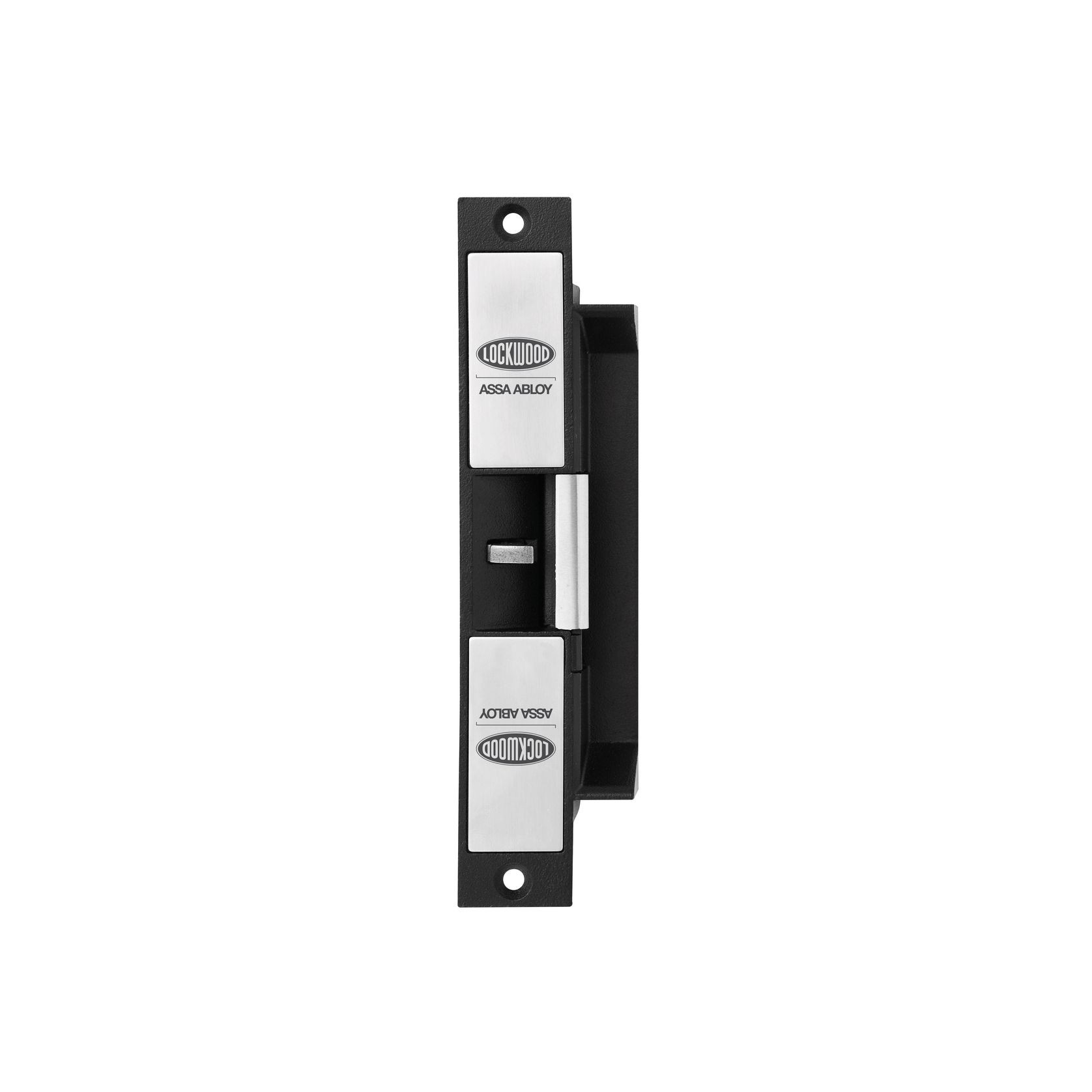

Lockwood ES2000 Monitored Electric Strike
- 192.7K profile views
- 17 saves
The ES2000 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.
They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.
Key Features
- Fully monitored - strike locked and door latched
- Fail safe/fail secure changeable on site
- High security
- 4 Hour fire rating
- 850kg holding force
- 1 million cycles endurance rating
- Cast stainless steel body
- Stainless steel locking pins
- Low Current consumption - Max 175ma @12Vdc
- Solenoid rated for continuous use
- Mounting kit supplied as standard
- TRICARE® 5 Year Warranty
Applications
- High traffic areas
- Fire rated door sets
- Open in/open out doors
- Suitable for use with all access control systems
Standards and Compliance
- S3 (Security) Australian Lock Standard (AS4145.2.1993)
- D3 (Durability) Australian Lock Standard (AS4145.2.1993)
- BS 5872 Approved
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
- Approved to UL1034 (highest level)
- CE Approved
- C-Tick Certified
Product Details
- Product
- Lockwood ES2000 Monitored Electric Strike
- Category
- Door and Window Hinges
ASSA ABLOY Door Locks & Security Solutions is specified by
ClarkeHopkinsClarkeArchitects
Wood MarshArchitects
JOST ArchitectsArchitects
Design King CompanyArchitects
Winter ArchitectureArchitects
Woods BagotArchitects
Ha ArchitectureArchitects
Abe McCarthy ArchitectsArchitects
DX ArchitectsArchitects
Rama ArchitectsArchitects
Katz ArchitectureArchitects
Glasshouse ProjectsDesign & Build
KarmatectureBuilding Designers
Alabaster WorkshopManufacturers and Suppliers
Studio NicholasInterior Designers
Keeler HardwareManufacturers and Suppliers
Australian Institute of ArchitectsAssociations
The ES2000 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems.
The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.
They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.
Key Features
- Fully monitored - strike locked and door latched
- Fail safe/fail secure changeable on site
- High security
- 4 Hour fire rating
- 850kg holding force
- 1 million cycles endurance rating
- Cast stainless steel body
- Stainless steel locking pins
- Low Current consumption - Max 175ma @12Vdc
- Solenoid rated for continuous use
- Mounting kit supplied as standard
- TRICARE® 5 Year Warranty
Applications
- High traffic areas
- Fire rated door sets
- Open in/open out doors
- Suitable for use with all access control systems
Standards and Compliance
- S3 (Security) Australian Lock Standard (AS4145.2.1993)
- D3 (Durability) Australian Lock Standard (AS4145.2.1993)
- BS 5872 Approved
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
- Approved to UL1034 (highest level)
- CE Approved
- C-Tick Certified
- Specs
Voltage
12VdcCurrent
175 mA @ 12VdcSolenoids
Solenoids are rated for continuous useMonitoring
Solenoid Monitor - 1 amp NO/NC microswitch
Door/Latch Monitor - 1 amp NO/NC microswitchHolding Force
850kg Static Strength RatingEndurance
Cycle tested to 1,000,000 operationsLatch
Suitable for 15mm latch bolt with 3mm door gapEnvironment
Operational temperature range - 20°C to +60°CBody
Solid Stainless Steel ConstructionKeeper
Stainless SteelSpecification Statement
The strike should be constructed of solid stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles. Monitoring must include independent door / latch& solenoid monitoring. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use. Certifications must include CE, C-Tick and 4 hr fire rating.
