Coastal Haven banner
Project by
Location
Waikanae Beach, Wellington
Year of completion
2023
Project cost
$1m - $2m

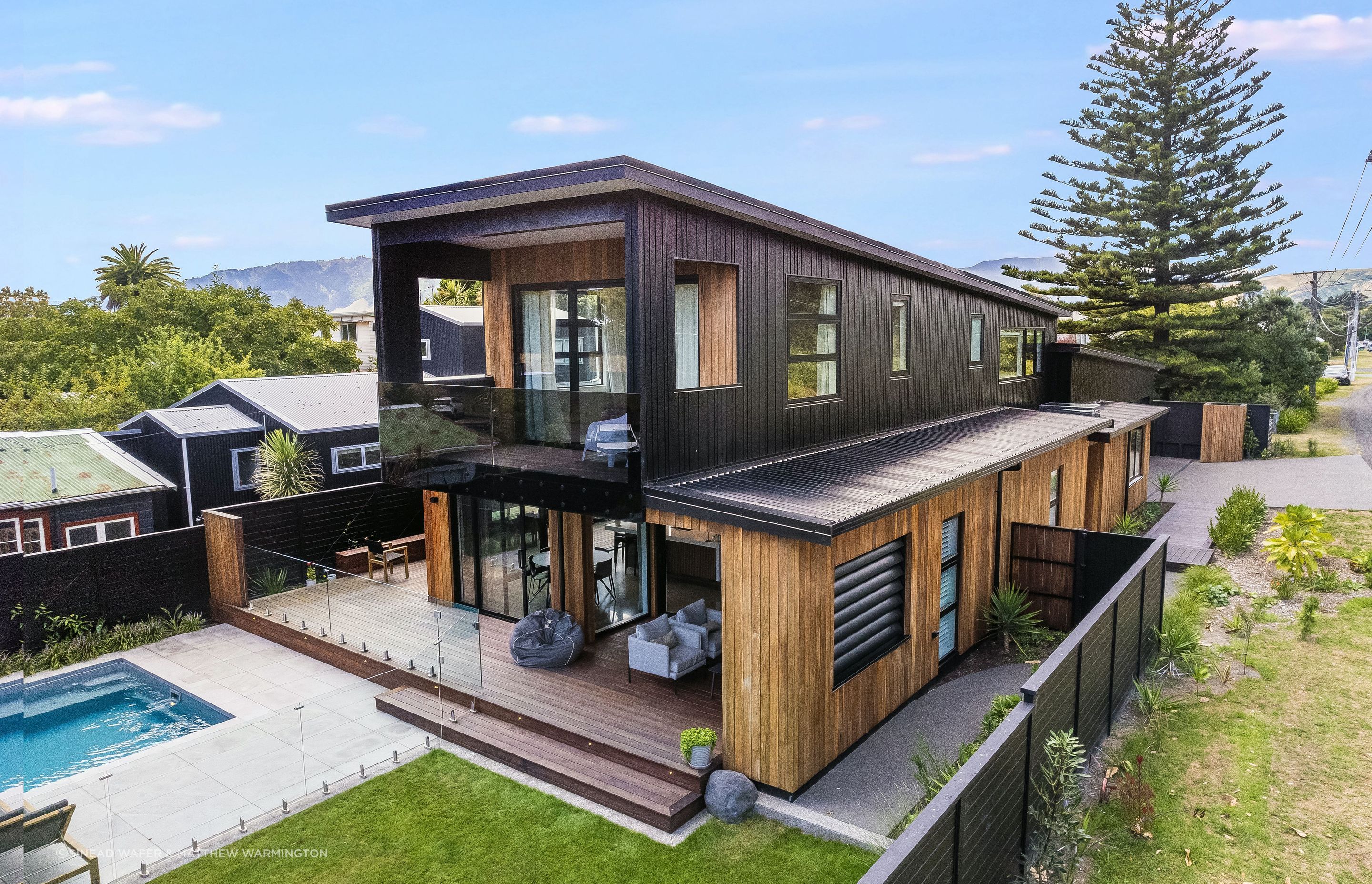

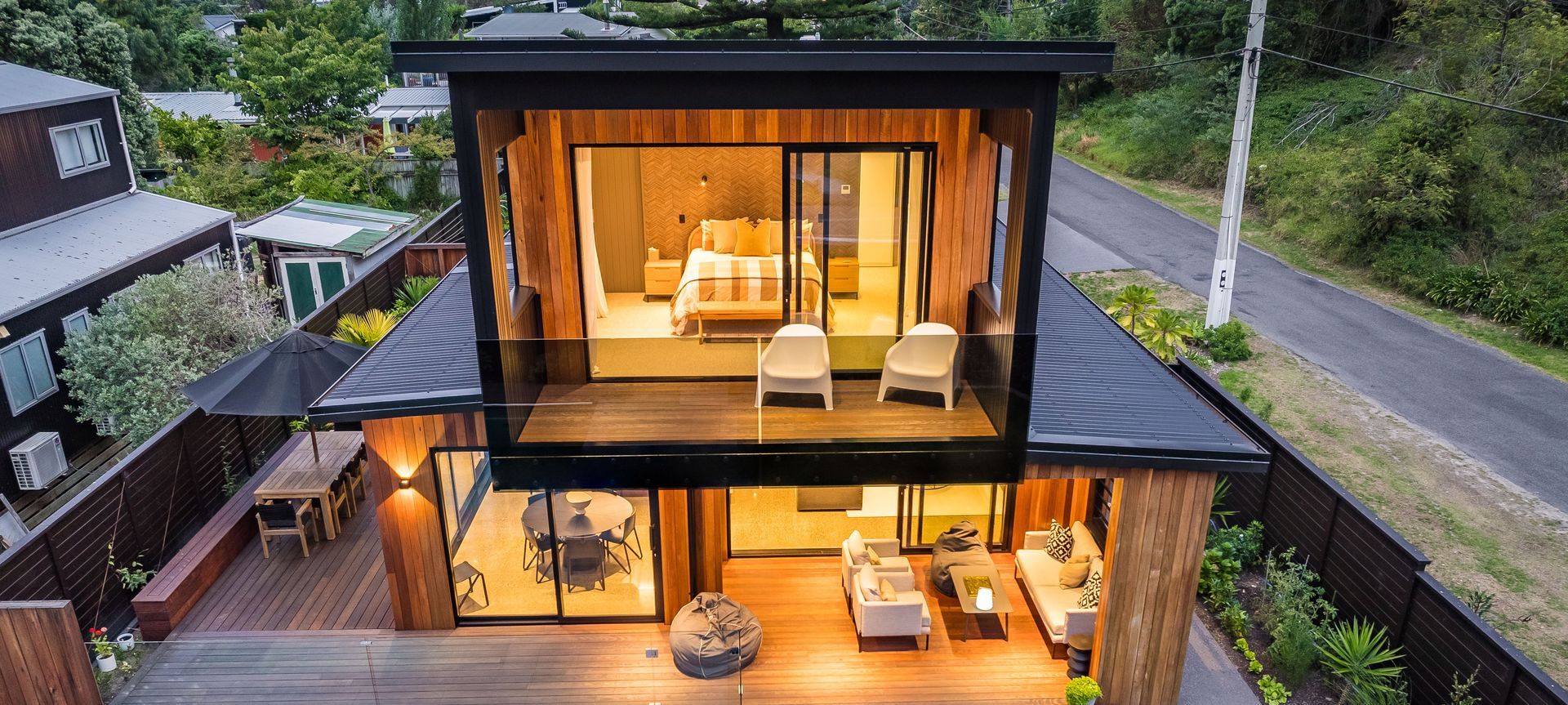

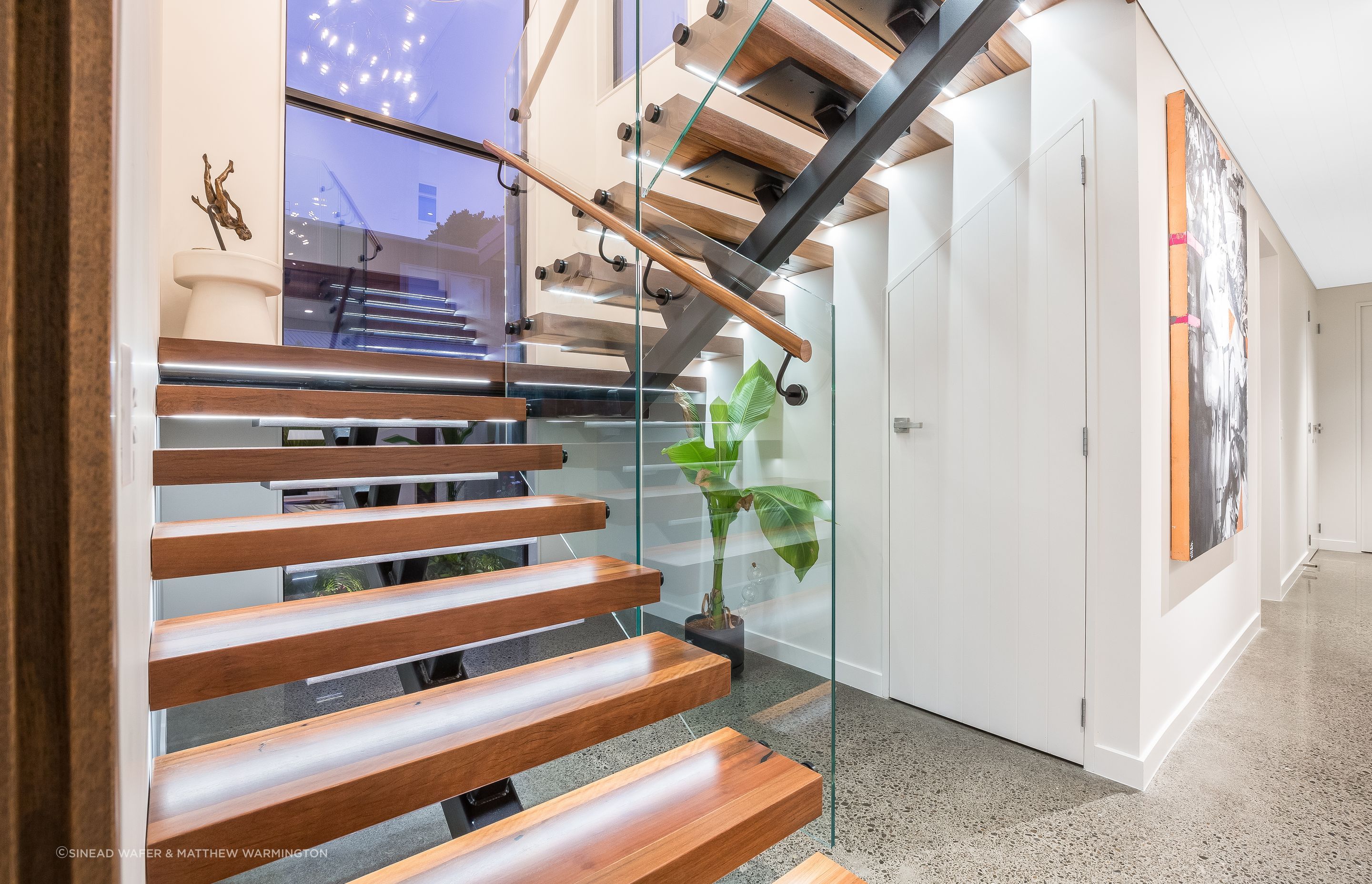

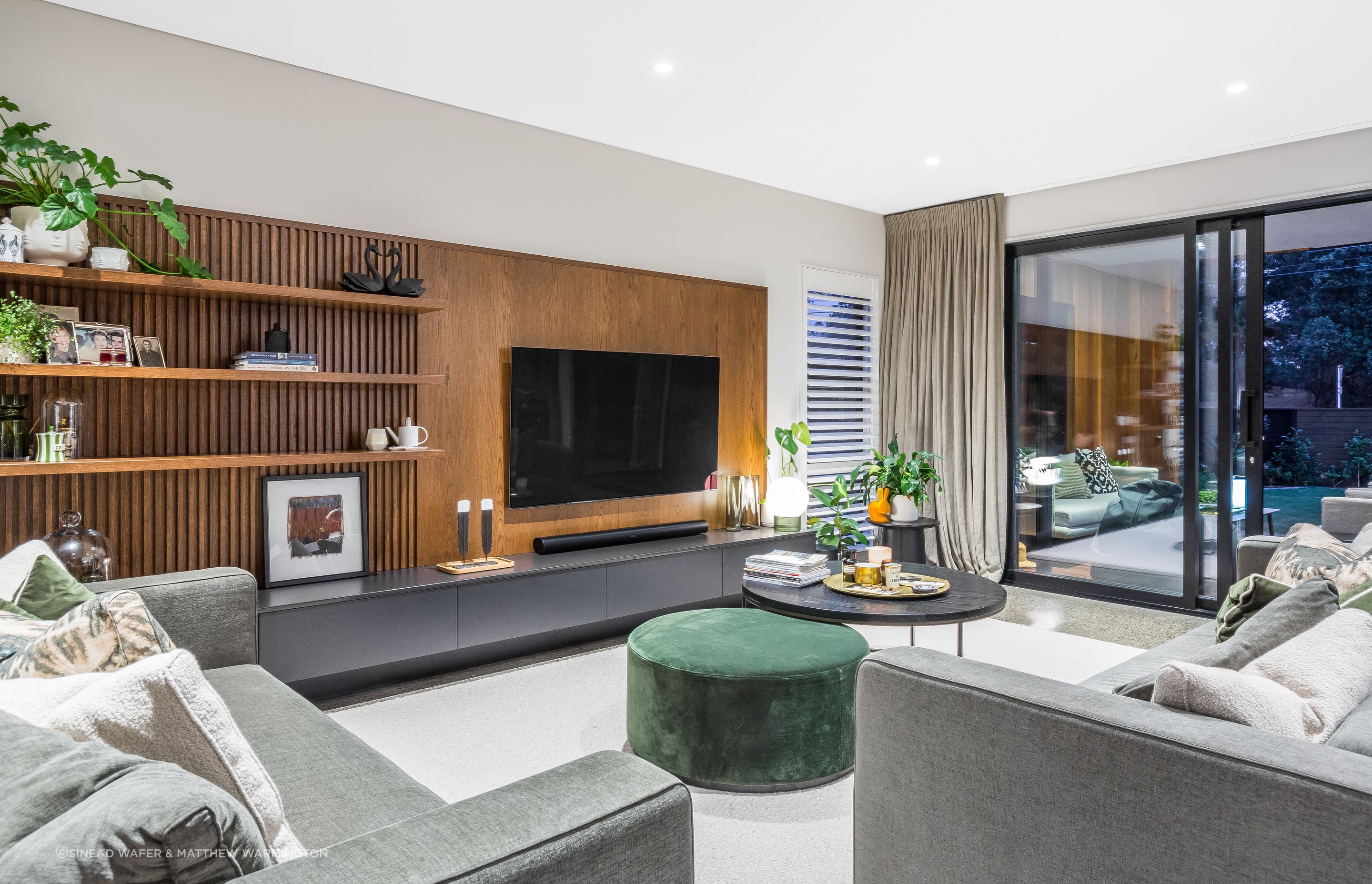

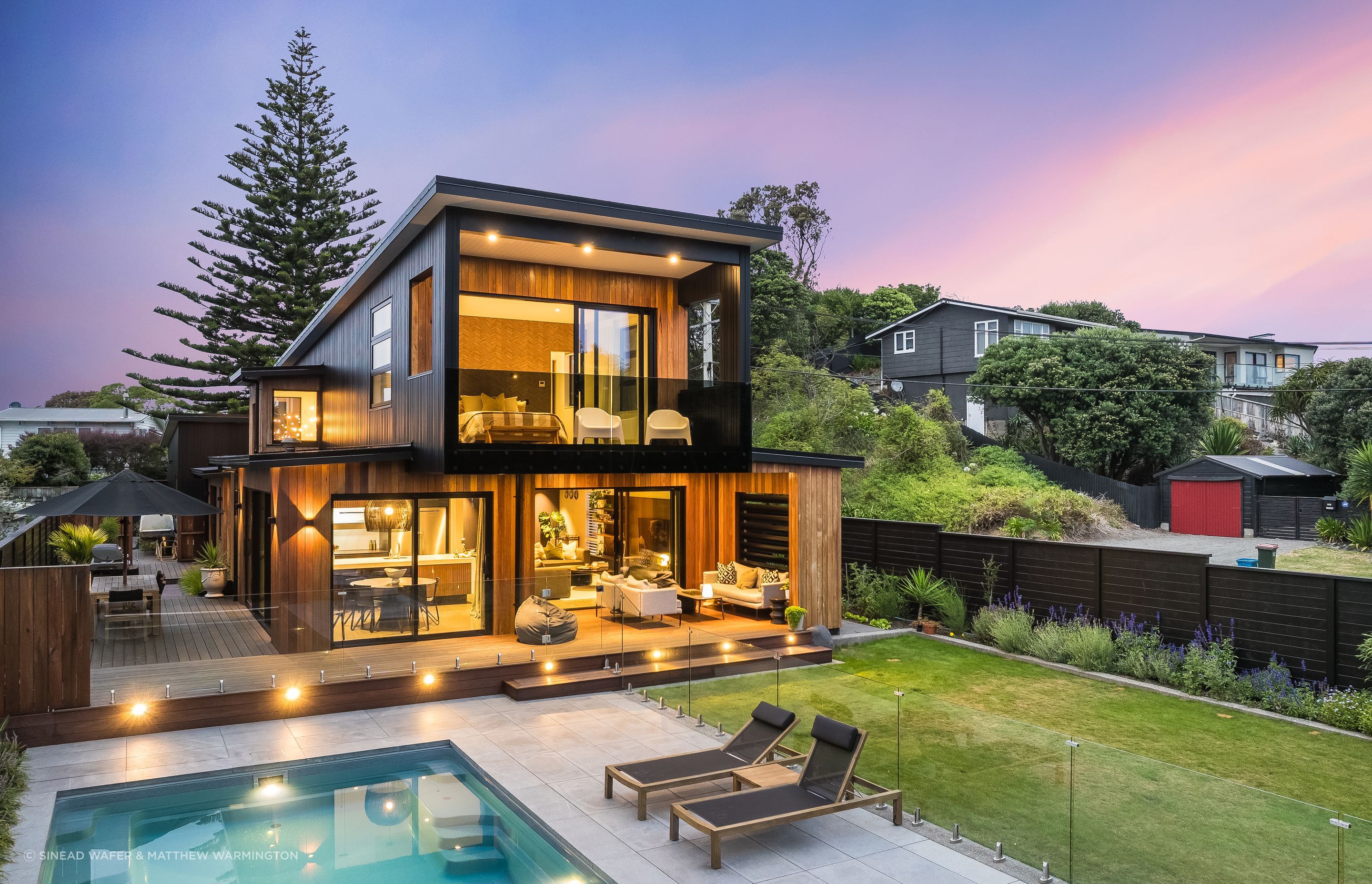

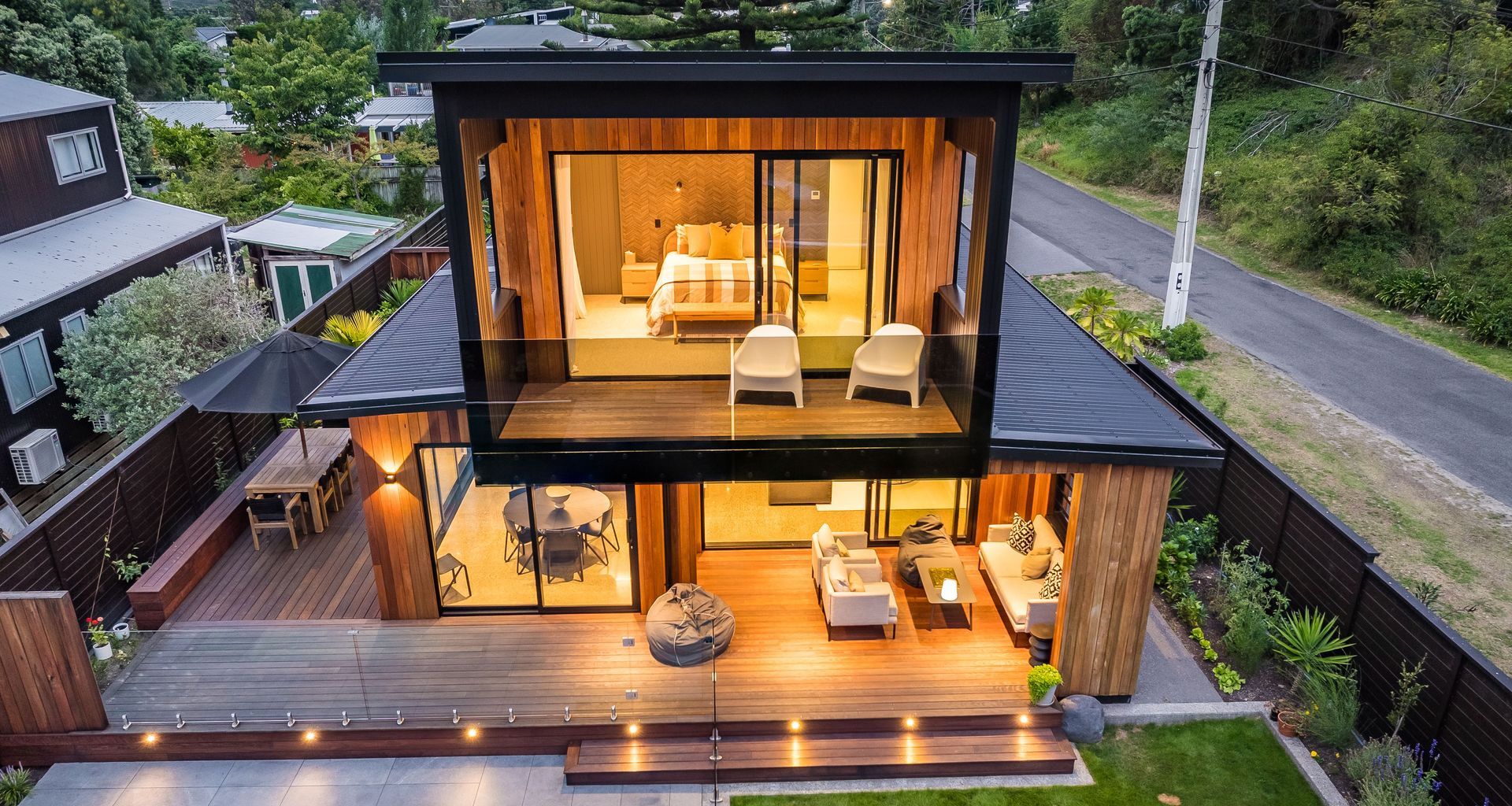

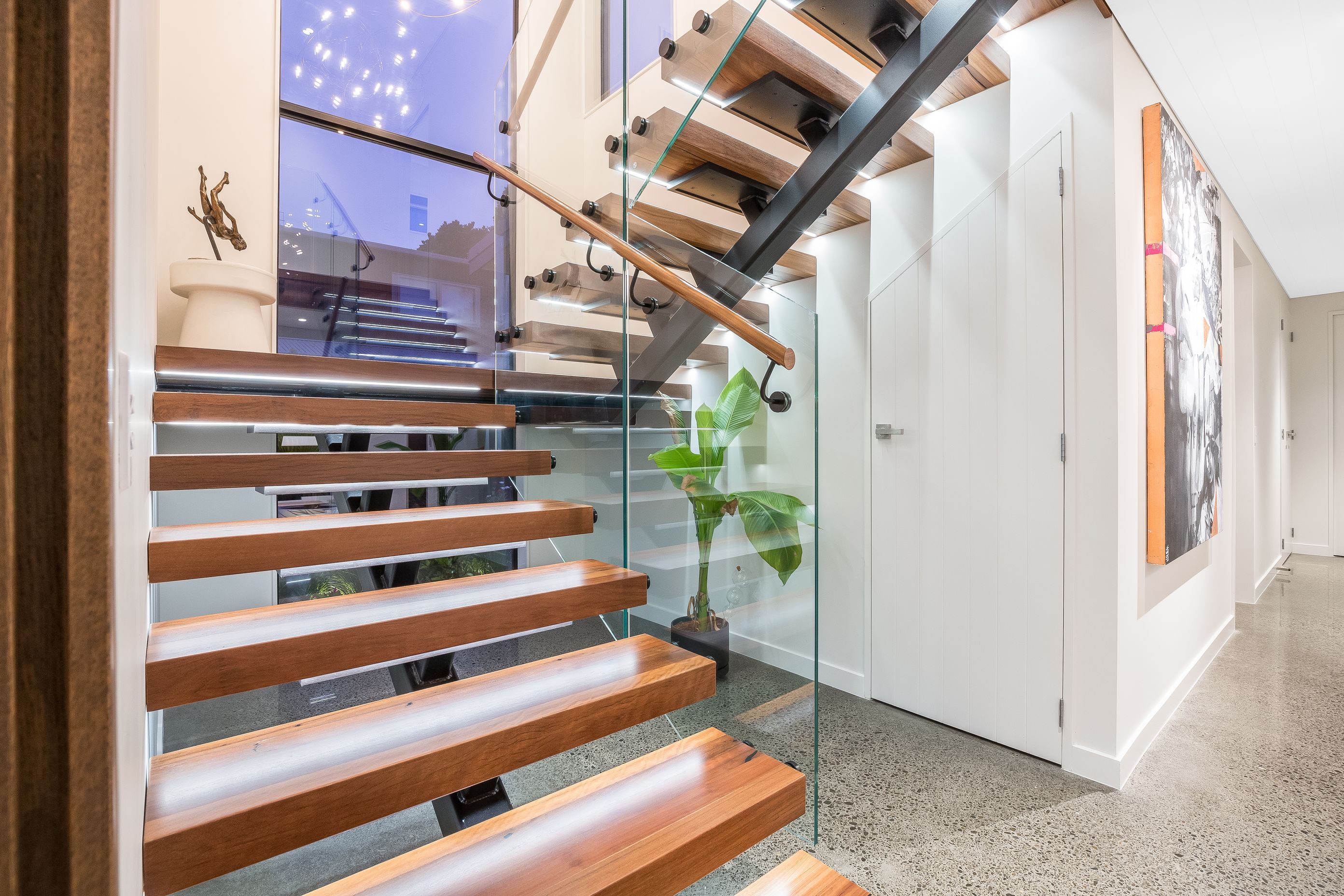

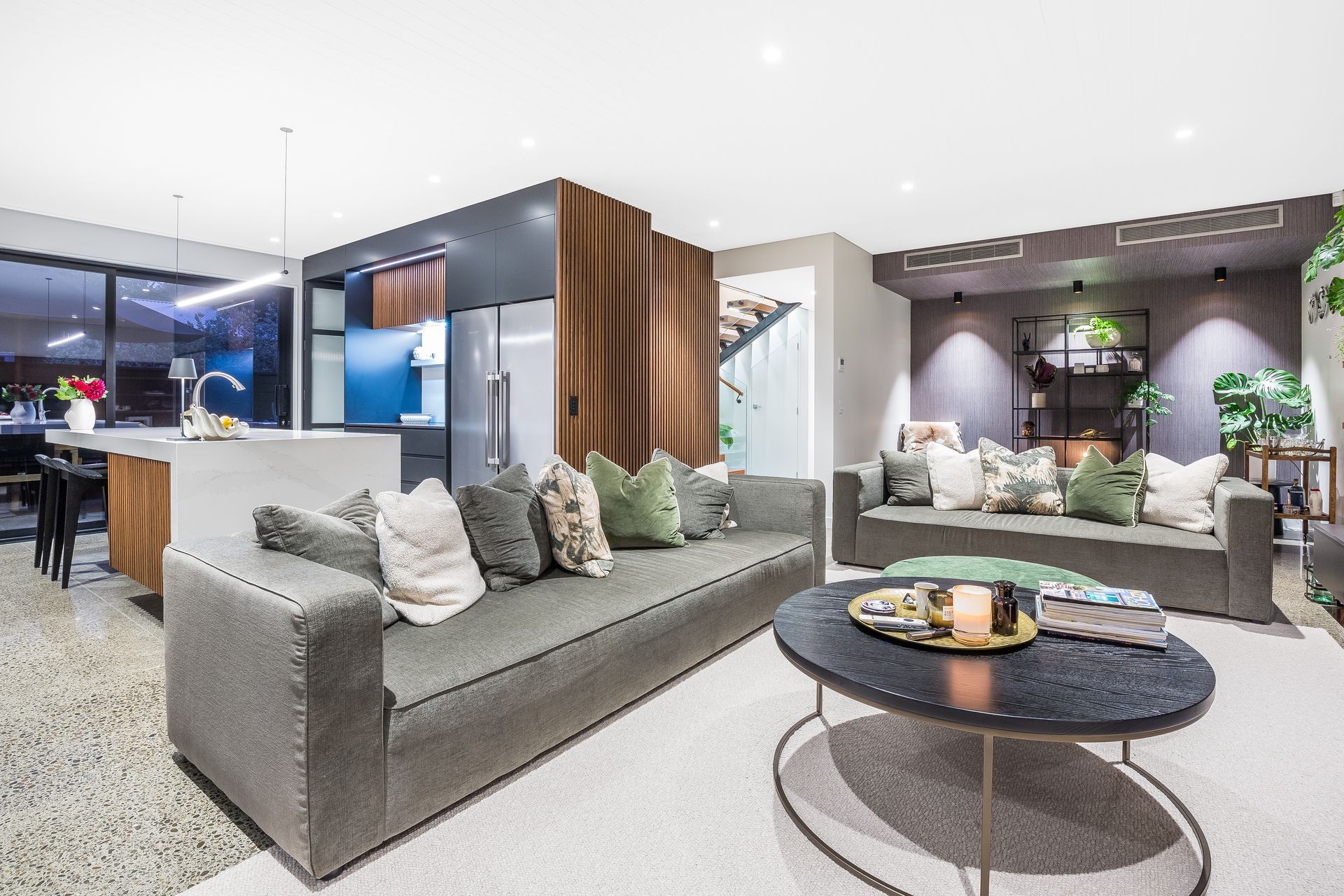

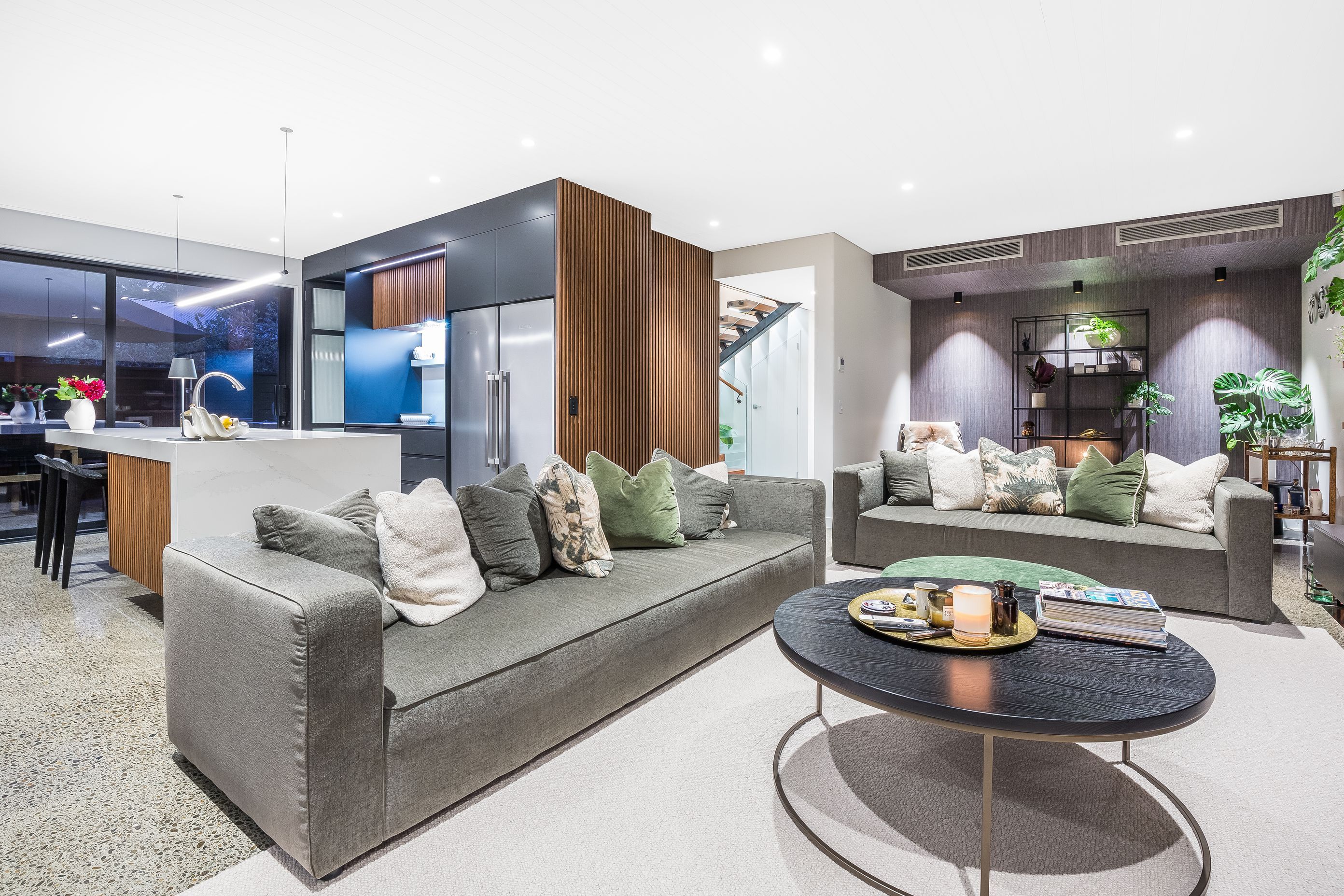

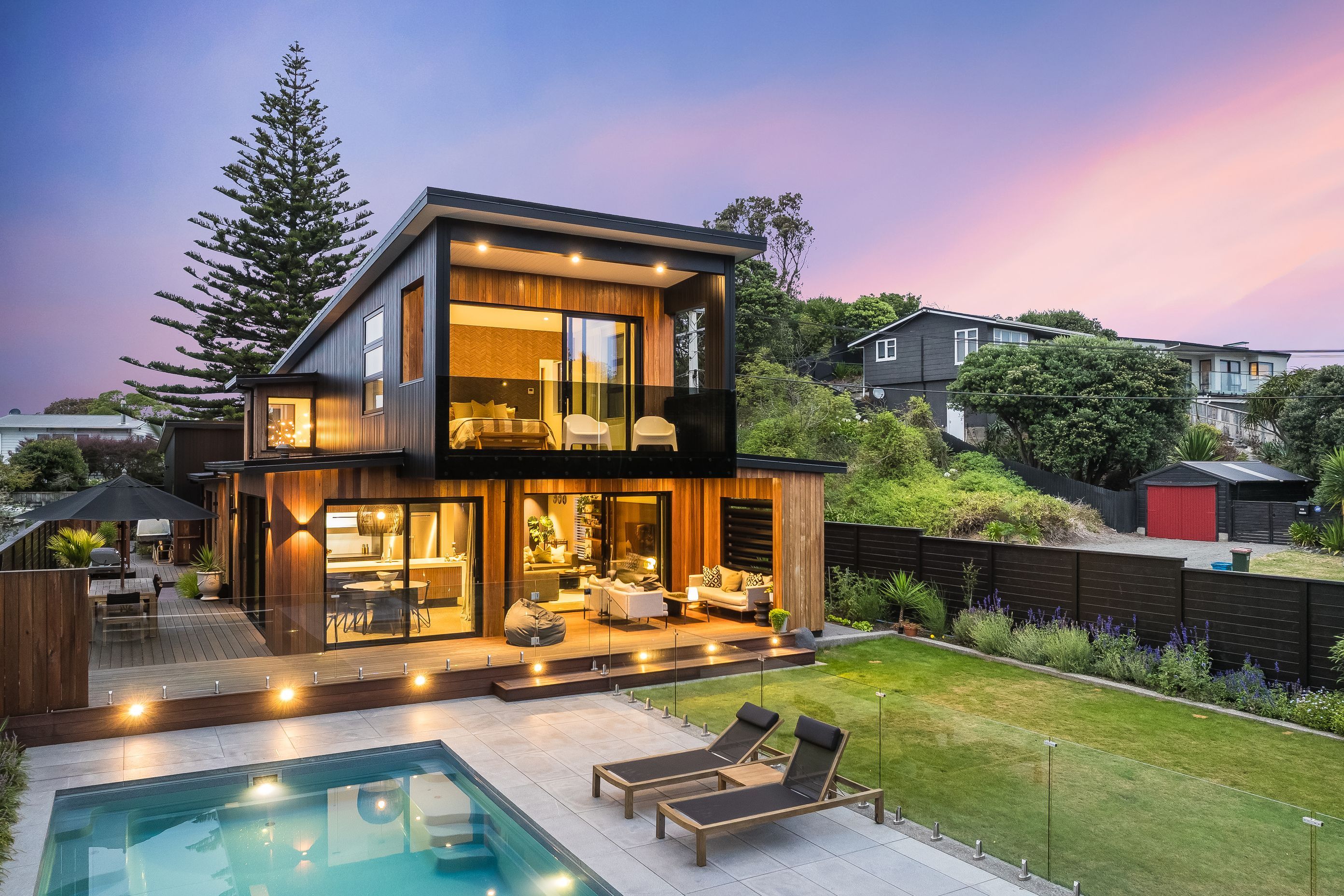

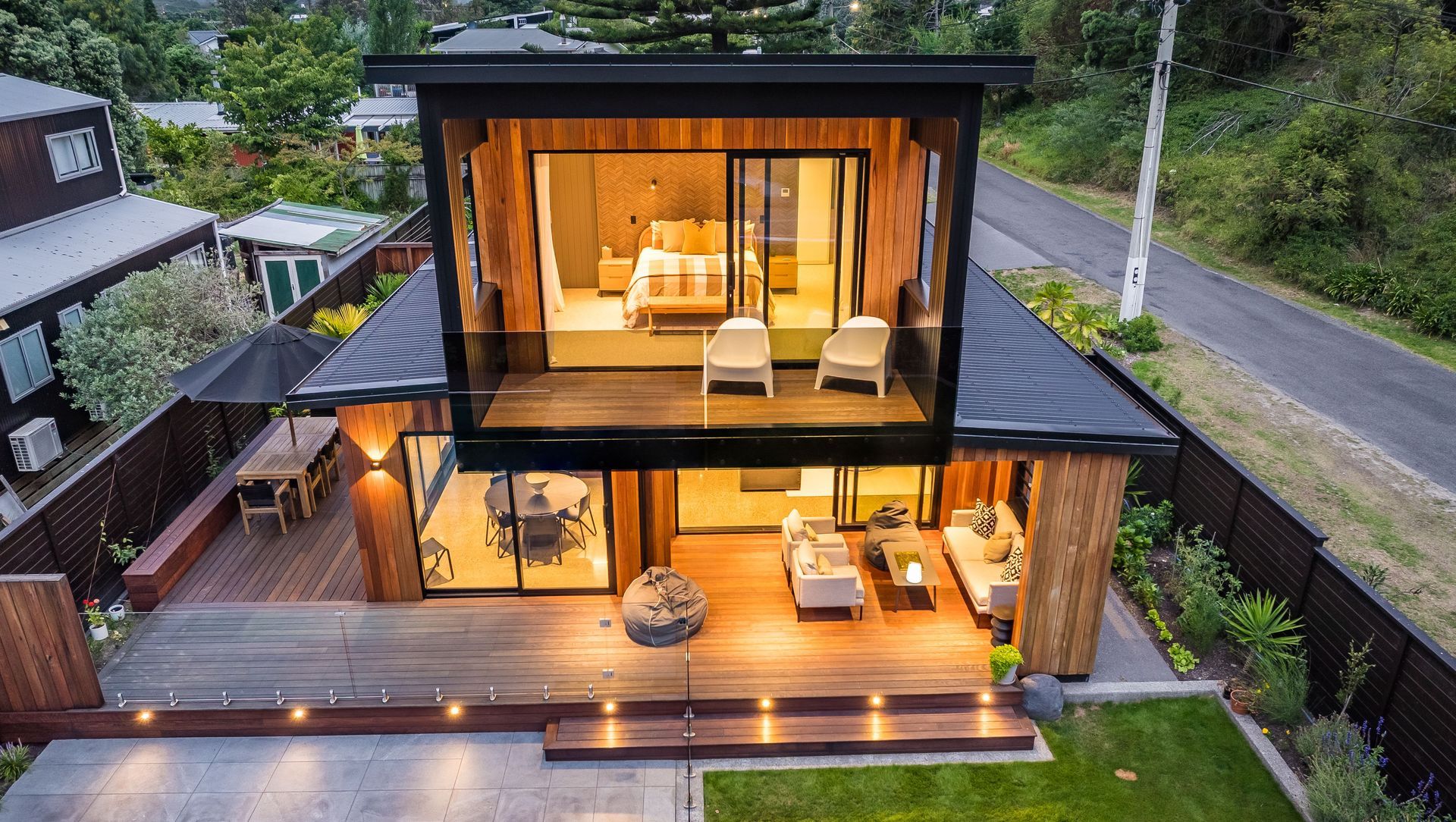

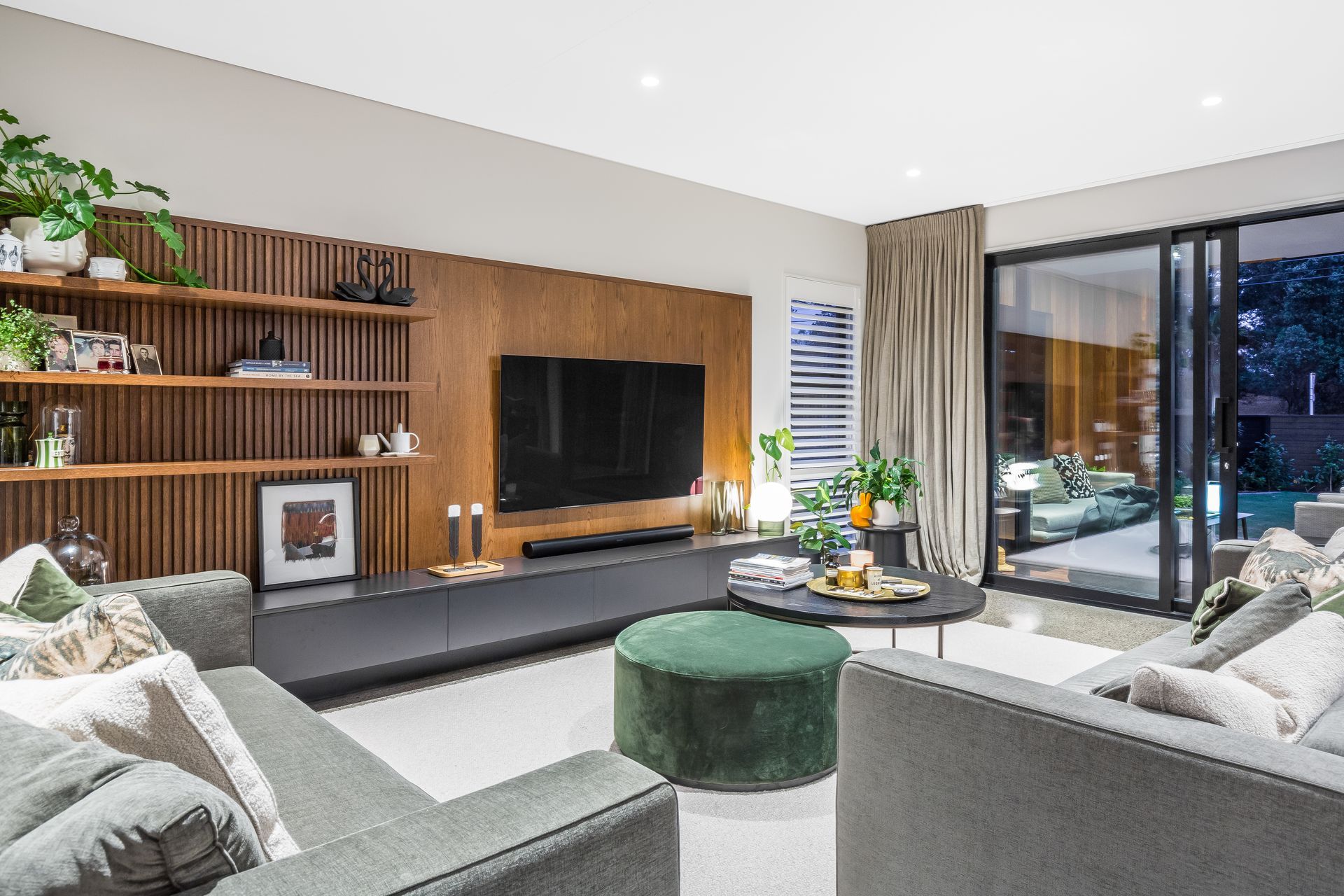

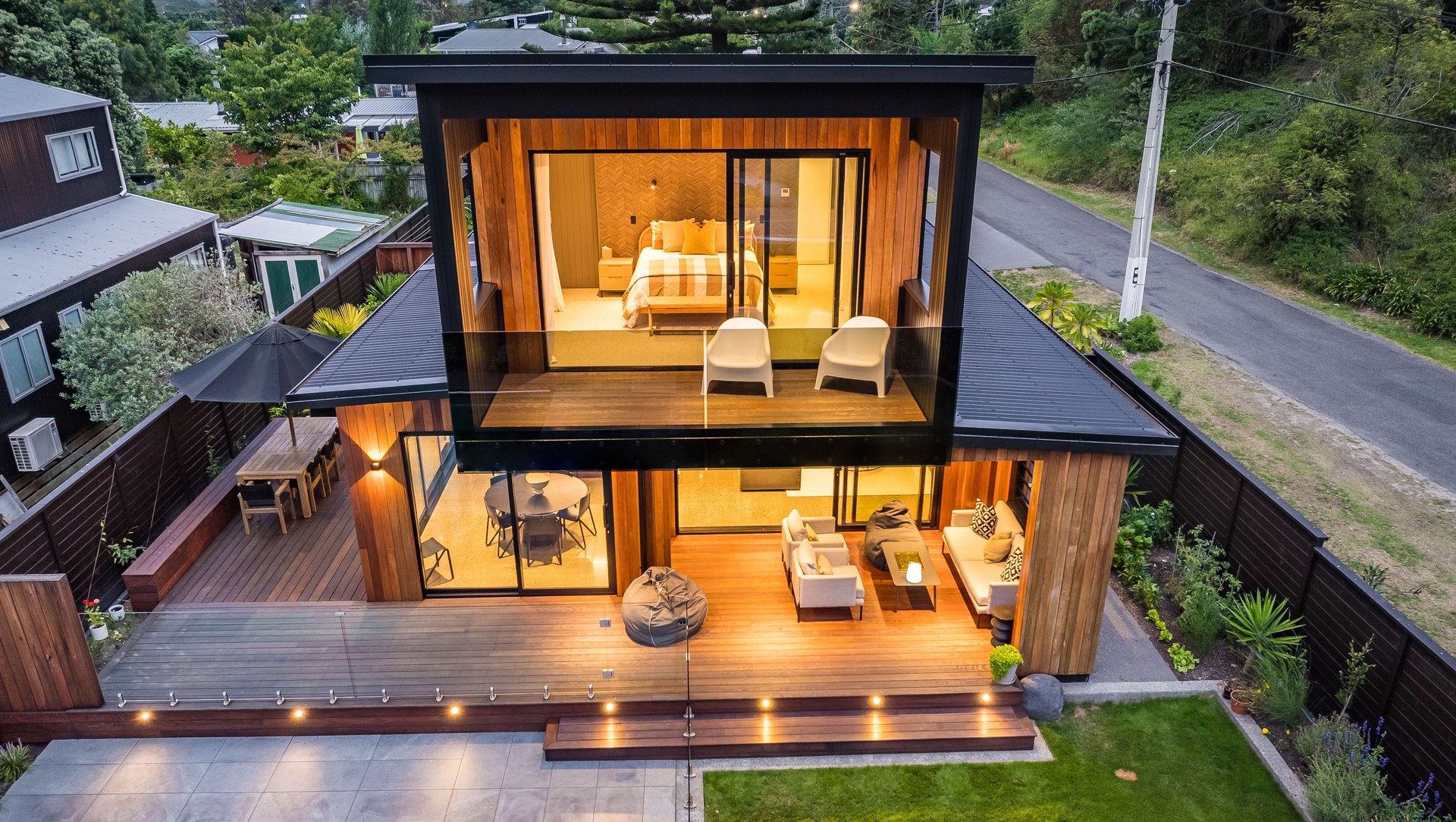

A comfortable open plan living for an active couple, with space to enjoy the view from a the Main bedroom, private sheltered outdoor living with a swimming pool, an office area, guest rooms (as the house was still to be hub for family and friends holidays), extensive garaging (for cars, bikes, kayaks, boat, and storage) and an outdoor utility area for fish cleaning, clothesline etc. Higher ceilings feature in the living areas and main bedroom along with an interesting entrance and feature stairs. With pets and preferring radiant heat, a heated exposed concrete floor was installed don the ground floor. Given the length of the site, the design of the house lent itself to a long raking mono pitch form, starting from single level over the garage to extra height 2 storey levels at the western end. This approach enabled stepped heights for interest and impact with a very efficient form. The flow from the living area to the outside is seamless, with easy access to all day sun, BBQ space, sheltered sitting and recreation space beyond including a swimming pool.

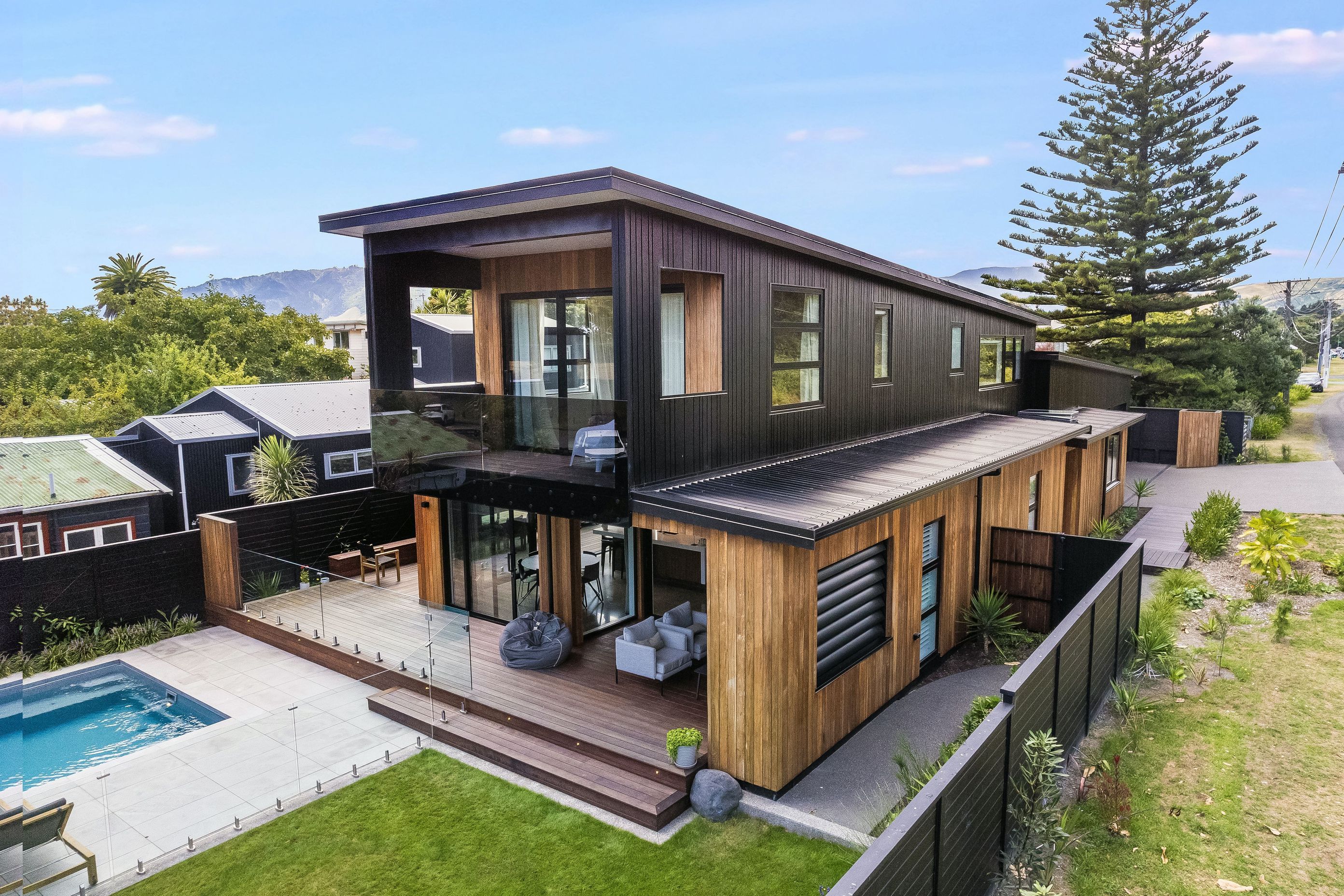

Recycled Iron Bark weatherboards supplied by LMA were used in selected areas for warmth, impact, and easy access for maintenance with the bulk of cladding being Nuwall E series in varied widths. This selection provides a robust and interesting aesthetic.

The building is very thermally efficient, with high levels of wall and ceiling insulation, thermally broken aluminum windows (with low E glass and argon filled double glazing), and a fully insulated heated slab. Furthermore, the windows are recessed back to the framing line to increase their efficiency and weathertightness while also giving a crisp exterior detail. A heat pump effectively runs the in-slab heating, ducted air conditioning, hot water, and pool heating, which is complemented by a 10 kW solar PV system (with 14.2 kw battery storage) discreetly located on the garage roof. Rainwater is collected in an underground storage tank that supplies hose taps, toilet cisterns and a conveniently located outdoor shower, clad to match the house.

Awards and
recognition

2024
ADNZ
Comended and National Finalist
AD Architecture
Wellington
Visit Website

About the
Professional

AD Architecture is an architectural design company, specialising in high performance homes. Based on the Kapiti Coast, AD Architecture provides architectural services for new builds and renovations across the greater Wellington region, and all around New Zealand.

Founded in 2008 by directors Peter Davis and Jon Ambler, their unique approach incorporates style, budget, environment, and function to achieve desirable, high performance architecture.

We are in touch with modern trends and materials, including weathertight home resolutions and are committed to promoting sustainability and energy efficiency to ensure your next home promotes a healthy and eco-friendly lifestyle .

Proud members of the Architectural Designers Inc., NZ Institute of Architects, and the Superhome Movement, AD Architecture are also Licensed Building Practitioners.
