Side courtyards versus rooflights: bringing light into a narrow home

featuring Modal Architecture

Modal Architecture logo
  • 13.2K profile views
  • 4 saves

Both approaches can bring daylight deeper into a home, but they offer different relationships with privacy, sky, ventilation and outdoor space.

Visit Website

A narrow home can struggle to bring daylight into its middle rooms, especially where side windows face a nearby boundary or building. A courtyard and a rooflight can both help, but they solve the problem in different ways.

Start by identifying what the room needs: useful daylight, a view, fresh air, direct outdoor access or some combination. Light alone may not resolve the experience you are trying to improve.

What a side courtyard can offer

A courtyard creates an external edge inside the overall arrangement of the home. Rooms can look onto planting or open directly into it. It can also separate activities while retaining a visual connection.

Its proportions matter. A very narrow slot between high walls may provide a view of the sky without becoming a comfortable outdoor room. Include neighbouring buildings, drainage, planting and maintenance access in the design. Test furniture if people are expected to sit there.

What a rooflight can offer

A rooflight brings light from above without necessarily using ground-level outdoor area. Its effect depends on orientation, glazing, roof form and the depth and shape of the shaft below it.

Consider glare and summer heat alongside brightness. An opening rooflight may contribute to ventilation, but operation, rain control, cleaning and access need to be resolved. Do not assume a rooflight provides the same outlook or connection as a window onto a garden.

Compare the whole construction

A courtyard introduces external walls, openings and ground-level junctions. A rooflight affects the roof structure, roofing and interior ceiling. Both require coordinated weatherproofing details.

Ask for a section through each option. It should show where light enters, what obstructs it and what a person sees from the room. The comparison is often more revealing than two attractive floor plans.

They can work together

At California House, Modal combined internal gardens and courtyards with clerestory windows and skylights to reconcile privacy and daylight. The lesson is that openings can have complementary jobs rather than competing to solve everything.

Our new home design service develops these relationships around the site. Similar questions arise in renovations, where existing structure and neighbouring buildings may constrain the options.

Choose the approach that gives the room the qualities it needs, with a realistic account of construction, maintenance and the outdoor space you want to keep.

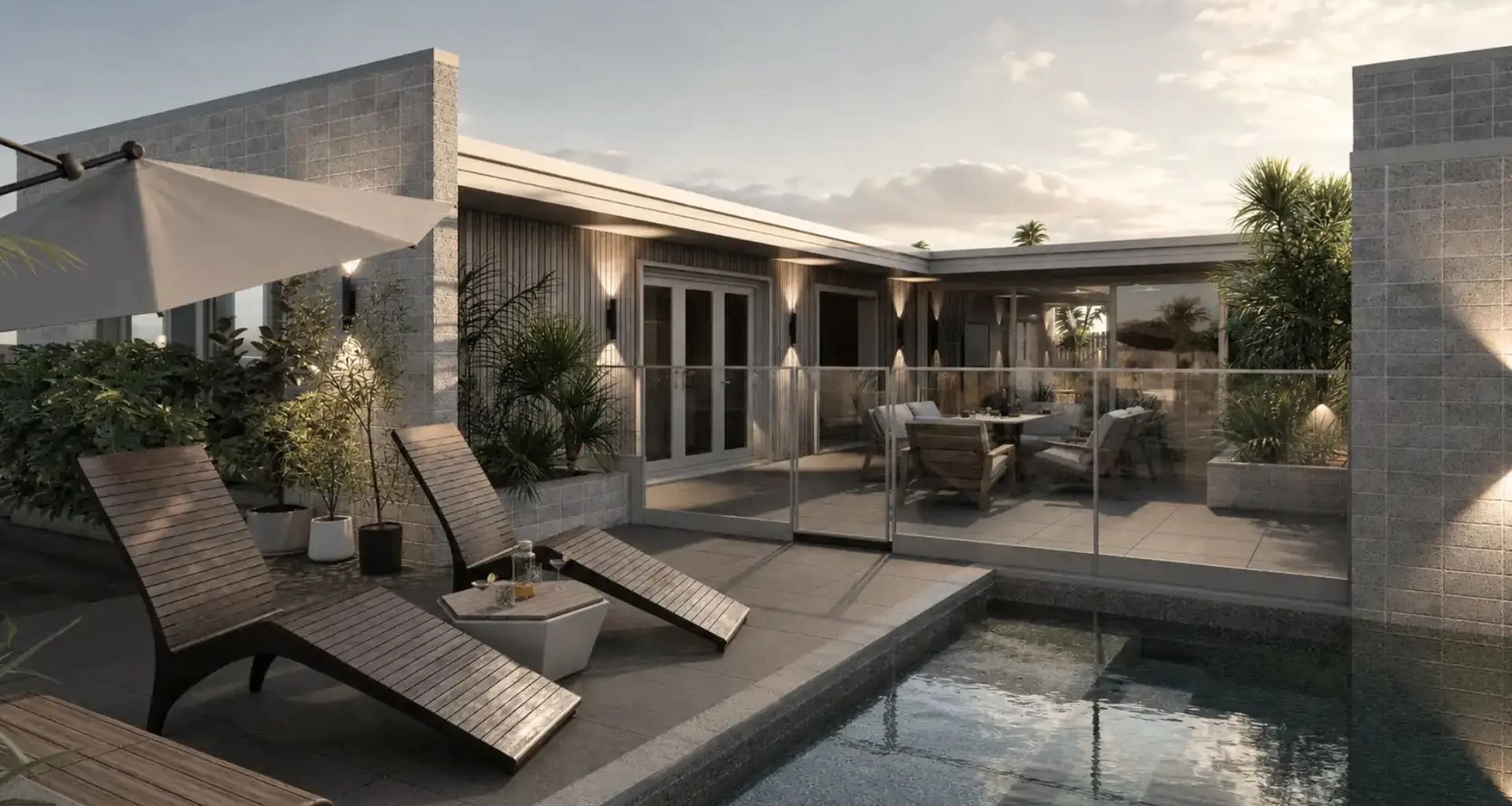

Cover: project visualisation of California House. Image credit: Modal Architecture.
