Heavy Duty Sliding Doors

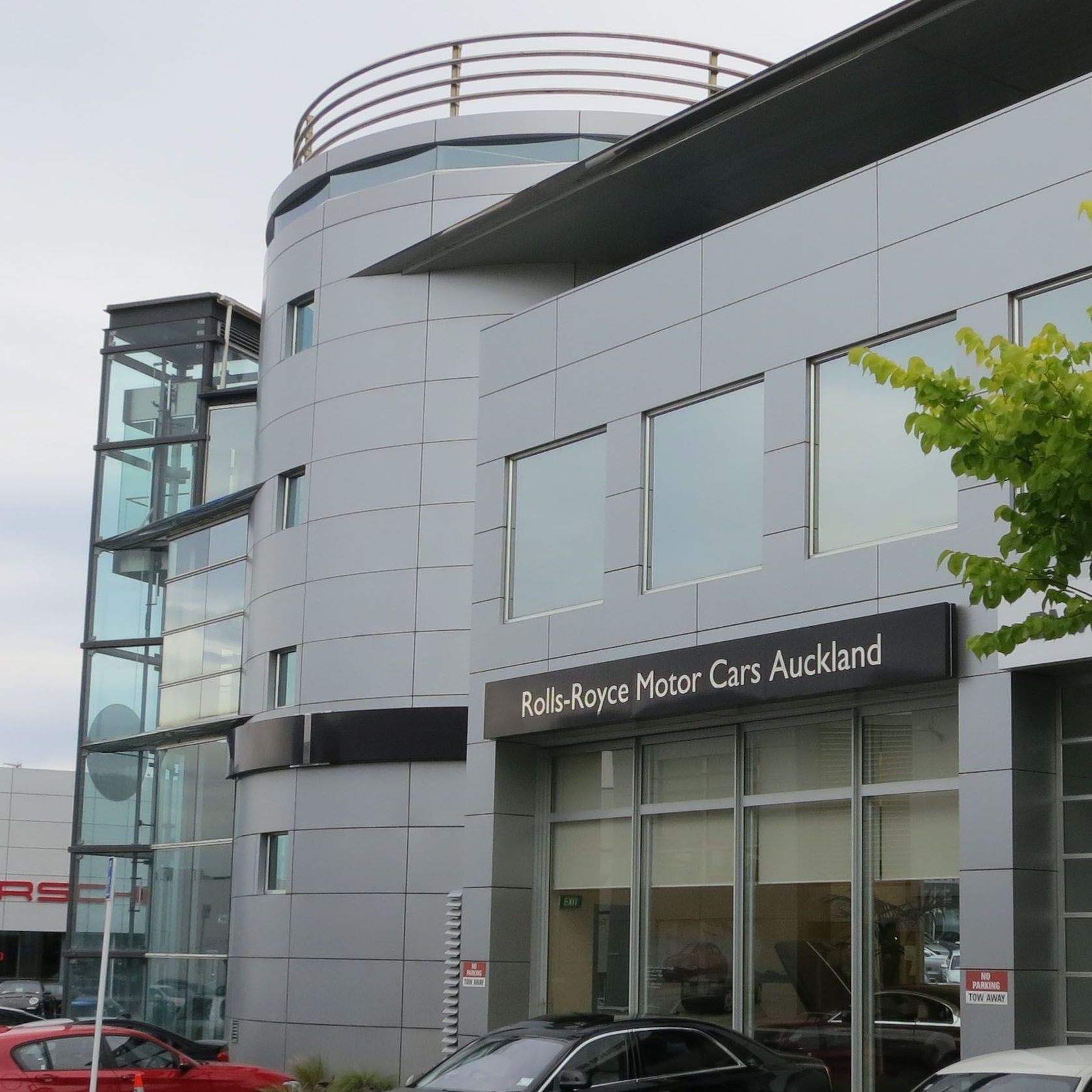

Heavy Duty or Oversize Sliders offer increased Architectural opportunity. Thermosash suite sections allow for large sliders, single or multiple stacking. These are commonly specificed where vehicle or over height access is required into a building for example car sales yards and convention centers.

The hardware systems that Thermosash allows for offers easy sliding or integration of automated door opening gear where required and high loading / trafficability over the sliding tracks.

Details
  • Category
    Sliding Doors
General
  • Country of origin
    New Zealand
  • Type of use
    Commercial
  • Installation
    Professional installation required
Specs / Details

Product Features

  • Suite options unique to Thermosash
  • Options integrate with all Thermosash suites
  • Can be manual or automated sliders
  • Hardened metal track hardware to take door load

Frame Size

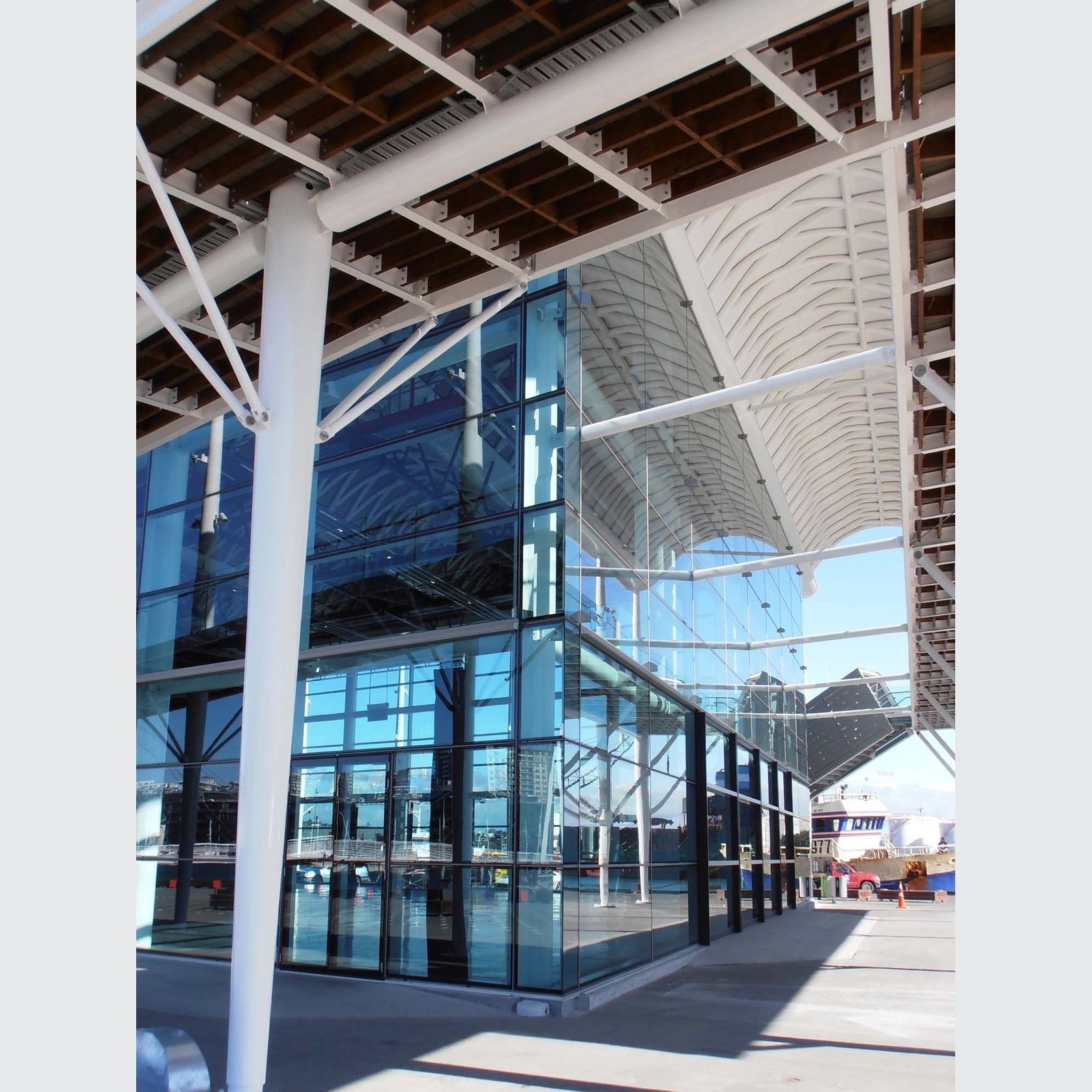

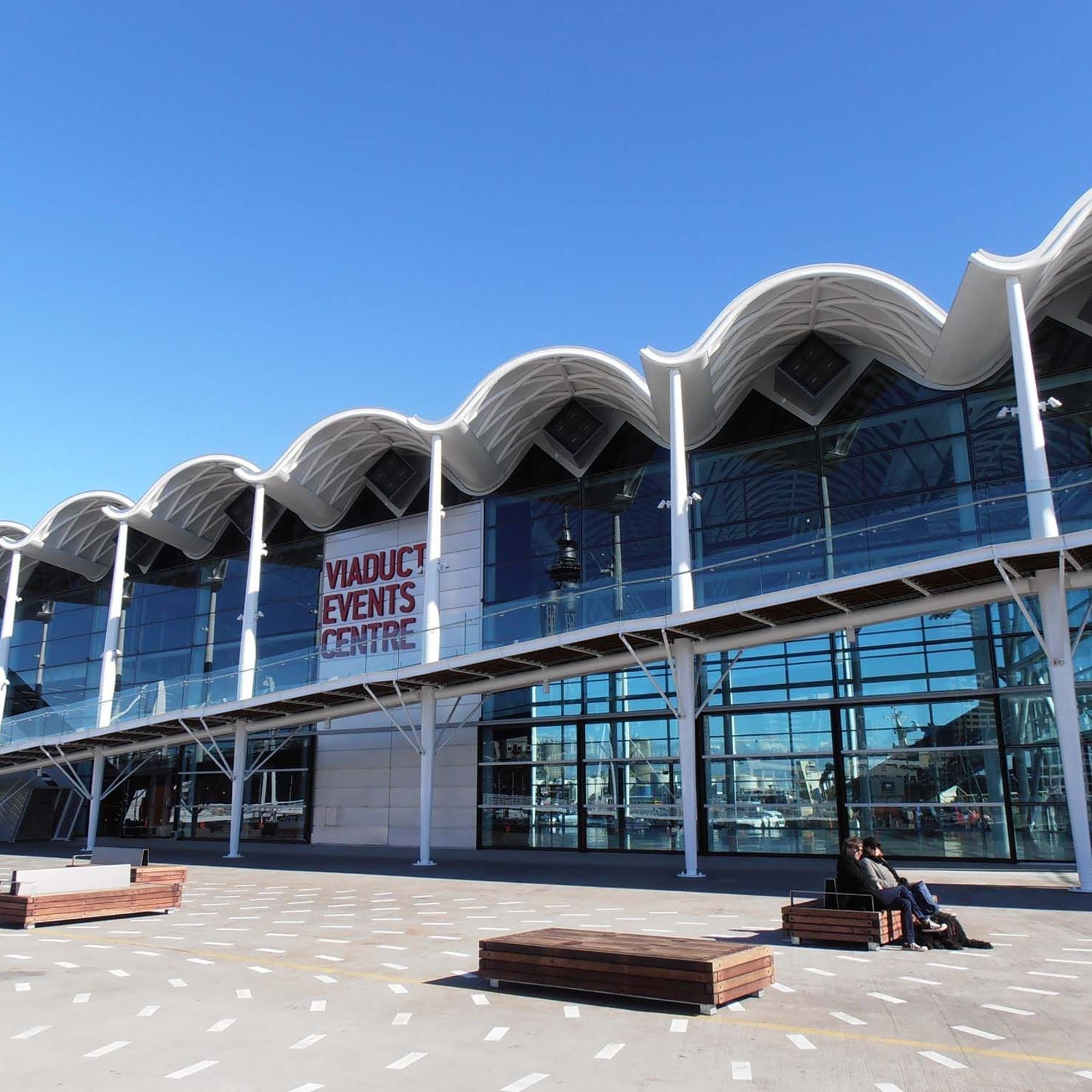

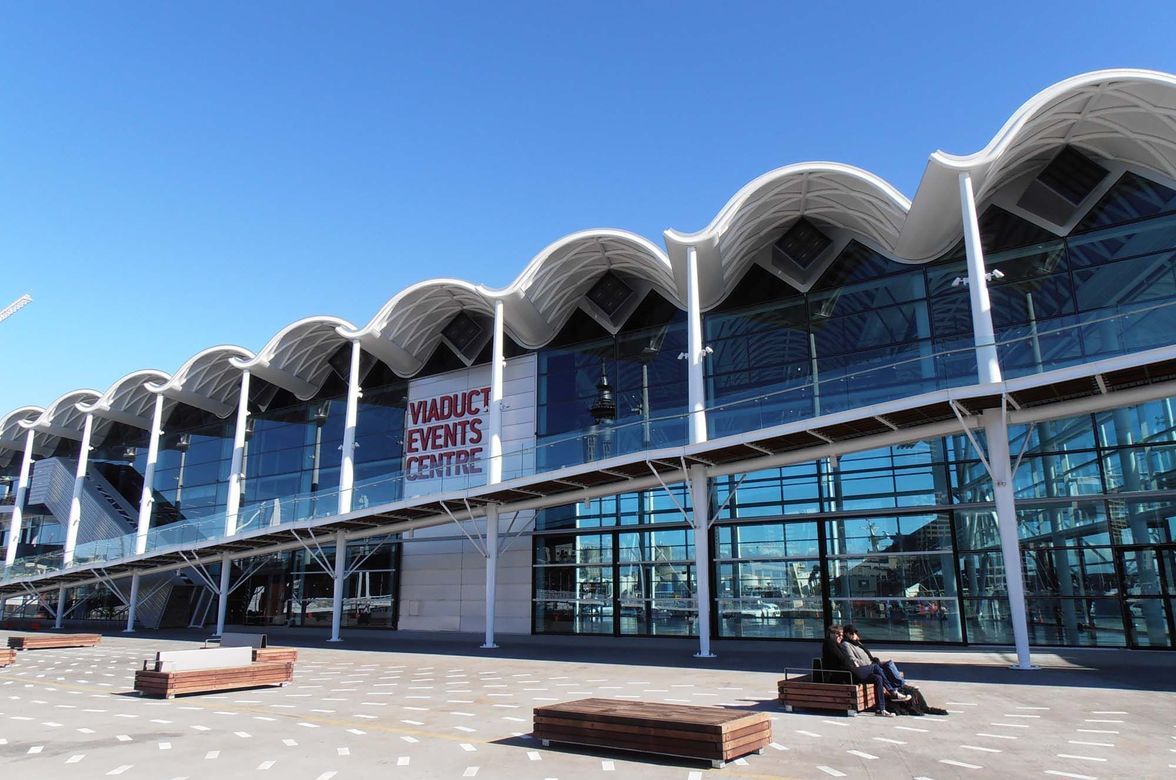

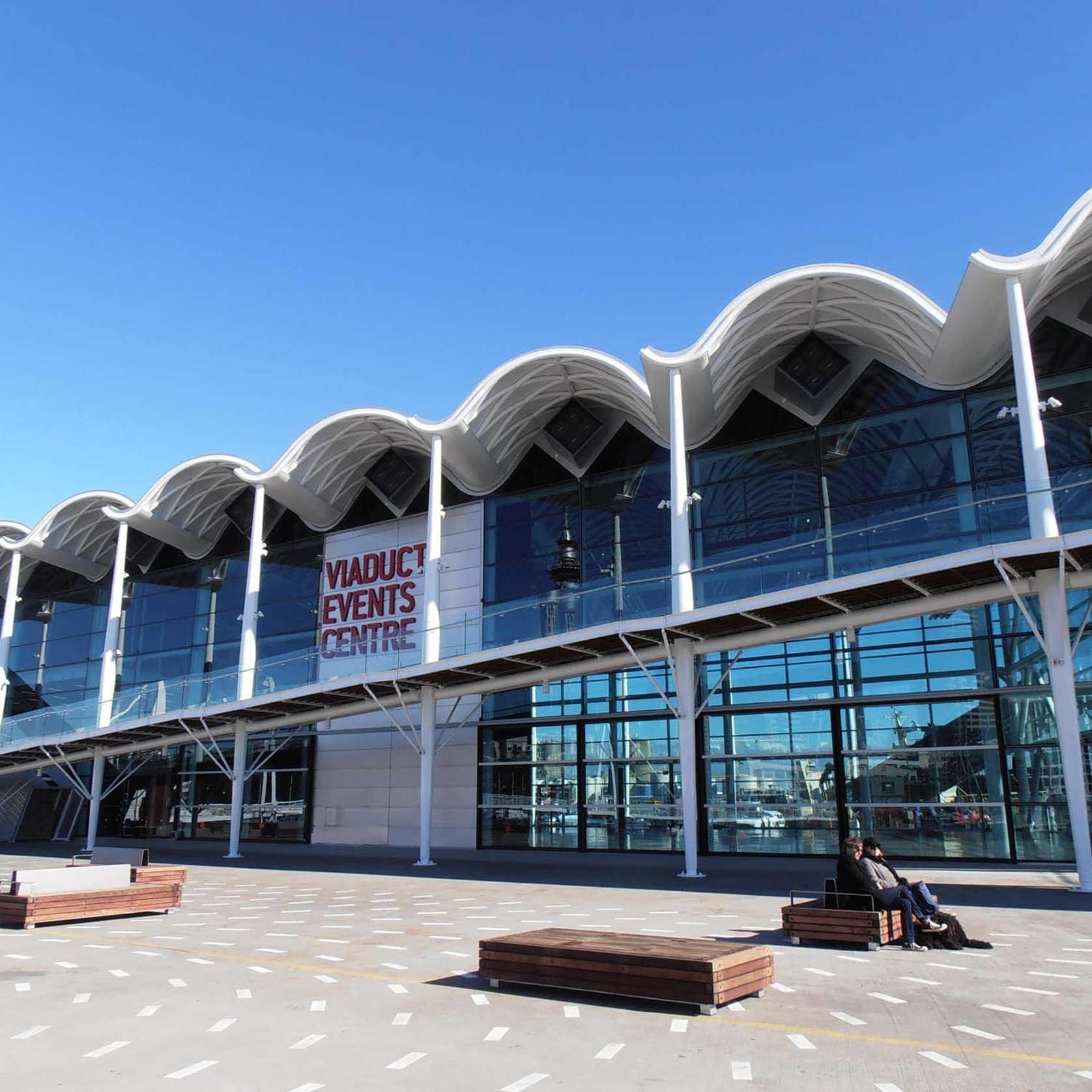

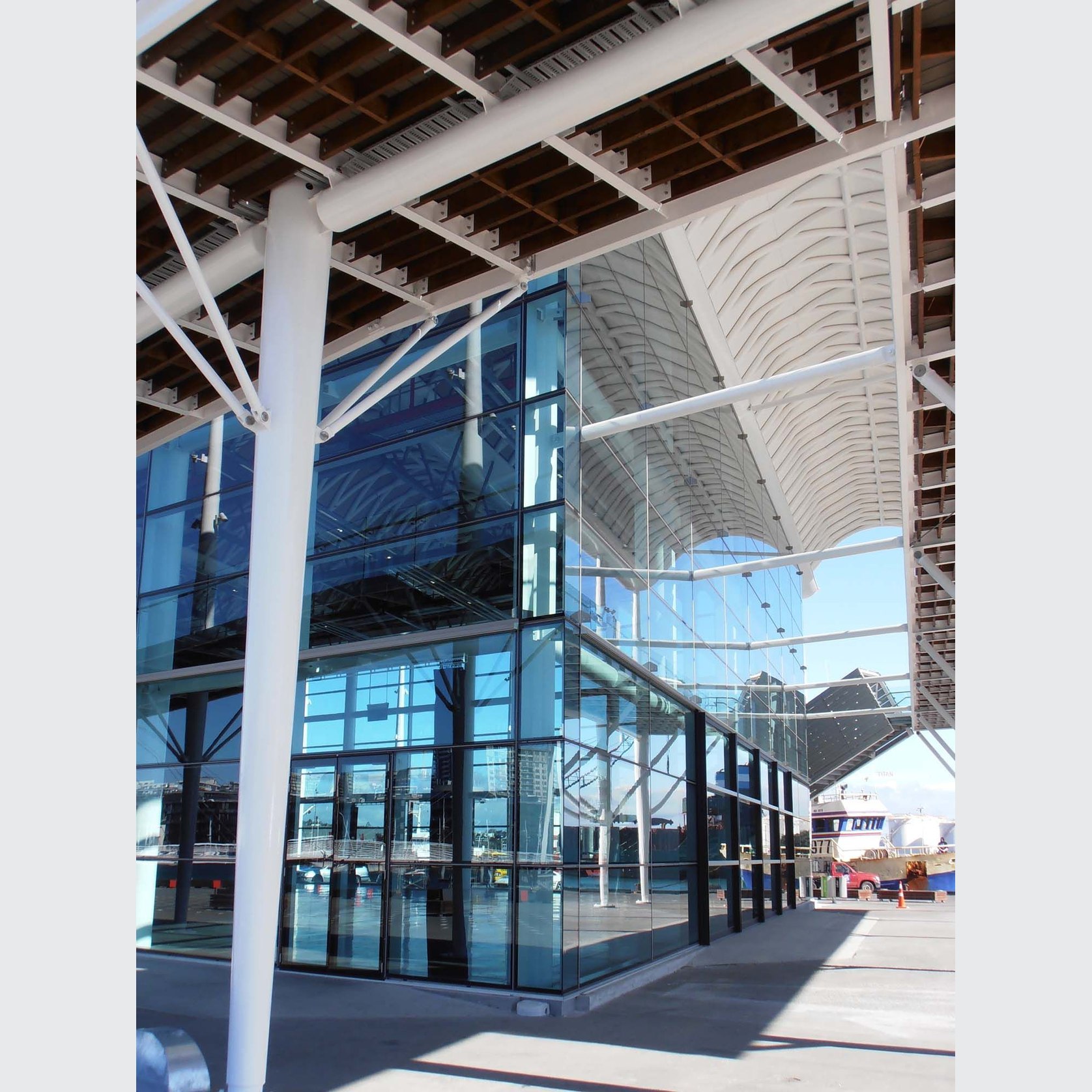

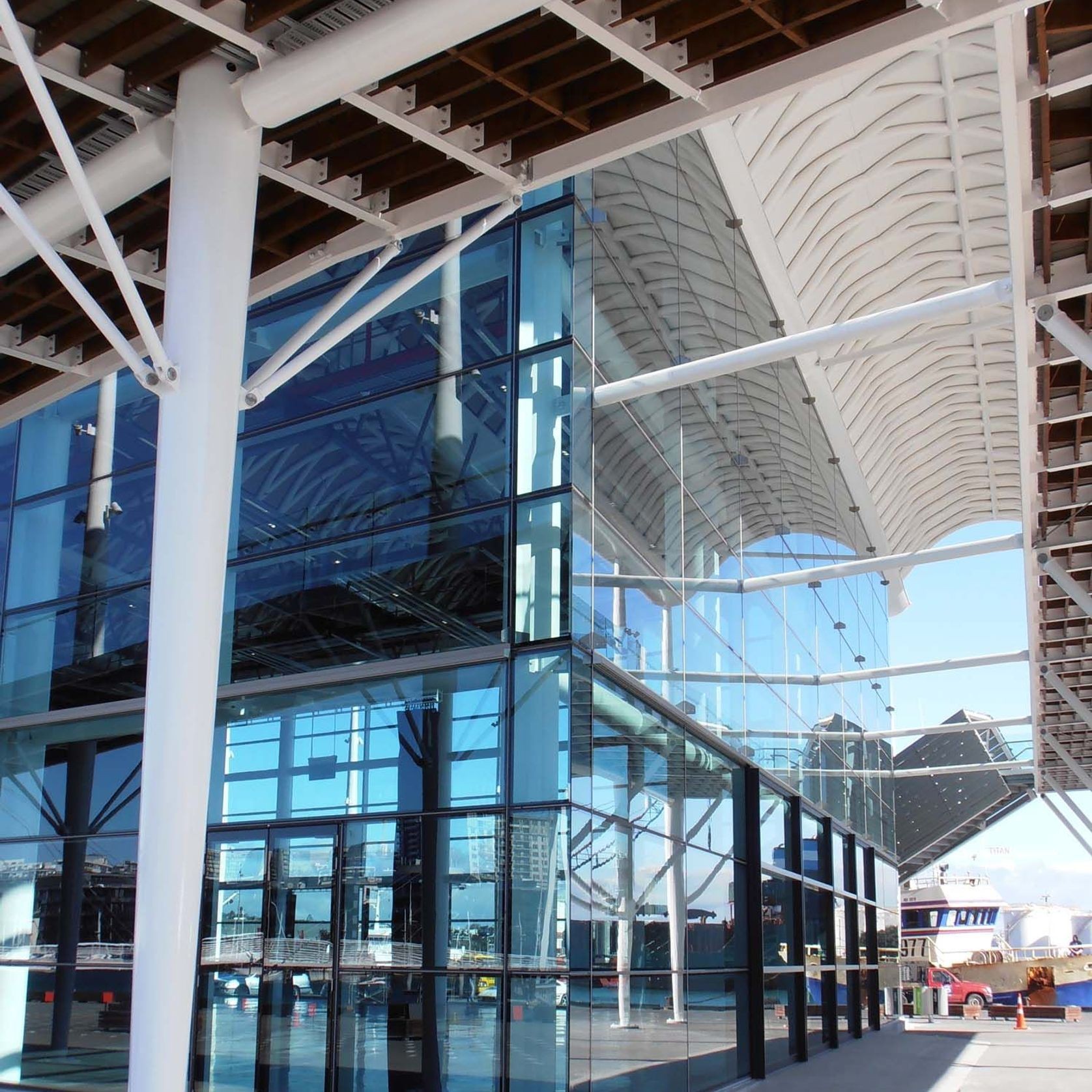

An example of one of the largest glazed sliding doors we have installed  is located at the Viaduct Events Centre in Auckland measuring 4mtrs x 4mtrs. The limitation is generally with maximum transport loads and glass weight, however larger doors can be transported CKD and assembled on site where necessary.

The stile section for the over-sized sliding doors is generally 100mm and is capable of receiving double glazed units up to 24mm. Depending on the door size and other environmental factors such as wind - stiffiners maybe required.

Specification
We recommend using Masterspec 4251TS Commercial Windows when specifying this suite.

Surface Finishing / Performance / Testing

Specification
We recommend using Masterspec 4251TS Commercial Windows when specifying this suite.

Surface Finishing
Polyester powdercoat  - Both standard and special colours available.
Anodised - All anodised colours available - commercial grade 20 micron finish recommended.
PVF2 Flourocarbon finishes - Available on request.

Performance / Testing

  • AS/NZS1170 (Structural Design Actions)
  • NZS4211 (Performance of Windows)
  • NZS4223 (Glazing in Buildings)
  • NZS/AS4284:2008 (Water / Air Pressure/ Air Leakage - Meets and exceeds minimum requirements)
Maximum Spanning Ability

Thermosash specifically engineers the best suite option for your project taking into consideration span, structural system, and environmental loads (e.g. wind). The spanning ability will vary depending on the above.

Thermosash Suites are recognized as having the largest spanning systems on the market due to our specific engineering capability and the customised nature of the work we complete.
