Aluminium

Section Sizes

Mechanical Air Louvre range:

  • MAL-40S : Single-bank - 40mm section sizes
  • MAL-100S : Single bank - 100mm section sizes
  • MAL-100D: Double bank - 100mm section sizes.
  • MAL-156T: Triple bank - 156mm section sizes.

Performance / Testing

  • BS EN 13030:2001

Maximum Spanning Ability

The spanning ability will vary depending on span required, structural system, and environmental loads (e.g. wind). Thermosash specifically engineers the best design options for your project.

Variation to basic design

  • Extended sill
  • Insulated backpan for plenum attachment
  • Hinged frame
  • Front and rear security bars
  • Filter racks
  • A variety of vermin / bird / insect screens to all louvre types

Integrated Elements

Thermosash Mechanical Air Louvres integrate into the Thermosash range of curtainwall and Commercial window and doors systems.

Low-Carbon Aluminium

Thermosash partners with a local NZ-owned extruder achieving a lower carbon footprint than the global average - offering reduced upfront carbon emissions. (find out more about our Sustainable Aluminium).

Aluminium is 100% recyclable and all aluminium from refurbished sites and from our manufacturing process is environmentally managed back to our key suppliers and processed back into raw billet form.

Details
  • Category
    Mechanical Ventilation Systems
General
  • Type of use
    Commercial
  • Installation
    Professional installation required
Specifications

Due to the potential unique and high performance design requirements, a bespoke specification will be created by a mechanical or facade engineer consultant.

When integrated with Thermosash suites and referencing the inclusion we recommend using Masterpec 4211TS Curtainwalls and 4521TS Commercial Windows.

Please call us to discuss your project early in conceptual development.

NB: Specify Double or triple bank - when a greater degree of weathering proofing is required.

Scope of use

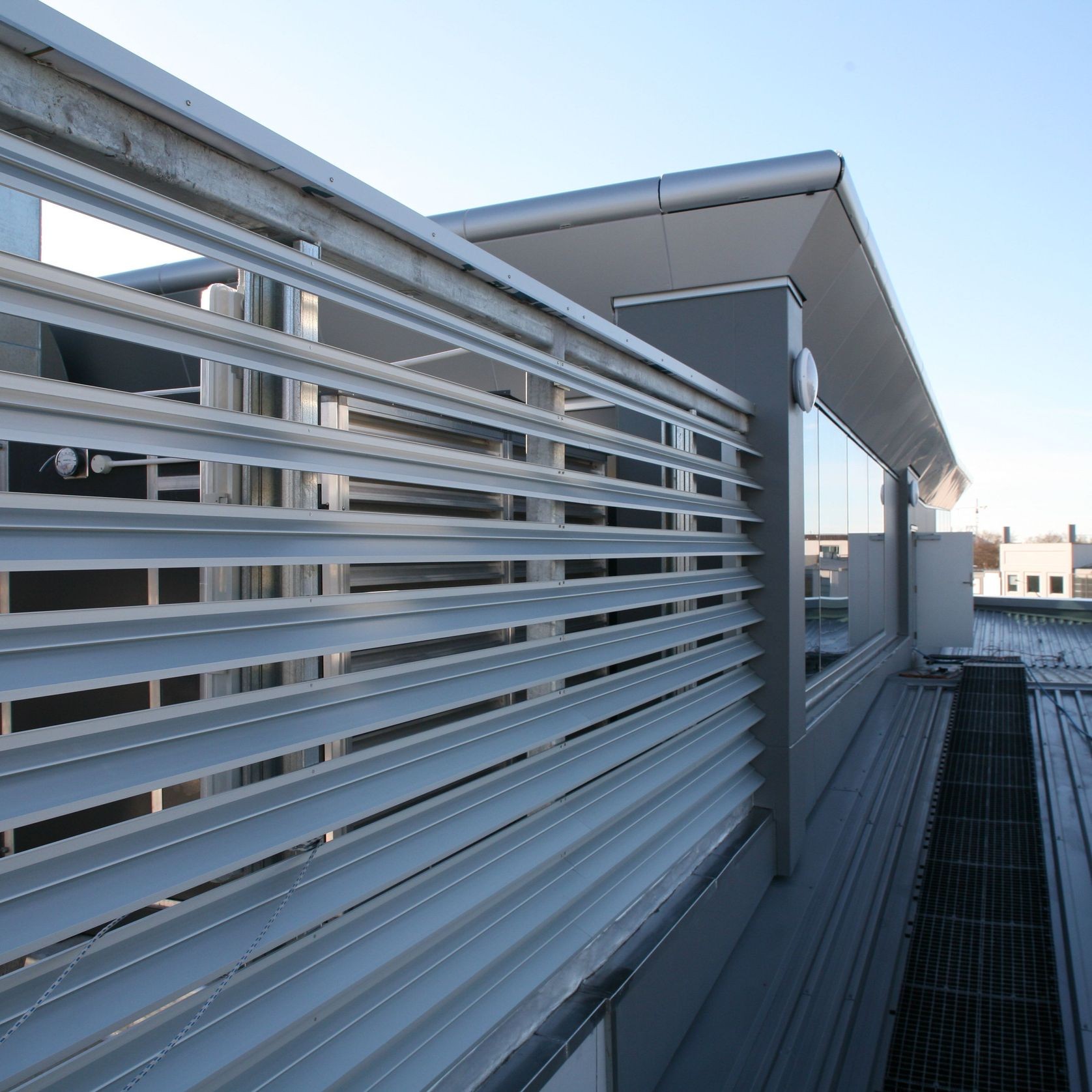

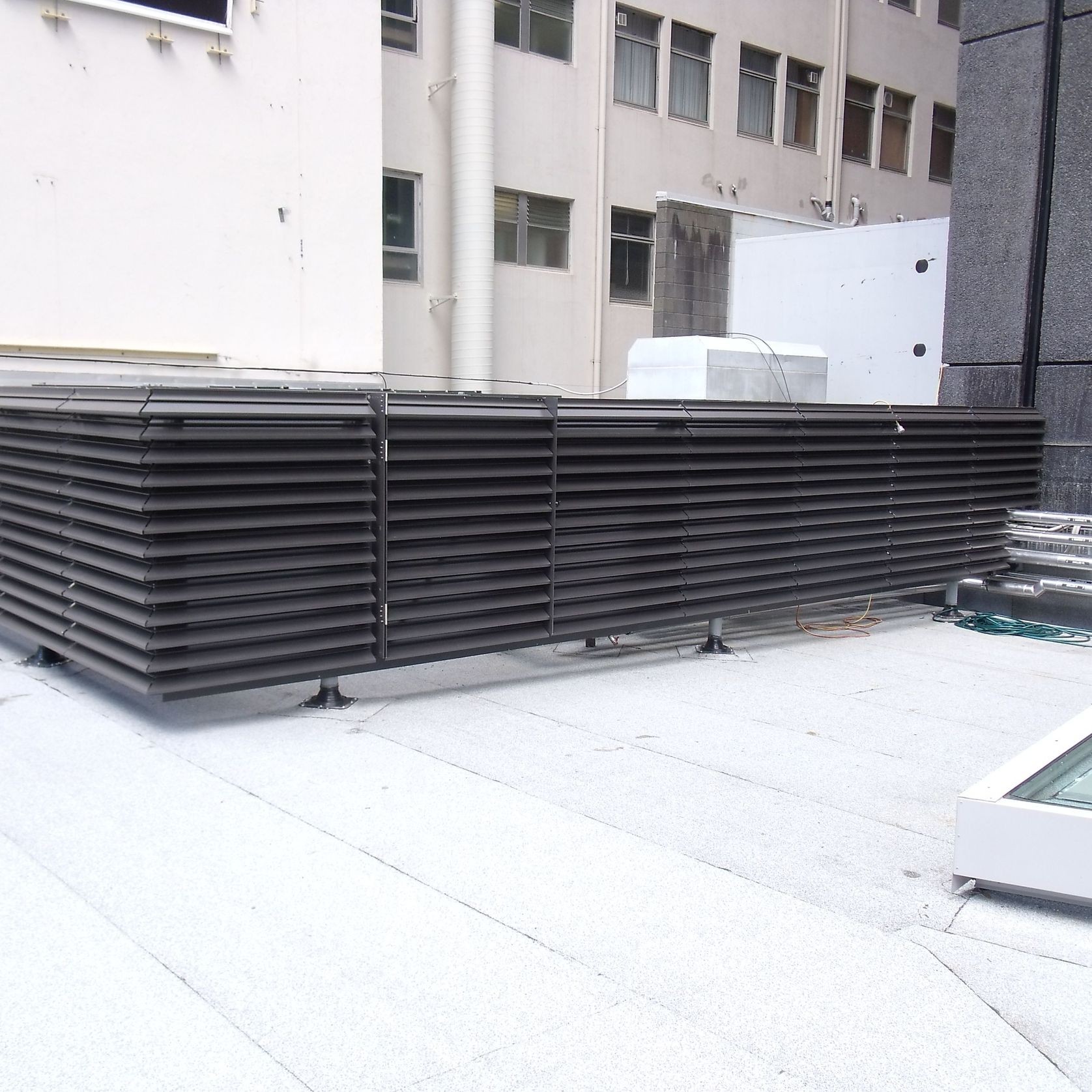

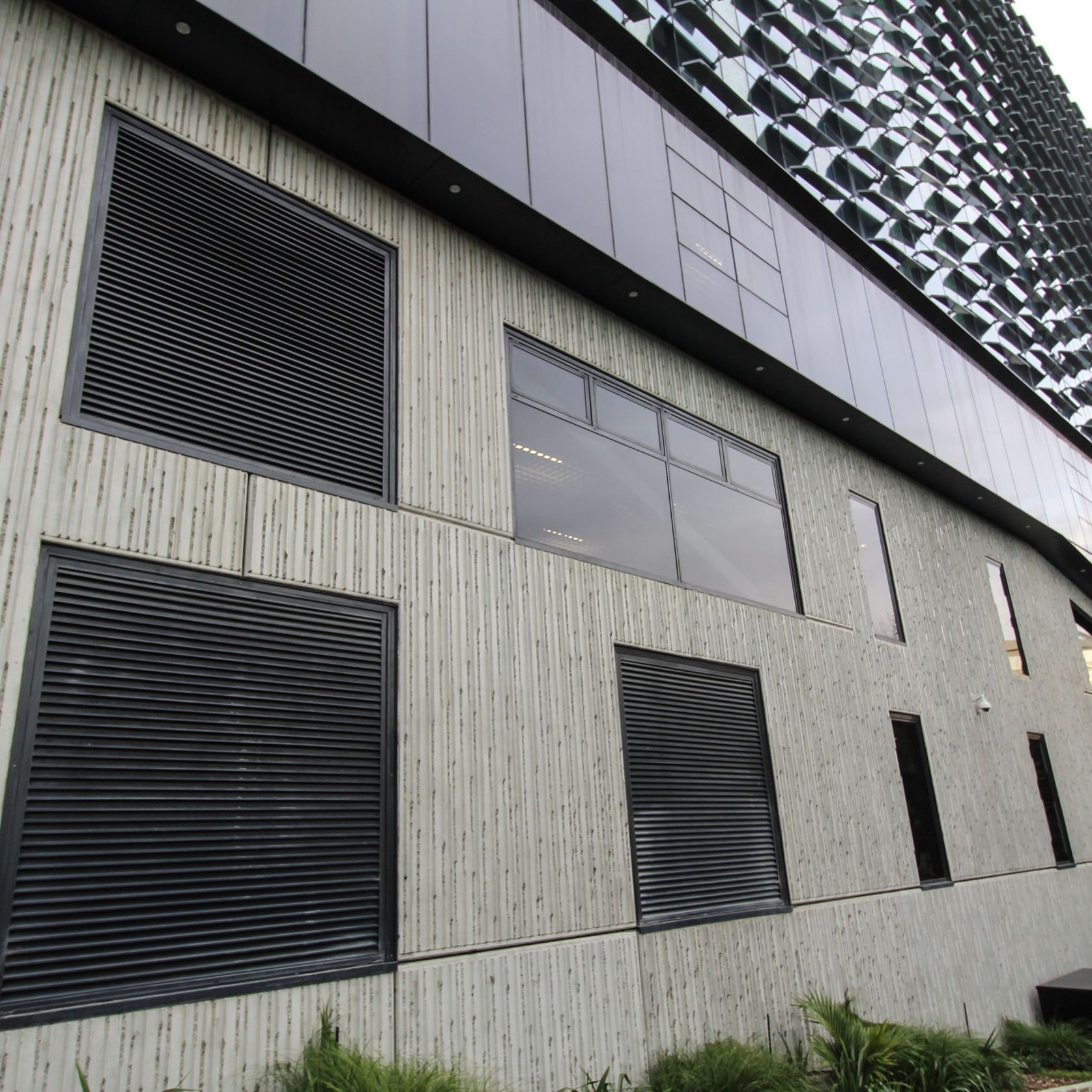

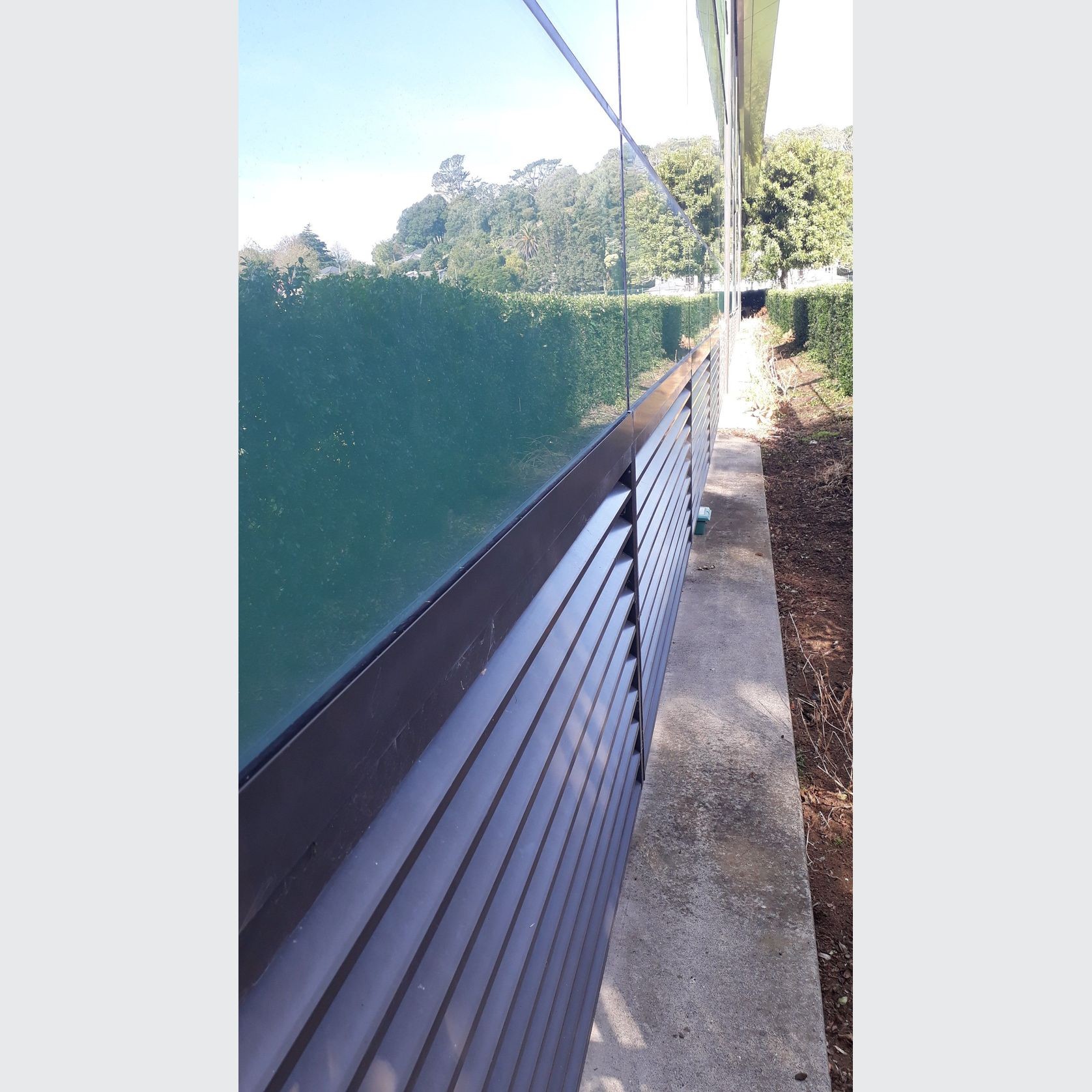

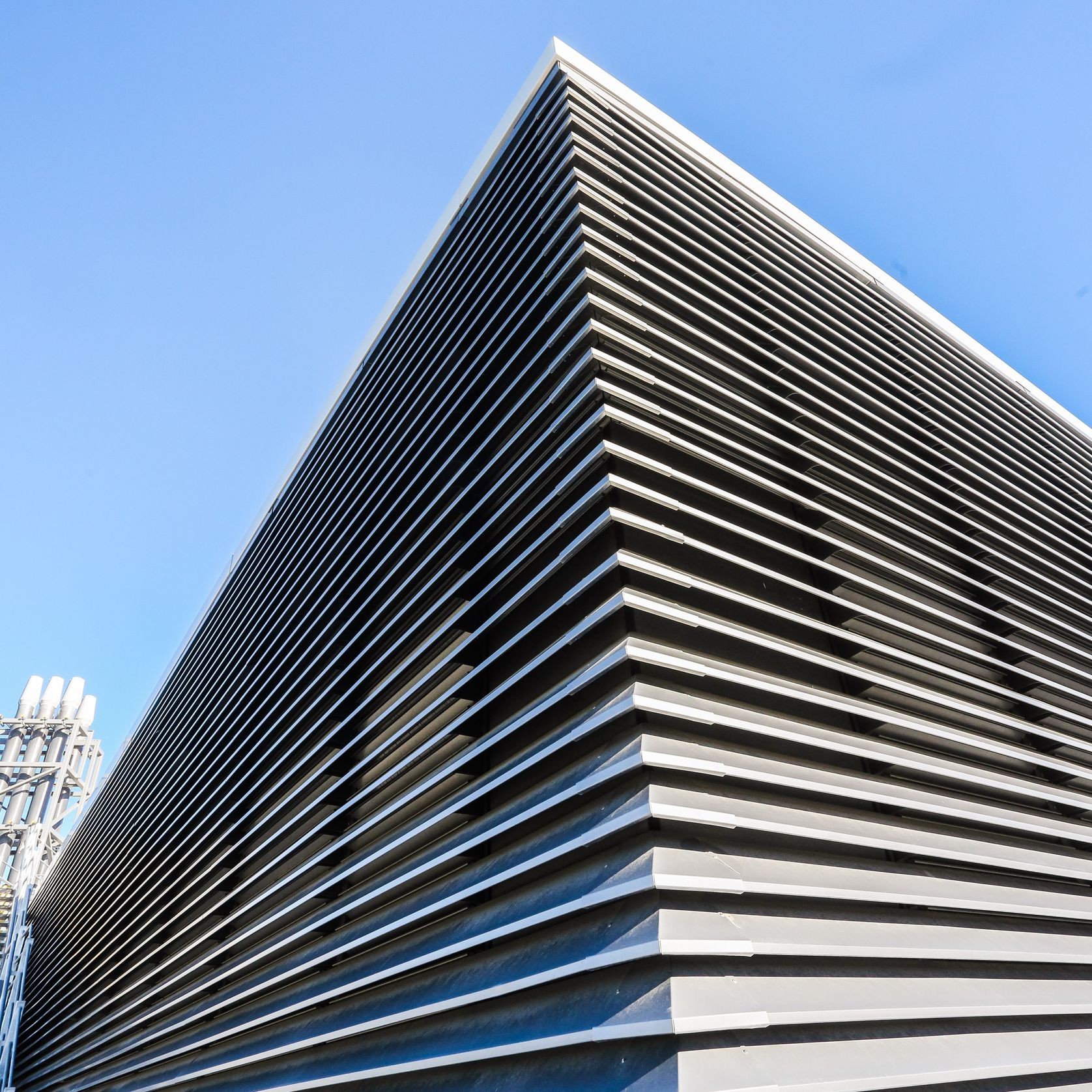

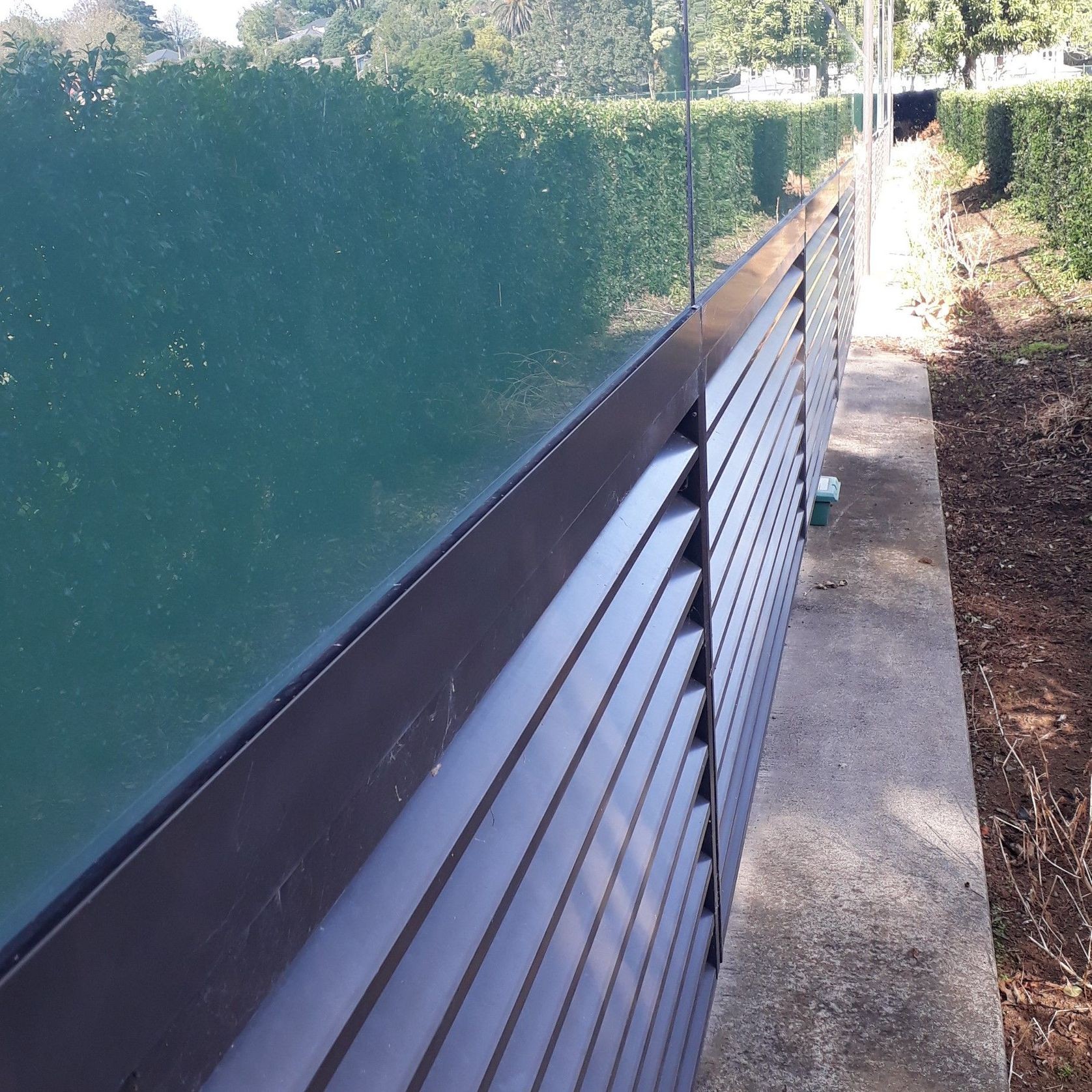

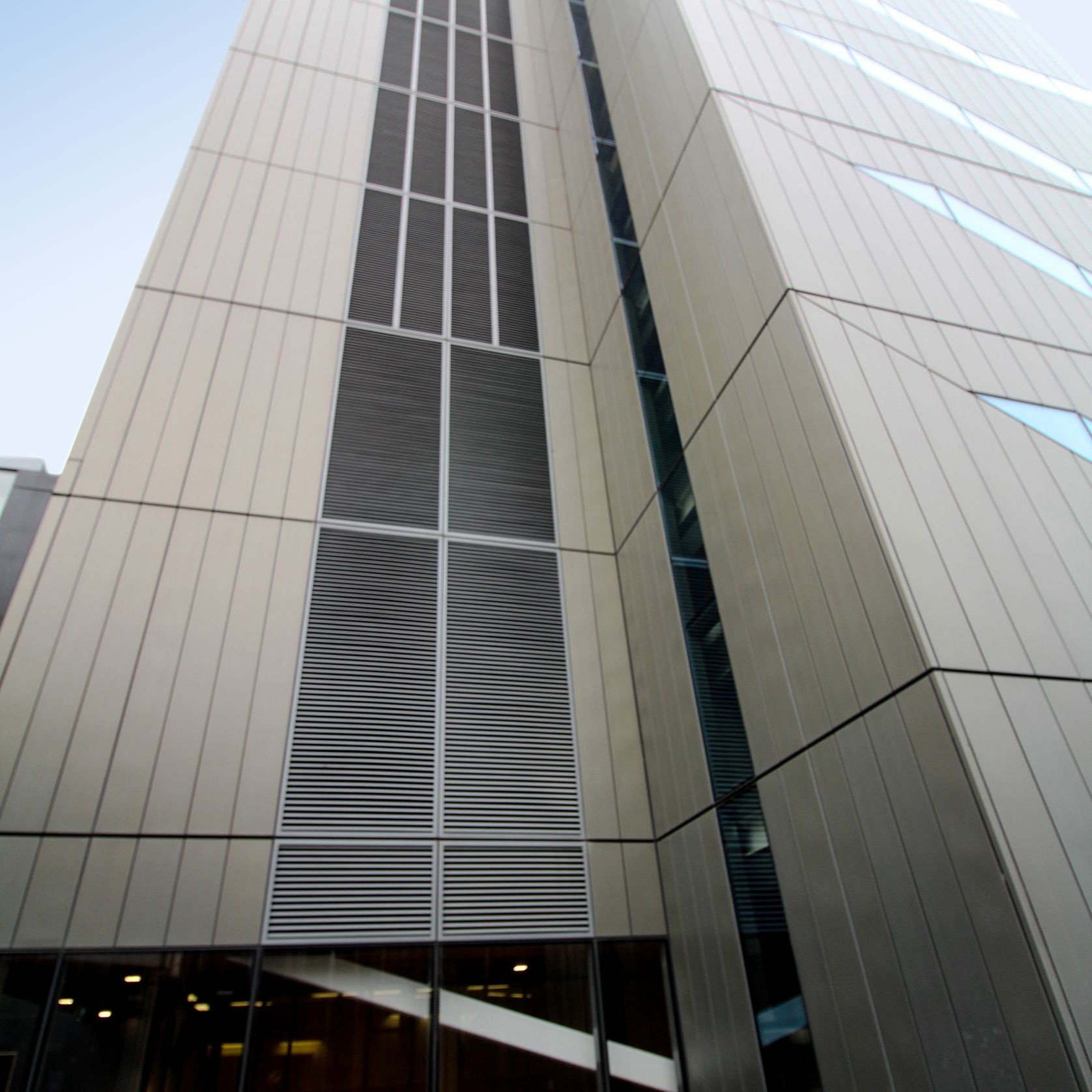

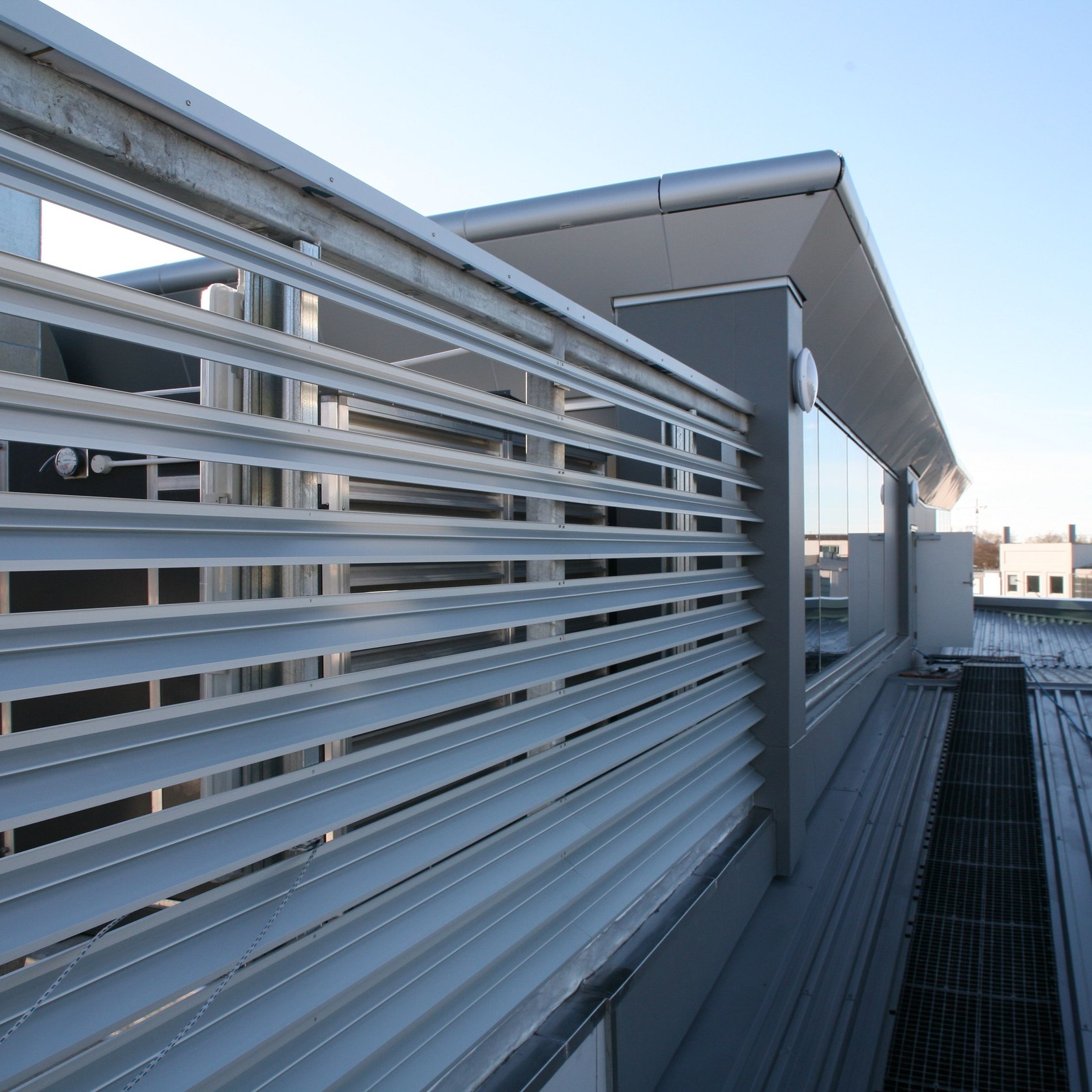

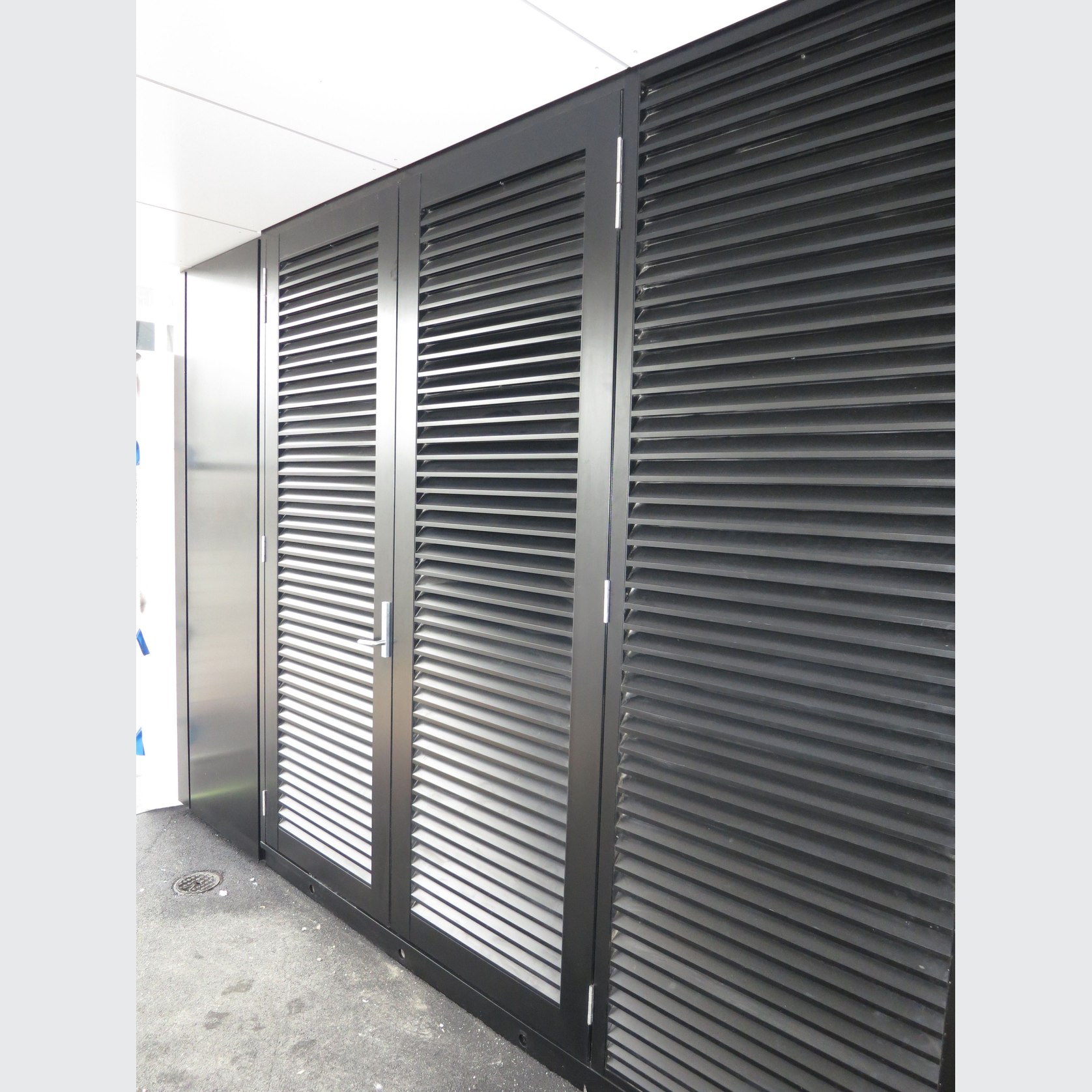

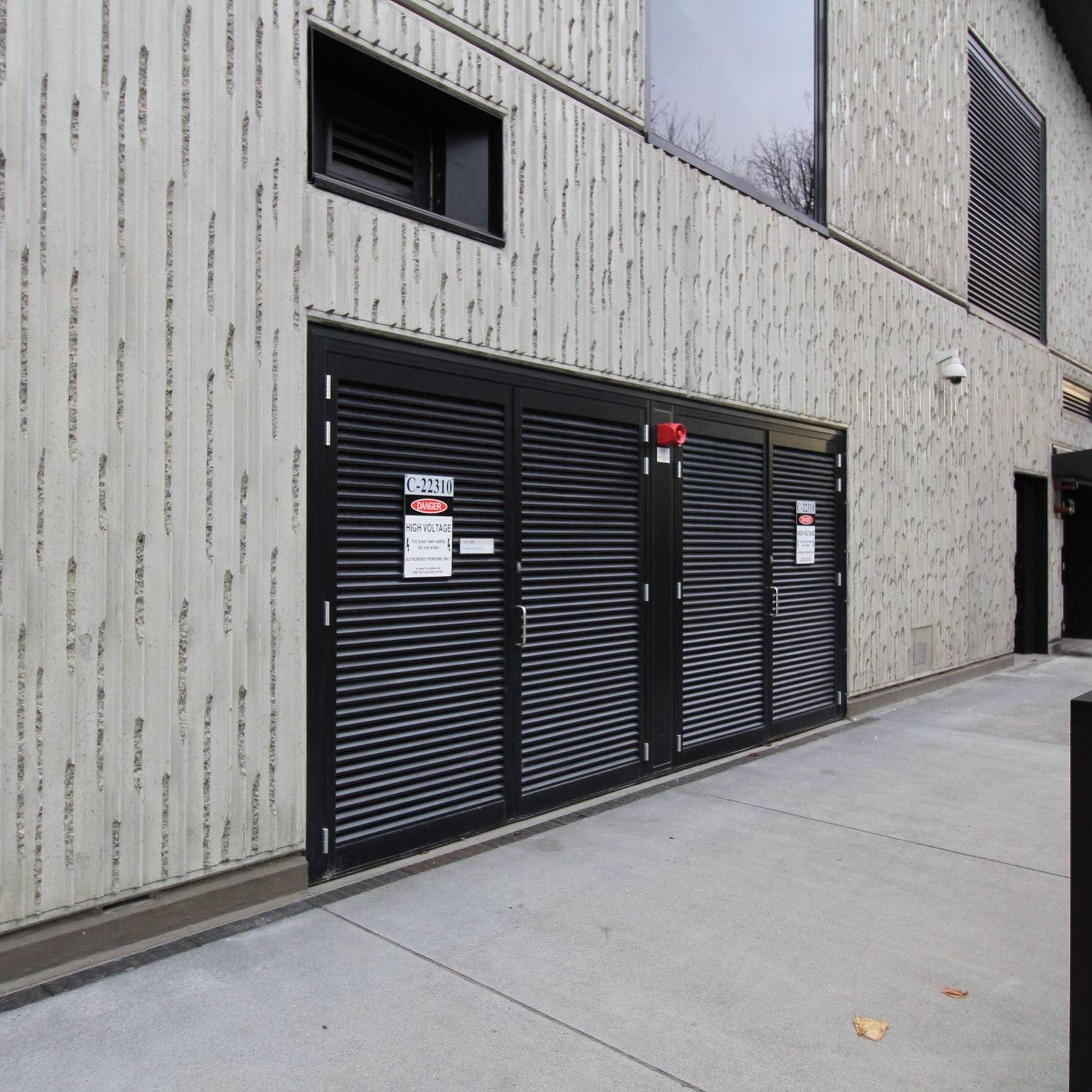

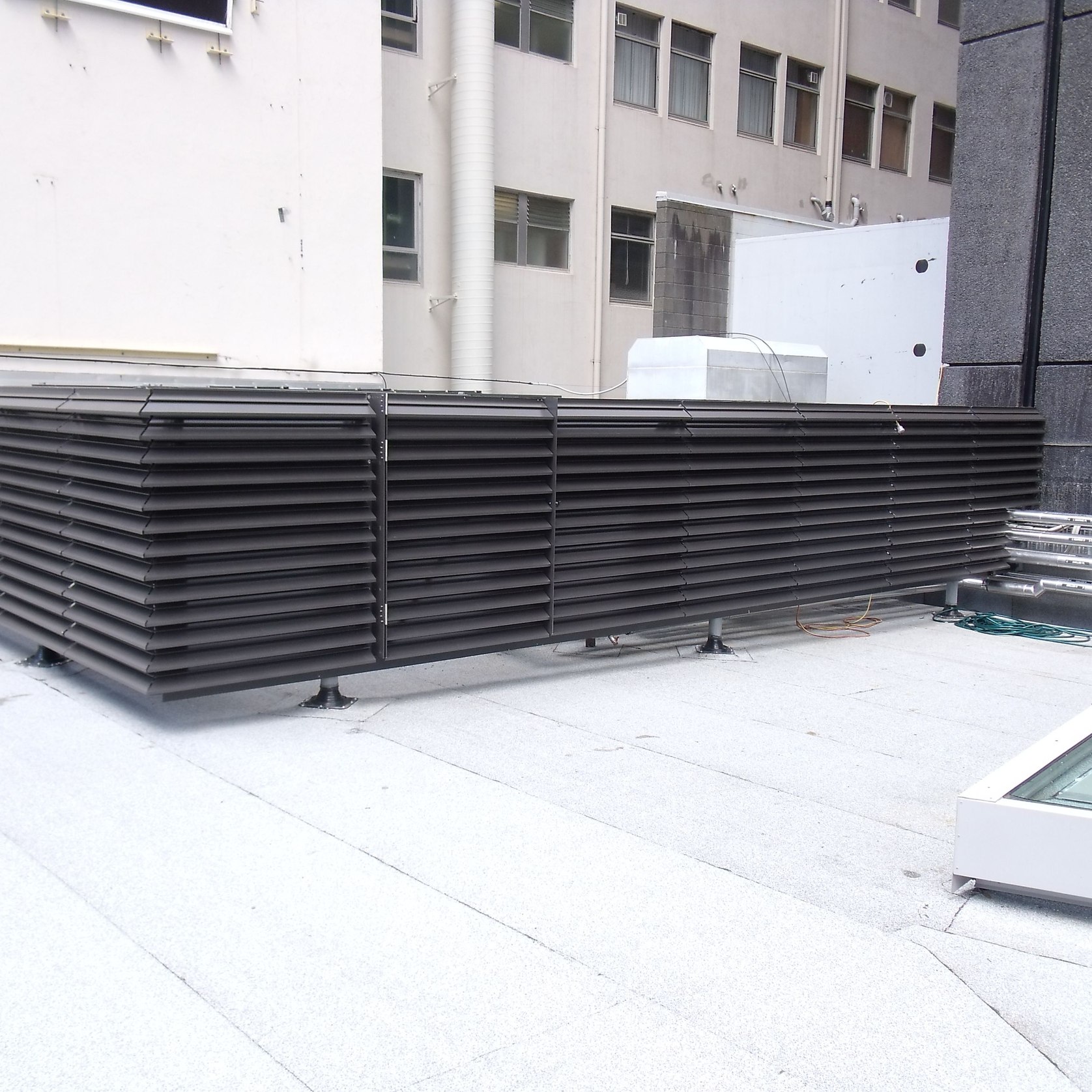

These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening.

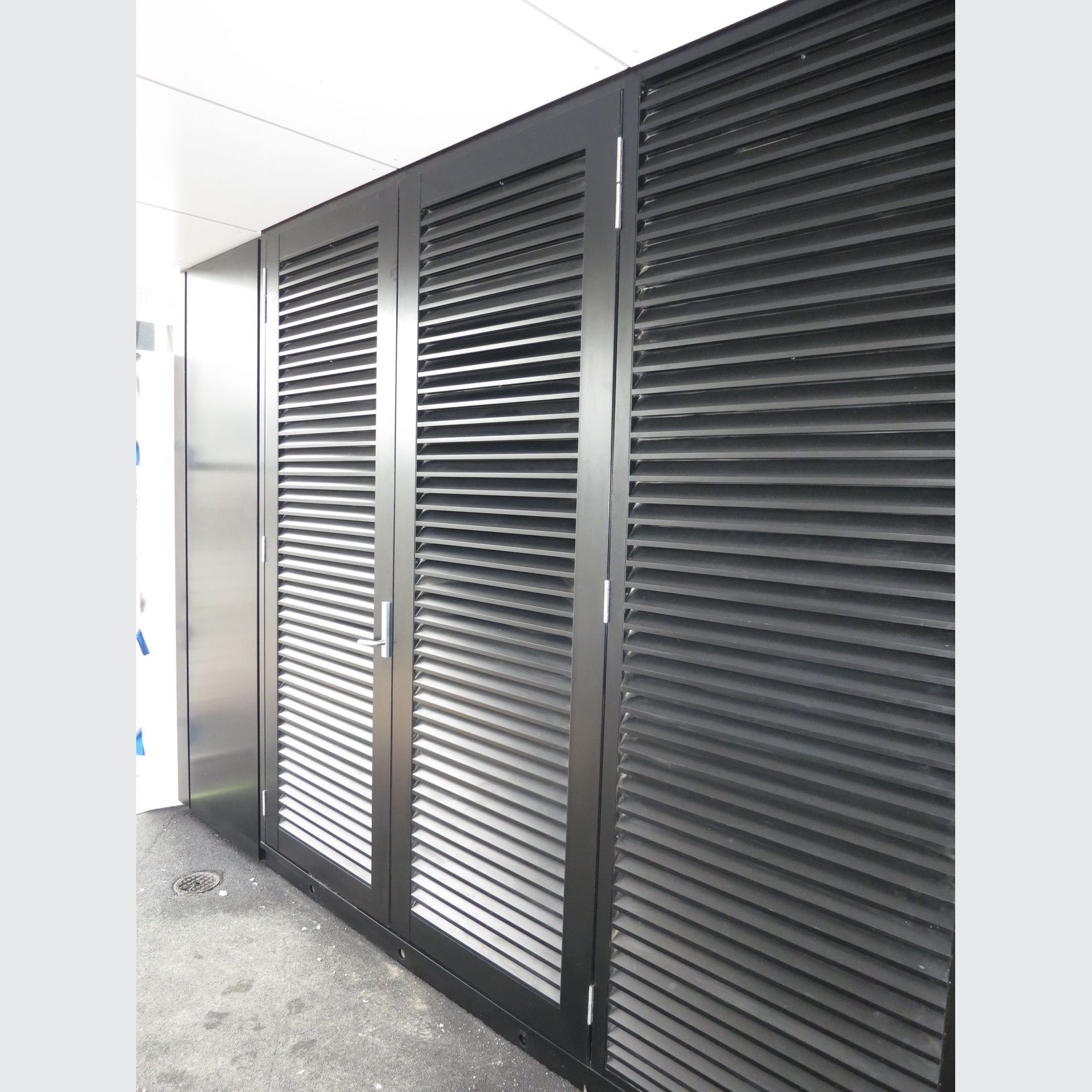

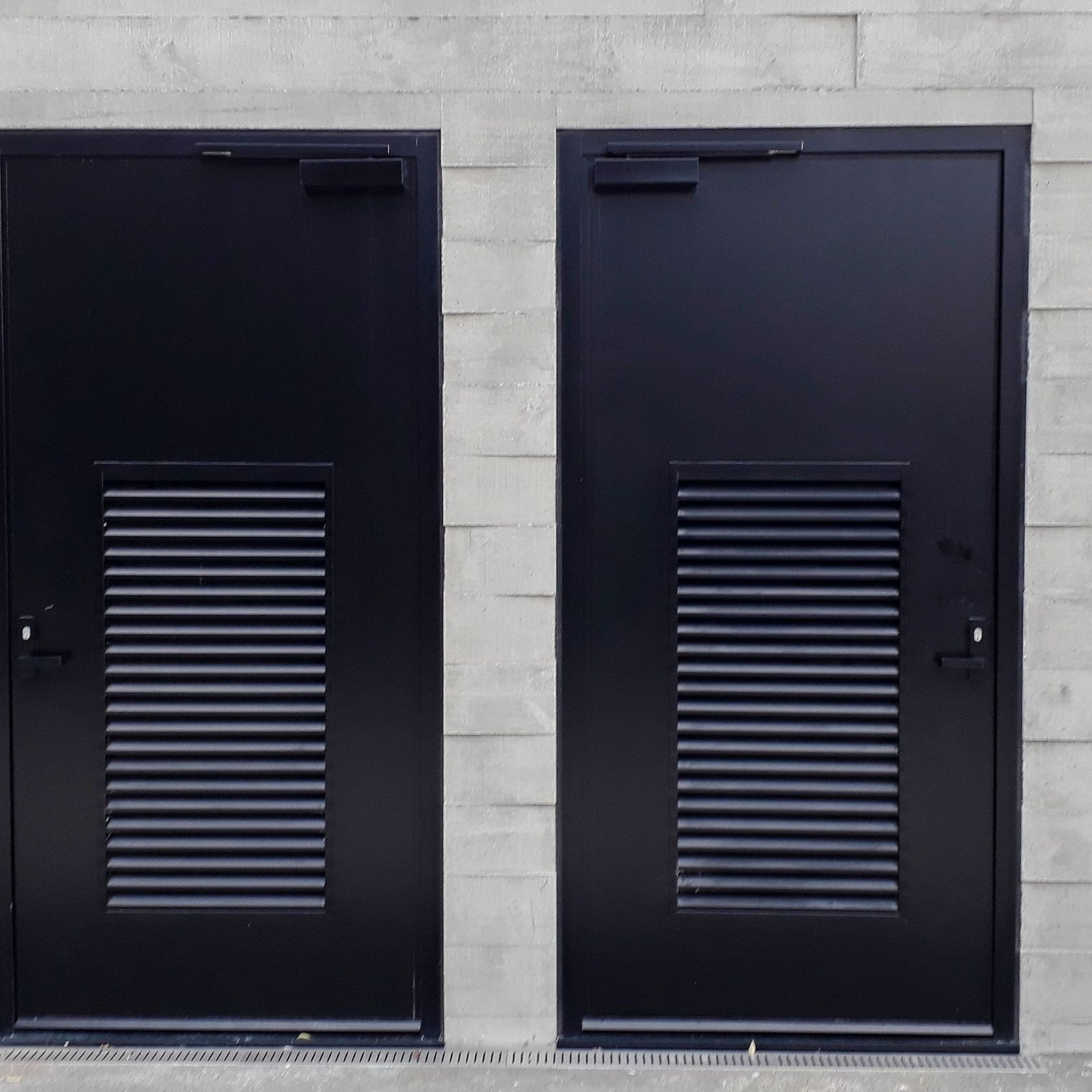

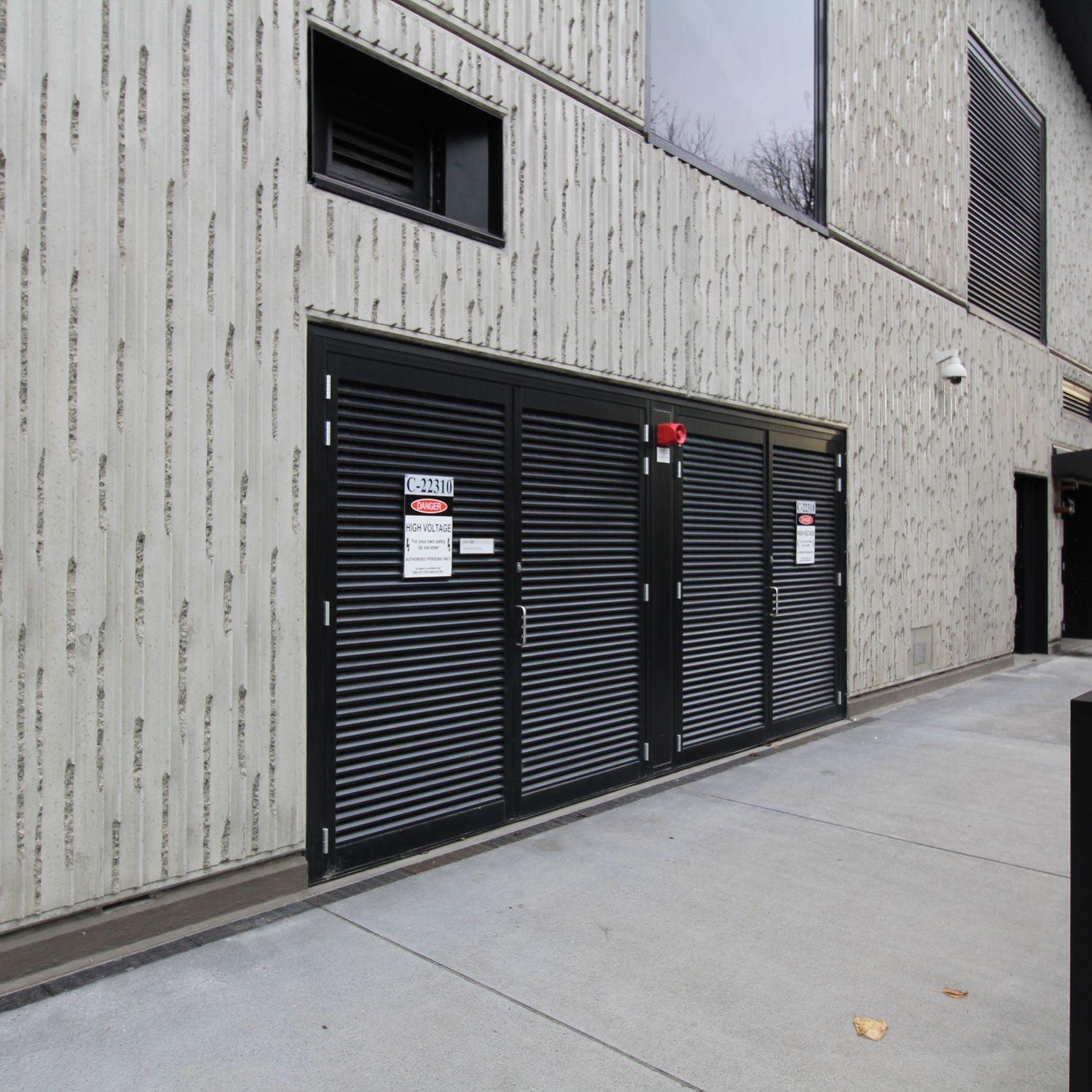

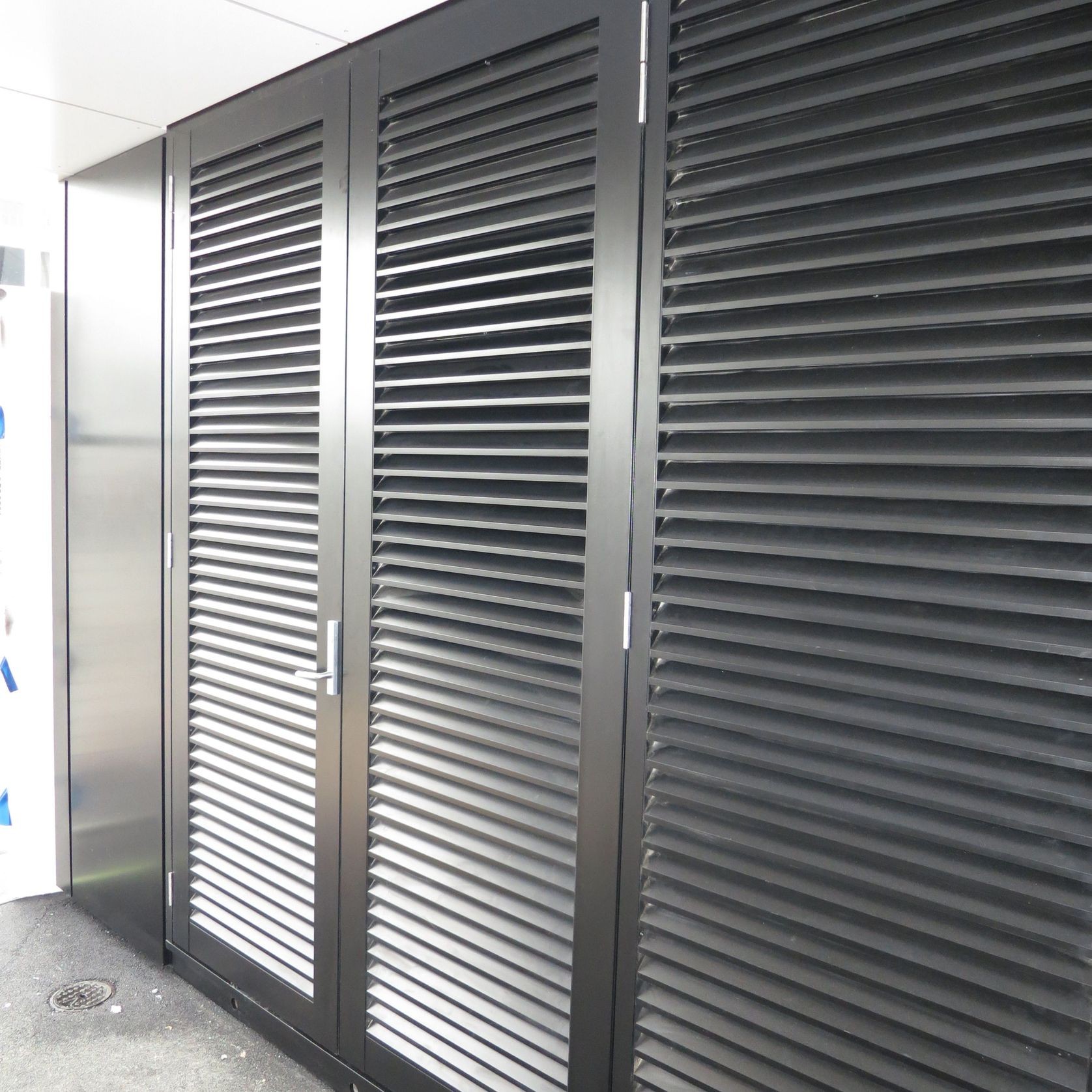

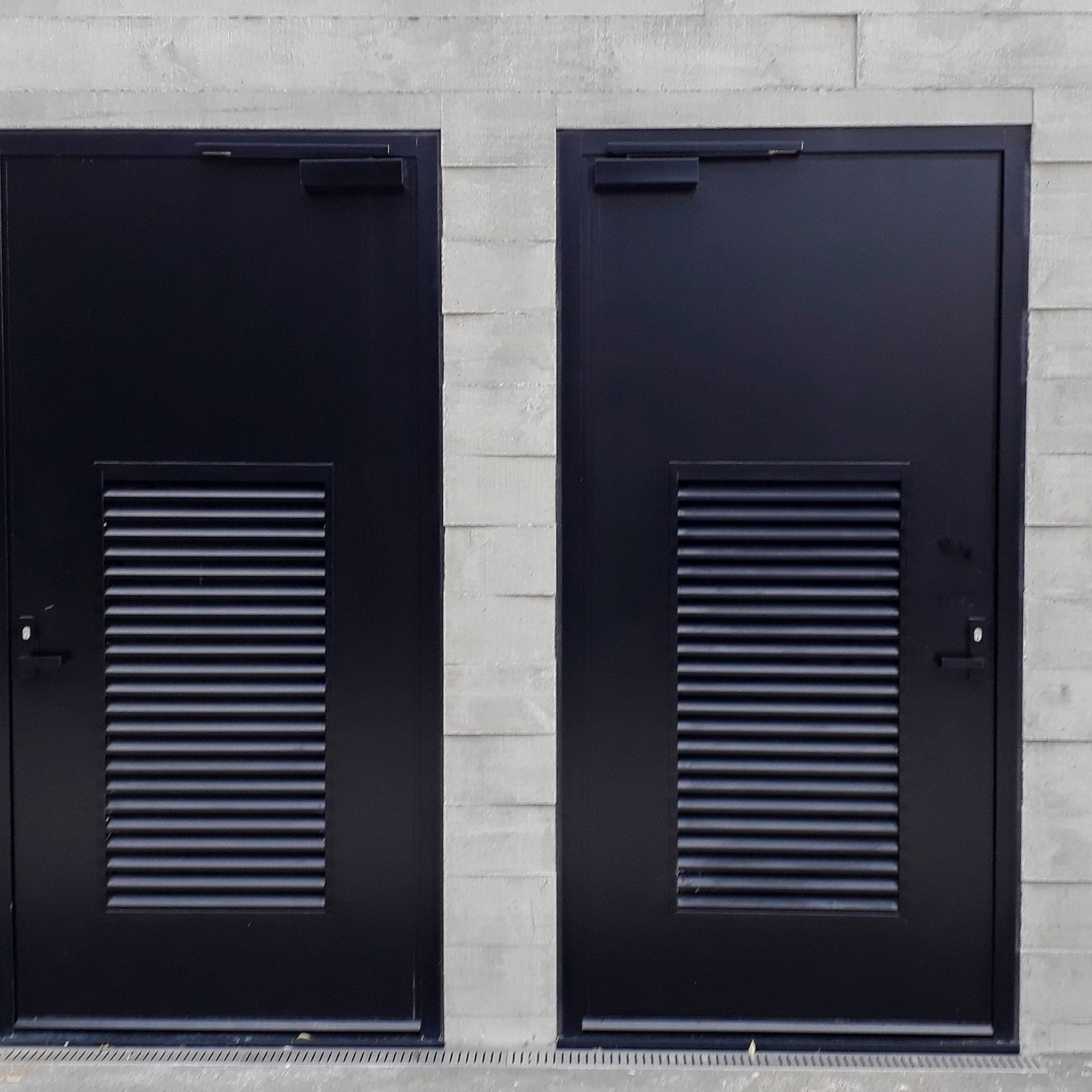

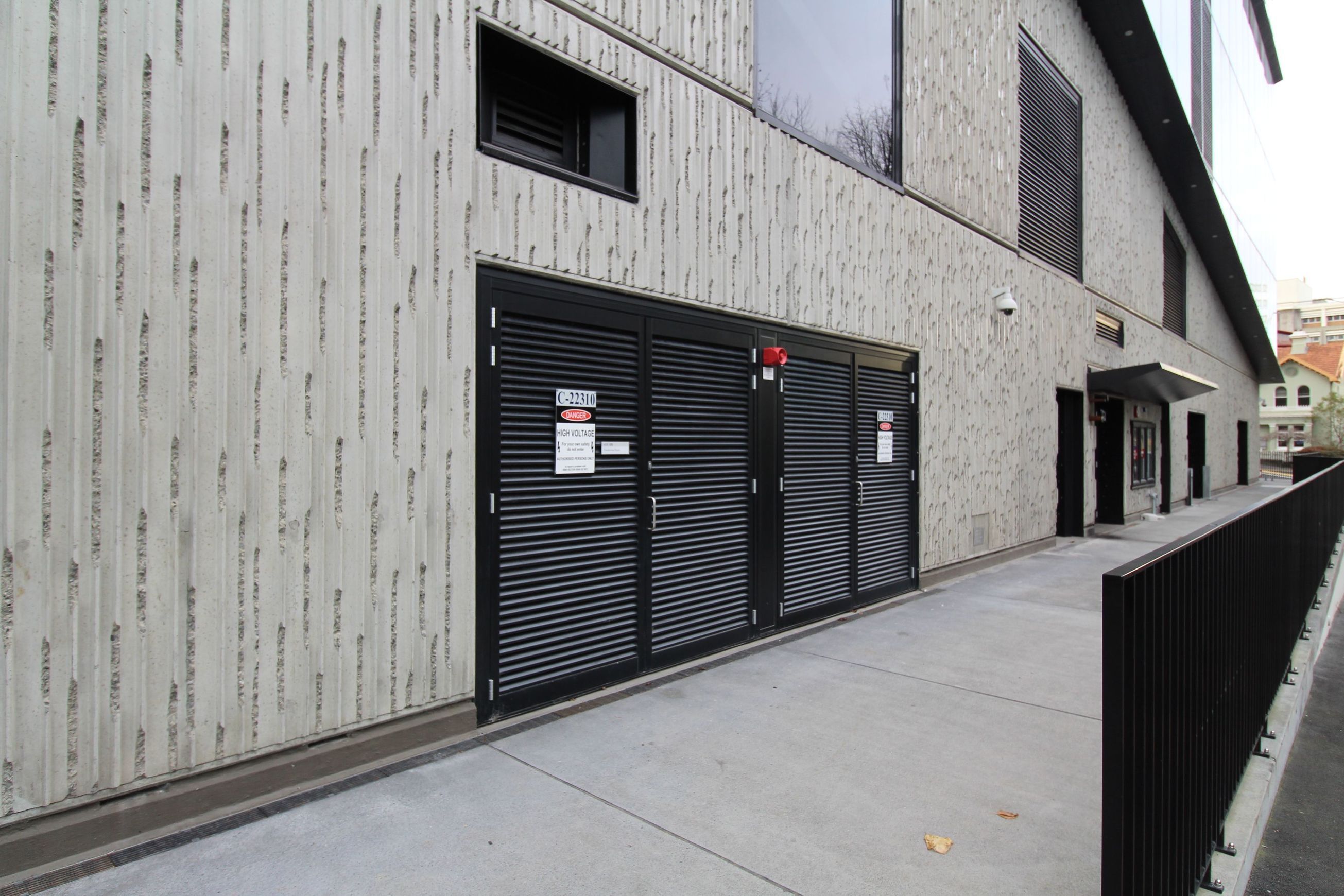

40mm Single Bank - integrated into doors. Single banks are not waterproof, and when outdoors, will not offer a dry environment within the clad space.

100mm Single Bank - These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening. Single banks are not waterproof and will not offer a dry environment within the clad space.

100mm Double Bank - These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening. Double banks will offer a greater degree of weather proofing than single banks.

156mm Triple Bank - These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening. A Triple bank will offer a greater degree of weather proofing than single bank.

Features
  • Performance Classification BS EN 13030:2001
  • High performance frame system with drainable frame, collects and removes water

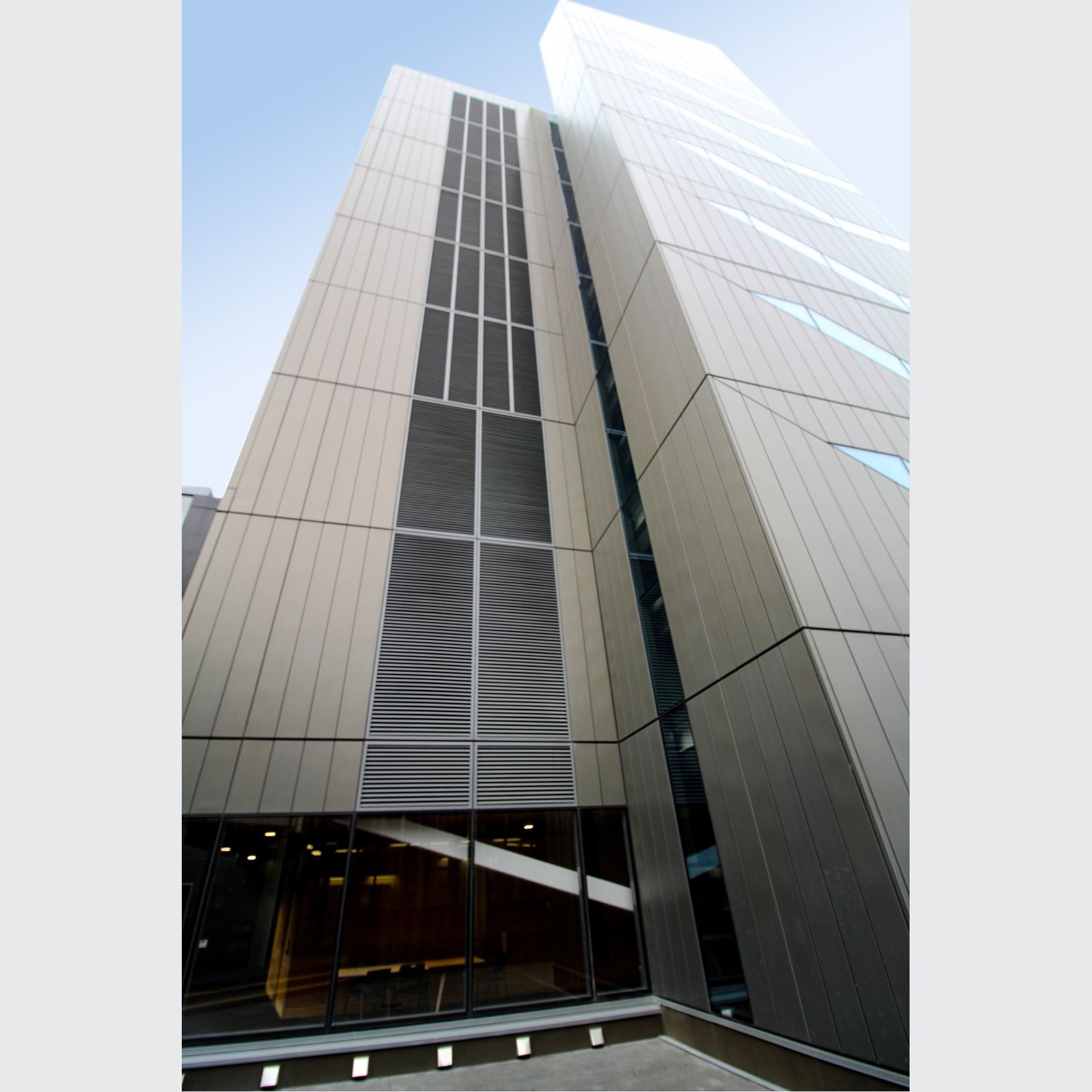

  • Architecturally styled hidden mullions allowing continuous line appearance, span varies based on site wind load and blade selection.
  • Aluminium powdercoated / anodised construction for low maintenance and high corrosion resistance
  • Seamless integration with Thermosash systems
Warranty

10 years from the date of practical completion.
Min 5 years for design, engineering, quality of materials, fabrication, installation and performance.
Warranty is provided in the form of a site-specific producer statement (PS3 Construction).

Warranty commences from the date of practical completion of the contract works.
All warranties are subject to service and maintenance requirements.

Maintenance

A full maintenance manual is provided on completion of a project for all the elements integrated within a project.

Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.
