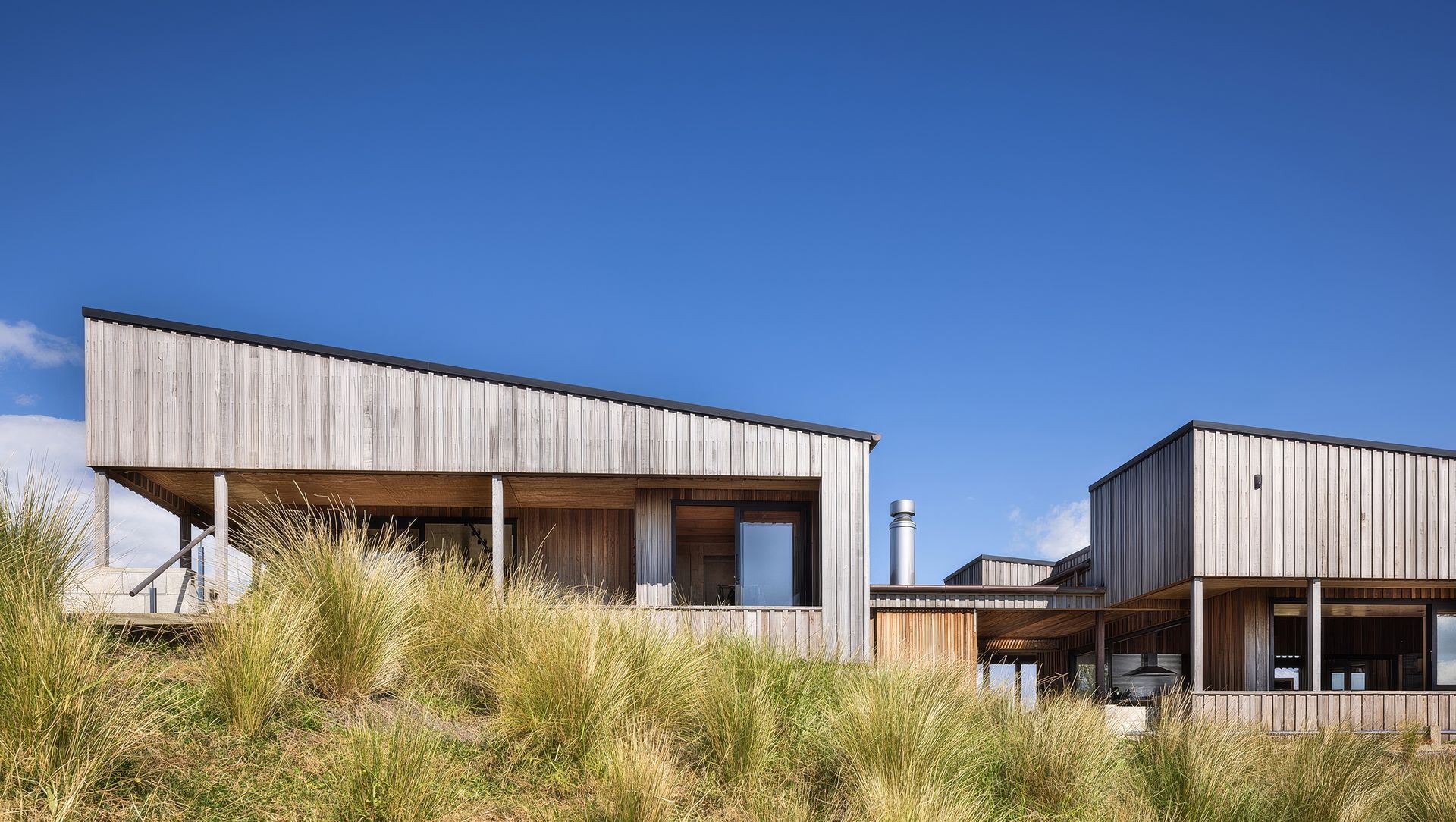

Ridge Retreat banner
Project by
Year of completion
2023
Building style
Contemporary

The clients wished to create an island retreat that would allow them to enjoy the amenities of water and land the coastal site offered. The house would be occupied by immediate and extended family, friends, and caregivers for a dependent young family member.

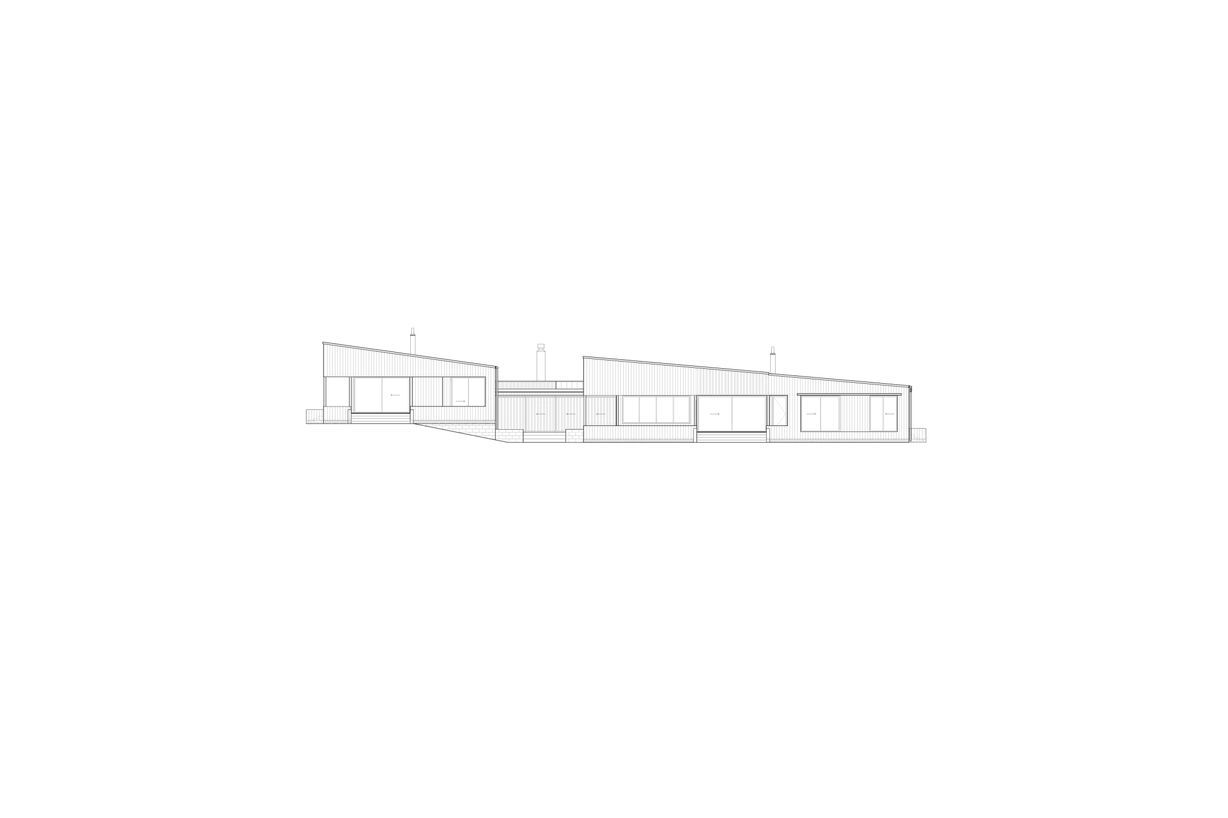

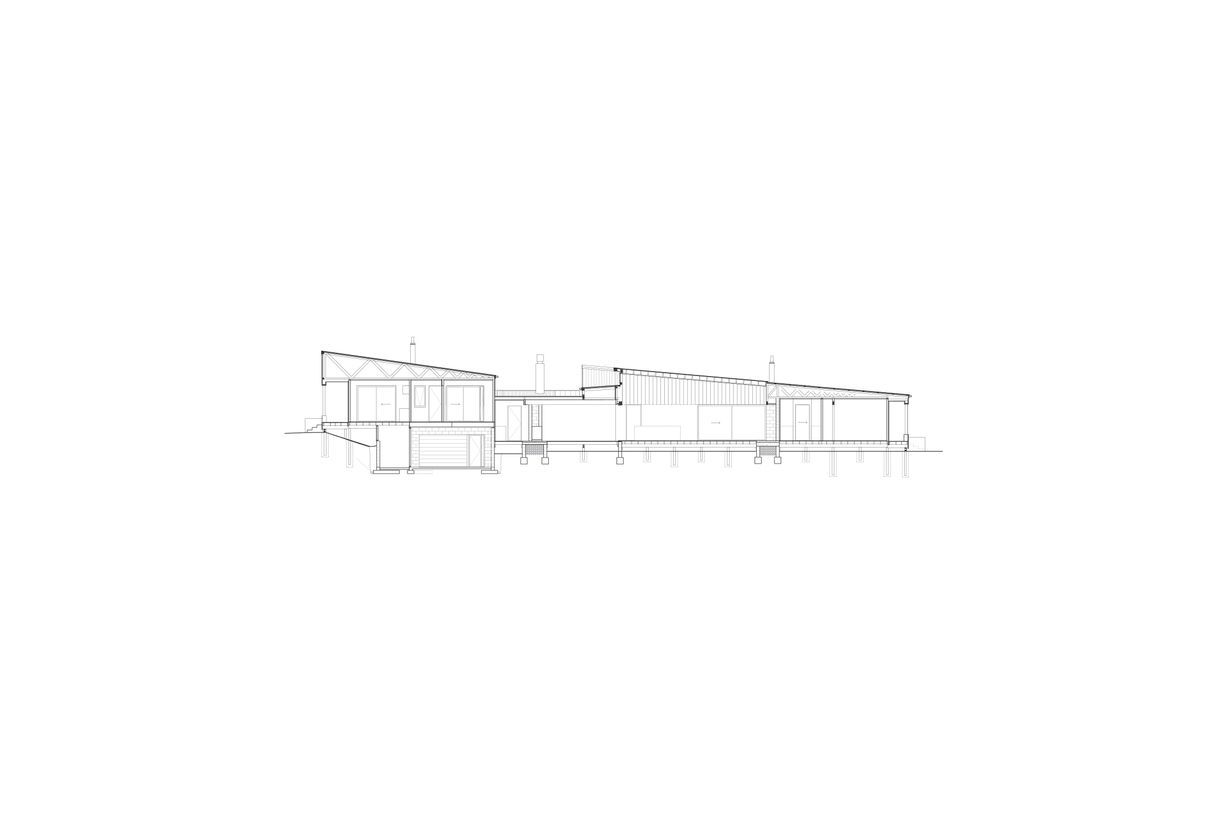

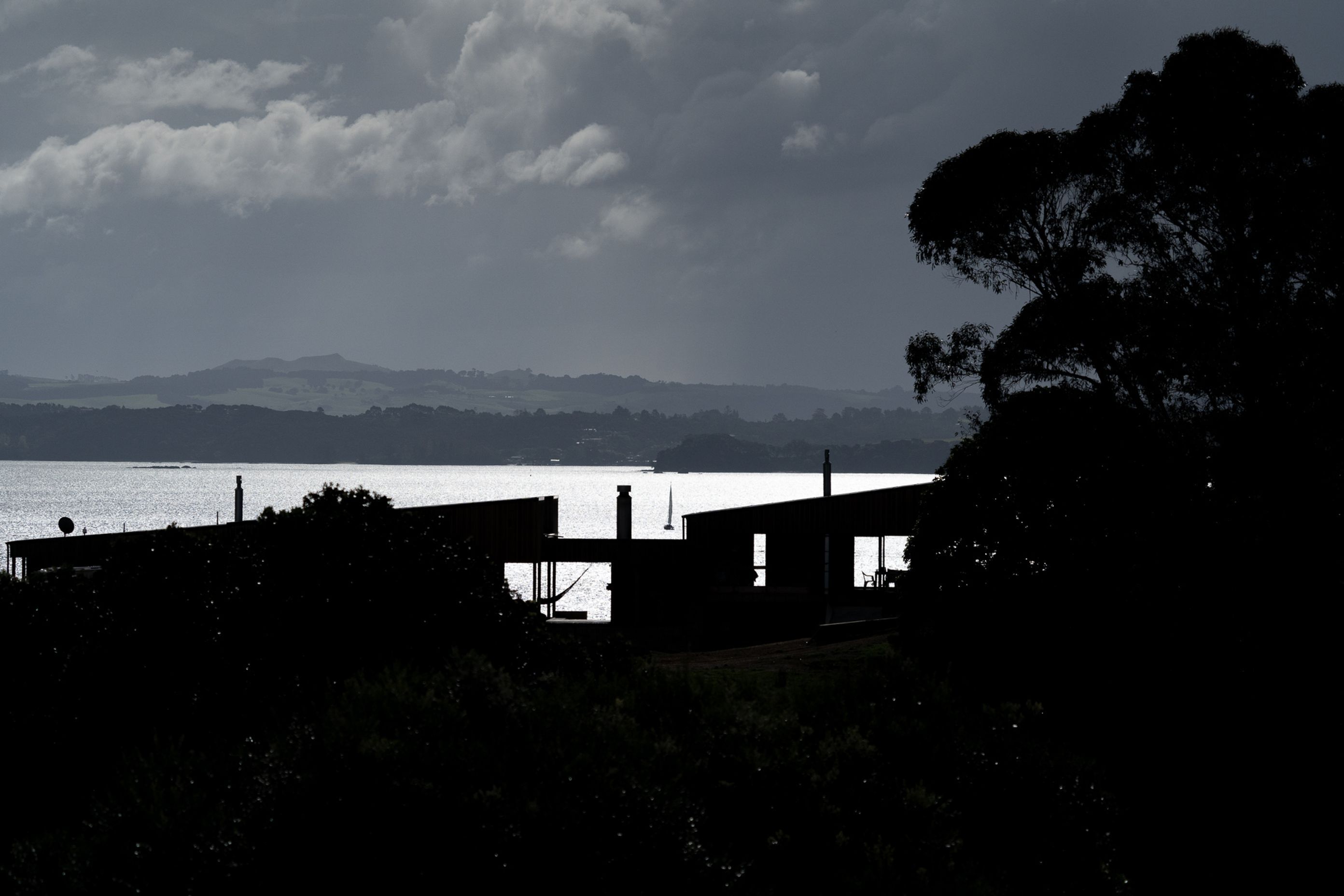

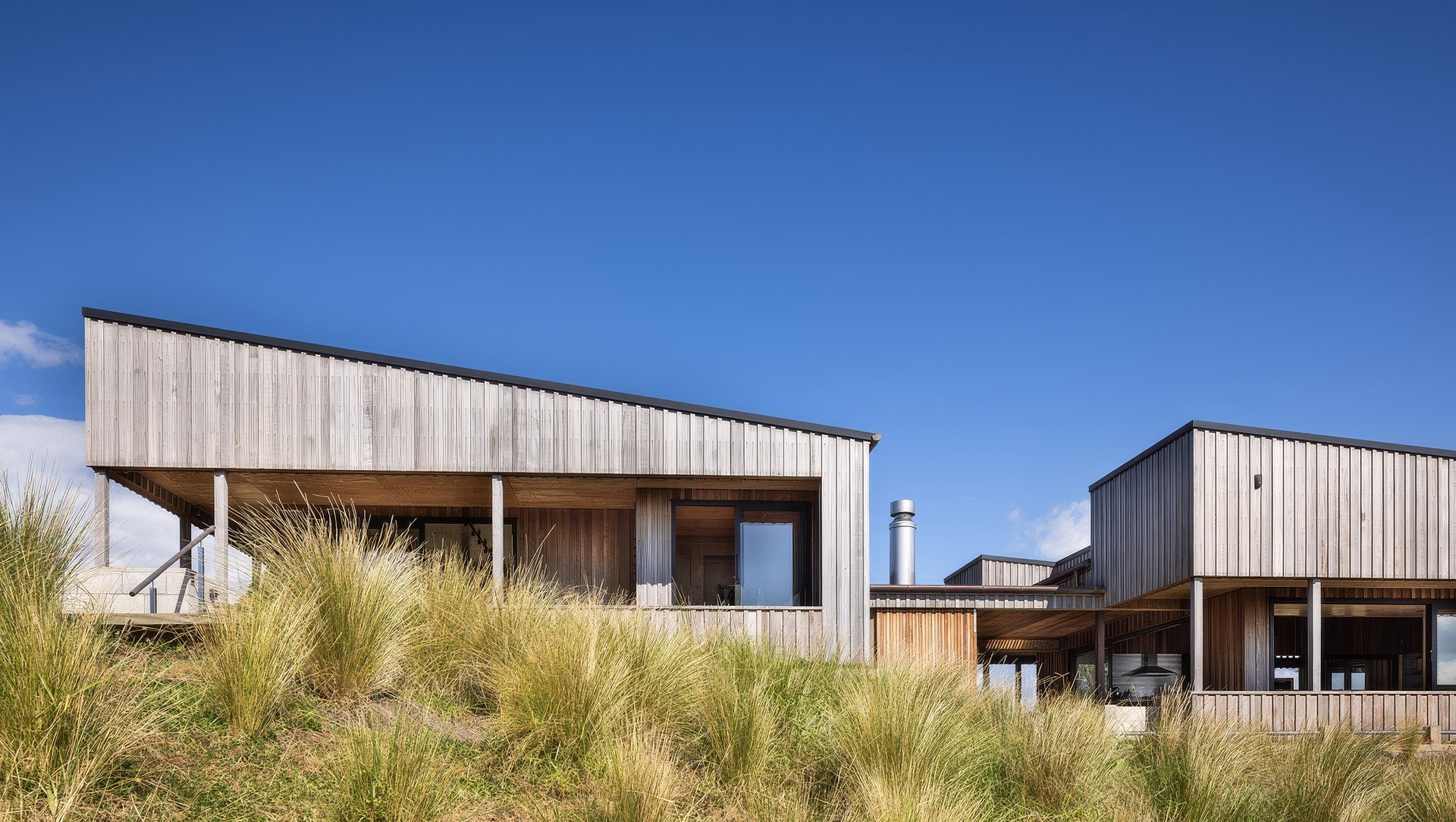

Maximising flexibility in separated and communal spaces, with a close eye on the varied weather conditions and coastal amenities, the resulting design of this family retreat is a structure of two wings separated by a covered outdoor room.

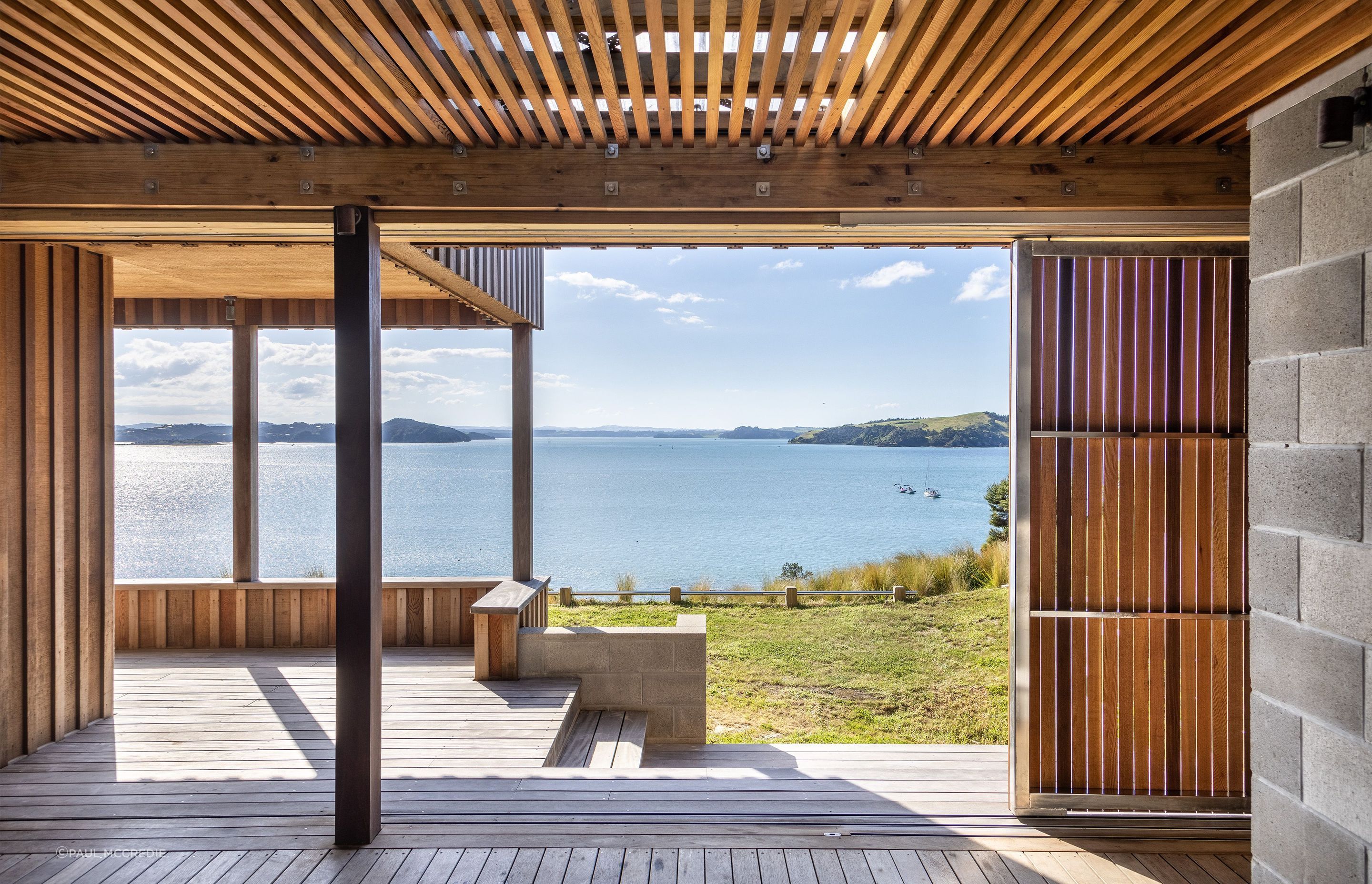

Sliding shutters open the outdoor space to the elements front and back while verandas on three sides afford protection from environmental extremes, whatever the wind direction. The orientation enables passive environmental control, and full advantage is taken of natural solar heat and light for year-round comfort at minimal cost.

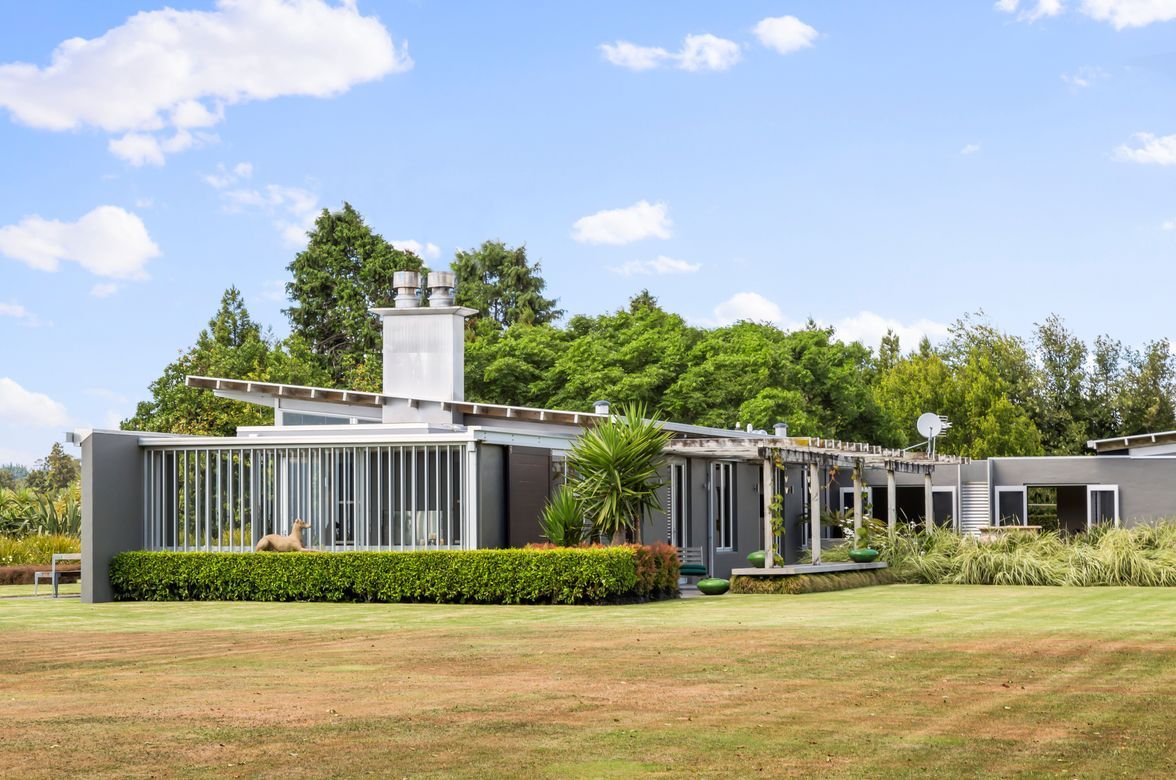

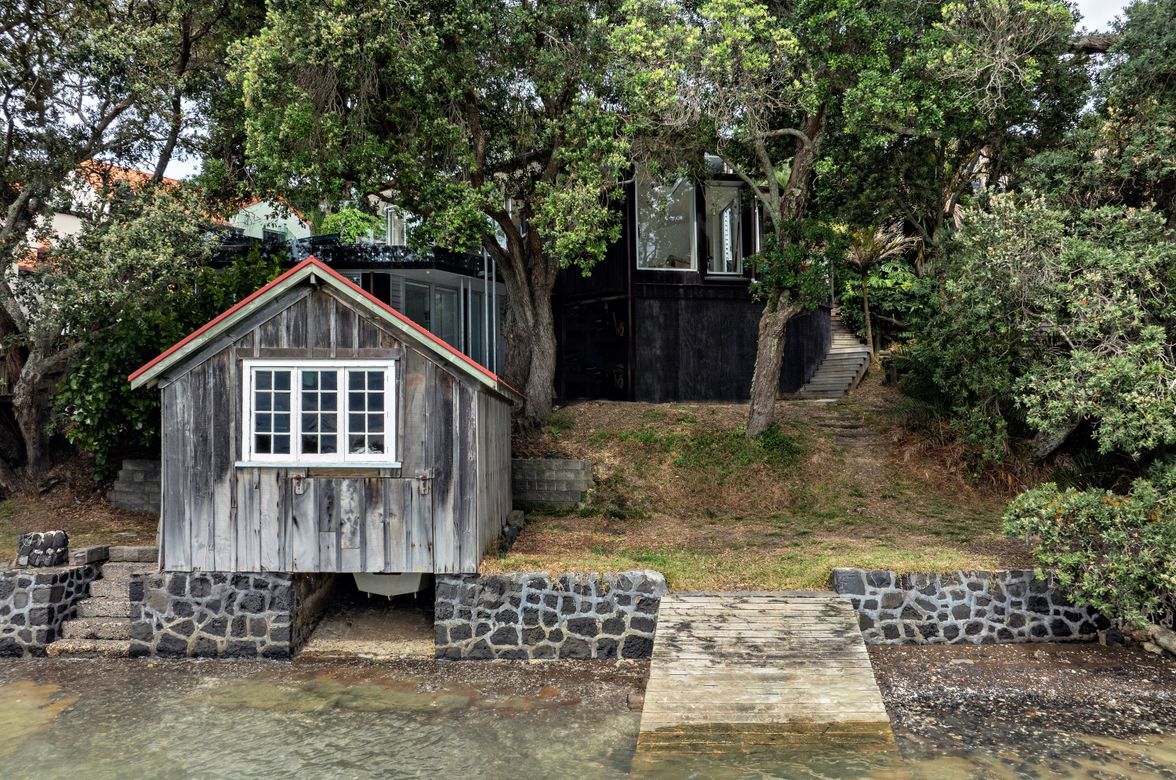

A nearby 1970s design house – lived in and loved by the clients for many years – inspired the character and materiality of the new build, continuing a design language pre-existing in the area and an important vernacular in rural architectural design in Aotearoa.

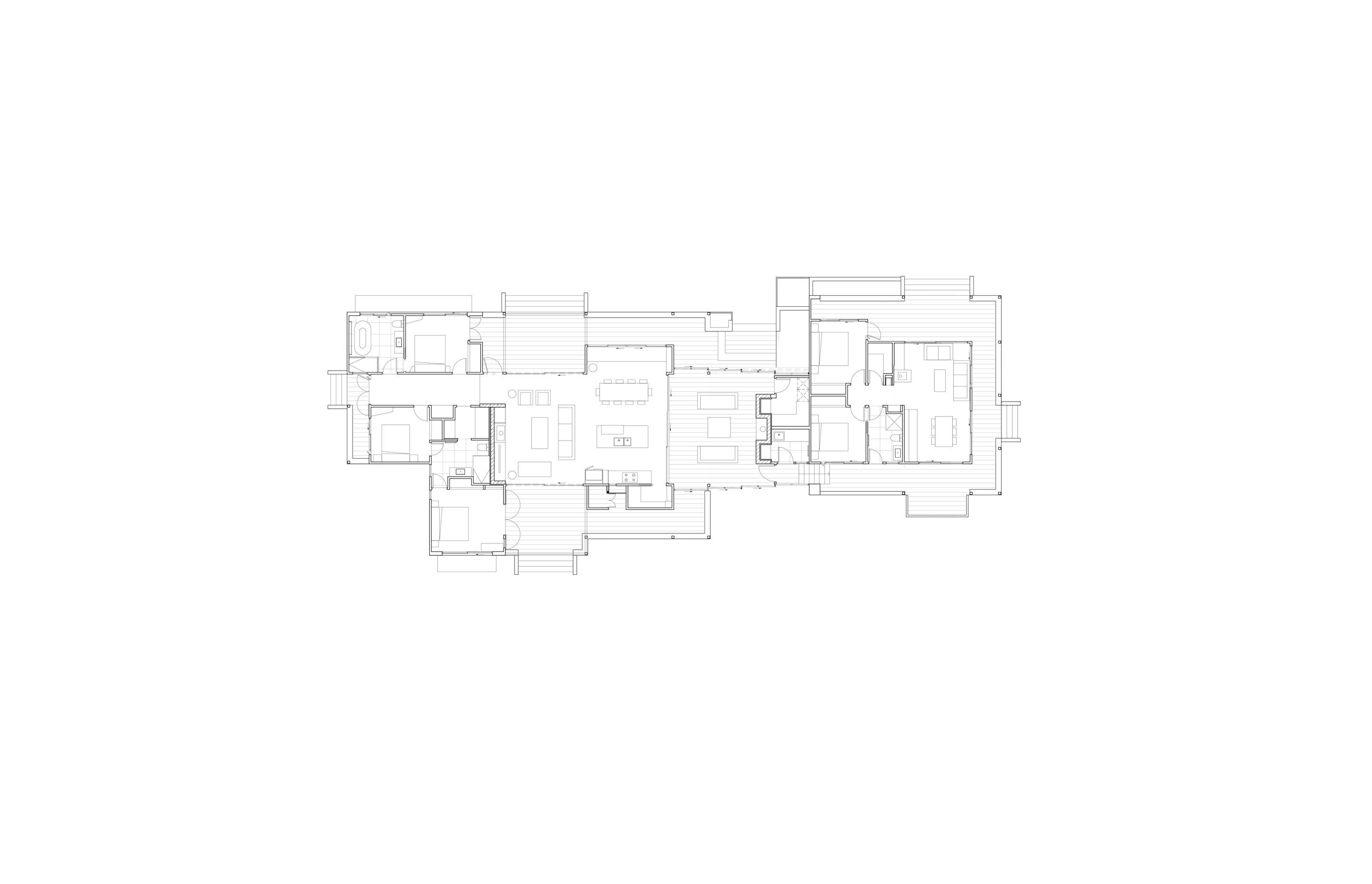

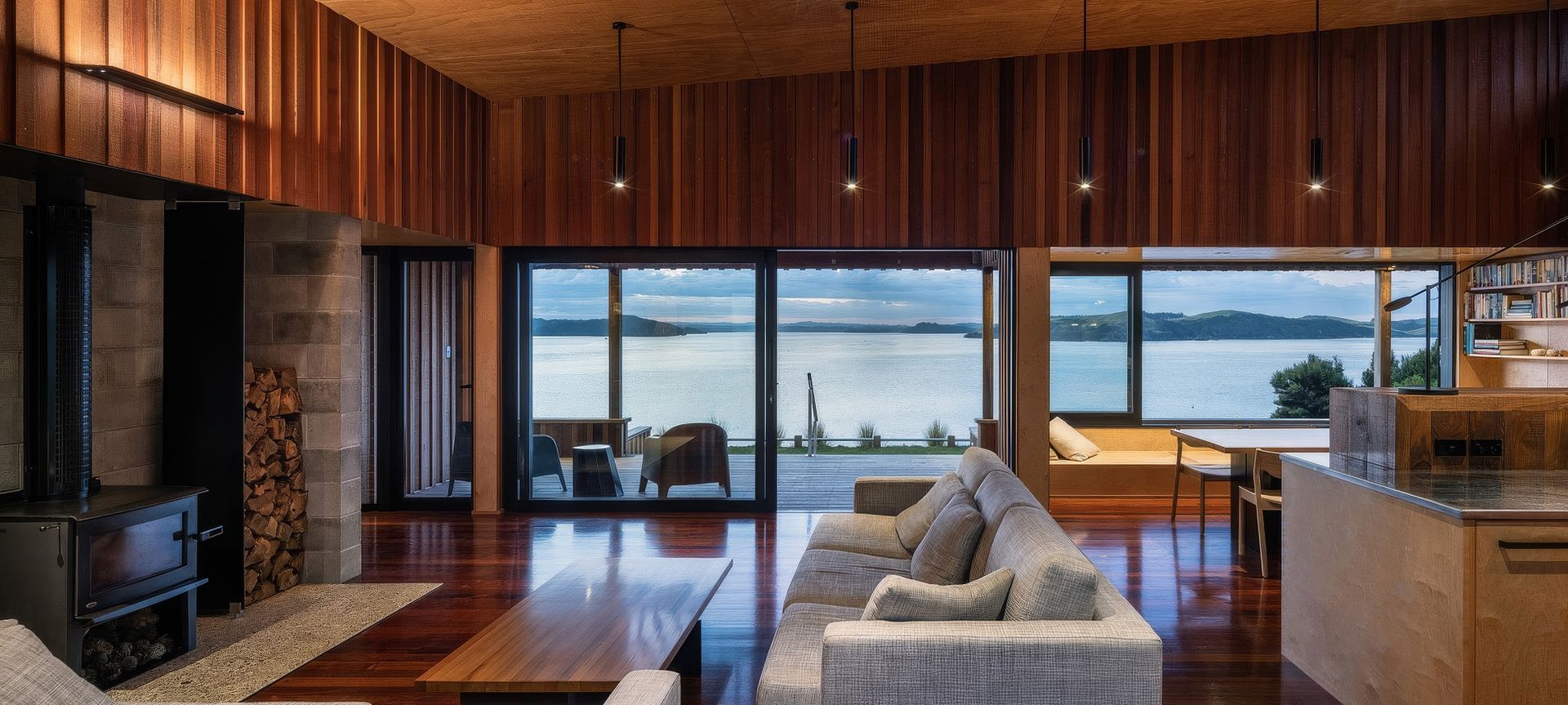

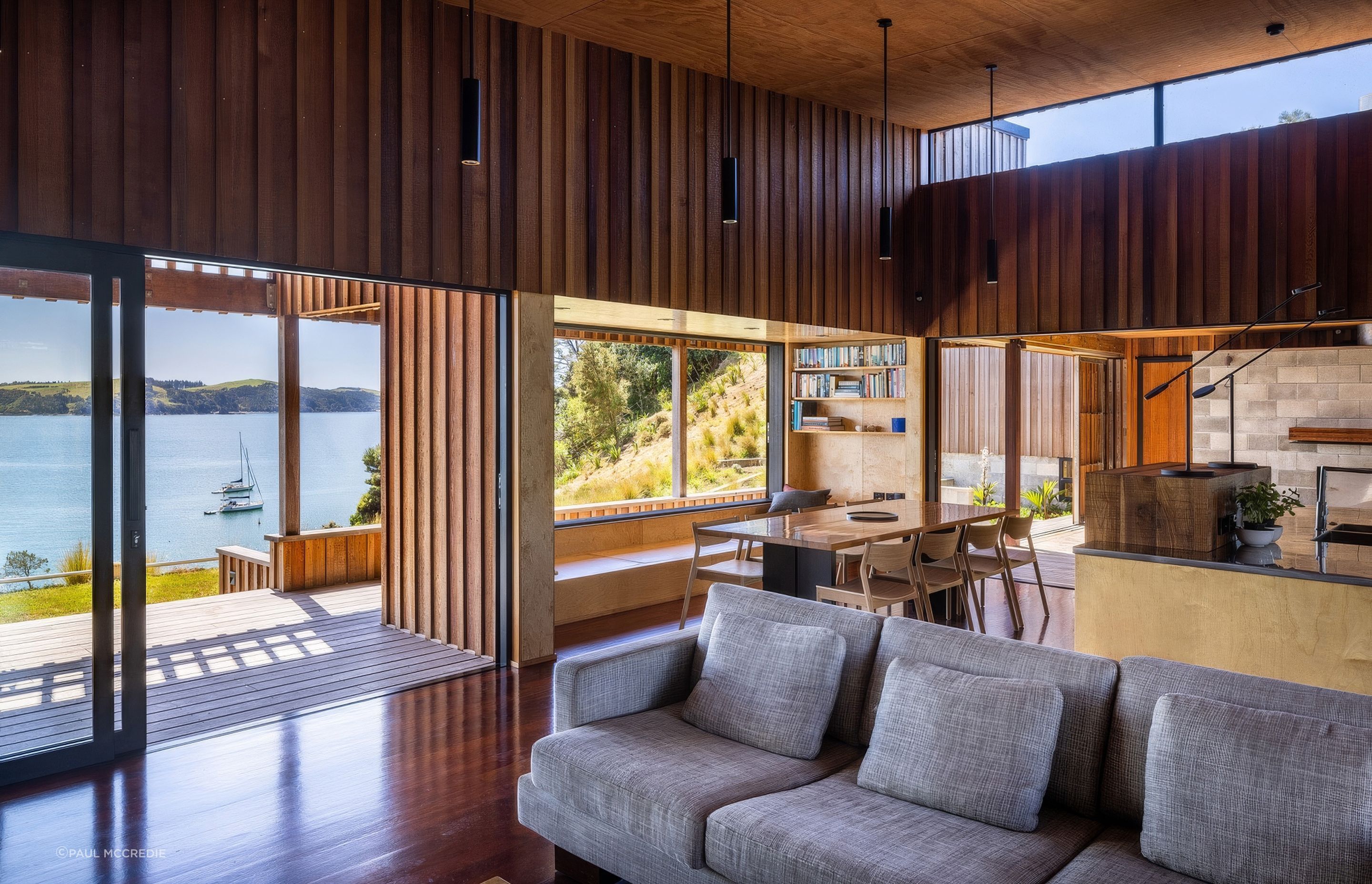

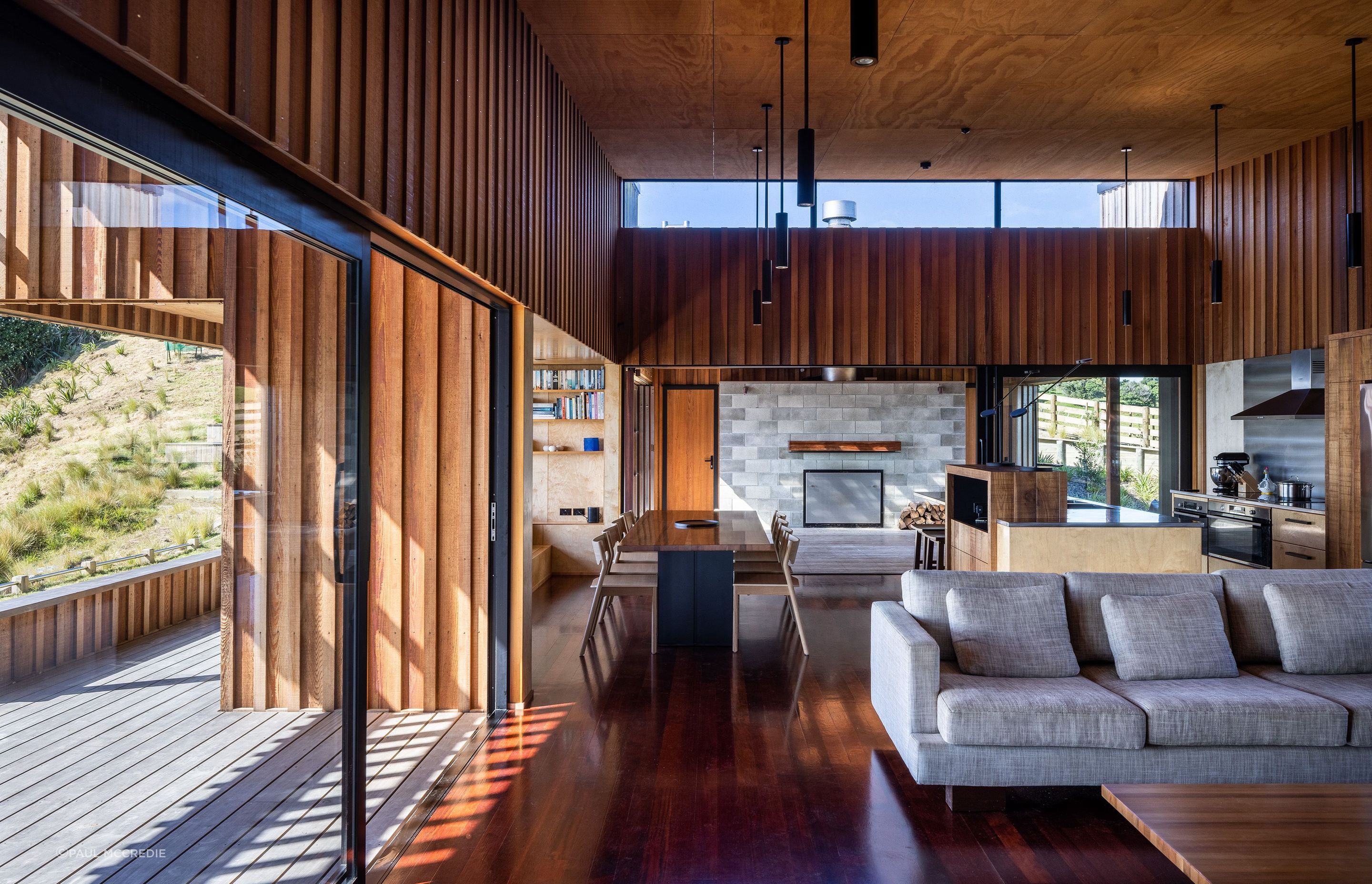

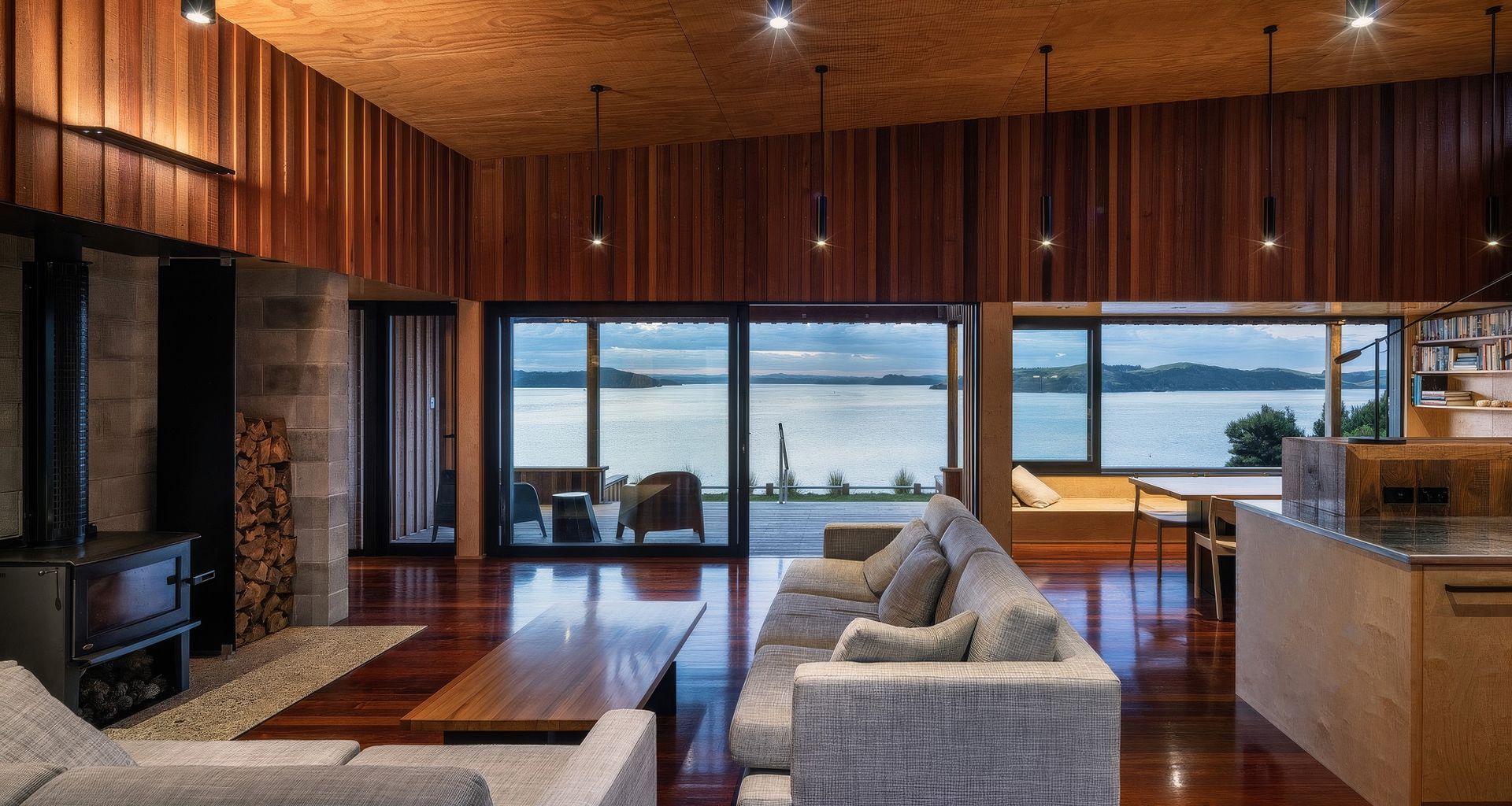

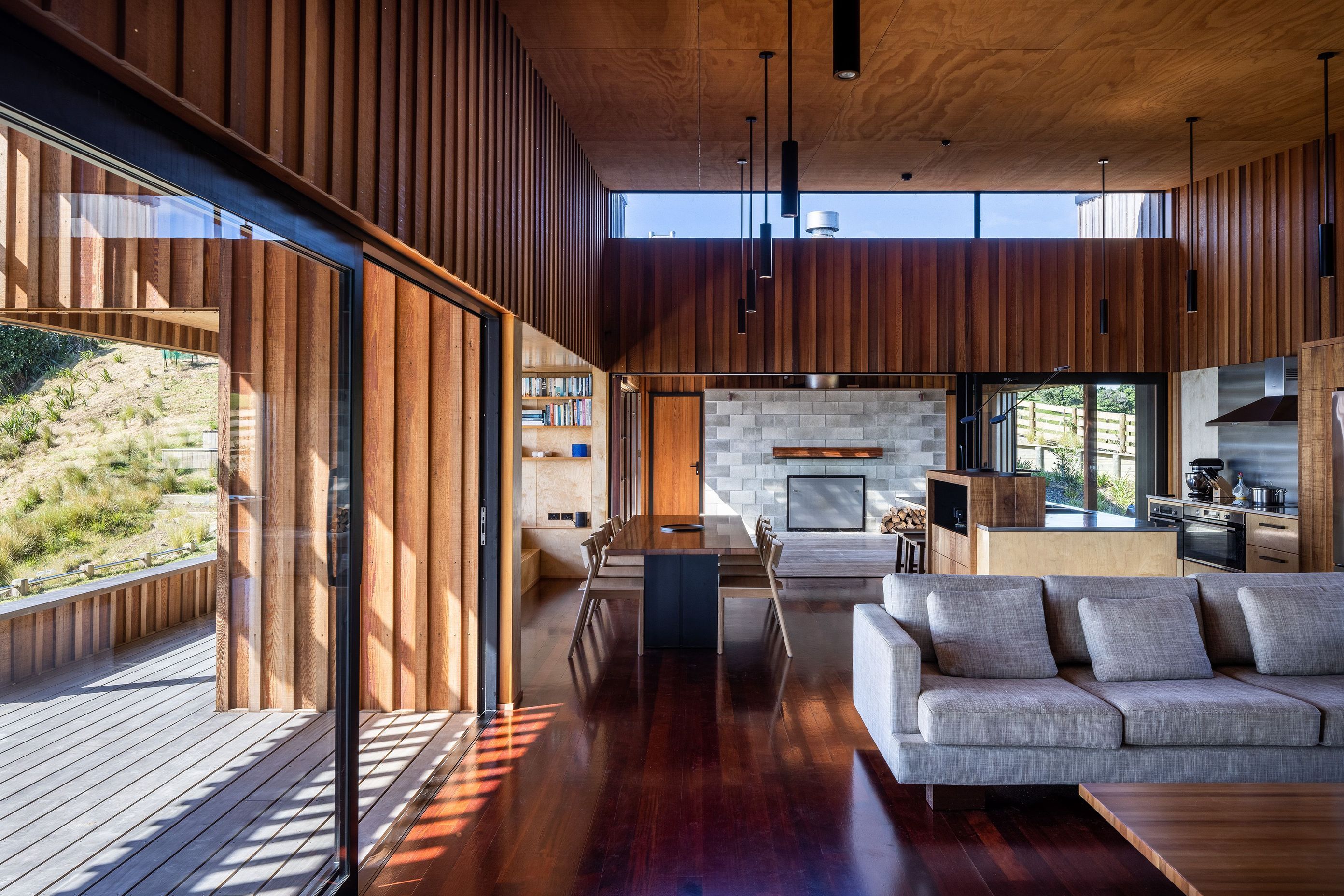

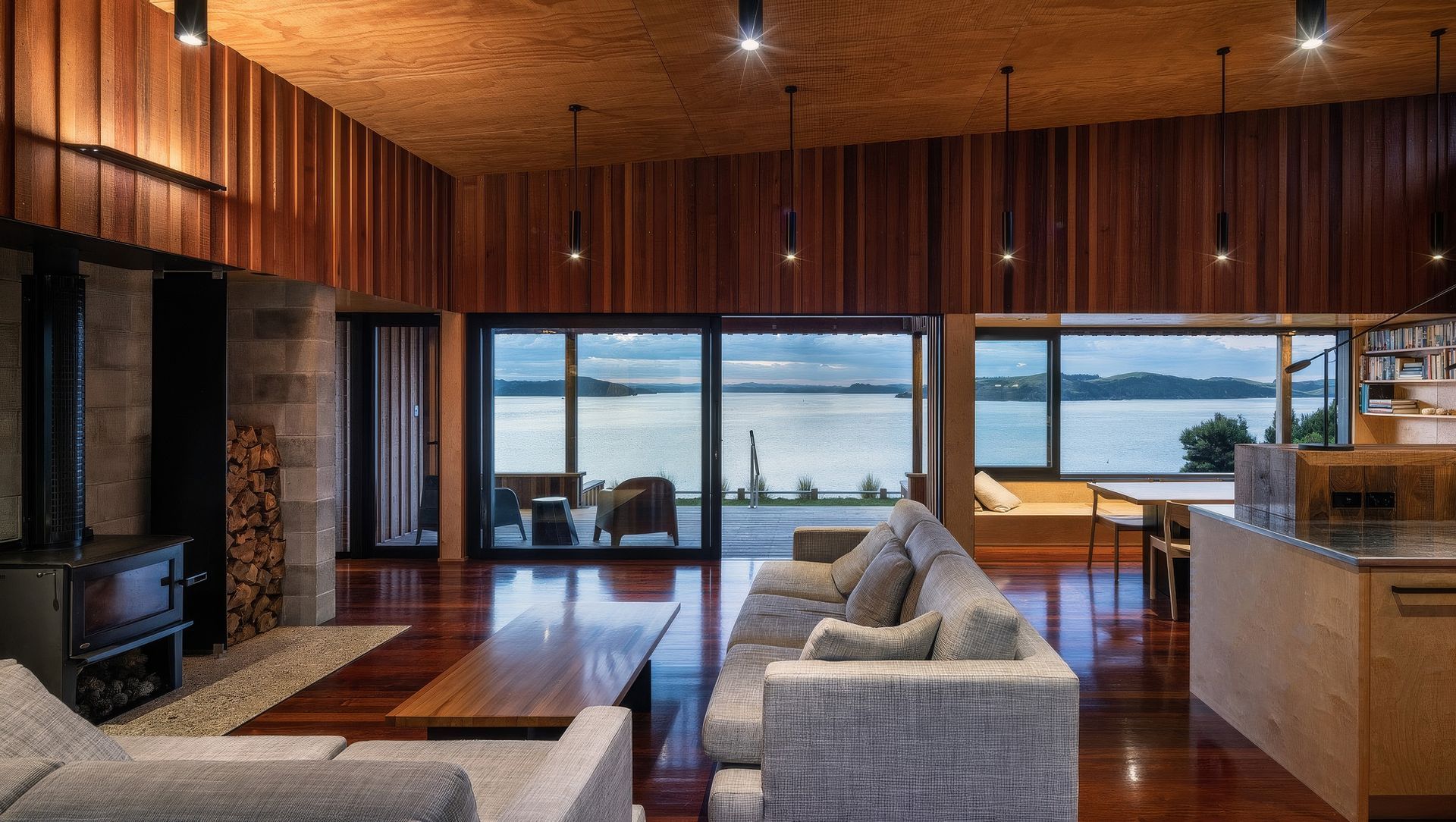

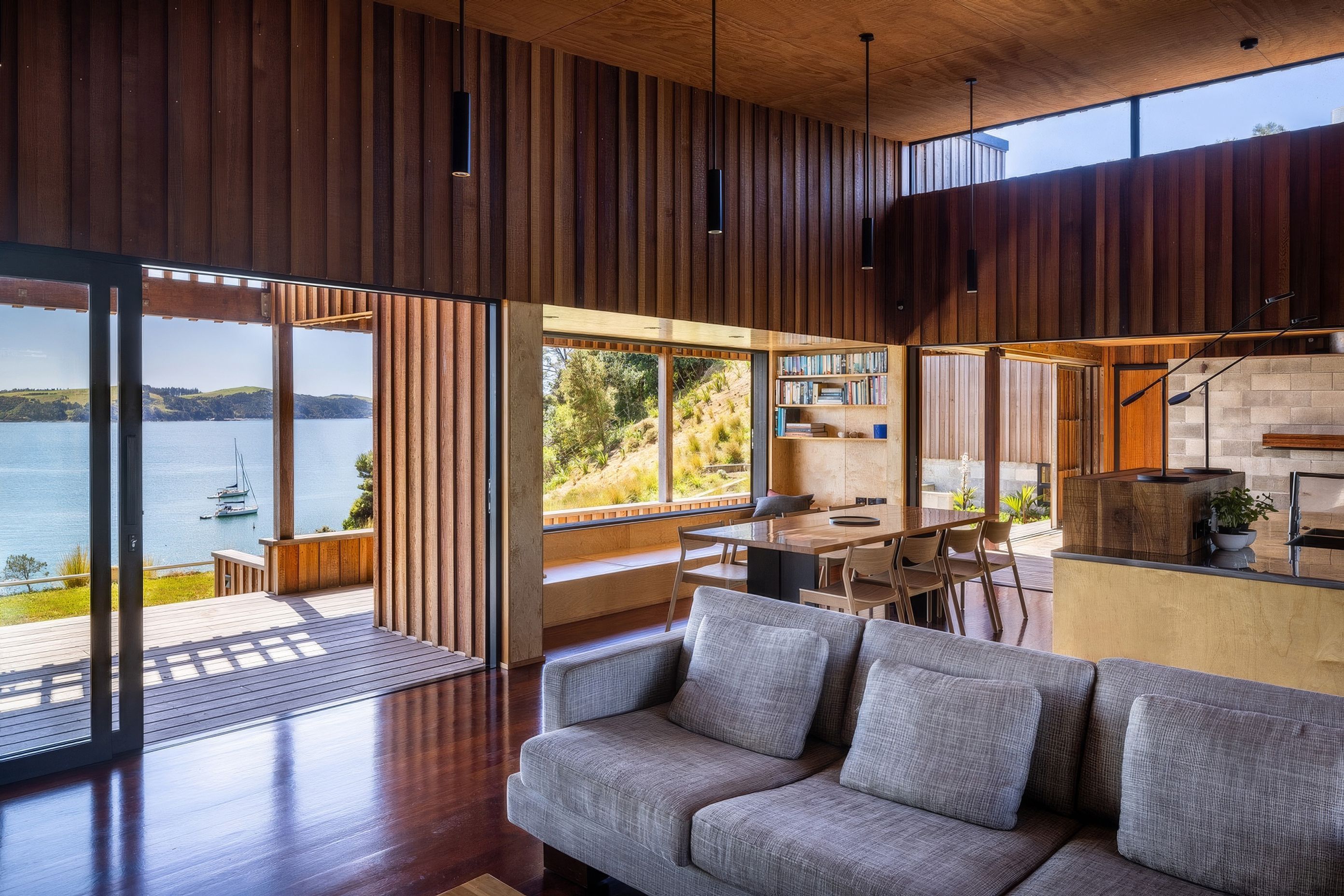

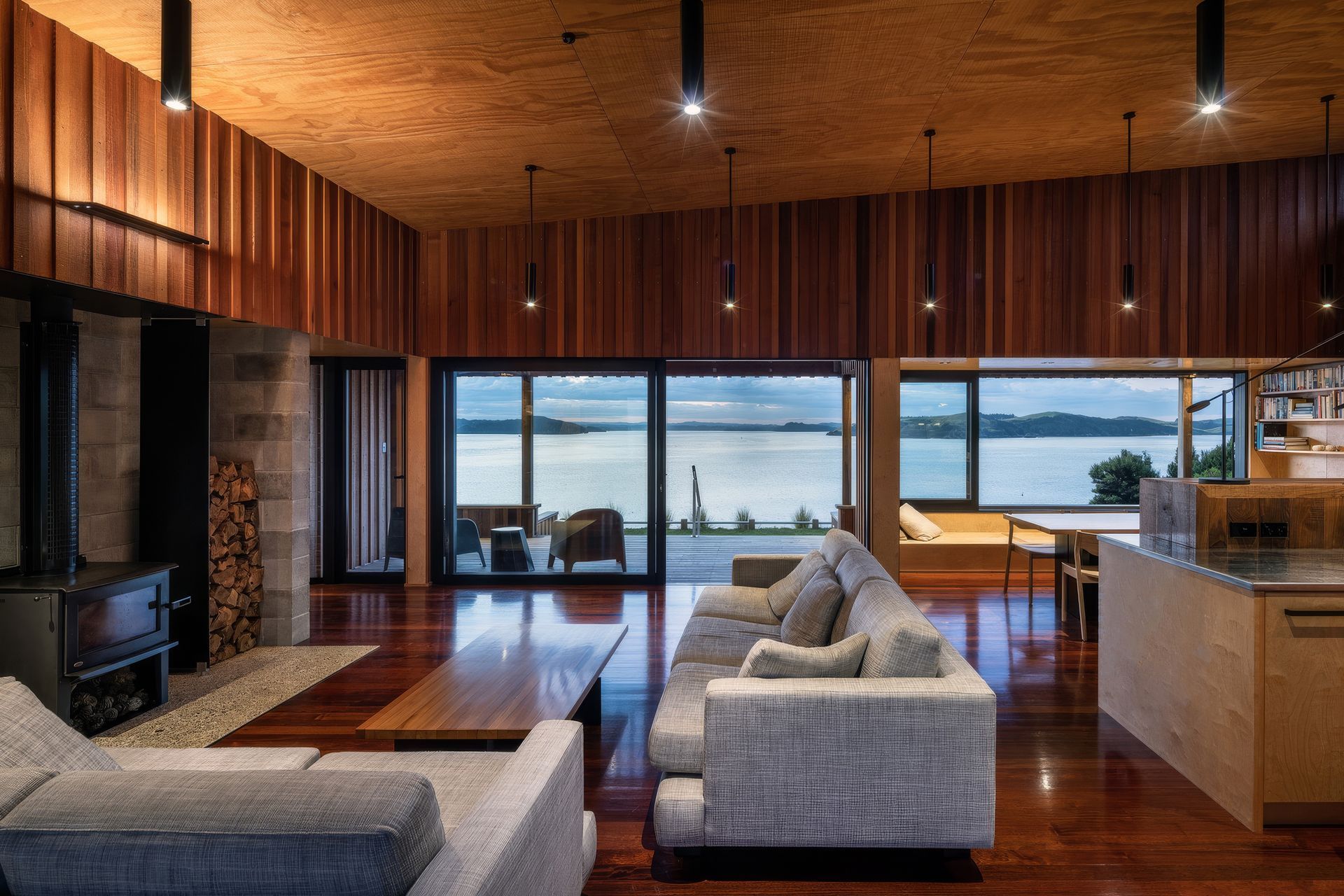

The new house comprises a larger west wing with three bedrooms, two bathrooms and an open-plan communal living and dining space. With two bedrooms, the smaller east wing is partially self-contained, allowing a private space for guests or family members.

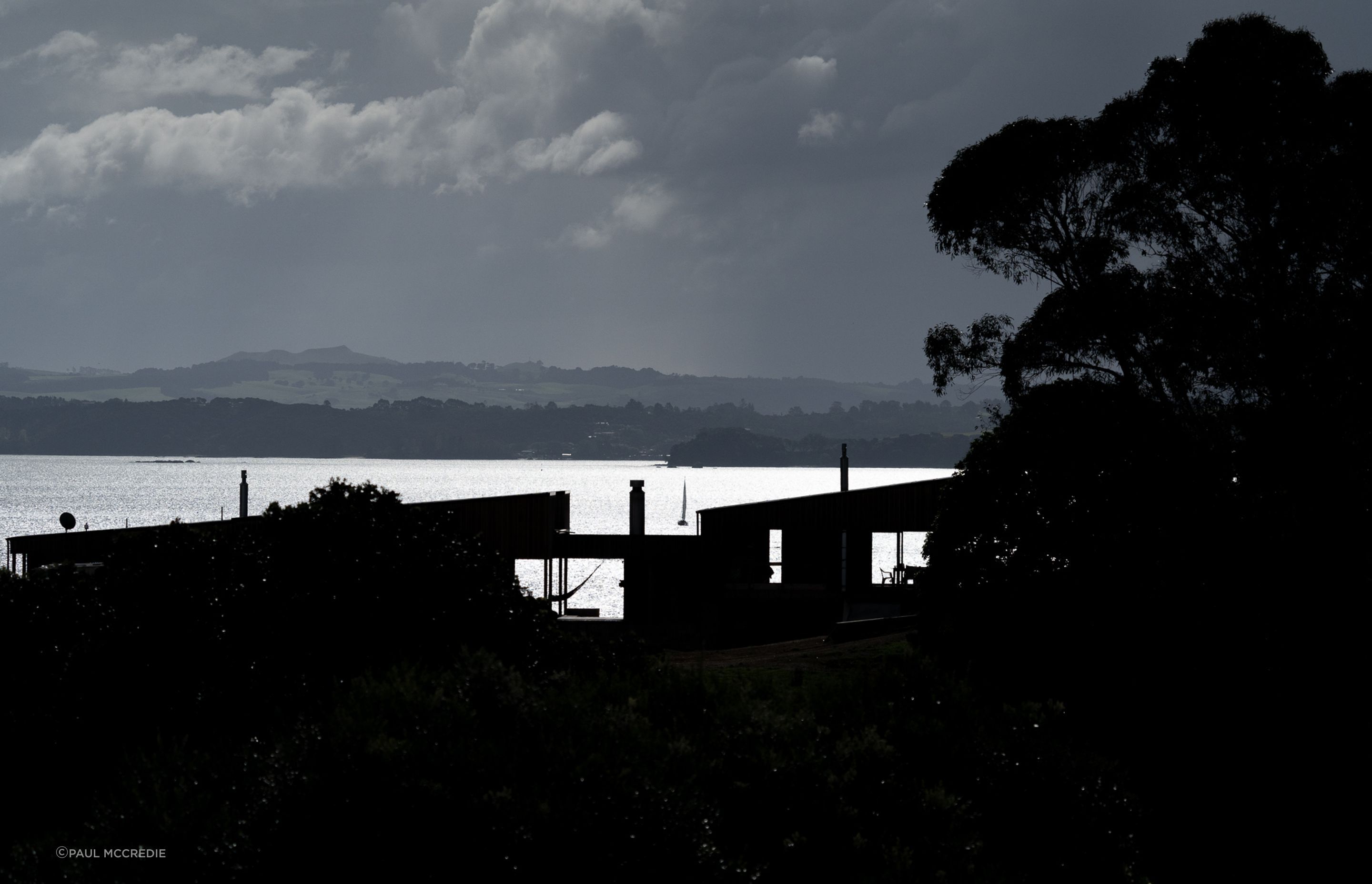

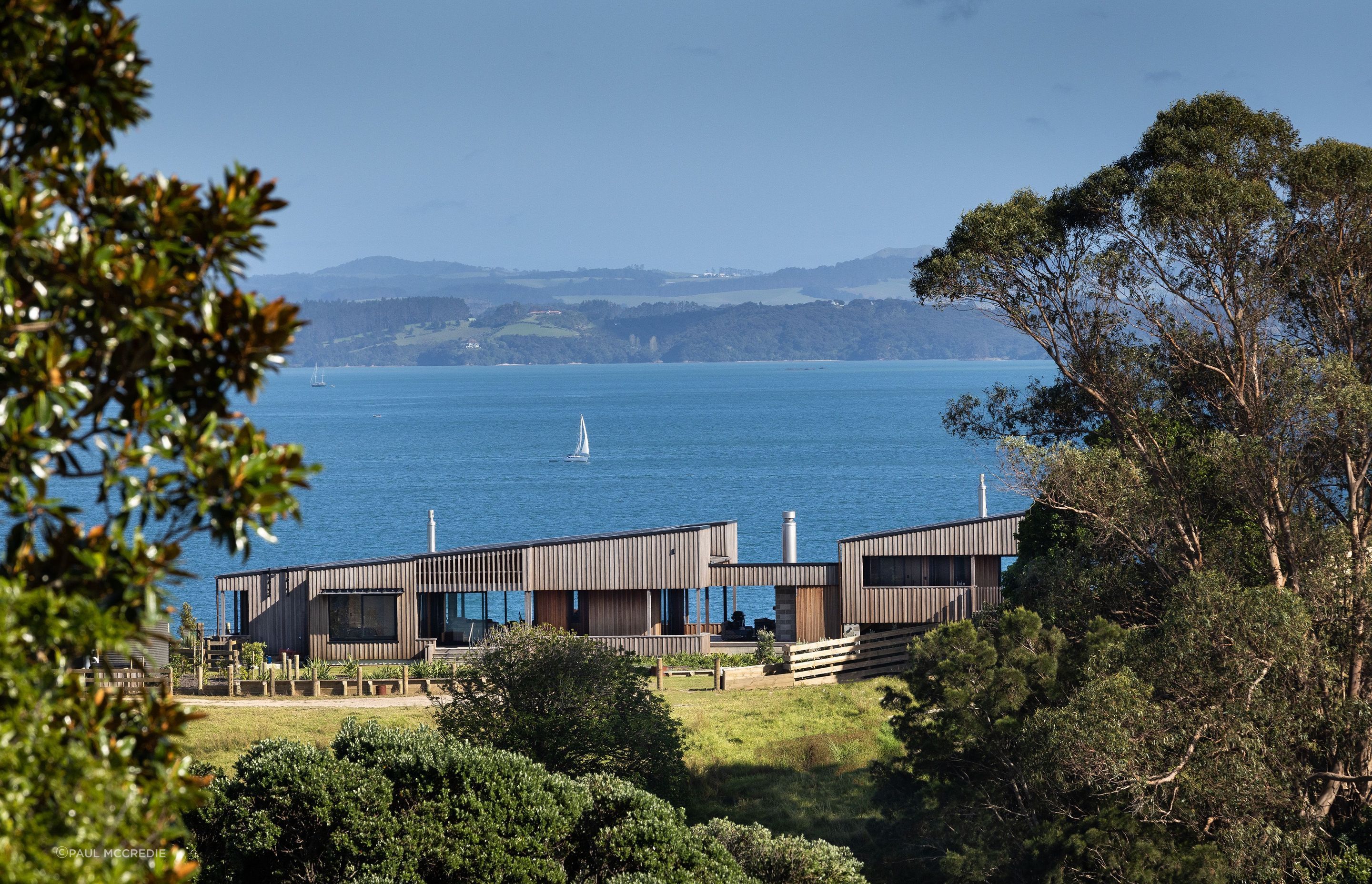

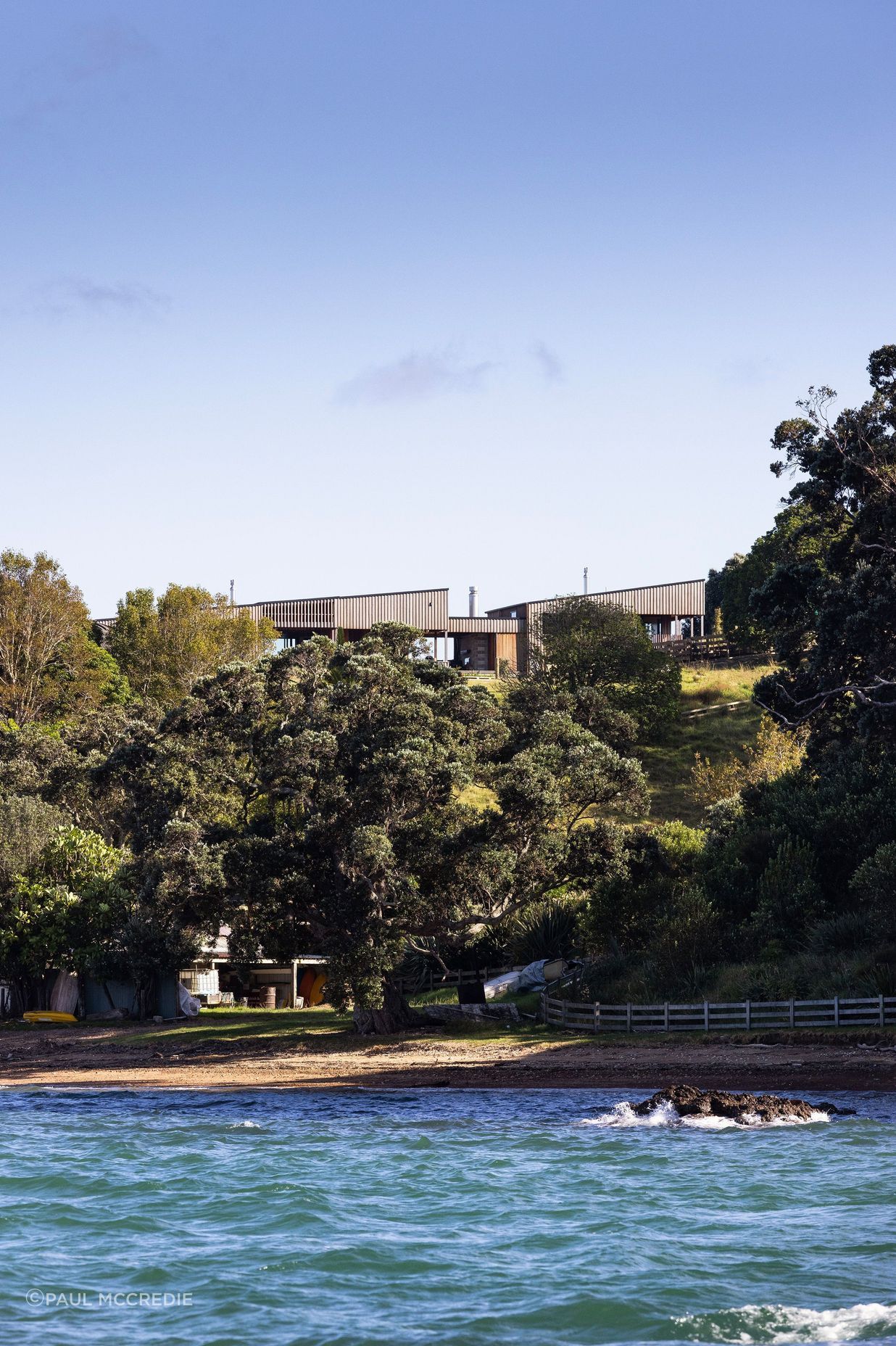

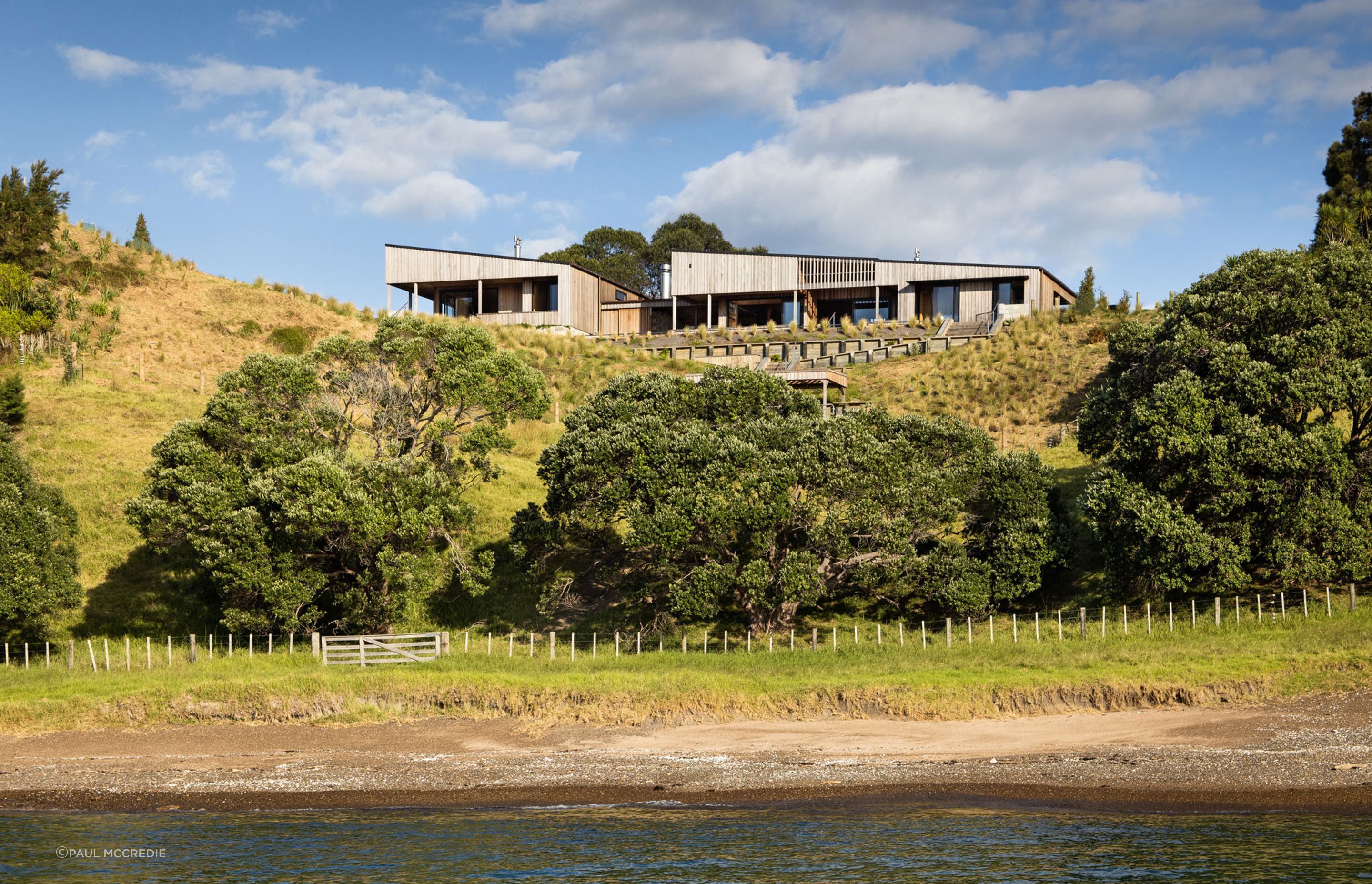

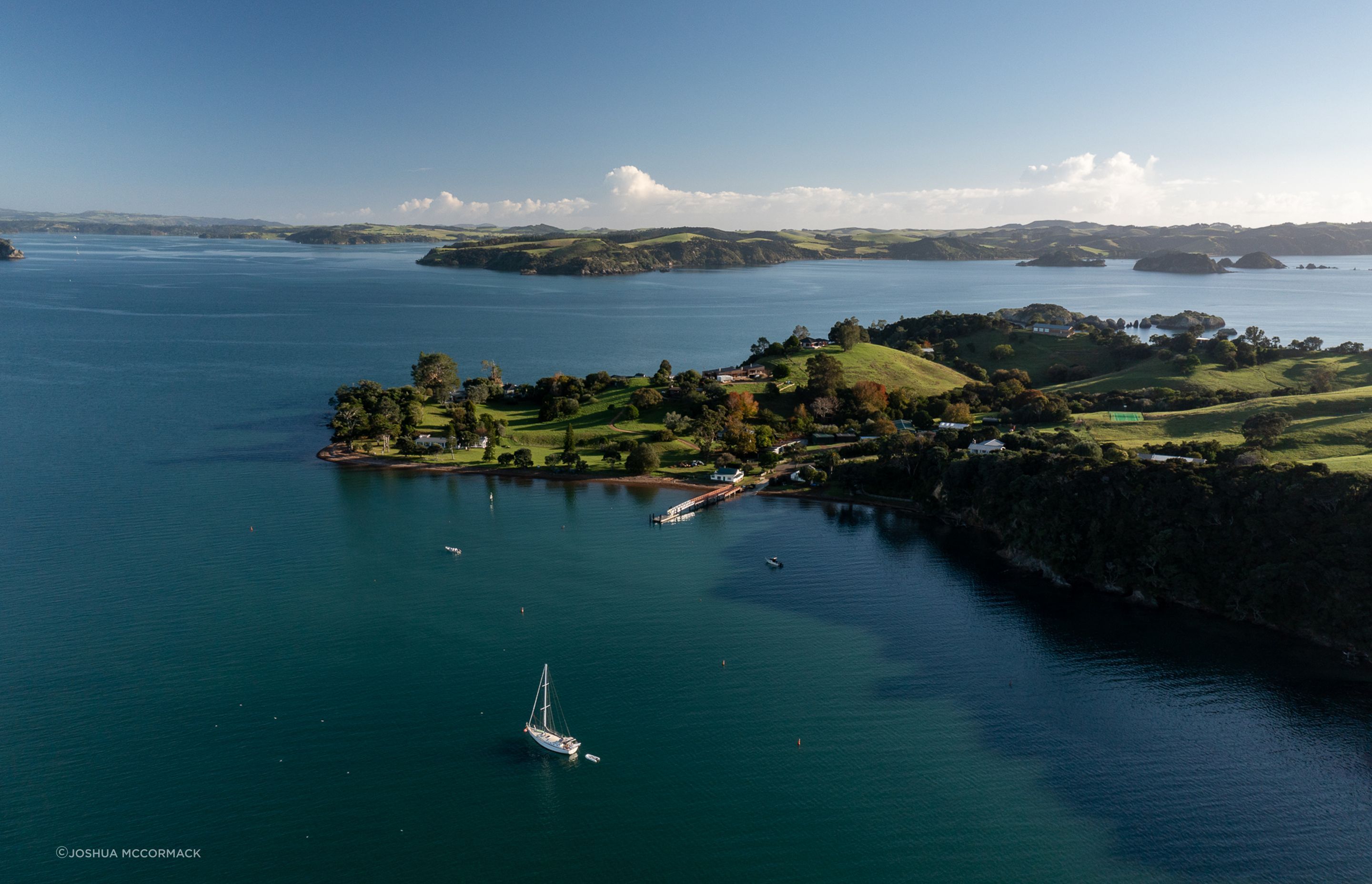

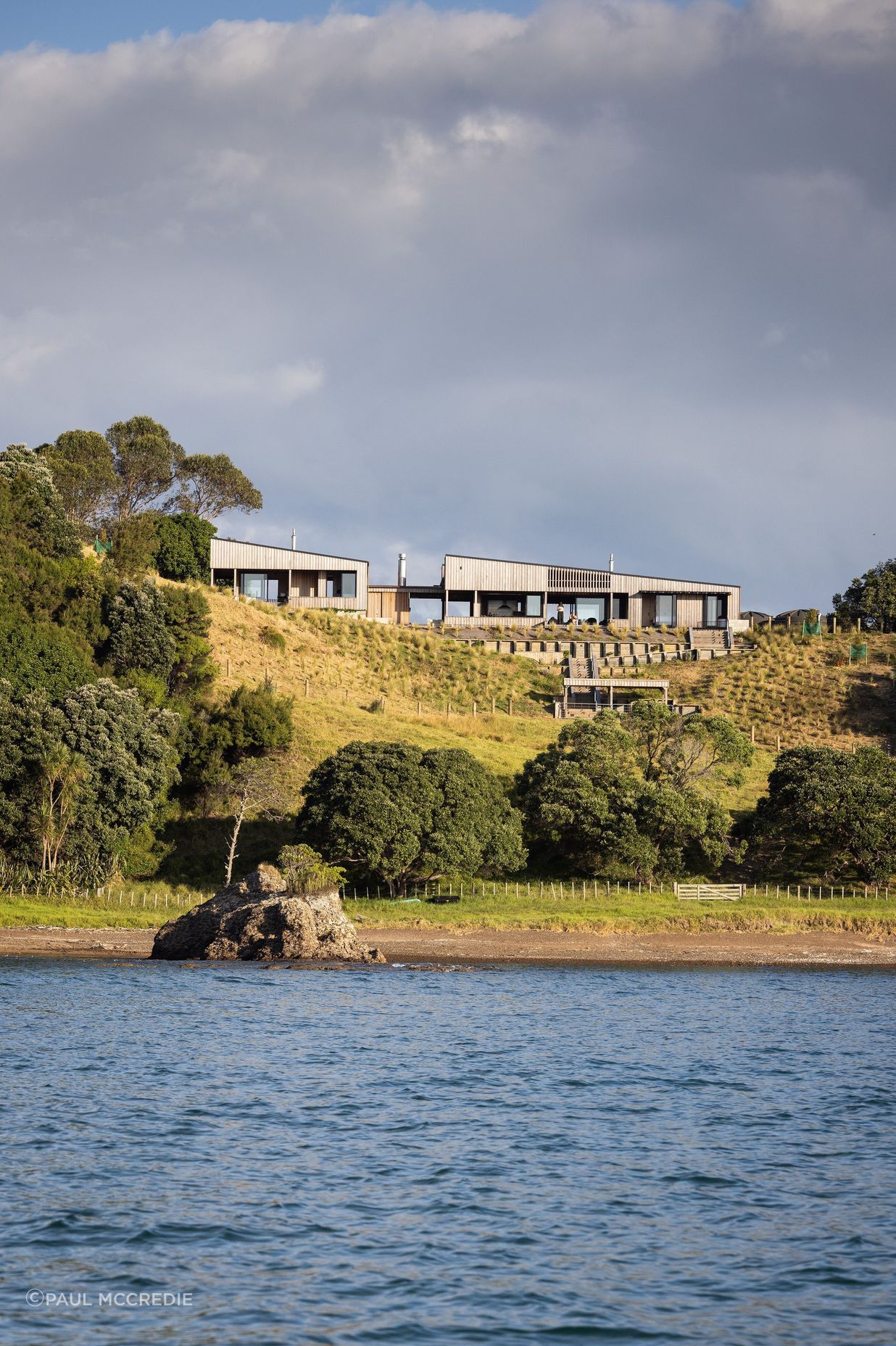

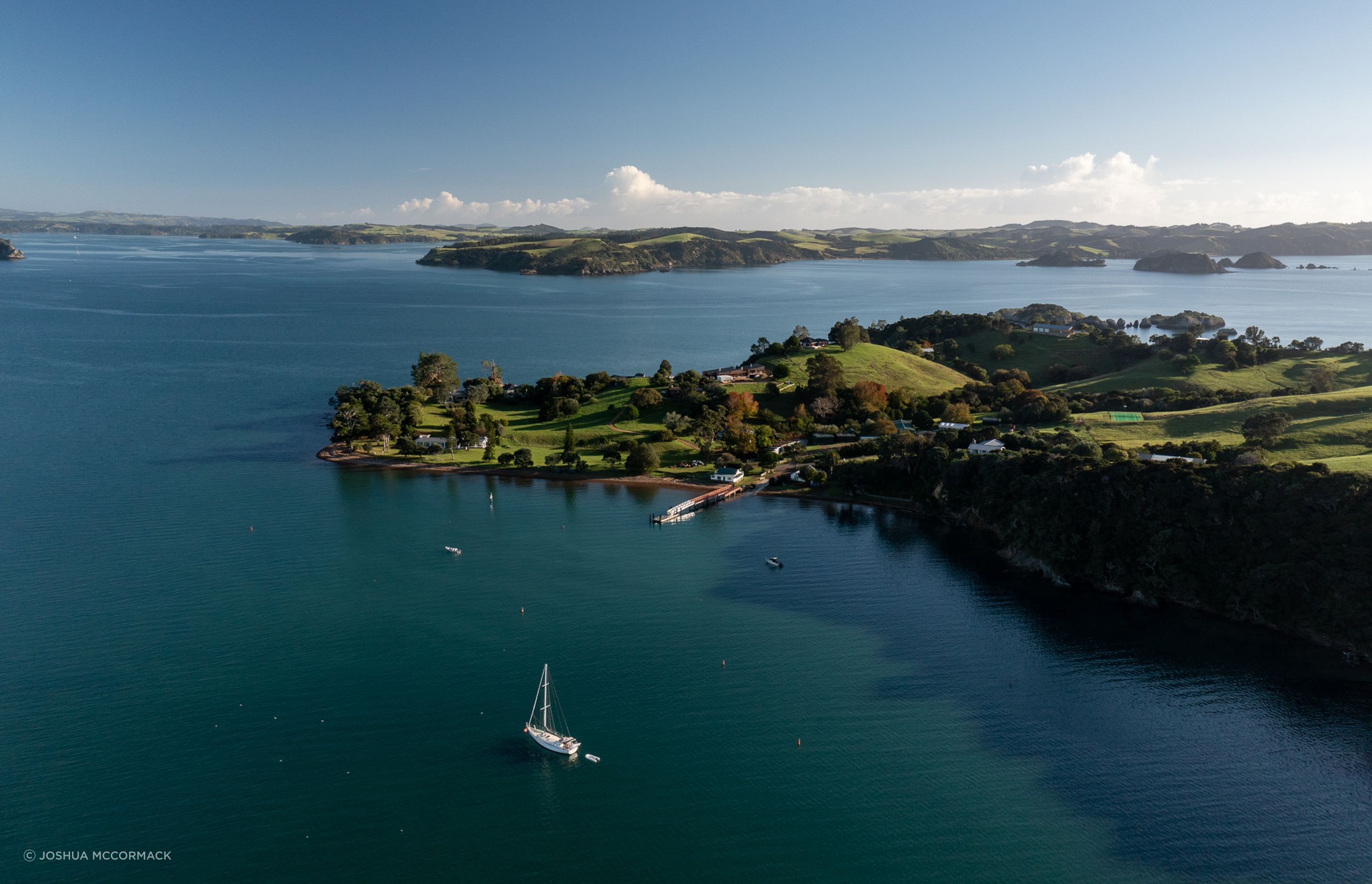

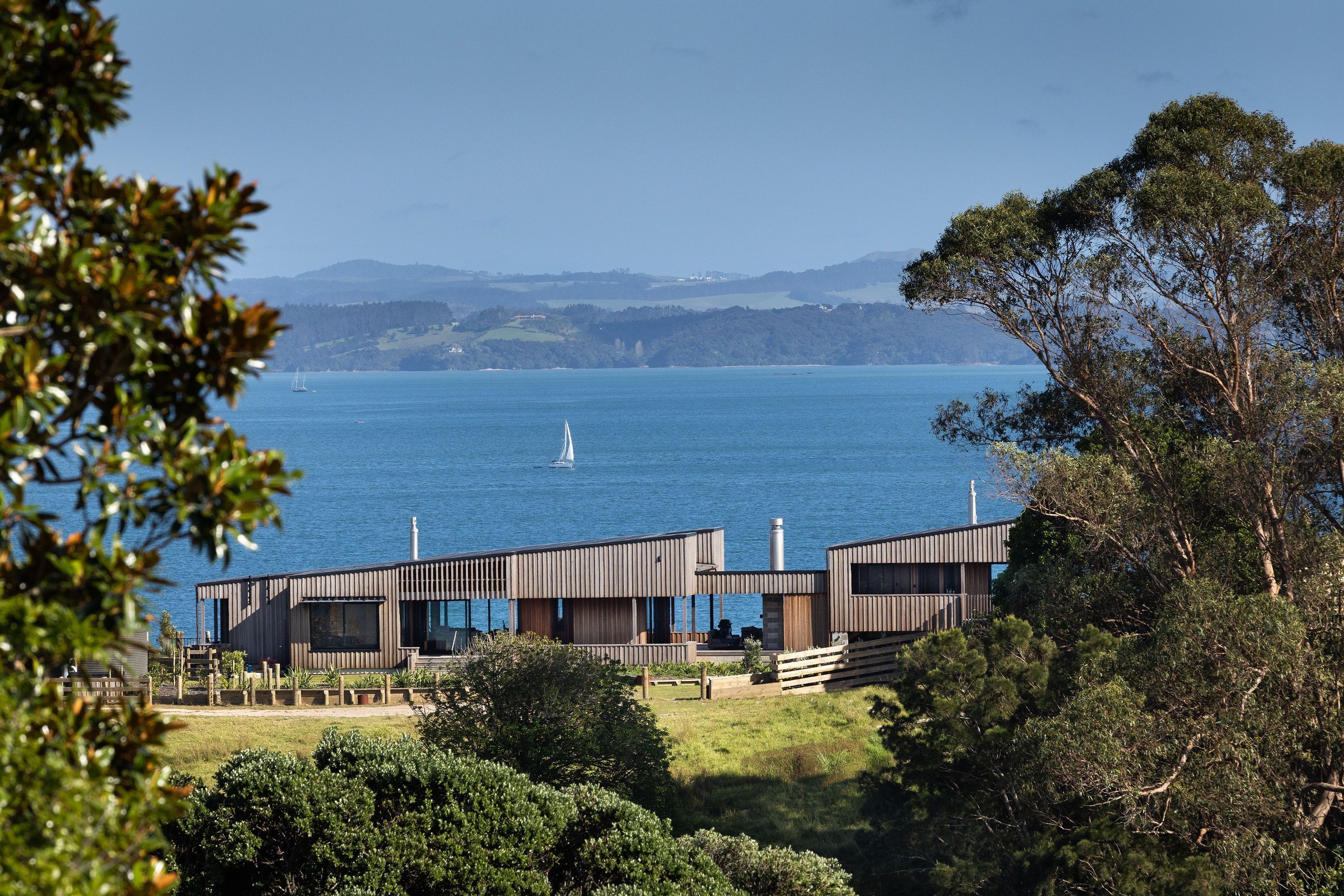

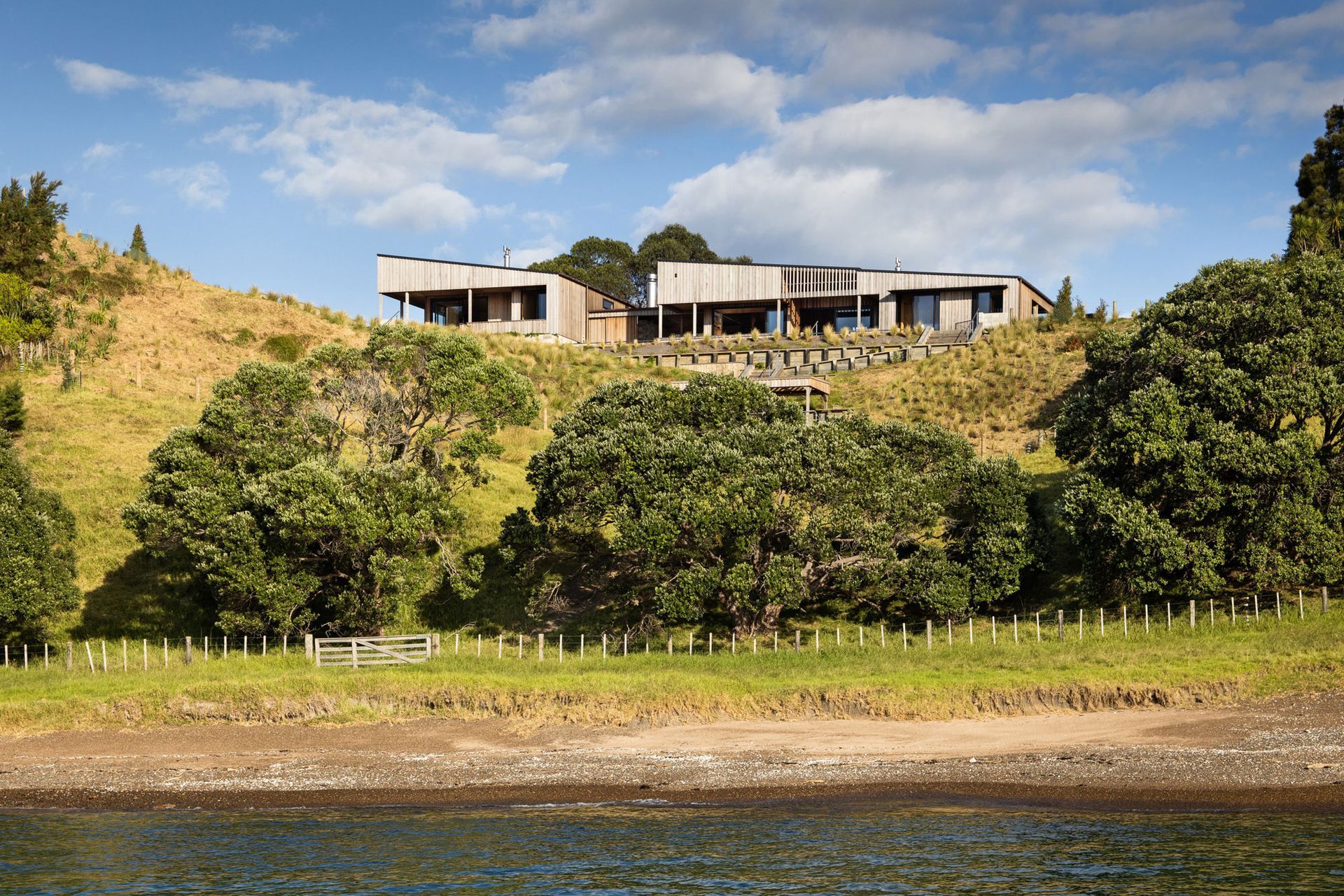

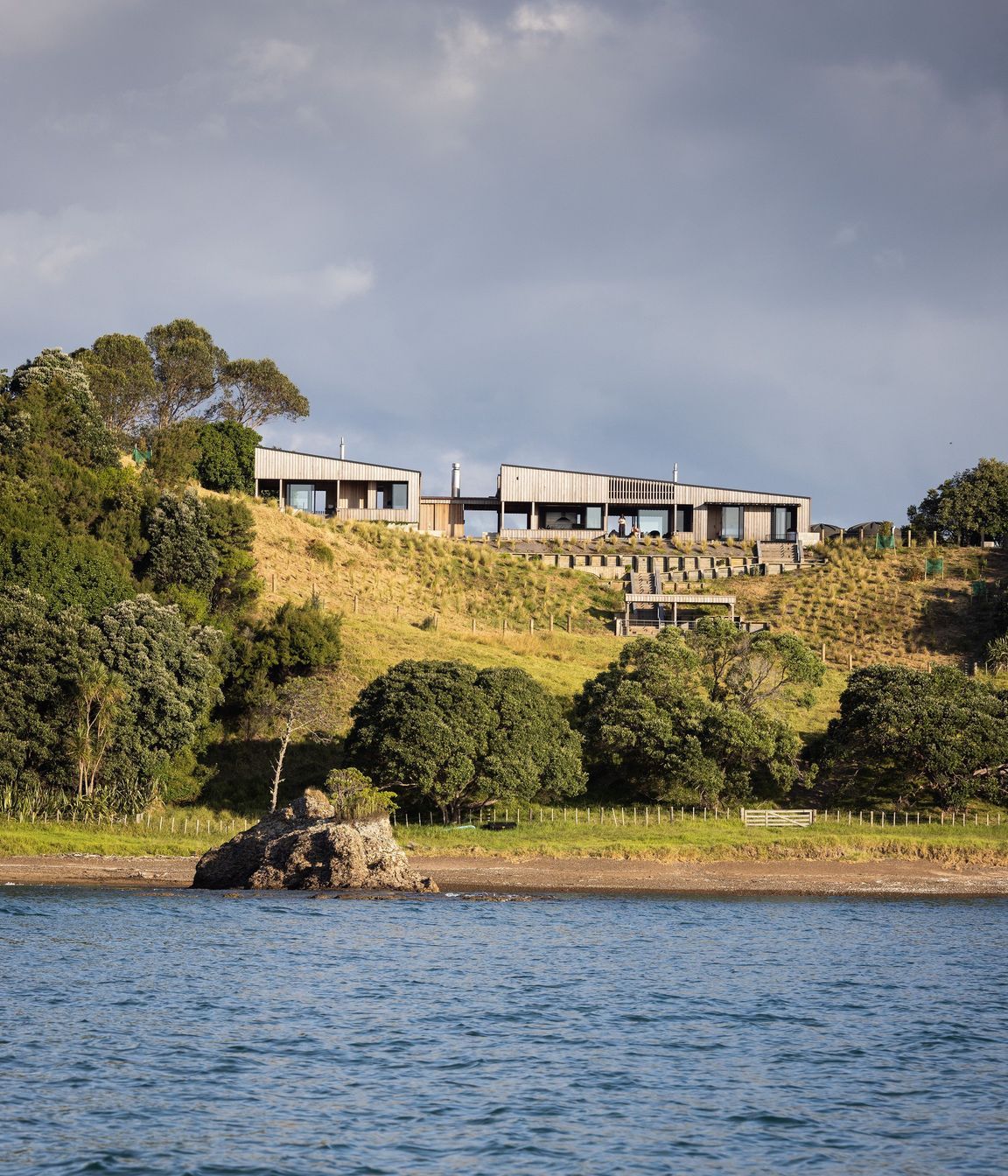

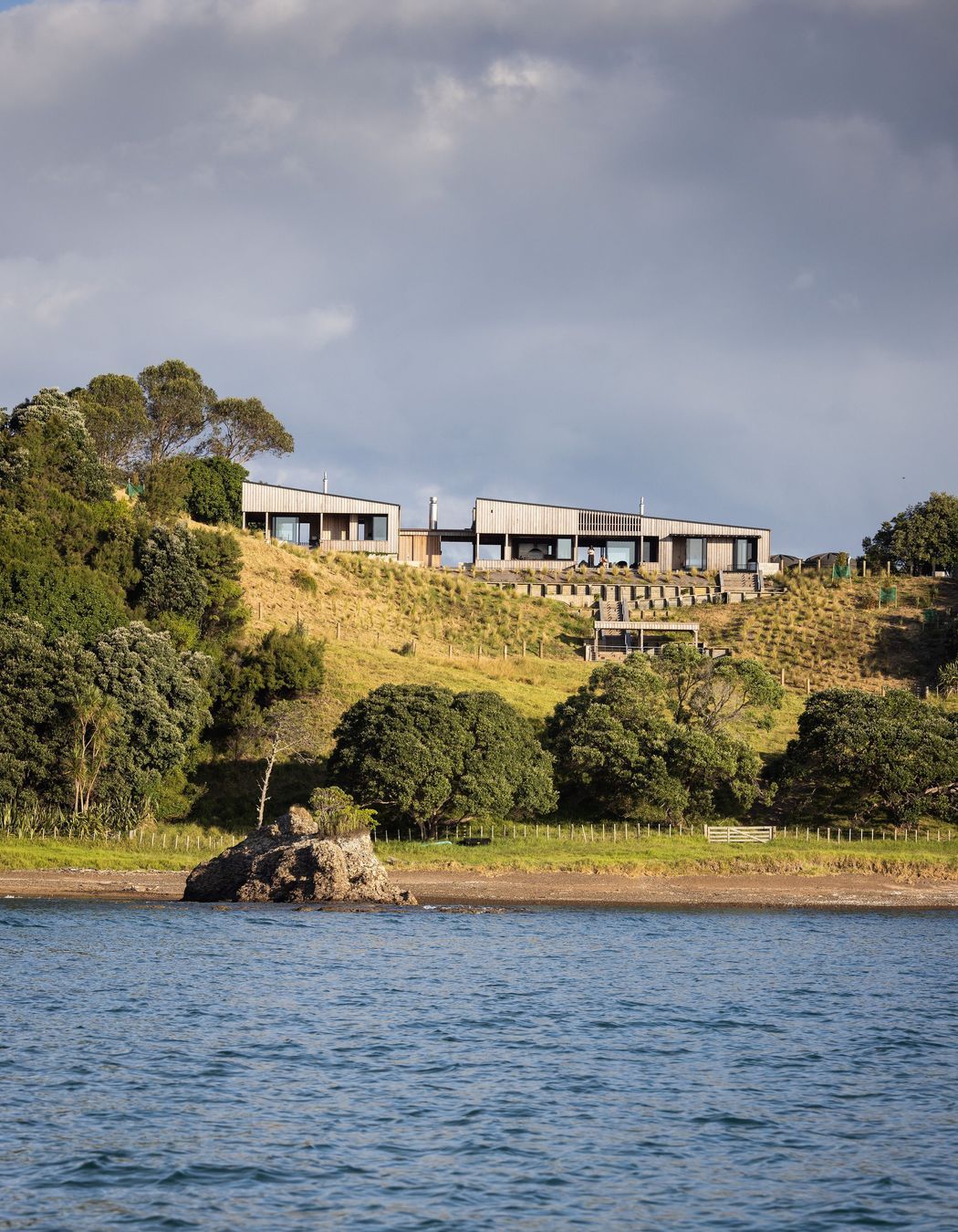

Accessible primarily by boat, the house fits snugly into the coastal ridgeline, with sweeping views to the north and south. The relatively remote nature of the site required full facilities for all potential needs, including excellent storage which is both internal and underfloor.

Working closely with neighbours, building zones and maximum height points were established to reduce the impact on distance views. As much as 2,000m3 of earth was relocated to the wider land area, creating flat areas around the perimeter of the building.

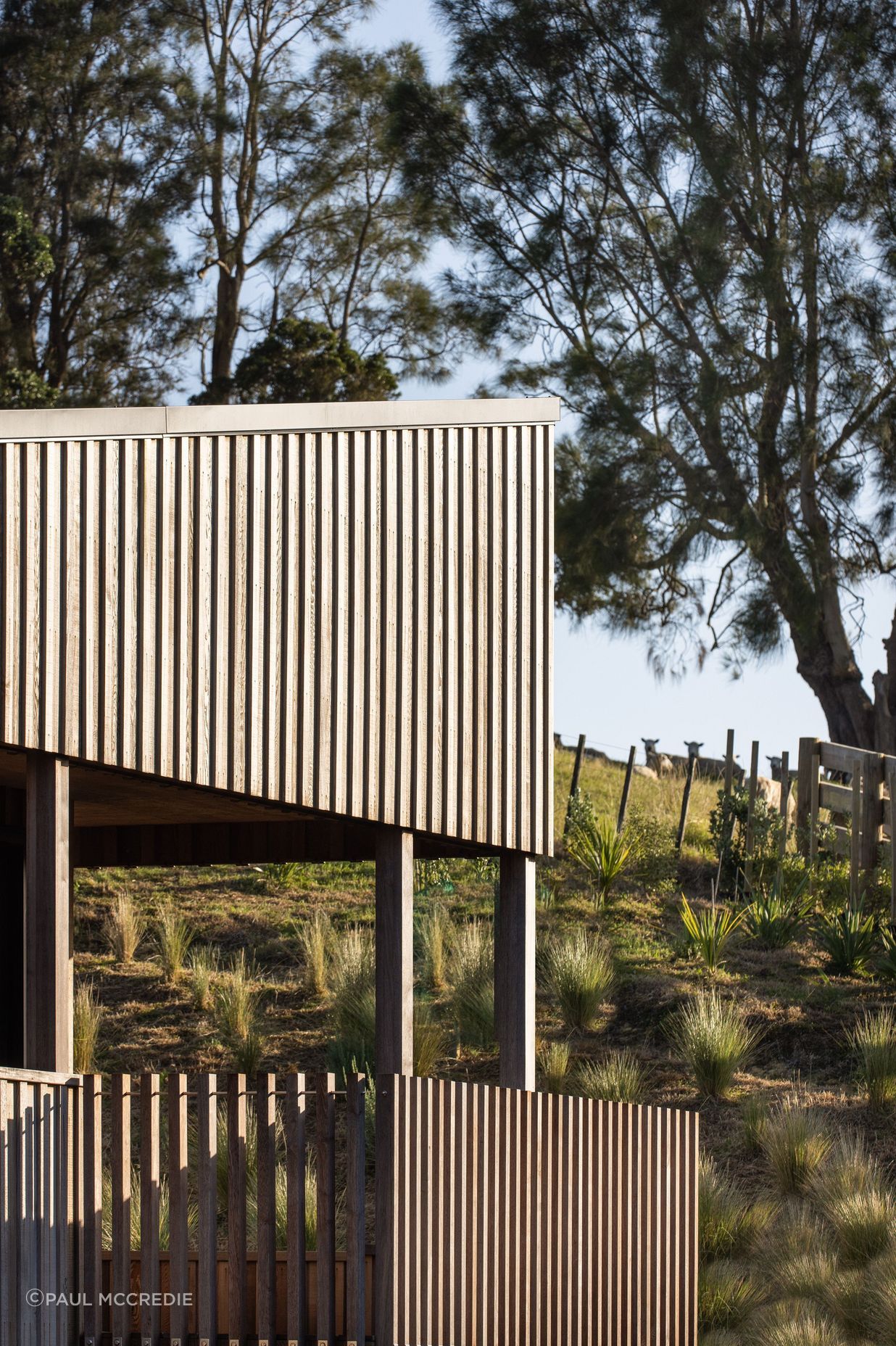

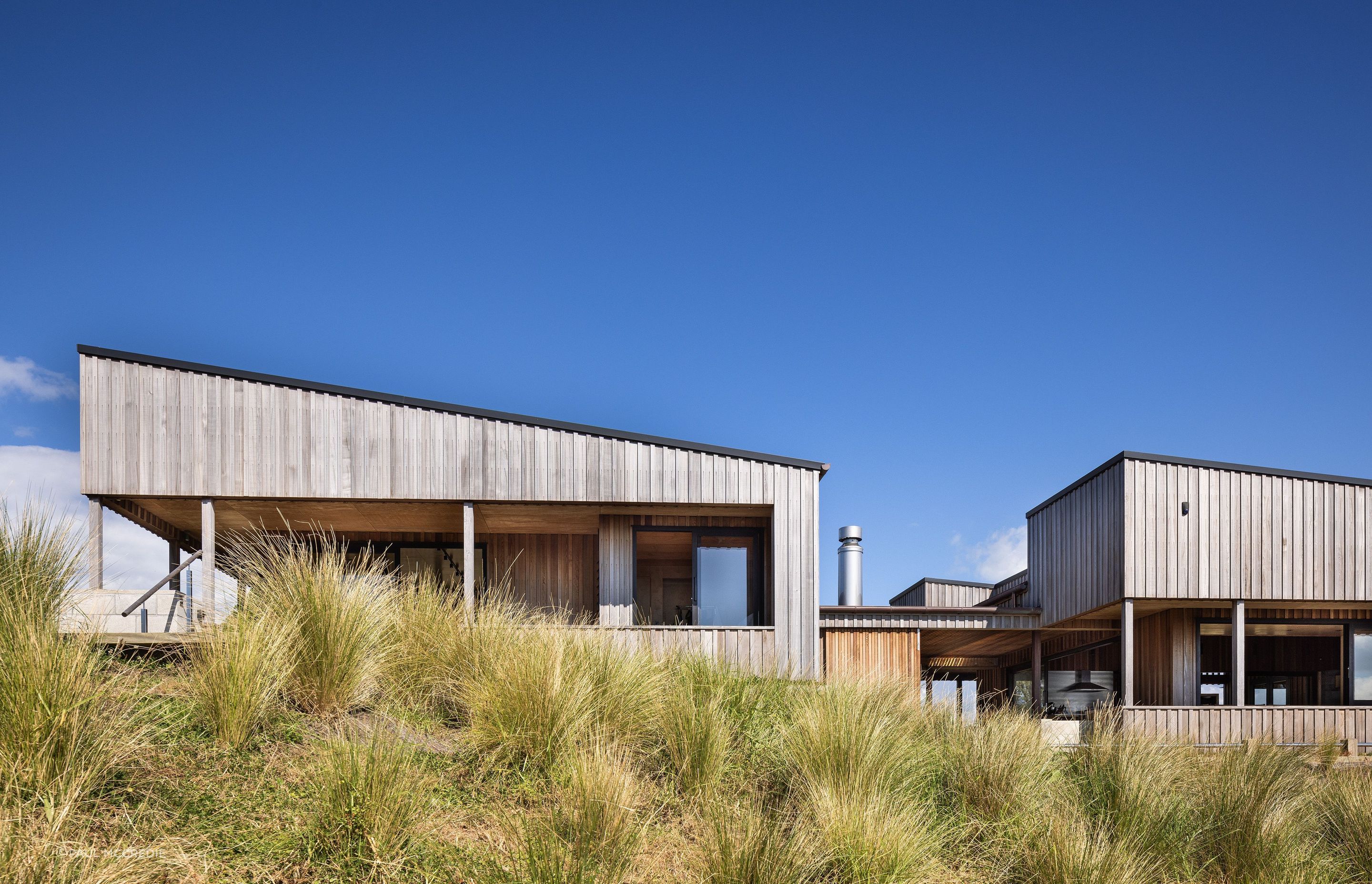

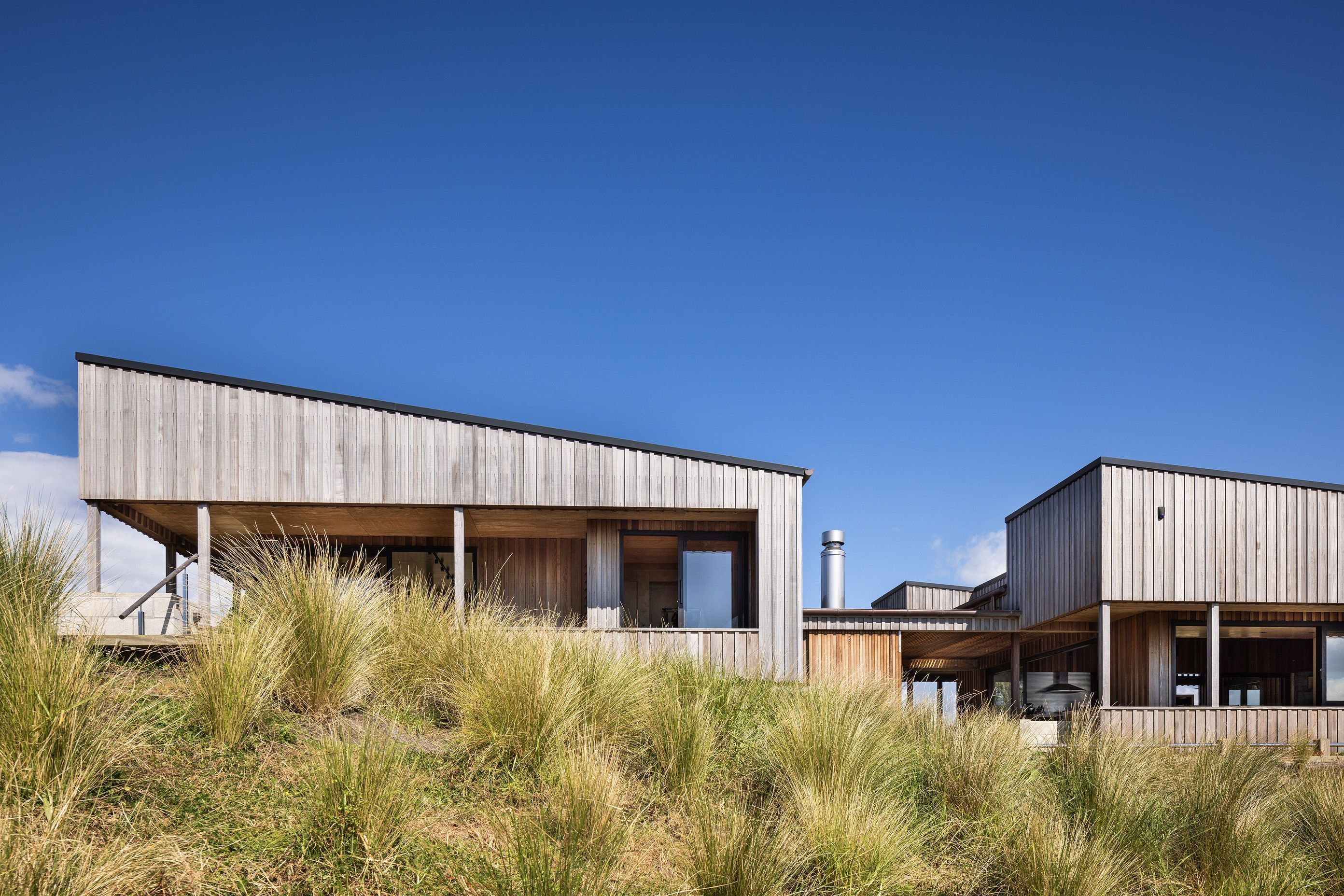

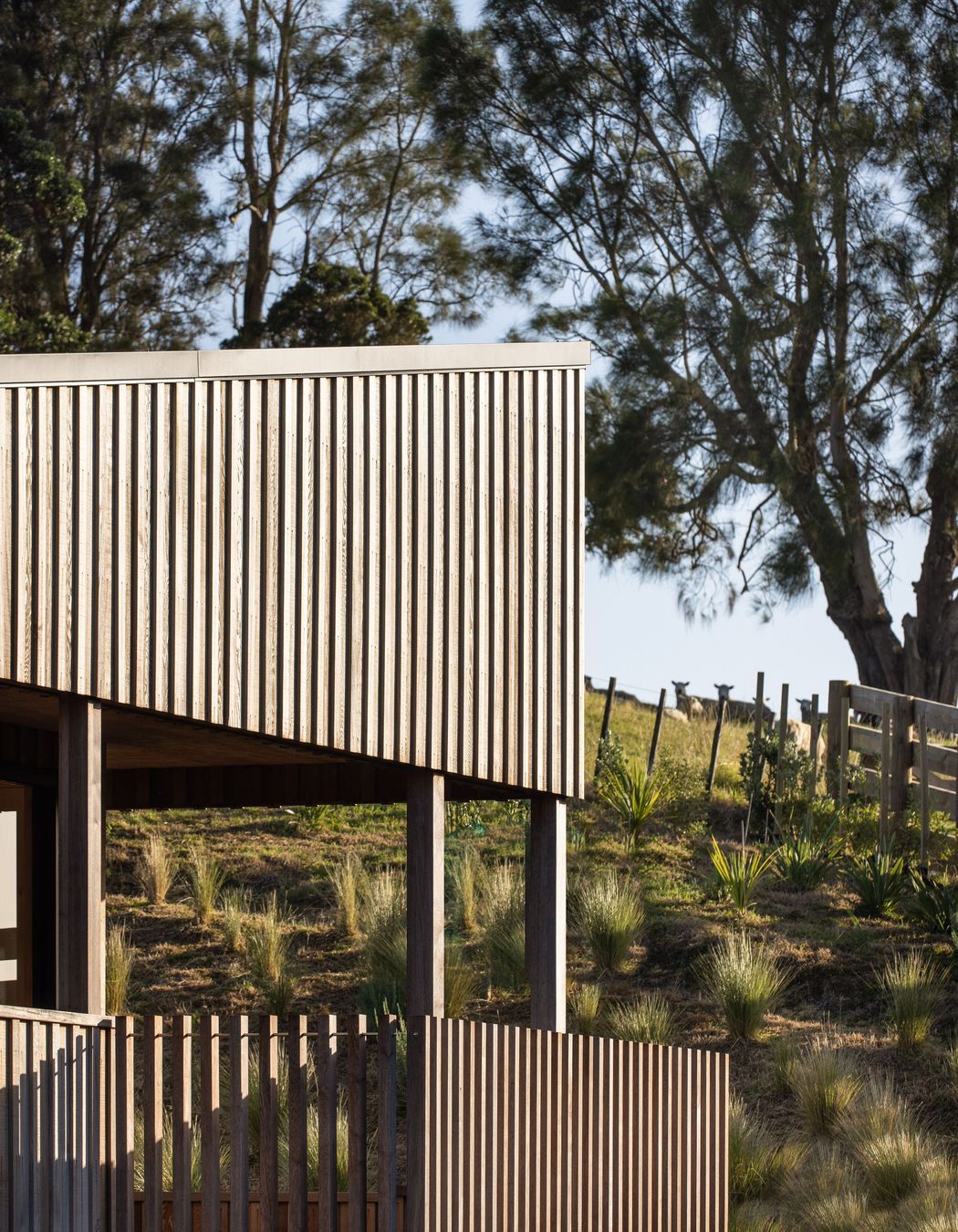

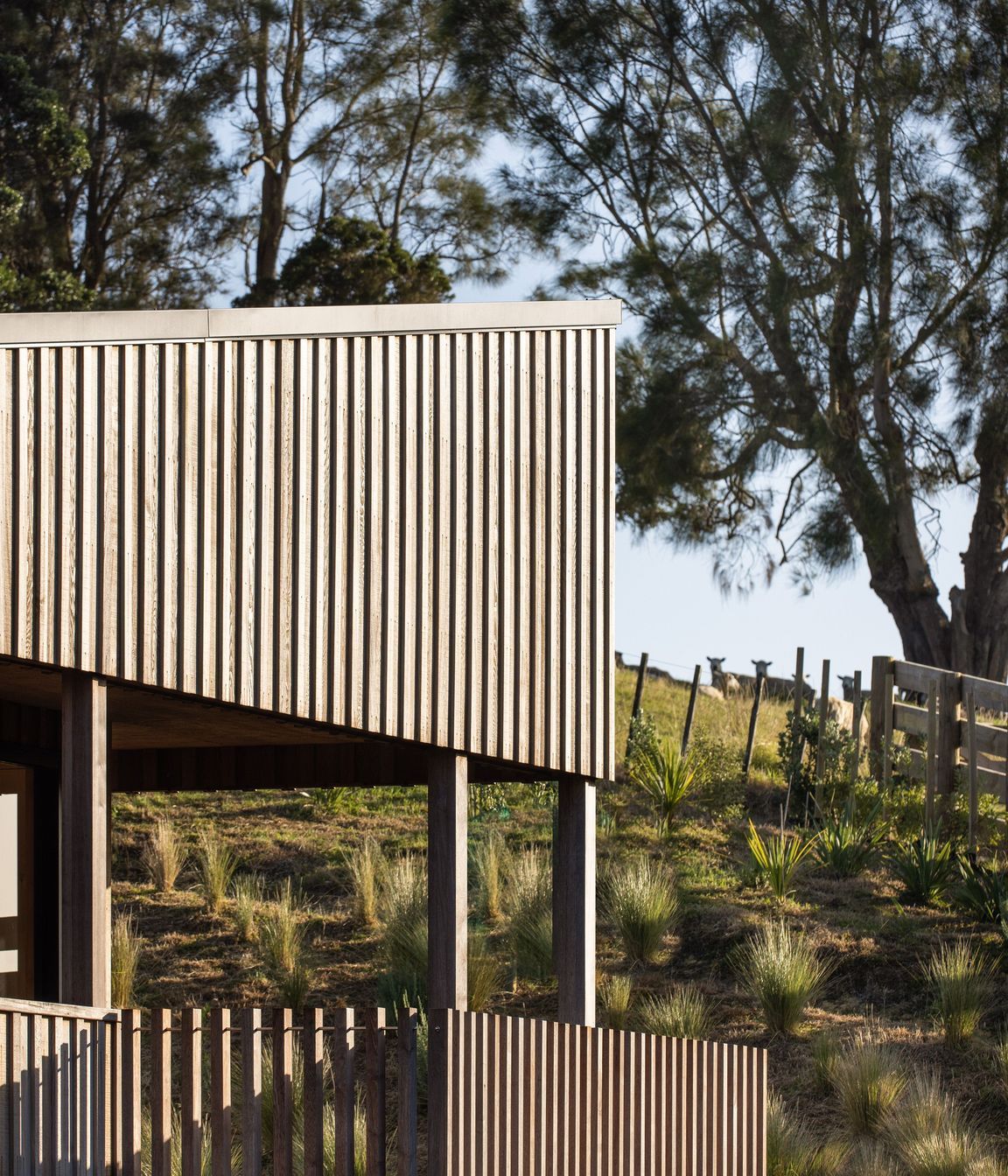

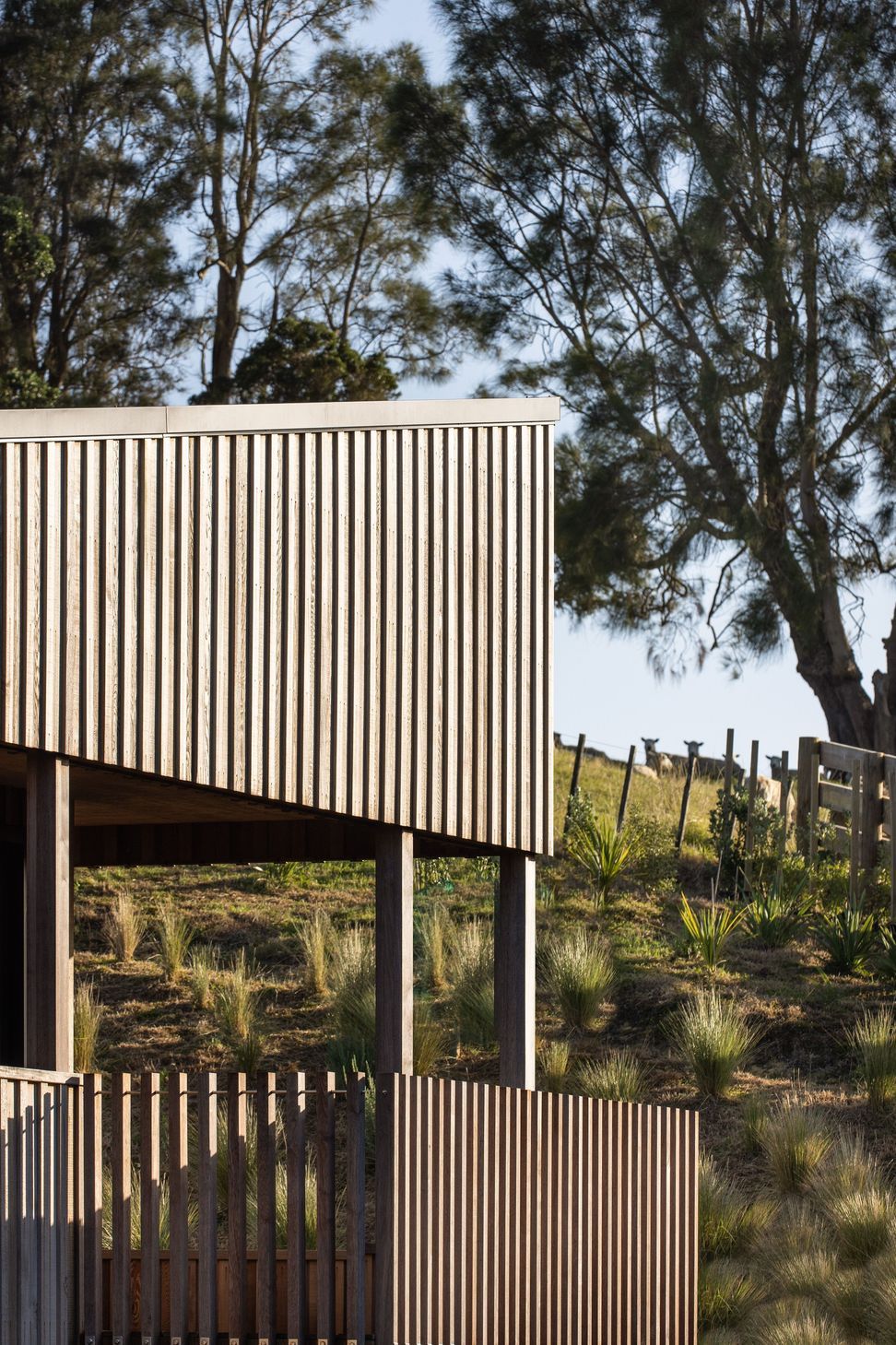

Given access limitations, minimal concrete was used, and no steel due to the harsh marine environment. Taking further cues from the reference house which has required little maintenance in 50 years, cedar board and batten cladding was chosen along with hardwood decking.

Awards and
recognition

2023
NZIA
Auckland Architectural Award, Housing
